Making UIM to LIM gasket....measurements?

Thread Tools

Search this Thread

Old 02-10-06, 04:24 PM
  #1
MattB

Thread Starter

MattB's Avatar

Join Date: Apr 2005
Location: Haverhill, MA
Posts: 1,124
Likes: 0
Received 0 Likes on 0 Posts
Making UIM to LIM gasket....measurements?
gimme some measurements...im at work and im gonna make a template...


-Matt
MattB is offline
Reply Like
Old 02-10-06, 04:26 PM
  #2
Sharp Claws

iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,107
Likes: 0
Received 41 Likes on 40 Posts
are people getting lazier or is it me?


it is much simpler to mark a piece of paper than to take measurements. someone is gonna have to be real bored to do this for ya.
RotaryEvolution is offline
Reply Like
Old 02-10-06, 04:29 PM
  #3
I R SAD PANDA W/O BAW


ilike2eatricers's Avatar

Join Date: Nov 2002
Location: bay area
Posts: 6,061
Likes: 0
Received 1 Like on 1 Post
JESUS! just put a piece paper over the manifold and trace it out. if you're really lazy just use RTV.
ilike2eatricers is offline
Reply Like
Old 02-11-06, 11:58 AM
  #4
MattB

Thread Starter

MattB's Avatar

Join Date: Apr 2005
Location: Haverhill, MA
Posts: 1,124
Likes: 0
Received 0 Likes on 0 Posts

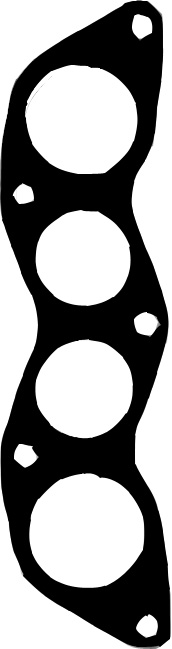

whalla.....my gasket template...actual size if anyone else needs it...


-Matt
Attached Thumbnails Making UIM to LIM gasket....measurements?-gasket.jpg
MattB is offline
Reply Like
Old 02-11-06, 03:36 PM
  #5
Law Breaker


Carzy Driver's Avatar

Join Date: Oct 2005
Location: S.F. Bay Area, California 510
Posts: 3,333
Likes: 0
Received 0 Likes on 0 Posts
could have just placed the gasket paper on the upper manifold surface and tapped the edges with a ball ping hammer. gives a great trace line and is a hella lot easier.
Carzy Driver is offline
Reply Like
