Making Radiator Koyo Shroud this weekend! Any suggestions?
#1
Full Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Oct 2003
Location: Naugatuck, Connecticut
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
![Talking](https://www.rx7club.com/images/icons/icon10.gif)
I am finally going to make the radiator shroud out of a stock aluminum piece for a koyo radiator 87 TII. Any ideas, suggestions, measurements, installation tips, or pics of your shroud would be great as well. Thanks!
#3
Banned. I got OWNED!!!

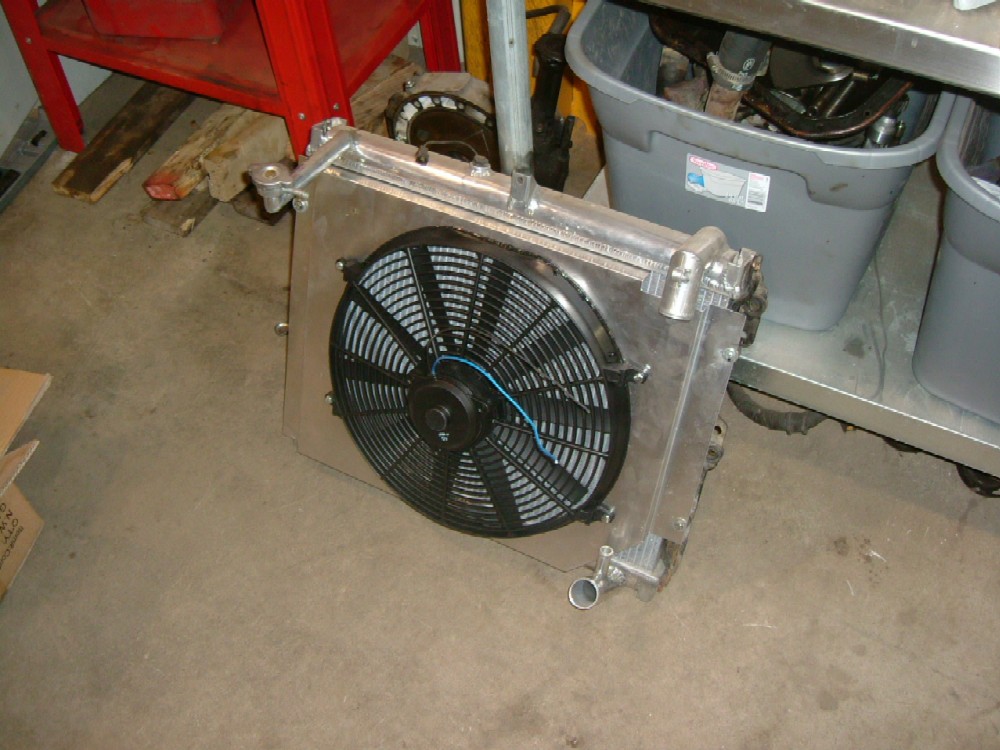

Pics of the old steel one that I made for the stocker. Ignore the bench.... has since been replaced with a a solid SS one
. StarScream owns the whole setup now. BTW L if you read this - PM me man... I wanna make sure you got everything
![](http://forum.teamfc3s.org/attachment.php?attachmentid=33890&d=1140186078)
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
#5
Banned. I got OWNED!!!
How much would you pay though? Without one of those really ubber adjustable brakes you are forced to do it the way I did and weld it together. I could have made a few bends instead of cutting had my brake been bigger. Otherwise you need a bunch of different peices and it becomes kinda time consuming. If that took me ~4 hours & I charge $50 an hour, would you buy one?
#7
As usual with FC products....demand isn't the problem. Its purchasing. As in no one actually does it, but everyone says they'd like to/are going to.
But in most cases, people buy fans that come with shrouds and then you jsut make some brackets. The most popular fan for the 7 is a Taurus fan because it works well and comes as a shrouded unit that you simply make brakets for. Very simple stuff.
But in most cases, people buy fans that come with shrouds and then you jsut make some brackets. The most popular fan for the 7 is a Taurus fan because it works well and comes as a shrouded unit that you simply make brakets for. Very simple stuff.
Trending Topics
#8
Banned. I got OWNED!!!
That sneedspeed one is still generic. No boltholes drilled etc...
The taurus fan is ridiculously ineffiecient. Way too many amps, bad seal with the rad. I had a little 16" pull 11.7A (supposedly) but it pulled air through the whole rad so it made the most use og the energy that it was stealing.
The taurus fan is ridiculously ineffiecient. Way too many amps, bad seal with the rad. I had a little 16" pull 11.7A (supposedly) but it pulled air through the whole rad so it made the most use og the energy that it was stealing.
#9
Drive.
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Oct 2002
Location: Washington, North Carolina
Posts: 1,676
Likes: 0
Received 1 Like
on
1 Post
How much would you pay though? Without one of those really ubber adjustable brakes you are forced to do it the way I did and weld it together. I could have made a few bends instead of cutting had my brake been bigger. Otherwise you need a bunch of different peices and it becomes kinda time consuming. If that took me ~4 hours & I charge $50 an hour, would you buy one?
#10
Drive.
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Oct 2002
Location: Washington, North Carolina
Posts: 1,676
Likes: 0
Received 1 Like
on
1 Post
That sneedspeed one is still generic. No boltholes drilled etc...
The taurus fan is ridiculously ineffiecient. Way too many amps, bad seal with the rad. I had a little 16" pull 11.7A (supposedly) but it pulled air through the whole rad so it made the most use og the energy that it was stealing.
The taurus fan is ridiculously ineffiecient. Way too many amps, bad seal with the rad. I had a little 16" pull 11.7A (supposedly) but it pulled air through the whole rad so it made the most use og the energy that it was stealing.
#11
Likes to swear....alot
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (3)
Join Date: Dec 2002
Location: Kitchener Ontario Canada
Posts: 3,791
Likes: 0
Received 3 Likes
on
3 Posts
That sneedspeed one is still generic. No boltholes drilled etc...
The taurus fan is ridiculously ineffiecient. Way too many amps, bad seal with the rad. I had a little 16" pull 11.7A (supposedly) but it pulled air through the whole rad so it made the most use og the energy that it was stealing.
The taurus fan is ridiculously ineffiecient. Way too many amps, bad seal with the rad. I had a little 16" pull 11.7A (supposedly) but it pulled air through the whole rad so it made the most use og the energy that it was stealing.
Wow thats soooo much work!!
![rofl](https://www.rx7club.com/images/smilies/rofl.gif)
#12
Drive.
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Oct 2002
Location: Washington, North Carolina
Posts: 1,676
Likes: 0
Received 1 Like
on
1 Post
So you actually used the sneed speed shroud? Would you happen to have any pics of it installed? I'm using the stock shroud on my koyo, and it works I guess, but not the best setup IMO.
#13
I never said I used it
But it does work well, sealing etc. is all a matter of how well you do it. Same can be said for anything that isn't an absolute direct bolt on plug in kit with zero modification and comes with all necessary hardware (ie. too expensive for most FC owners to consider)
There's many other options though, like the one R.P.M. linked to.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
There's many other options though, like the one R.P.M. linked to.
#15
Banned. I got OWNED!!!
It's not just drilling holes.... think about how much air is being pulled by the fan through the gaps where it's not sealed. Air will follow the path of least resistance. To me, that is half assed. Look at just about any factory shroud. It will cover and seal to virtually 100% of the core. There is a reason for that.
I am calm
I agree that most FC owners won't pay. But I always remember what my grandfaterh told me - A lazy man will work twice as hard as a hard working man.
I am calm
I agree that most FC owners won't pay. But I always remember what my grandfaterh told me - A lazy man will work twice as hard as a hard working man.
#16
It's not just drilling holes.... think about how much air is being pulled by the fan through the gaps where it's not sealed. Air will follow the path of least resistance. To me, that is half assed. Look at just about any factory shroud. It will cover and seal to virtually 100% of the core. There is a reason for that.
I am calm
I agree that most FC owners won't pay. But I always remember what my grandfaterh told me - A lazy man will work twice as hard as a hard working man.
I am calm
I agree that most FC owners won't pay. But I always remember what my grandfaterh told me - A lazy man will work twice as hard as a hard working man.
#20
Full Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Oct 2003
Location: Naugatuck, Connecticut
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
That is a good idea to create a shroud that everyone would buy. maybe one of the carbon fiber dudes or sellers in this forum can engineer something for the koyo instead of focusing on carbon fiber shifter covers. I would pay $100 easy for a good looking shroud such as the one pictured above.
Calling on someone to step up!
Calling on someone to step up!
#22
Banned. I got OWNED!!!
ya need to understand a few things about me
I'm as *******
Obsessive compulsive
Concrete Sequential to a fault
A perfectionist
and very frank
I think the Sneedspeed design leave alot to be desired. Something that's being advertised as fitting a certain car should do so out of the box. End of discussion. You can probably buy a shroud from Summit for ~$40 make the same cuts to clear the hoses and viola, done for almost half the price. Go to Sherco-auto.com for the fans.... I did - twice now. You shouldn't have to drill holes to make it fit... wtf? Half assed. Leaving holes in the shroud... half assed. Is it better than just bolting something on, hells yeah. Is that shroug the cats meow? **** no... Is Mine - No. My point is - go big or go home, do it right or don't do it at all, sitting at a stop light with no real pressure variant I see those holes as being a potential problem.
I'm as *******
Obsessive compulsive
Concrete Sequential to a fault
A perfectionist
and very frank
I think the Sneedspeed design leave alot to be desired. Something that's being advertised as fitting a certain car should do so out of the box. End of discussion. You can probably buy a shroud from Summit for ~$40 make the same cuts to clear the hoses and viola, done for almost half the price. Go to Sherco-auto.com for the fans.... I did - twice now. You shouldn't have to drill holes to make it fit... wtf? Half assed. Leaving holes in the shroud... half assed. Is it better than just bolting something on, hells yeah. Is that shroug the cats meow? **** no... Is Mine - No. My point is - go big or go home, do it right or don't do it at all, sitting at a stop light with no real pressure variant I see those holes as being a potential problem.
#23
always searchin
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2004
Location: home of the Airborne, NC
Posts: 409
Likes: 0
Received 0 Likes
on
0 Posts
![Thumbs down](https://www.rx7club.com/images/icons/icon13.gif)
that sneedspeed shroud looks really tacky and poorly made. the corners where the hoses are, arent even coverd. they just chopped off the corners w/o making a seal around the entire radiator core. kinda useless at that point b/c it will start to pull air from those corner chops. your wasting your money with them. for around $70 there's a guy on ebay who'll make your shroud to spec.
if your going to fab something up, make sure to cover the entire core and seal it as best as possible. this way the air will be pulled from one side THROUGH the other, not the corners out. i made mine to fit the core of the rad. TitaniumTT has the right idea w/ the black shroud that he fabbed. mine's very similar.
if your going to fab something up, make sure to cover the entire core and seal it as best as possible. this way the air will be pulled from one side THROUGH the other, not the corners out. i made mine to fit the core of the rad. TitaniumTT has the right idea w/ the black shroud that he fabbed. mine's very similar.
Last edited by lnlycrpr; 05-26-07 at 06:13 PM.
#24
Full Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Oct 2003
Location: Naugatuck, Connecticut
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
![Wink](https://www.rx7club.com/images/icons/icon12.gif)

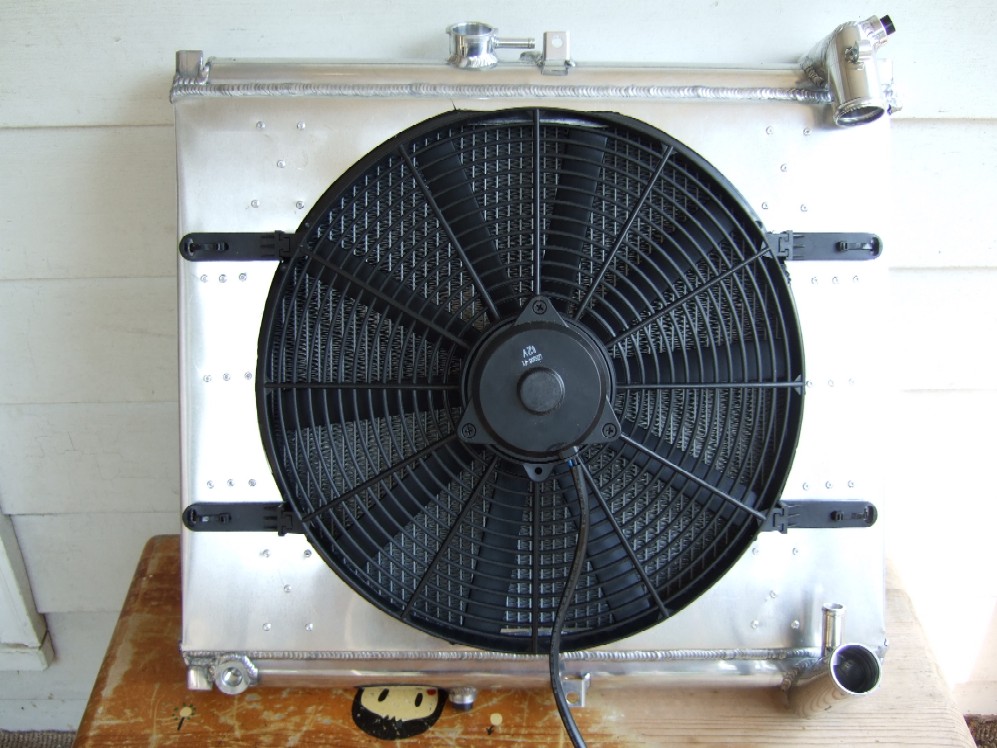

Here is my Shroud. A piece of aluminum fro Home Depot, $20, Riveter, $16, Rivets $2, for a grand total of $38. I basically made it 3/4" high and used rivets to male the box itself. I also added stiffener plates inside to reduce vibration and add strenght to the aluminum. I did not want it too flimsy. I then riveted to th eradiator side themselves and used zip ties for installation and quick removal of the fan, then RTV the edges. Total, 3 hours.
