Leading coil switched power?
#1
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Jul 2004
Location: kansas
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
Leading coil switched power?
Hi all , would like to know which wire for the leading coil that you get the switched power from?
cause i have a MSD 6AL and i am not getting any power to the Microtech at all....
pls help thanks

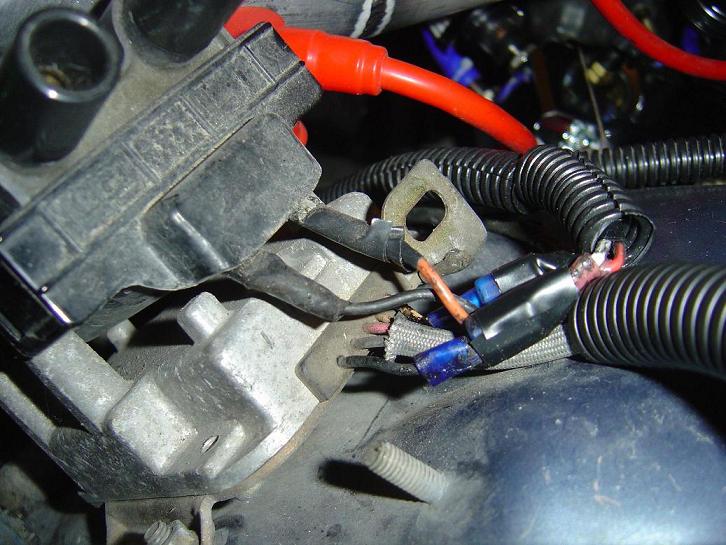

with the MSD wired in now to the leading coil (previous owner) did it.....i wire the pink wire to the tan wire in the middle coming out from the silver sleeve
pls help
cause i have a MSD 6AL and i am not getting any power to the Microtech at all....
pls help thanks
with the MSD wired in now to the leading coil (previous owner) did it.....i wire the pink wire to the tan wire in the middle coming out from the silver sleeve
pls help
#2
I hate to tell you but those Crimp on connectors will fail and will cause you all kinds of troubles you shuold replace each of those with a good solder point.
Black/yellow on the harness side is 12v switched, on the coil side it is L Green.
Black/yellow on the harness side is 12v switched, on the coil side it is L Green.
Last edited by jreynish; 01-18-05 at 09:38 PM.
#3
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
#4
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Jul 2004
Location: kansas
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the website RETed. After checking the MSD are wired correctly like your website
i notice i have two prongs with two wires , one black and one green(both with yellow stripes) and it is not connected.... where should i connect two of those wires to actually?
i soldered the pink wire of the microtech to the tan wire coming out from the silver sleeve and grey/blue wire of the microtech to the pink wire on coming out from the silver sleeve and the black wire is not connected to anything....
thanks all
i notice i have two prongs with two wires , one black and one green(both with yellow stripes) and it is not connected.... where should i connect two of those wires to actually?
i soldered the pink wire of the microtech to the tan wire coming out from the silver sleeve and grey/blue wire of the microtech to the pink wire on coming out from the silver sleeve and the black wire is not connected to anything....
thanks all
#5
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Jul 2004
Location: kansas
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts

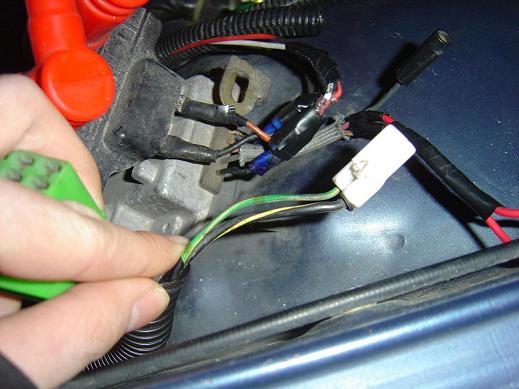

here is a picture of the wire im talking about.....
am i suppose to splice it into the MT wiring as well? something like piggyback on it?
am i suppose to splice it into the MT wiring as well? something like piggyback on it?
Last edited by FC_mania; 01-19-05 at 01:46 AM.
#6
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Jul 2004
Location: kansas
Posts: 420
Likes: 0
Received 0 Likes
on
0 Posts
FINALLY it is those wires ... LoL silly me i got it to start WOOHOO~
but all my idiots lights are out and the yellow tps light is out only when the engine is running .... is it like that?
but all my idiots lights are out and the yellow tps light is out only when the engine is running .... is it like that?
