Installing s4 jspec intakes
#1
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
Installing s4 jspec intakes
I have 8 pictures of the s4 aspec and jspec intakes showing the differences and having a few questions with them...if someone could upload for me...I am having problems with the server for some reason.
Anyways I just notice there are only 2 nipples on the back side of the uim on the jspec intake....there was 4 on the a-spec. So i am not sure exactly what to do with all the air bleed vac hoses that went there before.
Also there is a break booster hose on the intake...and there wasnt on the aspec...I am just going to block that off then...is that ok? Also there are a few little gadgets on the back and on top of the aspec LIM that wont go anywhere on the jspec LIM which I have no idea what to do with then. Just not going to hook them up I guess???
I figure just hook up what i know and the stuff that wont go into the jspec intake manifolds I just leave off and dont worry about??
The pictures will show more of what im talking about if someone can upload them.
Anyways I just notice there are only 2 nipples on the back side of the uim on the jspec intake....there was 4 on the a-spec. So i am not sure exactly what to do with all the air bleed vac hoses that went there before.
Also there is a break booster hose on the intake...and there wasnt on the aspec...I am just going to block that off then...is that ok? Also there are a few little gadgets on the back and on top of the aspec LIM that wont go anywhere on the jspec LIM which I have no idea what to do with then. Just not going to hook them up I guess???
I figure just hook up what i know and the stuff that wont go into the jspec intake manifolds I just leave off and dont worry about??
The pictures will show more of what im talking about if someone can upload them.
Last edited by Husemoller; 04-24-04 at 04:44 PM.
#2
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Oct 2002
Location: California, Bay Area
Posts: 1,165
Likes: 0
Received 0 Likes
on
0 Posts
i wouldnt block off the brake booster, its kinda hard to stop the car without it. I had to stop it once when it was rolling with the motor off, very hard.
#3
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
Well yeah...but If the brake booster is on the TB for the aspec stuff...wouldnt it still be there considering i didnt change the TB?
so it should still have the brake booster all hooked up...just not the same spot as the jspec.
Also im looking at the haynes manual right now...and I remember reading that like 2 or 3 of the solenoids are hooked to the ACV...which i do not have anymore. But not sure which ones they are.....but im assuming its #2-4...Switching solenoid valce...pressure regulator control solenoid valve and relief solenoid valve? ....since there is also EGR solenoid valve...and the twin scroll valve...so its obviously not them. But i guess I could remove the EGE valve now too then huh? since the jspec intake manifolds dont have them. Does this sound correct so far?
so it should still have the brake booster all hooked up...just not the same spot as the jspec.
Also im looking at the haynes manual right now...and I remember reading that like 2 or 3 of the solenoids are hooked to the ACV...which i do not have anymore. But not sure which ones they are.....but im assuming its #2-4...Switching solenoid valce...pressure regulator control solenoid valve and relief solenoid valve? ....since there is also EGR solenoid valve...and the twin scroll valve...so its obviously not them. But i guess I could remove the EGE valve now too then huh? since the jspec intake manifolds dont have them. Does this sound correct so far?
Last edited by Husemoller; 04-24-04 at 04:54 PM.
#4
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
OK..apperently these work now.....can someone delete the post before this...since the pics dont work
http://www.imagestation.com/picture/...1/f8e5cc02.jpg
http://www.imagestation.com/picture/...0/f8e5cbfd.jpg
http://www.imagestation.com/picture/...c/f8e5cbea.jpg
http://www.imagestation.com/picture/...3/f8e5cbf6.jpg
http://www.imagestation.com/picture/...3/f8e5cc01.jpg
http://www.imagestation.com/picture/...6/f8e5cbf3.jpg
http://www.imagestation.com/picture/...6/f8e5cbef.jpg
http://www.imagestation.com/picture/...7/f8e5cbe7.jpg
http://www.imagestation.com/picture/...1/f8e5cc02.jpg
http://www.imagestation.com/picture/...0/f8e5cbfd.jpg
http://www.imagestation.com/picture/...c/f8e5cbea.jpg
http://www.imagestation.com/picture/...3/f8e5cbf6.jpg
http://www.imagestation.com/picture/...3/f8e5cc01.jpg
http://www.imagestation.com/picture/...6/f8e5cbf3.jpg
http://www.imagestation.com/picture/...6/f8e5cbef.jpg
http://www.imagestation.com/picture/...7/f8e5cbe7.jpg
Last edited by Husemoller; 04-24-04 at 07:25 PM.
#6
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
Alright I think I figured out what is going on with this now.
but...
http://www.imagestation.com/picture/...0/f8e5a711.jpg
I believe it goes to the one not in red! is that correct?
but...
http://www.imagestation.com/picture/...0/f8e5a711.jpg
I believe it goes to the one not in red! is that correct?
Last edited by Husemoller; 04-24-04 at 08:08 PM.
#7
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Re: Installing s4 jspec intakes
I haven't looked at the pics, but I know the J-spec manifold well, since I have one,
The big one on both manifolds is for the oil nozzle line. The one at the bottom of the US-spec manifold is for the double-throttle system, which can be left disconnected (or removed during the TB mod). The other small ones are the injector air bleeds. The J-spec only has them for the secondary injectors. You can run one line from the J-spec manifold and tee it to the two injector bleeds on your engine.
There is a connection for the brake booster on the US-spec manifold, it's just in a different place because the brake booster's on the other side of the engine bay. You still need to connect the brake booster up or you'll have no braking assistance. You'll need to run a new line to connect the manifold to the booster. Don't forget to put the check valve in.
The only extra things the US-spec manifold had on it were the EGR valve (LIM) and the AWS solenoid valve for the 3000rpm start-up (UIM). Just leave them off.
Hope that helps.
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
Originally posted by Husemoller
...there are only 2 nipples on the back side of the uim on the jspec intake....there was 4 on the a-spec. So i am not sure exactly what to do with all the air bleed vac hoses that went there before.
...there are only 2 nipples on the back side of the uim on the jspec intake....there was 4 on the a-spec. So i am not sure exactly what to do with all the air bleed vac hoses that went there before.
Also there is a break booster hose on the intake...and there wasnt on the aspec...I am just going to block that off then...is that ok?
Also there are a few little gadgets on the back and on top of the aspec LIM that wont go anywhere on the jspec LIM which I have no idea what to do with then.
Hope that helps.
Trending Topics
#8
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
So T up all 3? seconday ..primary...and oil injector air bleed?
And I havnt wentout side to look at the brakebooster thing... but is the checkvalve the little green thing that is on the side of the TB and uim?
And I havnt wentout side to look at the brakebooster thing... but is the checkvalve the little green thing that is on the side of the TB and uim?
#9
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally posted by Husemoller
So T up all 3? seconday ..primary...and oil injector air bleed?
So T up all 3? seconday ..primary...and oil injector air bleed?
...is the checkvalve the little green thing that is on the side of the TB and uim?
#10
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by NZConvertible
No, the big nipple is for the oil nozzles, the small one is for the injector bleeds.
No, the big nipple is for the oil nozzles, the small one is for the injector bleeds.
Originally posted by NZConvertible
No, that's the check valve for the double throttle system. The brake booster check valve is inside its hose.
No, that's the check valve for the double throttle system. The brake booster check valve is inside its hose.
Last edited by Husemoller; 04-25-04 at 12:22 PM.
#11
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally posted by Husemoller
...wouldnt I T up all 3 then to the small one? both primary and secondary airbleeds then the oil injector air bleed?
...wouldnt I T up all 3 then to the small one? both primary and secondary airbleeds then the oil injector air bleed?
#12
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
eheh i just pmed you right as i seen this! woops
I see now... I just thought there was 3 injector air hoses for some reason...thats why i was getting kind of confused.
I see now... I just thought there was 3 injector air hoses for some reason...thats why i was getting kind of confused.
Last edited by Husemoller; 04-25-04 at 05:38 PM.
#14
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
Alright I am installing them now and just want to make sure whats going on here now that I am to this point.
http://www.imagestation.com/picture/...8/f8be4fdc.jpg
Can I just cap Blue and Red ? I have yellow (fpr) connected to green right now. But I seen some pictures of yellow being connected to blue. so not sure if i should do that and cap green and red.
Now on the UIM there are 2 nipples...the big one and little. I will be capping the big nipple, oil nozzle right? I wont be having my oil injectors anymore. And I was suppose to T 2 lines together into the small ones. I only find one of the air bleed nipples. One being right between where the oil injectors were correct? Where is the other one? Is the other one the Blue circle?
Thanks! sorry for so many questions, I am still not very confident in my work on cars yet.
http://www.imagestation.com/picture/...8/f8be4fdc.jpg
Can I just cap Blue and Red ? I have yellow (fpr) connected to green right now. But I seen some pictures of yellow being connected to blue. so not sure if i should do that and cap green and red.
Now on the UIM there are 2 nipples...the big one and little. I will be capping the big nipple, oil nozzle right? I wont be having my oil injectors anymore. And I was suppose to T 2 lines together into the small ones. I only find one of the air bleed nipples. One being right between where the oil injectors were correct? Where is the other one? Is the other one the Blue circle?
Thanks! sorry for so many questions, I am still not very confident in my work on cars yet.
#16
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2002
Location: Duluth, MN
Posts: 419
Likes: 0
Received 0 Likes
on
0 Posts
http://www.imagestation.com/picture/...8/f8be4fdc.jpg
well I guess the picture didnt work but that one should.

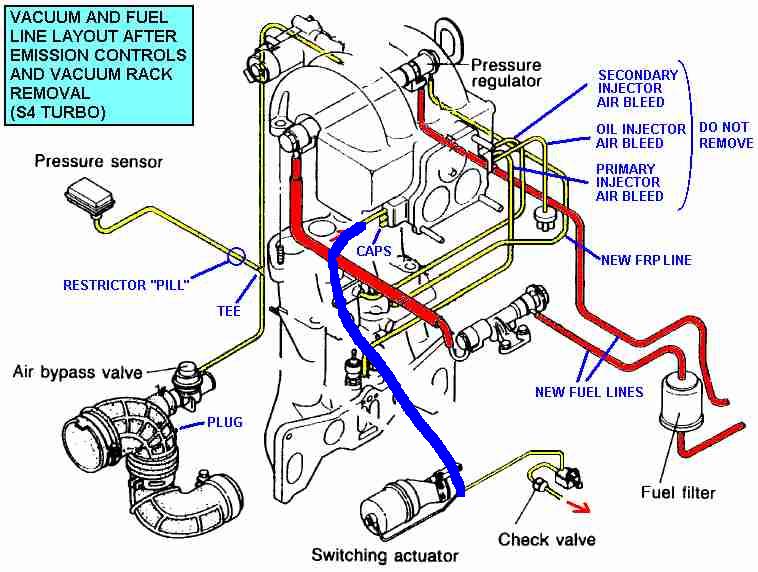

Anyways...i ended up running the blue circle to the yellow circle (fpr)and capped red and green. so then I have the nipple (not shown in pic) that is between the oil injecters going to the nipple on the UIM. and i might run the brake booster to the other bigger nipple on the UIM.So basicly that metal spider is worthless now except for that line going to the twin scroll or w/e its called. I dont really feel like getting into and removing all that junk right now. getting sick of working on the car hehe.
