How to replace engine belts?
#1
Full Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: May 2002
Location: Near Sacramento/Northridge
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
How to replace engine belts?
My questions never stop.
Anyways, I'm trying to replace the four belts in my engine bay, but my Chilton manual doesn't offer much help.
Can anyone tell me where to find the bolts to loosen/tighten the pulleys and instructions on how to pull off the fan to get the belts off after they're loosened?
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
Anyways, I'm trying to replace the four belts in my engine bay, but my Chilton manual doesn't offer much help.
Can anyone tell me where to find the bolts to loosen/tighten the pulleys and instructions on how to pull off the fan to get the belts off after they're loosened?
#2
SOLD THE RX-7!
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Mar 2001
Location: Vancouver, BC, Canada
Posts: 7,451
Likes: 0
Received 0 Likes
on
0 Posts
the fan is 4 nuts. kinda hard to get to. you'll need a wench. I think 10mm. and I use a flathead screwdriver across another nut to stop the fan from turning.
the alternator and air pump have ajustment brackets. losen both bolts on each and the will push closer to the engine. for the P/S and A/C. you have to lossen the big nut on the smaller pulleys (17,19, or 21mm) then there are long bolts on the top of the bracket to move the pulleys up and down.
the alternator and air pump have ajustment brackets. losen both bolts on each and the will push closer to the engine. for the P/S and A/C. you have to lossen the big nut on the smaller pulleys (17,19, or 21mm) then there are long bolts on the top of the bracket to move the pulleys up and down.
#3
Full Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: May 2002
Location: Near Sacramento/Northridge
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
D'oh!
Oops, forgot my last question. Does anyone have the lenth of the four belts? I can't exactly pull them off to take in since I need the car to get there.
Thanks
Thanks
#5
Junior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Dec 2002
Location: San Francisco, Ca
Posts: 30
Likes: 0
Received 0 Likes
on
0 Posts

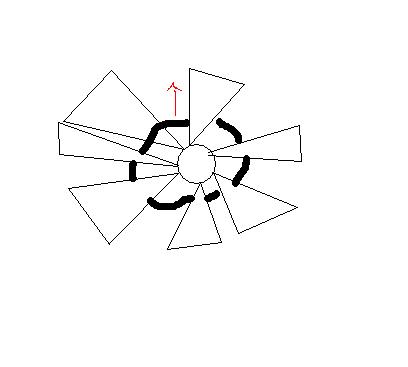

u do NOT HAVE TO REMOVE FAN, un-educated people these days, once u loosen the belts, u hold the belt on one fin and hold the belt on that fin, spin the fan, the belt should be on the opposite side.
kinda hard to explain, but lemme try make some pics.
-mike
kinda hard to explain, but lemme try make some pics.
-mike
Trending Topics
#9
Fast and easy way to remove belts...
1) find a pair of strong wire cutting pliers
2) cut all the belts but your alternator belt
4) remove the accessories that are now unpowered
3) smile while driving your more reliable, lighter, and faster car
4) mail me money to spend on my 20B project as thanks
Seriously though, do it.
2) cut all the belts but your alternator belt
4) remove the accessories that are now unpowered
3) smile while driving your more reliable, lighter, and faster car
4) mail me money to spend on my 20B project as thanks
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
#10
Seduced by the DARK SIDE
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
I always found it easier to take the fan off.
This assumes the nuts are in good shape and not over tightened.
I used a 10mm box end wrench (an open end will likely round off the nuts.)
A large adjustable wrench will handle the AC & PS idler pully nuts.
12mm & 14mm sockets will work for the air pump & alternator.
I switched to an electric fan last month - so now it's even easier.
This assumes the nuts are in good shape and not over tightened.
I used a 10mm box end wrench (an open end will likely round off the nuts.)
A large adjustable wrench will handle the AC & PS idler pully nuts.
12mm & 14mm sockets will work for the air pump & alternator.
I switched to an electric fan last month - so now it's even easier.
#11
When removing them off a friends 90' GTU, we had to take off that huge plastic fan cover, and then loosen the belt and work it around the fan. Actually, I think we got mad and just cut the old ones, and worked the new ones around the fan and put those on. It takes some time, but if you can remove the fan i'm sure it's muuucchhh easier.
#12
Full Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: May 2002
Location: Near Sacramento/Northridge
Posts: 100
Likes: 0
Received 0 Likes
on
0 Posts
Sorry to bring this up again guys, but I've ran into soem problems.
I was able to get off the power steering belt by removing the small bolts on the big pulley. However, I can't figure out how to get the A/C belt off.
Theres a weird long screw that runs into the piece behind the small pulley. (See Figure A)
Also I've been able to take off the big bolt on the same small pulley, it won't budge at all. (See Figure B) Any hints on that?
I was able to get off the power steering belt by removing the small bolts on the big pulley. However, I can't figure out how to get the A/C belt off.
Theres a weird long screw that runs into the piece behind the small pulley. (See Figure A)
Also I've been able to take off the big bolt on the same small pulley, it won't budge at all. (See Figure B) Any hints on that?
![](http://home.mindspring.com/~weyland_yutani/belts.gif)
#15
Senior Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Mar 2002
Location: San Lorenzo, CA, USA
Posts: 359
Likes: 0
Received 0 Likes
on
0 Posts
but then you'll have to spend all that time removing and re-installing the fan... i did my belts the first time and just took them off around the fan.... too lazy to take the fan off hehehe
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
