How to Rebuild a Stock HT-18 Turbo & Build a Hybrid
#51
Full Member
iTrader: (4)

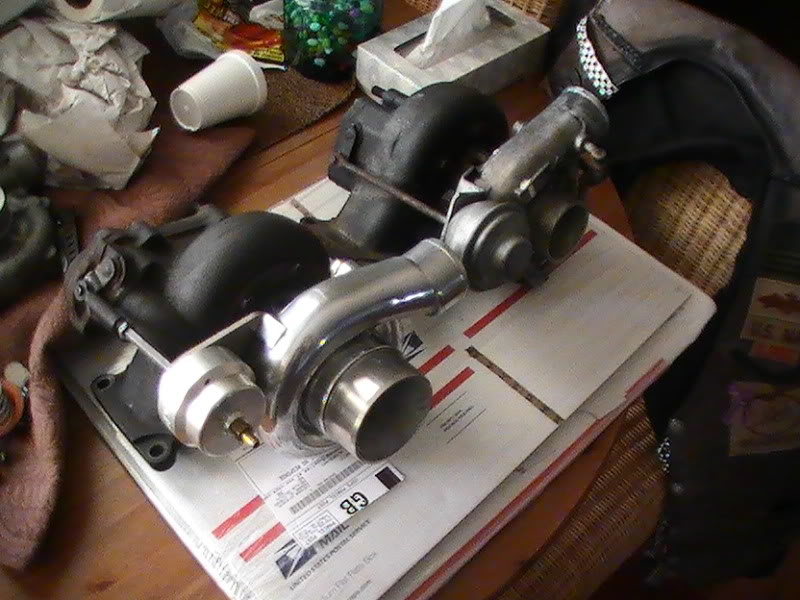

Got my T04B stuff today all new.
Garrett backplate
Comp turbo compressor Vtrim wheel

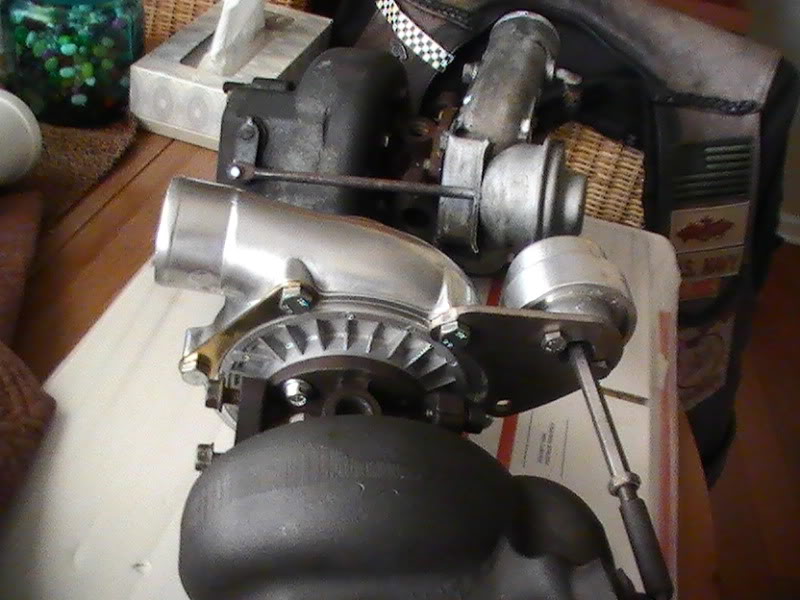

China polished Vtrim compressor housing

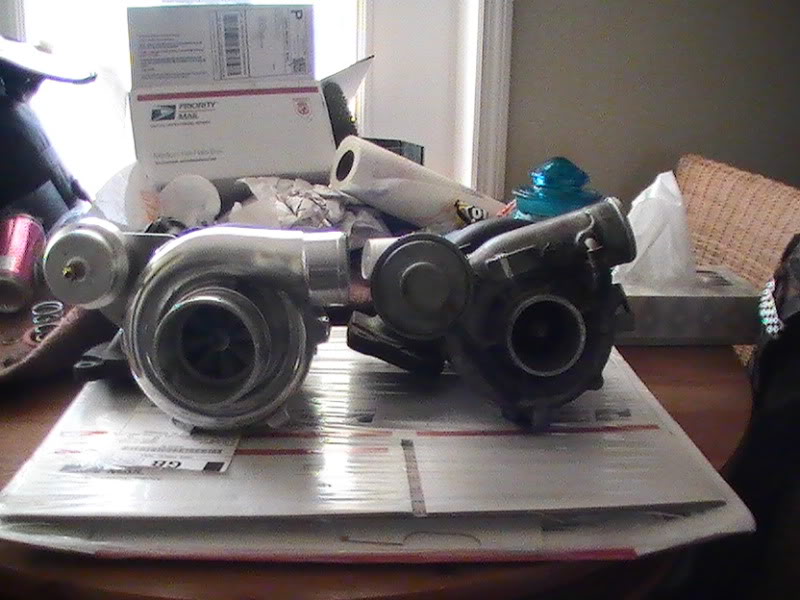

Total investment $157 so far.
I just need to get it balanced, S bend the actuator rod, make a new bolt on flange for the actuator(water jet @ school ), rebuild kit, and Bore the wastegate, and convert it to external vent aka "wastegater"
Garrett backplate
Comp turbo compressor Vtrim wheel
China polished Vtrim compressor housing
Total investment $157 so far.
I just need to get it balanced, S bend the actuator rod, make a new bolt on flange for the actuator(water jet @ school ), rebuild kit, and Bore the wastegate, and convert it to external vent aka "wastegater"
#53
Full Member
iTrader: (4)
Nope, i chose a parts dealer on ebay based in the US. turbo_r_us, good feedback and lots of quality parts. The Back plate and compressor wheel is legit. Only Chinese part is the housing. All parts are new also, the compressor wheel is by Comp Turbo, which make alot of nice turbos.
#56
Turbo power, activate!
iTrader: (7)
so 130 for the rebuild kit with 360 thrust and about 50-70 for a balance and the rest for labor.
$350 doesnt sound that bad, but spending around $200 for kit and balance and rebuilding it yourself is even better :P
The 360 thrust washer shouldve been in the drop menu.
$350 doesnt sound that bad, but spending around $200 for kit and balance and rebuilding it yourself is even better :P
The 360 thrust washer shouldve been in the drop menu.
#57
Rotary Freak
iTrader: (6)
I believe they thought the turbo was toast though, I did mention that it was just blowing oil and boosted ok. Standard t3 rebuild was $49+Shipping.
Does anyone(arghx) have any information for turbos w/ clearances and specifications to check/measure?
Typical turbo bearing clearances? Thrust movement? I will search.
Thanks
Does anyone(arghx) have any information for turbos w/ clearances and specifications to check/measure?
Typical turbo bearing clearances? Thrust movement? I will search.
Thanks
#58
Rotary Freak
iTrader: (6)
Found a great article, "Checking out a turbocharger, by Paul Stenquist," in Popular Mechanics March 1991.
Key points from the article.

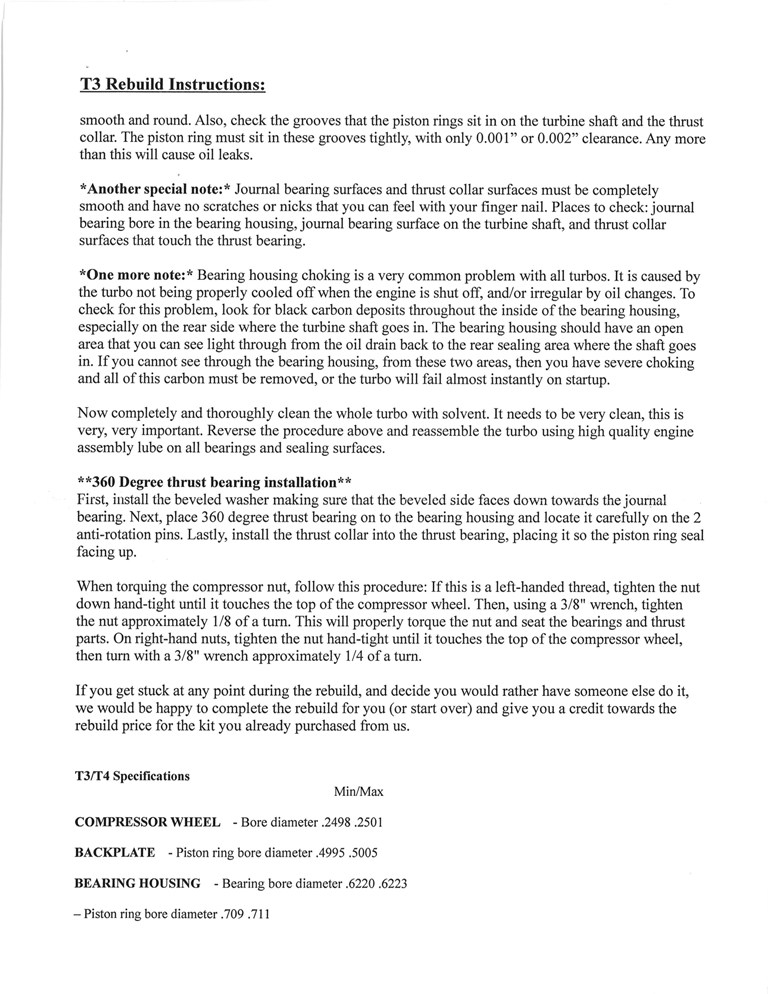

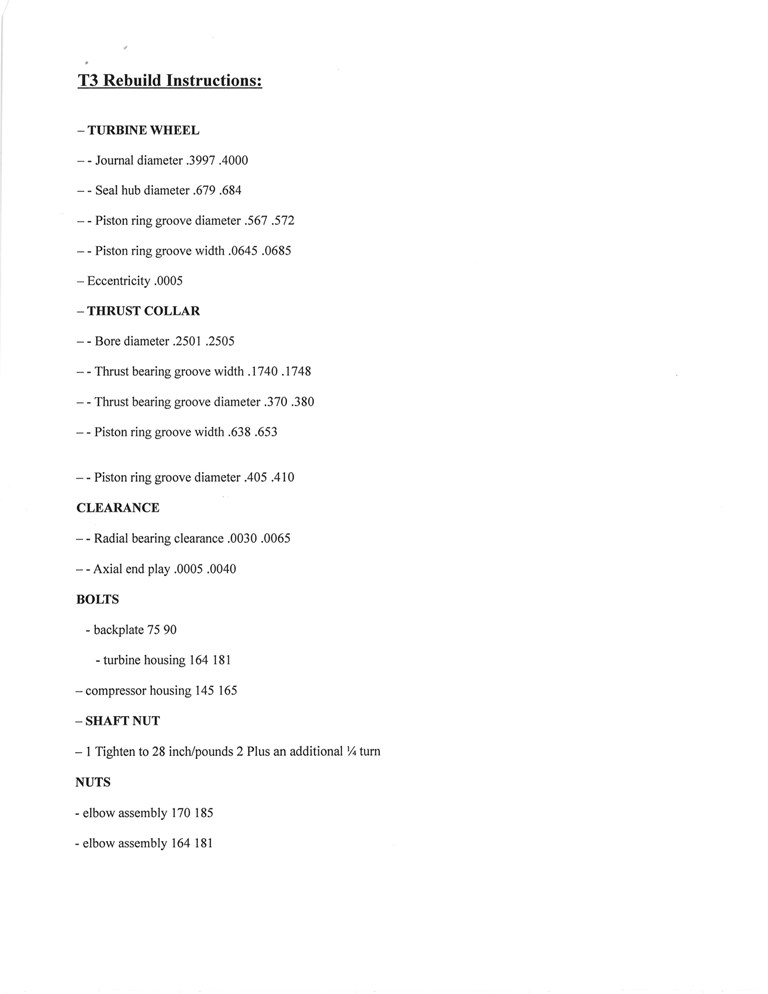

For a T3 the Turbine Shaft Bearing Journals should measure 0.3997in. to 0.4000in. Previously rebuilt turbos may have 0.0010-0.0015in. undersized shafts, which they sell oversized bearings for.
The bearing housing bore at the point where the turbine seal contacts it should measure 0.6220in. to 0.6223in. When assembled on the turbine shaft, the diameter of the turbine seal ringh (piston ring_ should measure 0.709in. to 0.711in.
The compressor wheel nut should be tightened to 18-20in-lb. plus 90 degrees.
Axial end play 0.001in to 0.004 in
Radial bearing clearance(up and down movement of shaft) 0.0030in. to 0.0065in.
Let idle for 3-4 min before test driving.
Key points from the article.
For a T3 the Turbine Shaft Bearing Journals should measure 0.3997in. to 0.4000in. Previously rebuilt turbos may have 0.0010-0.0015in. undersized shafts, which they sell oversized bearings for.
The bearing housing bore at the point where the turbine seal contacts it should measure 0.6220in. to 0.6223in. When assembled on the turbine shaft, the diameter of the turbine seal ringh (piston ring_ should measure 0.709in. to 0.711in.
The compressor wheel nut should be tightened to 18-20in-lb. plus 90 degrees.
Axial end play 0.001in to 0.004 in
Radial bearing clearance(up and down movement of shaft) 0.0030in. to 0.0065in.
Let idle for 3-4 min before test driving.
#59
Rotary Freak
iTrader: (1)

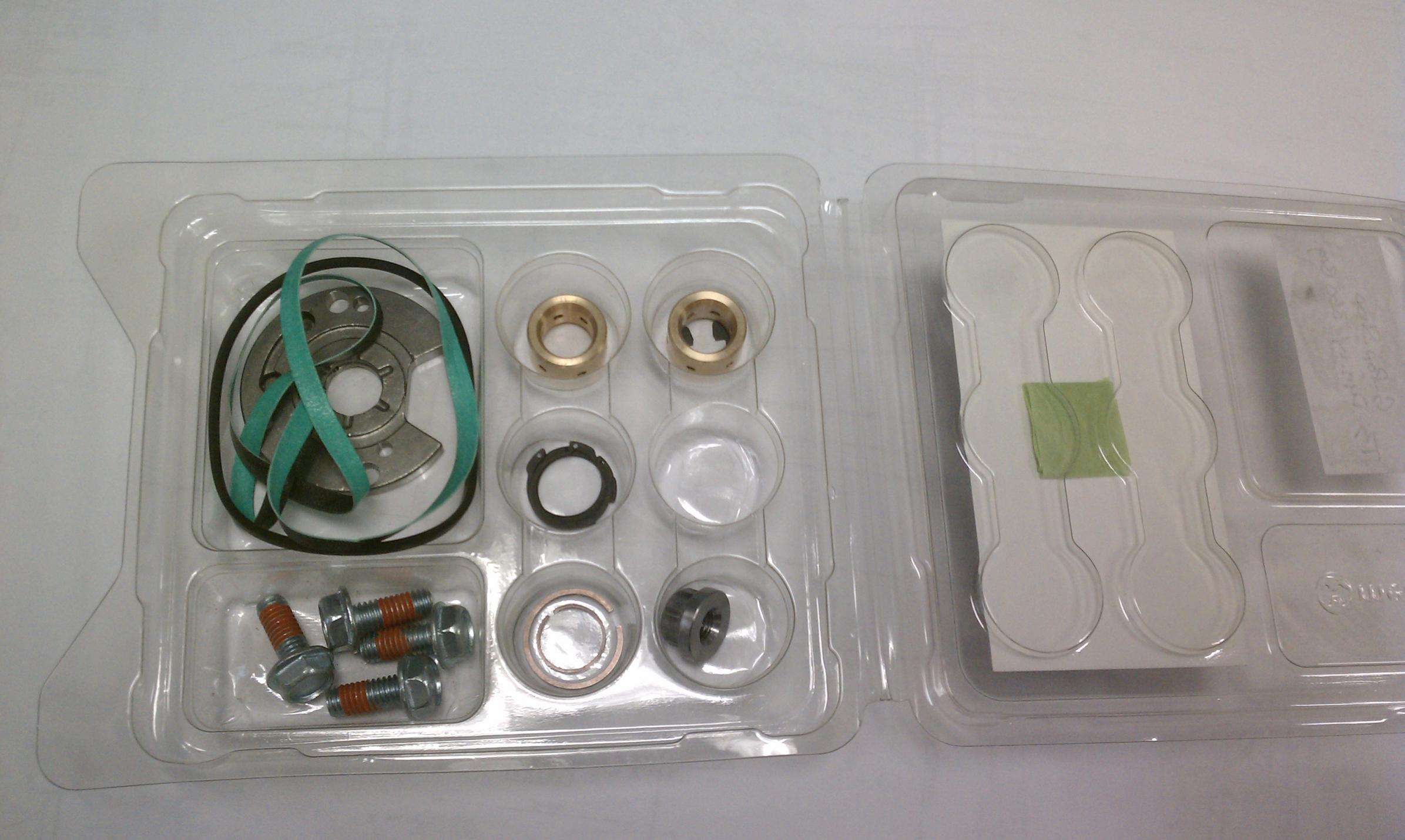

Some good information, but I've had some bad luck with the gpopshop rebuild kit - basically only a couple parts were correct, and the new lock-nut holding the compressor wheel on refused to lock, and instead became a ricocheting object in the TID, tearing up the compressor wheel
https://www.rx7club.com/showthread.p...ighlight=turbo
At the time, I wasn't the only one who had this exact problem with their kit, so definitely use a bit of loc-tite or something on the threads if you're going to go with their kit, or find a different supplier
https://www.rx7club.com/showthread.p...ighlight=turbo
At the time, I wasn't the only one who had this exact problem with their kit, so definitely use a bit of loc-tite or something on the threads if you're going to go with their kit, or find a different supplier
#62
Rotary Freak
iTrader: (6)
All of the parts from the kit fit except for the shaft nut and the compressor housing bolts. I also got a compressor housing seal with the kit, which I did not have before.
The retaining clips were a pain. I snagged a pick set that made it pretty easy to get them out...

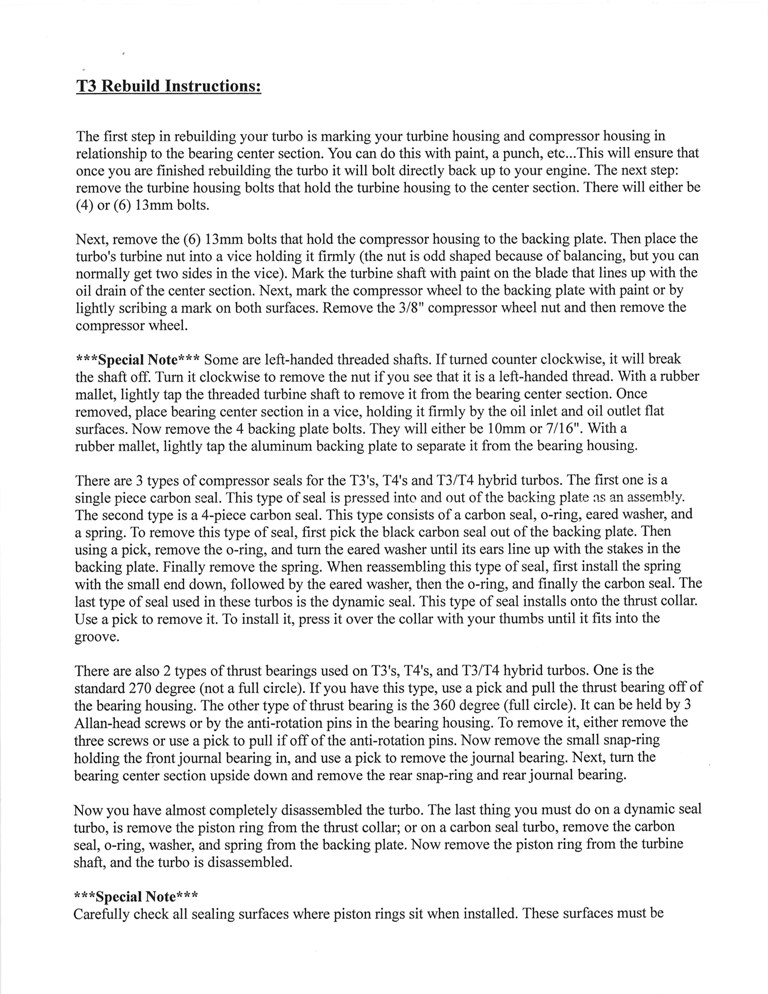

Found out that the turbo shop near me has a Heins TC-3 balancing machine, that only balances the turbine and compressor wheels separately, so no real point to have them 'balanced'.
I can barely see my realignment marks after cleaning the parts, I got it close, but when torquing the nut the compressor wheel turns.
I'm going to go ahead and just slap it back in after I get the marks to aligned.
The retaining clips were a pain. I snagged a pick set that made it pretty easy to get them out...
Found out that the turbo shop near me has a Heins TC-3 balancing machine, that only balances the turbine and compressor wheels separately, so no real point to have them 'balanced'.
I can barely see my realignment marks after cleaning the parts, I got it close, but when torquing the nut the compressor wheel turns.
I'm going to go ahead and just slap it back in after I get the marks to aligned.
#63
This is gonna be a dumb question...but I was looking on the gpopshop website and they have an ht18 specific rebuild kit. Would that make sense to use if you are rebuilding a stock turbo? <_<
http://gpopshop.com/products-page/hi...e-rebuild-kit/
Any advantage to the t3/t4 rebuild kits or is that only if you are building a hybrid?
http://gpopshop.com/products-page/hi...e-rebuild-kit/
Any advantage to the t3/t4 rebuild kits or is that only if you are building a hybrid?
#64
Full Member
iTrader: (1)
Join Date: Feb 2009
Location: California
Posts: 58
Likes: 0
Received 0 Likes
on
0 Posts
i suppose this is a good donor for a hybrid? Im guessing the Comp wheel inducer is 48 mm. Says 48 at the bottom of the listing. Anyone know what wheel trim and expected power output these have?
http://www.ebay.com/itm/USED-CORE-TU...item25638027f1
http://www.ebay.com/itm/USED-CORE-TU...item25638027f1
#65
Trunk Ornament
iTrader: (11)
Originally Posted by driftxsequence
This is gonna be a dumb question...but I was looking on the gpopshop website and they have an ht18 specific rebuild kit. Would that make sense to use if you are rebuilding a stock turbo? <_<
http://gpopshop.com/products-page/hi...e-rebuild-kit/
Any advantage to the t3/t4 rebuild kits or is that only if you are building a hybrid?
http://gpopshop.com/products-page/hi...e-rebuild-kit/
Any advantage to the t3/t4 rebuild kits or is that only if you are building a hybrid?
When you have excessive wear to the thrust collar, rusted out (or missing) bolts or clamps, or some other weird scenario, that's when you'll want to opt for the complete kit.
Originally Posted by rxsevnn
i suppose this is a good donor for a hybrid? Im guessing the Comp wheel inducer is 48 mm. Says 48 at the bottom of the listing. Anyone know what wheel trim and expected power output these have?
http://www.ebay.com/itm/USED-CORE-TU...item25638027f1
http://www.ebay.com/itm/USED-CORE-TU...item25638027f1
#66
Got my turbo rebuilt/highflow ... The shop i was getting the parts off gave me prices inclluding labour so in the end i just let them do it, $450nz.
Strip and clean
New bearing kit
Weld wastegate hole shut
China front cover
Comp wheel 50.40 inducer 76 exducer
Balance and assemble
They didnt back cut rear wheel tho ....
Going to run external gate, Mmmmmmm wonder what it will go like, Best i go do some work.
Strip and clean
New bearing kit
Weld wastegate hole shut
China front cover
Comp wheel 50.40 inducer 76 exducer
Balance and assemble
They didnt back cut rear wheel tho ....
Going to run external gate, Mmmmmmm wonder what it will go like, Best i go do some work.
#68
Looks like a nice donor turbo. Getting everything all together like that really makes the conversion much easier. Sourcing matching wheels and housings separately can be tough with these obsolete turbos. Garrett dealers tend to not have any idea what a T04b is, let alone where to get parts.
#69
This is the only damage I could find but i don't think matters, the seal goes beyond that and will work anyway.
Stock vs V-Trim
T04B vs stock
Guess I need the "Garrett T3/T4 Hybrid Rebuild Kit" from G-Pop Shop if I want the 360 dynamic seal and all the correct seals, clamps and bolts?
#70
Junior Member
Join Date: Nov 2010
Location: Flint, mi
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
