hooking up wiring harness. need help (pics)
#3

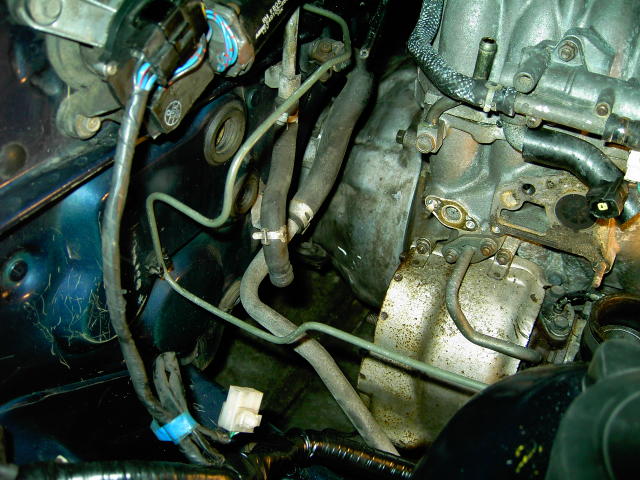

The brake booster hose goes to that metal tube right beside the BAC. Dosn't look like it will reach for some reason, but that where it goes. Are u doing an NA to turbo swap? In the second picture, it seems like that one is routed torwards the back of the transmission. Not real sure about that one....
#6
dammit bitchmill! ![rlaugh](https://www.rx7club.com/images/smilies/rollinglaugh.gif)
You need to adapt the hose/tube in the first pic to reach the tube coming off the manifold behind the bac, that is where that goes on a jspec. You can just run a long hose up there if you want, but it needs to be stiff enough not to collapse under vacuum when the exhaust heat gets in it some.

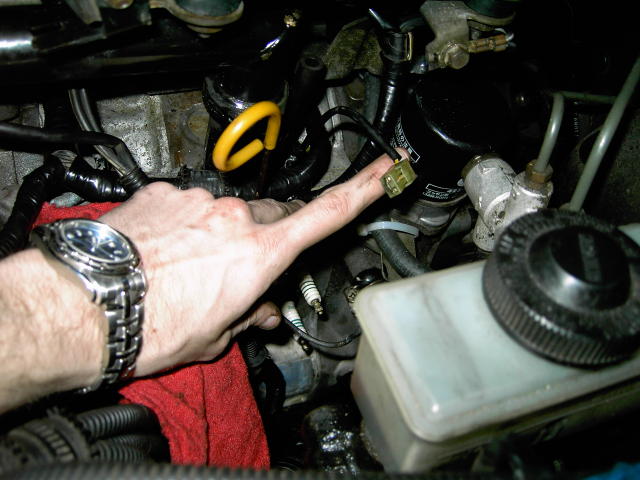

The second one looks like a temp sensor for the block...should go below the oil filter on the probe.

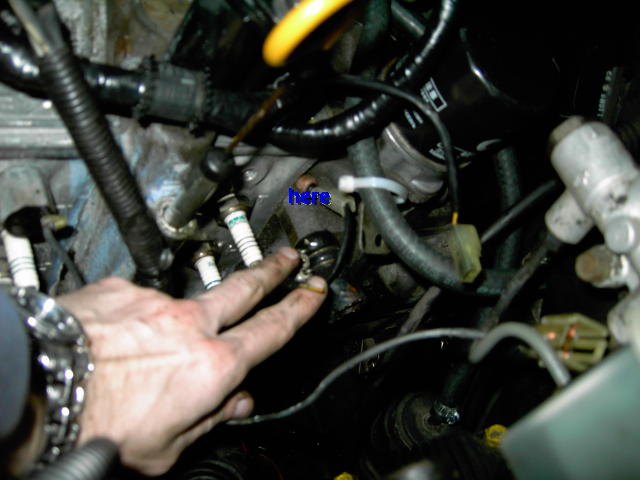

The third one...wait, is this an s4 block?? That finger style sensor is an s4 setup...the s5 should use a flat style sensor. Which is where the plug in pic 2 should go, if I am viewing all this right.
![rlaugh](https://www.rx7club.com/images/smilies/rollinglaugh.gif)
You need to adapt the hose/tube in the first pic to reach the tube coming off the manifold behind the bac, that is where that goes on a jspec. You can just run a long hose up there if you want, but it needs to be stiff enough not to collapse under vacuum when the exhaust heat gets in it some.
The second one looks like a temp sensor for the block...should go below the oil filter on the probe.
The third one...wait, is this an s4 block?? That finger style sensor is an s4 setup...the s5 should use a flat style sensor. Which is where the plug in pic 2 should go, if I am viewing all this right.
#7
its definitely a series5 block, and it has the pink injectors and all the other harness clips match up. (if its a s4 block i'm up **** creek) i believe thats the water temp sensor for the block. my buddy's 89 TII had the same sensor in his S5 block.
i'm takin some better pics right now. those were kinda dark.
i'm takin some better pics right now. those were kinda dark.
Last edited by jacobcartmill; 01-06-04 at 12:08 PM.
Trending Topics
#12
Rotary Enthusiast
![](/images/misc/20_year_icon.png)
iTrader: (2)
Join Date: Aug 2003
Location: San Antonio, Texas
Posts: 1,001
Likes: 0
Received 0 Likes
on
0 Posts
heres a link to my pics http://24.174.176.2/gibby/pictures5.html
