HKS Turbo Timer harness install W/HKS TYPE 0?
#1
Senior Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: Mar 2003
Location: Ca
Posts: 463
Likes: 0
Received 0 Likes
on
0 Posts
![Red face](https://www.rx7club.com/images/icons/icon11.gif)

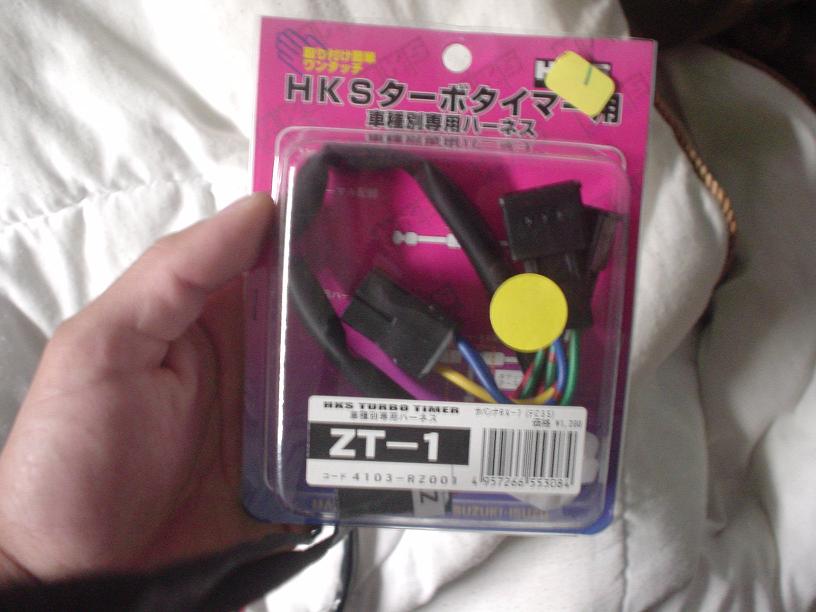

I Just recently bought the HKS turbo timer quick installation Kit however where do you plug N play at???? anybody have PICS in how to install, i did a search and all is typed written...? any pics avalible..?
#4
Anni. Owner
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (1)
Join Date: Mar 2002
Location: San Diego, CA
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts
um... you connect those wiring harnesses to the ignition harness under the dash. you basically "unplug and plug" as for the wiring since you got the Type 0 all you have to hook up is the ground and the wire that runs to the eBrake so your timer activates when you pull it up. its pretty easy. look on line there, should also be good instructions that came with it.
#5
Senior Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: Mar 2003
Location: Ca
Posts: 463
Likes: 0
Received 0 Likes
on
0 Posts
![Talking](https://www.rx7club.com/images/icons/icon10.gif)
Originally Posted by Aznplayer911
um... you connect those wiring harnesses to the ignition harness under the dash. you basically "unplug and plug" as for the wiring since you got the Type 0 all you have to hook up is the ground and the wire that runs to the eBrake so your timer activates when you pull it up. its pretty easy. look on line there, should also be good instructions that came with it.
I took off the sterring column and theres a bunch or wires "rolled up" in the corner. the HKS harness comes with 4 plugs and these wires don't fit with this.
you got a pick bro???
