ponykiller

Well, here is my new setup:


Haltech E6K
60-1 Turbonetics turbo with anodized back plate and 360 degree thrust bearing
HKS Turbo manifold
HKS wastegate with 5 psi spring
All AN fittings and lines for turbo
Custom fit and welded NPR large intercooler with 2.5" inlet and outlet
2.5" Polished aluminum tubing
All silicon connectors with T-bolt clamps
Custom TB inlet
4" cone filter
Blitz BOV
720 cc/min primaries
1600 cc/min secondaries
-6 AN Aeromotive fuel line and fittings
Aeromotive RRFPR
Walbro 255 l/h fuel pump
boost, EGT, water temp, and fuel pressure gauges
Greddy Profec B
Custom heat-wrapped 3" downpipe
Full 3" exhaust with Borla ProXS muffler
E-fan
Howe radiator
S6 alternator
Battery relocated to passenger compartment bin
removed power steering
removed A/C
removed radio/cd/tape/speakers

mrb63083

iTrader: (4)

WOW, look at all those pictures....














...cough

n4ji

iTrader: (1)

I was about to say, where the pics man? Show off all that money and effort!

ponykiller

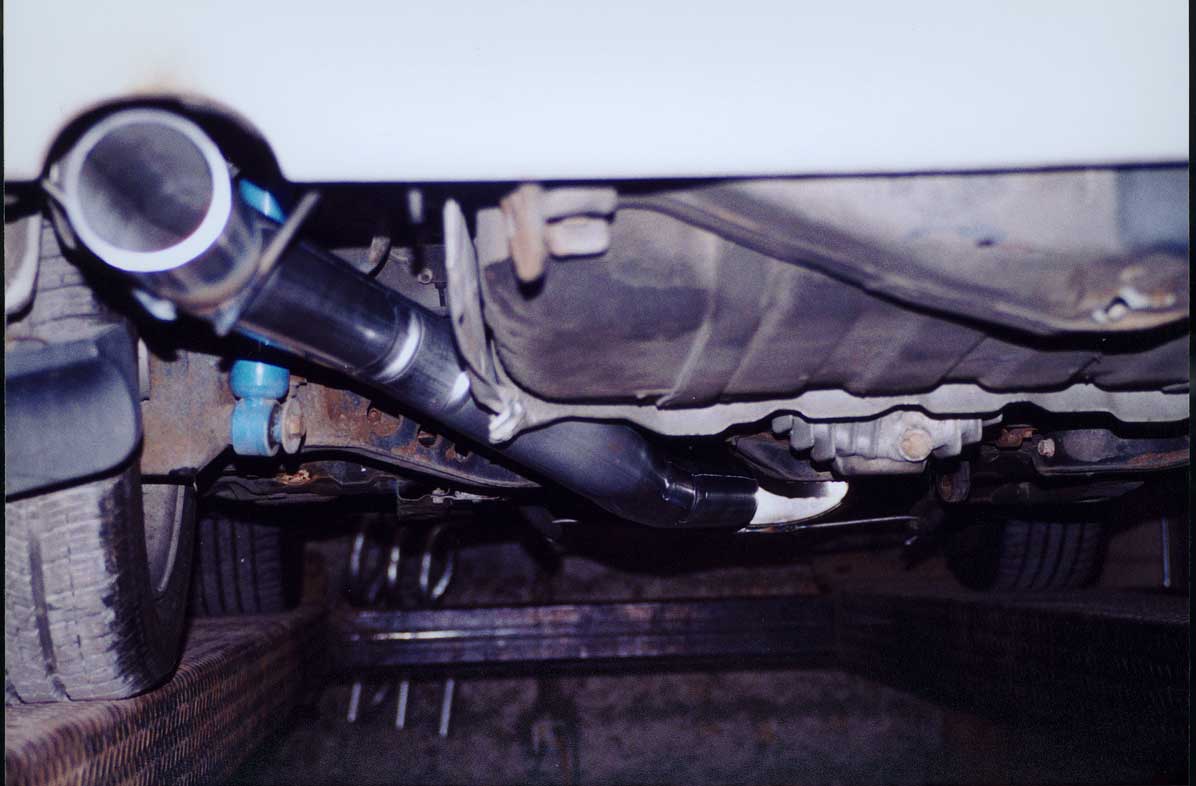

1

ponykiller

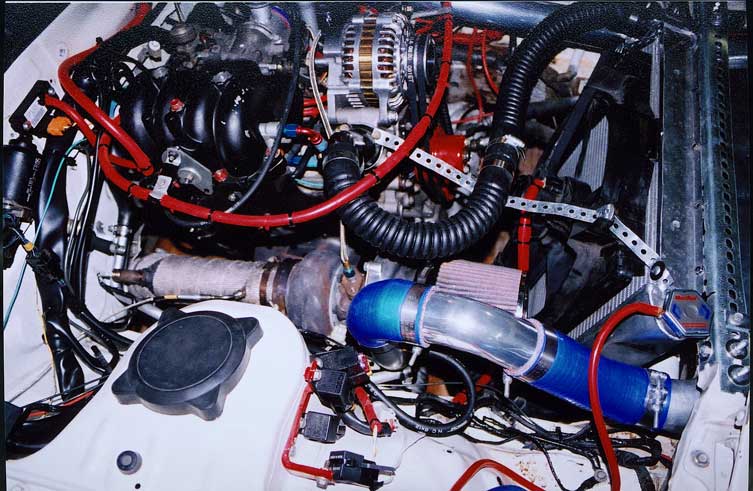

2

ponykiller

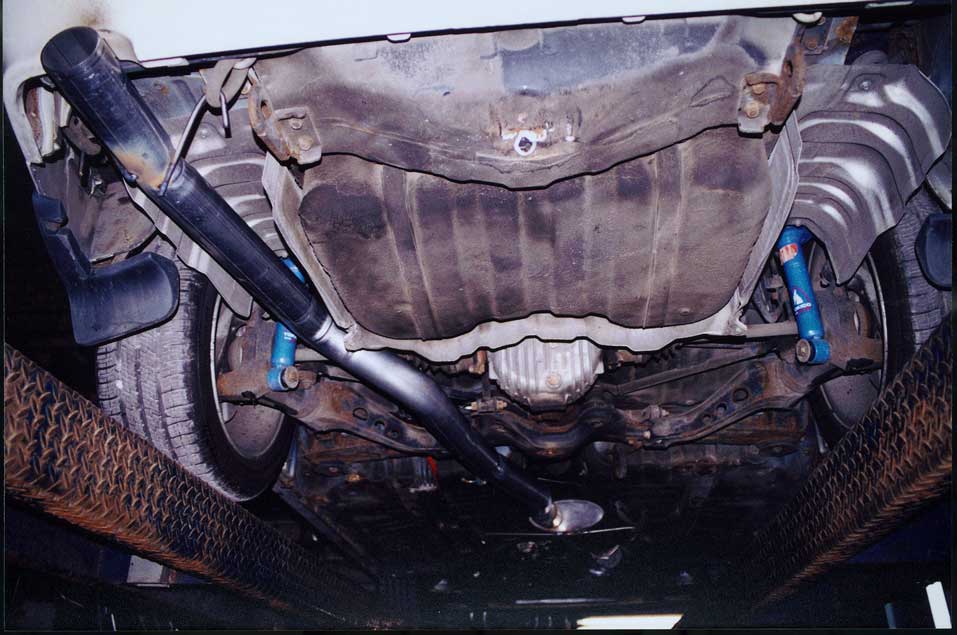

3

n4ji

iTrader: (1)

Excellent job man! Looks incredible and incredibly clean? (I like the black intake manifold too)

n4ji

iTrader: (1)

Ergh.... double post.

ponykiller

sorry this is taking so long, the server is going incredibly slowly.

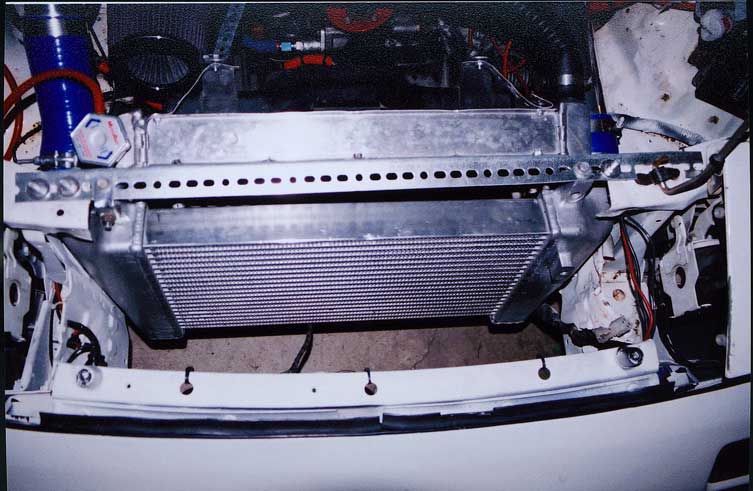

4

ponykiller

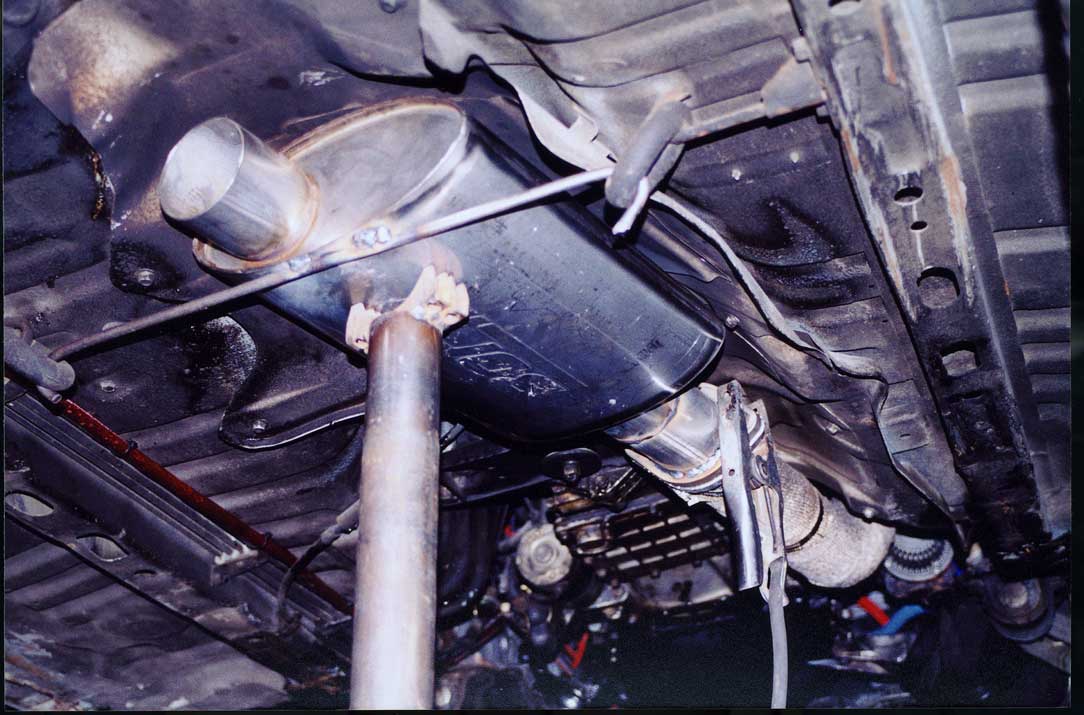

5

ponykiller

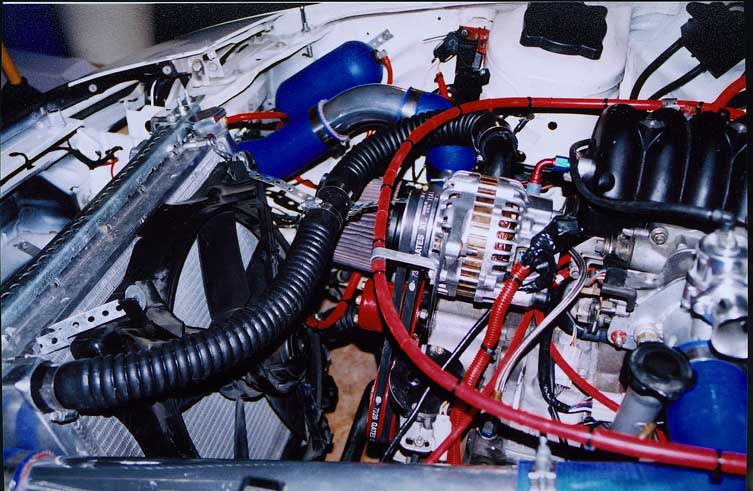

6

Black13B

iTrader: (1)

BAHAHA!

Anyways - How much did all this cost you? Looks good, but at the same time like you skimped on a few things under the hood..

No offence of course..

Edit - But then again, Haltec isn't for someone on a budget..

ponykiller

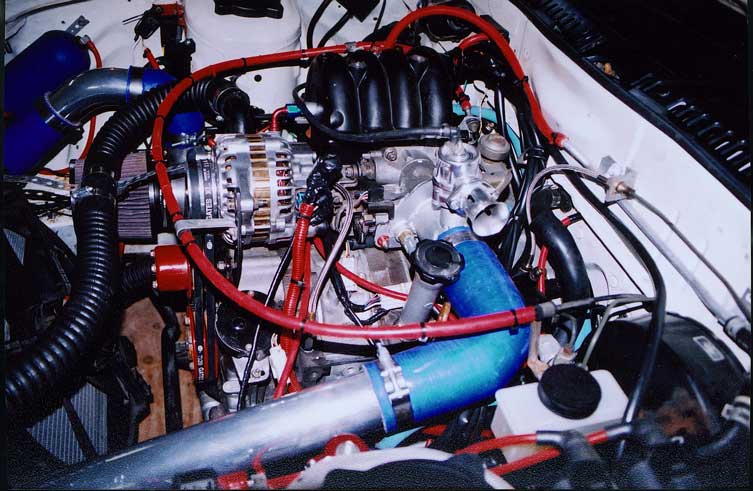

7

ponykiller

None taken. But would you care to tell me what you are reffering to? I would assume my upper radiator hose is a point against me, but other than that I do not really know what else I still need to work on.

2a+RoN

awesome man, i have black mani's too!! woot

silverrotor

iTrader: (1)

Looks like you put In alot of time and effort. Good deal ponykiller. 2 questions.

How come the TB Isn't painted Black? I dunno. I'd want to keep It consistent.

Is that a custom elbow you made, for the Intake? (I'm trying to source out a Greddy one, btw).

ponykiller

My previous setup was a hybrid turbo and stock TMIC, so you could only see the UIM and LIM and that is all I had painted. I will be pulling the TB and adapter plate off and painting them black to match the manifolds (i will also repaint the manifolds, and look into powdercoating this time). I am going to be porting and polishing the TB and removing a secondary throttle plate this coming week.

The custom elbow is for the intake, sorry that was not very clear. I actually bought it from a friend, so I can not tell you how to make one.

Liquid Anarchy

iTrader: (2)

Black13B

iTrader: (1)

The upper rad hose, yes.

But mainly your Rad/IC mount area.. with the universal mounting bracket?

IMO That's not a good idea.. It wouldn't be sturdy enough for my liking I wouldn't imagine..

Those two stuck out at me while I was looking at an overall pleasing EB.

bingoboy

ooo borla. hehe someone else uses a borla. neato.

Kuhrazy7

wud u paint ur uim with?

Turblown

iTrader: (12)

Blue bottle where the stock intake is located, remind what that is?

Looks good, what did you wrap the main harness loom with?

How well does the dp wrap work, as in noticeable heat difference under hood? Damn that **** is hot under my hood!

I want an s6 alt and borla muffler instead of my presilencer!

pengarufoo

the blue bottle is probably a coolant overflow catch tank.

ponykiller

Actually, the universal mounting bracket (Home Depot Racing Department inc.) is VERY sturdy. I really had a tough time believing it would do what I wanted, but it does. It is very close, if not the same, as being as strong as the stock bar. The reason I have that bar there is because the front end of the car was wrecked when I bought it and to fix it, that had to be cut out. That was not a problem with the stock rad., but I had to find something for the Howe and FMIC.

ponykiller

I went to O'Reilly's and picked up some high temp engine paint. They will have several different types/brands/temp ratings. I actually did the LIM with 1200 degree paint, and the UIM with 600 degree paint. All rattle can.
