Good wastegate size??
#1
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Good wastegate size??
Ok, so i need to port my wastegate. I was planning a huge elaborate CNC machine and new flapper door porting job... But this might just be a waste of time.
Here are my related mods.
-Full 3" turbo back
-HKS 3" intake
-Deleted emmissions
-HKS SSQV BOV
How big do i really need to port the wastegate in order not to get any boost creep with my above mods. I dont want to waste my time and money on something that is totally useless. Also if you could post detailed answers with a few measurments or pictures that would be absolutly exellent.
Cheers, Ben
Here are my related mods.
-Full 3" turbo back
-HKS 3" intake
-Deleted emmissions
-HKS SSQV BOV
How big do i really need to port the wastegate in order not to get any boost creep with my above mods. I dont want to waste my time and money on something that is totally useless. Also if you could post detailed answers with a few measurments or pictures that would be absolutly exellent.
Cheers, Ben
#5
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Feb 2004
Location: Freeport, Maine
Posts: 1,225
Likes: 0
Received 0 Likes
on
0 Posts
just do more of a good flowing port job on it. Keep the stock flapper, and back cut the **** out of the backside of the hole. Also cut back the secotion of cast taht is right next the the flapper and exhaust turbine. I can't describe it too well without a pic but it is just a small wall part that can be ground back quit a bit to make more of a direct path for the exhaust going to the wastegate.
Trending Topics
#11
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
There's no need to mess with the S5 flapper door nor use some elaborate CNC porting method. The S5 wastegate is a lot bigger than the S4's and there's not as much scope for improvement. Byt you can still easily enlarge both holes with a die grinder, particularly the short passage which can also be shaped internally for better flow. Becasue the flapper gets in the way ou really need a long-shank cutter to do it properly, as show here:
http://fc3spro.com/TECH/HOWTO/KWG/kwg.html
BTW< is every post where you ask for help the first thing you need to tell us is what year your car is, otherwise you get the wrong info provided like you did here, which just wastes everyone's time.
http://fc3spro.com/TECH/HOWTO/KWG/kwg.html
BTW< is every post where you ask for help the first thing you need to tell us is what year your car is, otherwise you get the wrong info provided like you did here, which just wastes everyone's time.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
#12
400WHP or bust
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (7)
Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes
on
0 Posts
Also, remove material on the backing plate of the turbo till the WG door no longer hits it, did this on my car, and it helped limit boost creep almost as much as the ported WG alone; just buy allowing it to open more.
#14
400WHP or bust
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (7)
Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes
on
0 Posts
I'm not sure about that, then I took the turbo off, there was a clear mark in the carbon on the backing plate because I didn't remove enough material. I would take the backing plate off and show you, but it's -6 outside, and snowing. I can see why you are saying this however, it's not like it can compress anymore, I'll have too look into this more, wheres my spare turbo...
#15
400WHP or bust
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (7)
Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes
on
0 Posts

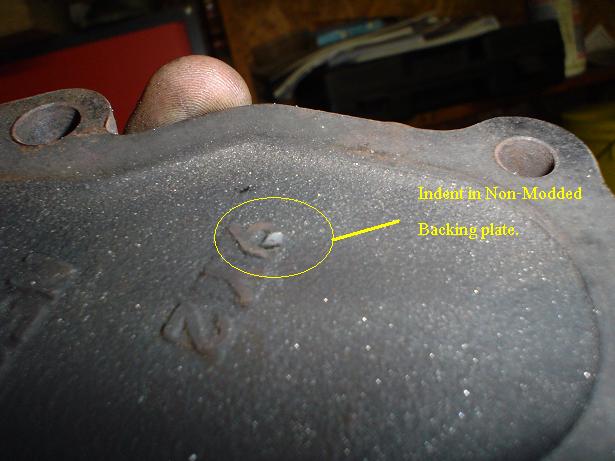

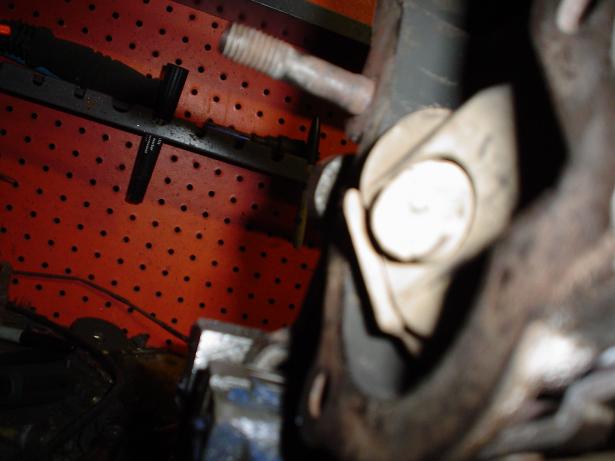

Here are the pics, the first one you can clearly see the door wanting to go further, and leaving a dent in the plate. In the second one you will see as I pull on the actuator rod the WG door goes past the flat surfaces by about .250", meaning the spring has more travel then what it would seem, and taking some material from the backing plate should work.
#16
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Put a pressure source on the wastegate actuator to open the flap, and you'll see it barely moves above the level where the backplate sits. Like I said, it's ~1mm higher, not enough to make any worthwhile improvement to flow. I've done this on my own S5 turbo.
#17
400WHP or bust
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (7)
Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes
on
0 Posts
I think I know what you are saying (I'm applying more force with my hand on the actuator rod than the air pressure can), and on my own I have seen the marks on the modded one. I still believe it works, that alone on the non-ported housing I have wouldn't creep anywhere near the non-modded maybe to 11psi, and non-port WG/non-modded plate (13-14psi). 11psi is still fairly safe on the stock fuel system.
I will see how the modded plate, and the ported WG work this summer. I'm in no way saying do this instead of porting, but while you have the turbo apart why not do it? It takes 10 minutes. Just an other safe-guard/redundancy.
I will see how the modded plate, and the ported WG work this summer. I'm in no way saying do this instead of porting, but while you have the turbo apart why not do it? It takes 10 minutes. Just an other safe-guard/redundancy.
Last edited by Nismo Convert86; 03-03-07 at 11:13 PM.
#18
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by Nismo Convert86
I still believe it works, that alone on the non-ported housing I have wouldn't creep anywhere near the non-modded maybe to 11psi, and non-port WG/non-modded plate (13-14psi). 11psi is still fairly safe on the stock fuel system.

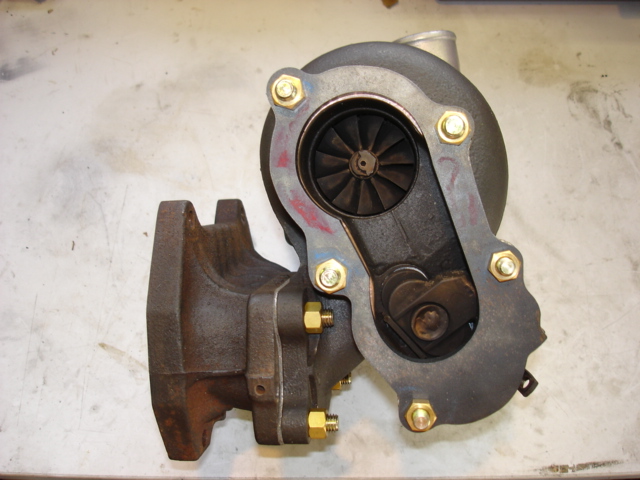

If you want to mod the backplate, do something like this instead...
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
Last edited by NZConvertible; 03-04-07 at 02:01 AM.
#21
400WHP or bust
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (7)
Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by NZConvertible
Unless you can explain how opening the plate such a tiny amount further could make that much difference, I'd say there must've been be other factors involved. I don't believe it could make any worthwhile difference.
If you want to mod the backplate, do something like this instead...![Wink](https://www.rx7club.com/images/smilies/wink.gif)
If you want to mod the backplate, do something like this instead...
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
#22
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Ya, thats a good point about the rear plate, might as well do it if its out... Even if it doesnt do anything at least you made your car lighter by 1-2 grams
.
So with a porting job like the one on this site.. i should see NO boost creep??
http://fc3spro.com/TECH/HOWTO/KWG/kwg.html
The whole porting procedure is very strait forward, just want to get it right the first time.
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
So with a porting job like the one on this site.. i should see NO boost creep??
http://fc3spro.com/TECH/HOWTO/KWG/kwg.html
The whole porting procedure is very strait forward, just want to get it right the first time.
#23
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by Nismo Convert86
I honestly think it's opening more that the "~1mm" that you said (I don't see any proof from you that this is in fact true either), if you grab the actuator rod it moves more than you think, if it didn't move more than that, why am I seeing these marks on both of the backing plates?
Originally Posted by apexFD
So with a porting job like the one on this site.. i should see NO boost creep??
#24
400WHP or bust
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (7)
Join Date: Oct 2003
Location: Walkerton, Ontario Canada
Posts: 4,048
Likes: 0
Received 0 Likes
on
0 Posts
Well we just proved that gouging the backing plate DOES make a difference, my car would not boost past 7psi, BDC was there tuning my car, and he agreed that this a worth while "mod", there were also about 7 other witnesses.
#25
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/twin-scroll-removal-746913/page2/
The stock flapper door is fine.
You can also round the flat corner edges to make the air flow smoother. You can also do this to the manifold. (not shown in pic)
The stock flapper door is fine.
You can also round the flat corner edges to make the air flow smoother. You can also do this to the manifold. (not shown in pic)
