Godspeed FMIC Kit Fitment Issues
#1
Godspeed FMIC Kit Fitment Issues
I'm converting my '86 N/A to a 6 port turbo. I bought the Godspeed FMIC kit off ebay (Greddy copy) and am having trouble fitting it in between the power steering and shock tower. It's also pushing the brake reservoir over quite a bit. Does anyone have pics of this setup where they were able to retain the PS?

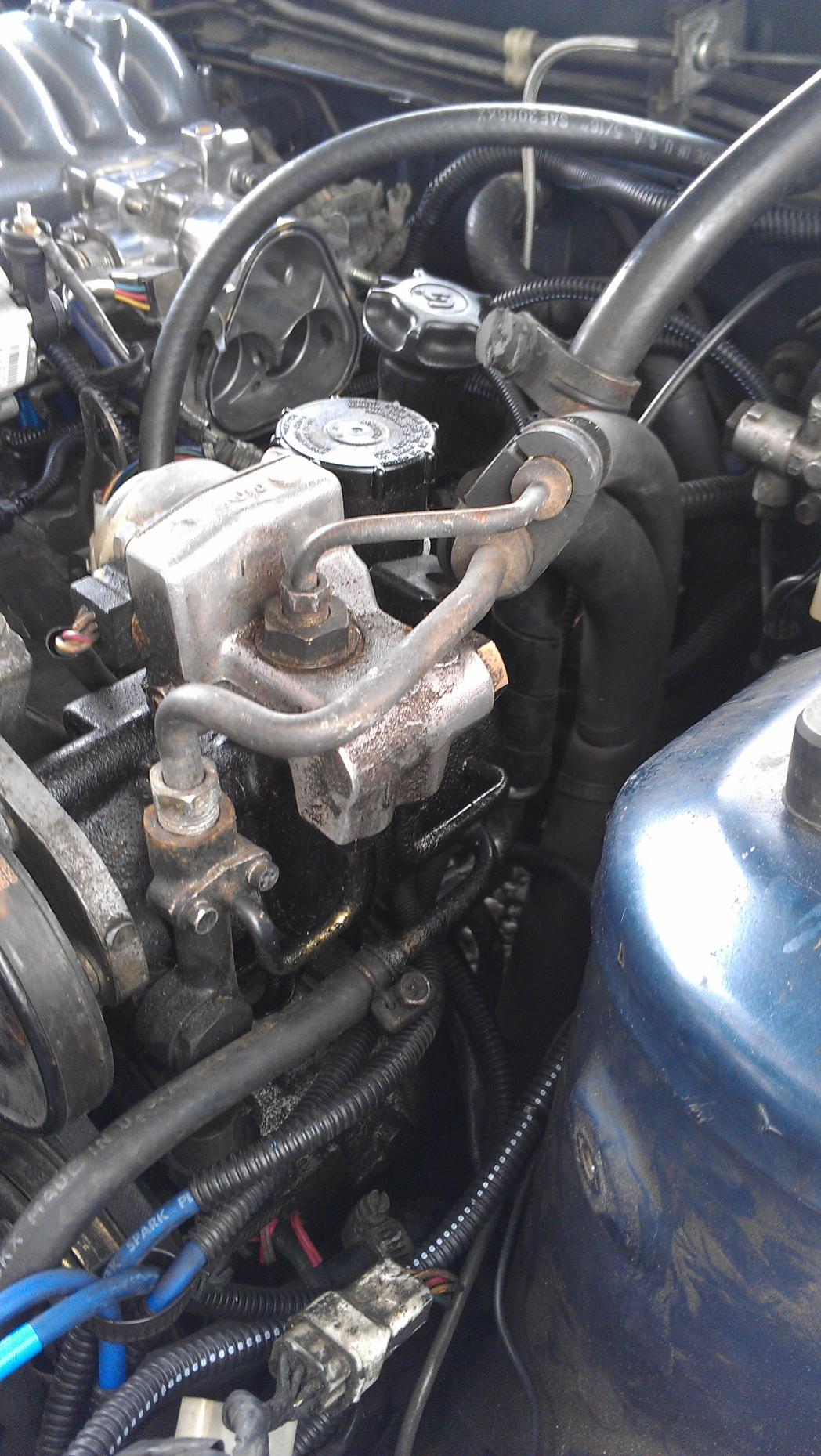

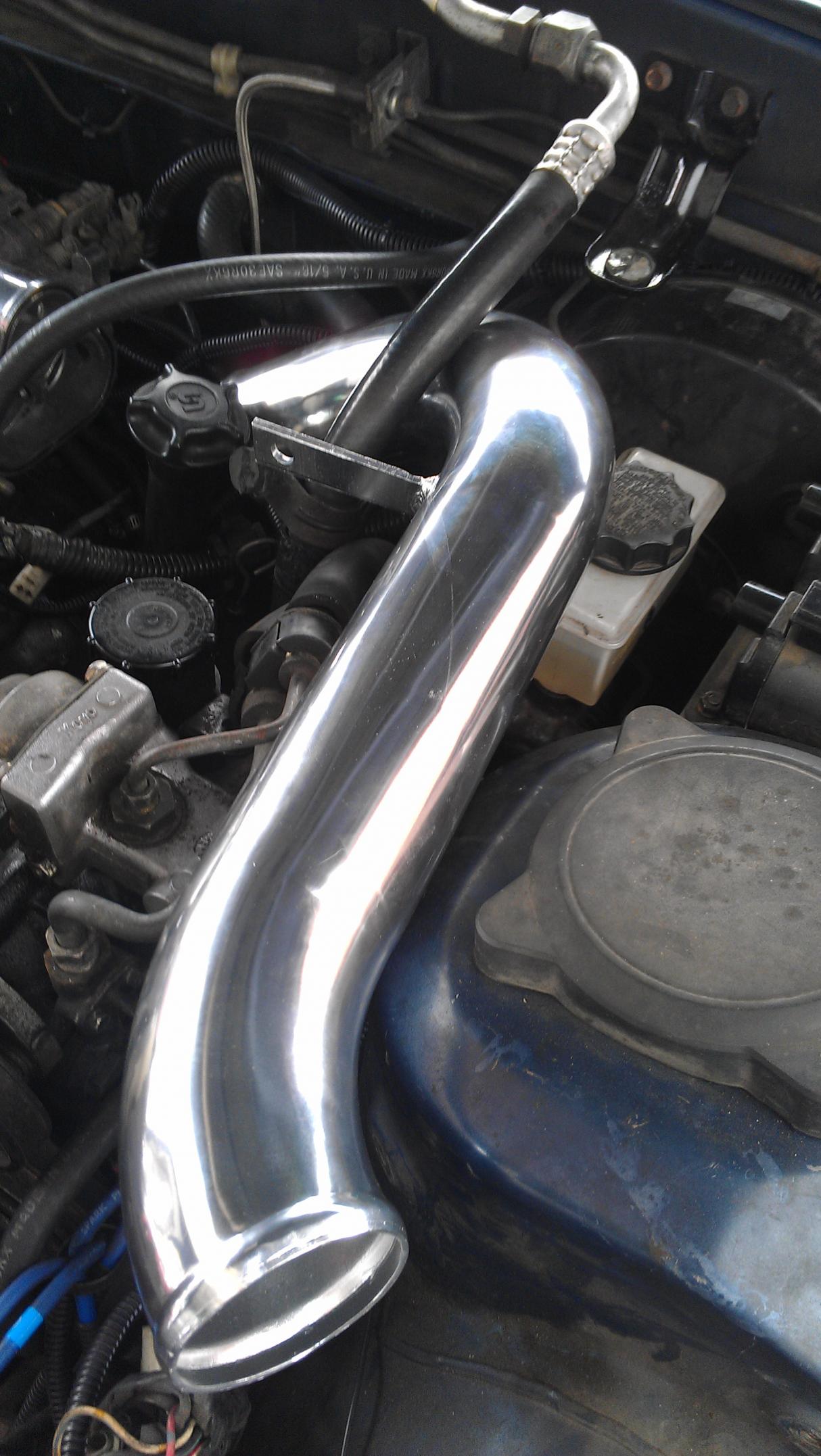

Here's a couple pics of the PS pump and piping. The lines on the pump have already been bent quite a bit. I know there's different PS pumps and I'm thinking perhaps the early 86 ones are fatter?
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/462969d1335388185-godspeed-fmic-kit-fitment-issues-imag0159.jpg)
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/462970d1335388185-godspeed-fmic-kit-fitment-issues-imag0160.jpg)
Keywords: FMIC Intercooler inter cooler fitment kit ebay greddy piping power steering shock tower
Here's a couple pics of the PS pump and piping. The lines on the pump have already been bent quite a bit. I know there's different PS pumps and I'm thinking perhaps the early 86 ones are fatter?
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/462969d1335388185-godspeed-fmic-kit-fitment-issues-imag0159.jpg)
![](https://www.rx7club.com/attachments/2nd-generation-specific-1986-1992-17/462970d1335388185-godspeed-fmic-kit-fitment-issues-imag0160.jpg)
Keywords: FMIC Intercooler inter cooler fitment kit ebay greddy piping power steering shock tower
#2
This is my social media.
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (22)
Join Date: Jan 2006
Location: WA
Posts: 2,744
Likes: 0
Received 0 Likes
on
0 Posts
This link shows how to free up some space for intercooler piping, while retaining the power steering.
DragonRX7's How To: Power Steering Relocation
DragonRX7's How To: Power Steering Relocation
#5
Ok, I have the same set up you have 2 options.
Option 1
you could keep AC
you have to cut off that tab, you have the cut part of the pipe that connects to the TB about 3 inches
You also have to flaten or squeeze that part of the tube that touches the power steering with a 2 x 4 and a hammer.
Also you need longer silicone hoses, especially off the intercooler
The 90 deg. coner will hit the master cylinder reservoir you need to dent that in for it to work.
Option 2
I wish i had done this before........ drop the power steering by cutting the bracket...you will lose AC
https://www.rx7club.com/showthread.php?t=967933 easy as pie![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
If you need pics of option 1 let me know
hybrid G
Option 1
you could keep AC
you have to cut off that tab, you have the cut part of the pipe that connects to the TB about 3 inches
You also have to flaten or squeeze that part of the tube that touches the power steering with a 2 x 4 and a hammer.
Also you need longer silicone hoses, especially off the intercooler
The 90 deg. coner will hit the master cylinder reservoir you need to dent that in for it to work.
Option 2
I wish i had done this before........ drop the power steering by cutting the bracket...you will lose AC
https://www.rx7club.com/showthread.php?t=967933 easy as pie
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
If you need pics of option 1 let me know
hybrid G
#6
Make It Happen!
![](https://www.rx7club.com/images/misc/05_year_icon.png)
iTrader: (11)
Join Date: Jun 2010
Location: Ontario, Canada
Posts: 522
Likes: 0
Received 0 Likes
on
0 Posts
Do the power steering relocate where you cut the bottom half of the bracket and then you will need to cut about an inch off the top pipe where it goes in your throttle. I just installed this kit. it is a PITA. you will also want to get it to sit flush with the bumper support (ie cutting the studs for the bracket) this will minimize the amount you will have to trim off your bumper (if you are using a stock s4 bumper like me)
I can post pics of what I have, if you like
I can post pics of what I have, if you like
Last edited by AmT_T; 04-25-12 at 06:07 PM.
Trending Topics
#14
Pics explain it. Because the Greddy (or knockoffs) kits are routed a certain way, there's little to be done to make them fit "properly". The way I routed mine was a little different, but still used the Greddy compression tube. I cracked the PS hoses loose, moved them over a little, and routed the pipes in such a way that they came close, but not touching, to the brake master cylinder reservoir.
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/RelocatedFuseBlock2.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/FMIC011.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/ICpipe1.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/ICpipe2.jpg)
And eventually...
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/DSCN0147.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/RelocatedFuseBlock2.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/FMIC011.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/ICpipe1.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/ICpipe2.jpg)
And eventually...
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/DSCN0147.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/DSCN21451.jpg)
#16
It's not the Greddy (or copy) kit. That's what I was trying to explain was that you're very limited with what you can do, and how you can route it. I purchased a "universal" kit with a bunch of random pipes in it, cut them to fit, then rolled the ends with my bead roller. The Greddy pre-made kit routes the pipes in a funky way that I didn't like.
Unfortunately, the OP is stuck with the kit he's got, so the best bet would be to try and figure out some strategically placed cuts so that it can finagle around everything. Most have had luck cutting off the end closest to the compression tube. You may need to make a cut in the middle somewhere to index it in a different way. The only real way to tell would be to see it in person really.
Unfortunately, the OP is stuck with the kit he's got, so the best bet would be to try and figure out some strategically placed cuts so that it can finagle around everything. Most have had luck cutting off the end closest to the compression tube. You may need to make a cut in the middle somewhere to index it in a different way. The only real way to tell would be to see it in person really.
#18
The tab is for mounting to a bracket on the oil fill tube I think.
I got the same kit, and it I had to make the pipe slimmer with a little hammering here and there to flatten it out to fit between the shock tower and the powersteering pump, and also the brake master cylinder (apparently, its copied of a right hand drive car...)
It sucks that I had to slim it down a bit, a month later, I took the powersteering pump off and modified the rack....
I got the same kit, and it I had to make the pipe slimmer with a little hammering here and there to flatten it out to fit between the shock tower and the powersteering pump, and also the brake master cylinder (apparently, its copied of a right hand drive car...)
It sucks that I had to slim it down a bit, a month later, I took the powersteering pump off and modified the rack....
#19
if it is indeed a copy of a greddy kit then they either took it upon themselves to add that tab or you guys have the pipes in the wrong locations
here is the set of greddy pipes I sold a few years ago, neither of the pipes with the tabs go in that location, I know the install directions were online
the greddy kit, maybe check it over and see if it helps you out
here is the set of greddy pipes I sold a few years ago, neither of the pipes with the tabs go in that location, I know the install directions were online
the greddy kit, maybe check it over and see if it helps you out
![](http://i657.photobucket.com/albums/uu299/rob284/pipes001.jpg)
#20
the pipe 2nd from the bottom is the pipe in question.
The second pipe from the top with the tab, thats the pipe that goes under the passenger headlight.
It looks like for the replica kit, the pipe that goes between the powersteering pump and shock tower is bigger than the greddy kit.
The second pipe from the top with the tab, thats the pipe that goes under the passenger headlight.
It looks like for the replica kit, the pipe that goes between the powersteering pump and shock tower is bigger than the greddy kit.
Thread
Thread Starter
Forum
Replies
Last Post
diabolical1
2nd Generation Specific (1986-1992)
30
01-30-16 05:50 AM
