fuel tank 3-way check valve
#1
Thread Starter
Open up! Search Warrant!
Joined: May 2002
Posts: 3,838
Likes: 3
From: Kicking down doors in a neighborhood near you
fuel tank 3-way check valve

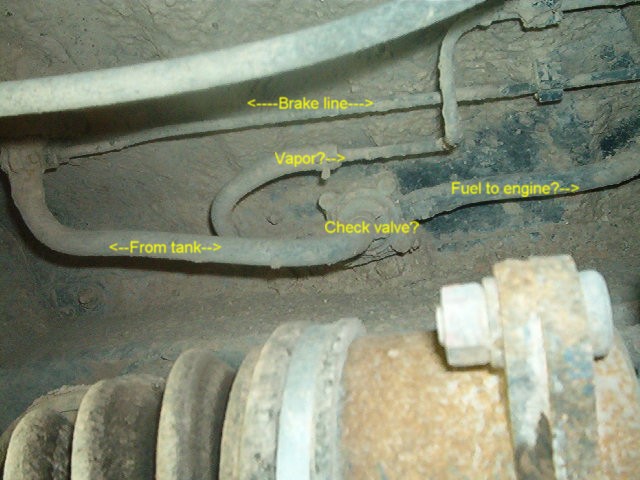

Is this the 3-way valve people talk about when they remove the charcoal canister? If so, did I label the lines correctly? Just want to make sure I don't get the wrong one or something.
#2
It's in the line that goes from the tank to the charcoal canister. Follow the metal lines to see which one goes where. The line out the bottom is open-vented. There is no liquid fuel in any of those lines, just air and fuel vapours.
Last edited by NZConvertible; 03-21-04 at 07:56 PM.
#5
Thread Starter
Open up! Search Warrant!
Joined: May 2002
Posts: 3,838
Likes: 3
From: Kicking down doors in a neighborhood near you
It doesn't really show where stuff is in the car, thats why i took this pic, to see if I'm looking at the right thing. I check out the FSM again though.
#6
Thread Starter
Open up! Search Warrant!
Joined: May 2002
Posts: 3,838
Likes: 3
From: Kicking down doors in a neighborhood near you
On page 4A-85 in the 86-88 FSM it doesn't show the valve in relation to the rest of the car; only the fuel tank, a line, and the valve. Anyone have a better pictures, like a real picture of the actual valve? I did a search on removing the charcoal canister, but nobody included any pictures.
