FTP probelm
#1
Senior Member
Thread Starter
Join Date: Mar 2001
Location: NJ
Posts: 379
Likes: 0
Received 0 Likes
on
0 Posts
FTP probelm
When i try to use my ftp option the headlights pop up and then go back down instantly . The headlight switch is new from mazdamark and i got the turn signal switch off of ebay . turn signals work fine . with the headlights up i can go from high to lo beam without a problem . dimmer switch works fine . headlight retractor switch works fine . the only problem i have is that when the headlights are down and off and i pull back on the ftp (high beam) stalk the high beams turn on but the headlights also pop up . Any ideas on why this might be happening . I searched for almost an hour and found no answers . I went over the car and everything seems fine as far as fuses and wiring go . Any help , ideas , or answers would be appreciated . TIA .
#2
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 9 Likes
on
9 Posts
Has it been that way as long as you've had the car? It sounds like someone did some wiring for an alarm so the headlights go up and down when triggered, and didn't use diodes to isolate the set up.
#4
the headlight switch and the trun signal swith need to be from the same series (S4 or S5)
you can't interchange them with out doing some re-pining of the connectors.

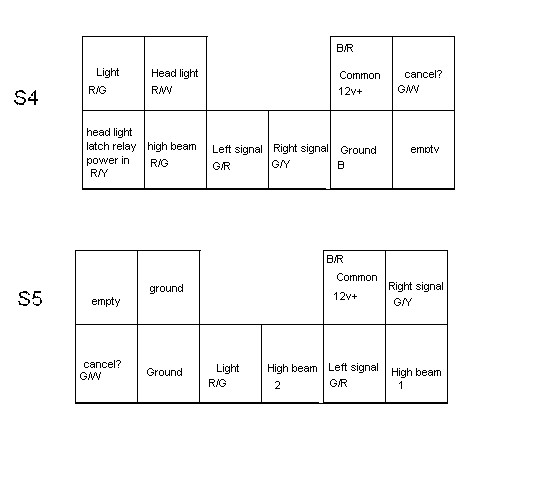

look at this diagram, mazdamark made this diagram.
BTW this is a diagram of the wire harness connector.
and you should also do this:
https://www.rx7club.com/2nd-gen-archive-72/heavy-duty-light-switch-operation-how-too-prevent-burnout-164931/
I did both on my car.
you can't interchange them with out doing some re-pining of the connectors.
look at this diagram, mazdamark made this diagram.
BTW this is a diagram of the wire harness connector.
and you should also do this:
https://www.rx7club.com/2nd-gen-archive-72/heavy-duty-light-switch-operation-how-too-prevent-burnout-164931/
I did both on my car.
Last edited by turbo80cid; 07-21-06 at 07:15 AM.
#5
Senior Member
Thread Starter
Join Date: Mar 2001
Location: NJ
Posts: 379
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by turbo80cid
the headlight switch and the trun signal swith need to be from the same series (S4 or S5)
you can't interchange them with out doing some re-pining of the connectors.
look at this diagram, mazdamark made this diagram.
BTW this is a diagram of the wire harness connector.
and you should also do this:
https://www.rx7club.com/showthread.php?t=164931
I did both on my car.
you can't interchange them with out doing some re-pining of the connectors.
look at this diagram, mazdamark made this diagram.
BTW this is a diagram of the wire harness connector.
and you should also do this:
https://www.rx7club.com/showthread.php?t=164931
I did both on my car.
#6
Senior Member
Thread Starter
Join Date: Mar 2001
Location: NJ
Posts: 379
Likes: 0
Received 0 Likes
on
0 Posts
im doomed . I cant seem to find anything that might be causing this and nobody seems to have ever had this problem . oh well its not like i use the ftp , i just bothers me that the car is doing something that it isn't supposed to .
