front mount and powersteering?
#1
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
iTrader: (1)
Join Date: Nov 2007
Location: Englewood/Dayton Ohio
Posts: 517
Likes: 0
Received 0 Likes
on
0 Posts
front mount and powersteering?
a few of the kits i have been looking at are saying that p/s needs to be removed such as the on on corksport... is there a simple way to route plumbing and keep p.s and idk if it would bother a/c or if i should go ahead and remove it.... pics would be helpful as well
bottom line, i want my powersteering and a frountmount...
bottom line, i want my powersteering and a frountmount...
#3
^^^
So where's the rest of the piping? The missing connection to the throttle body is going to be a big-time bee-ahch. I was going to run my piping the same way, until I realized it would hit the brake booster. True, I was using 3" pipe, but I still think you will need a weird-*** bend in a smaller pipe to terminate that.

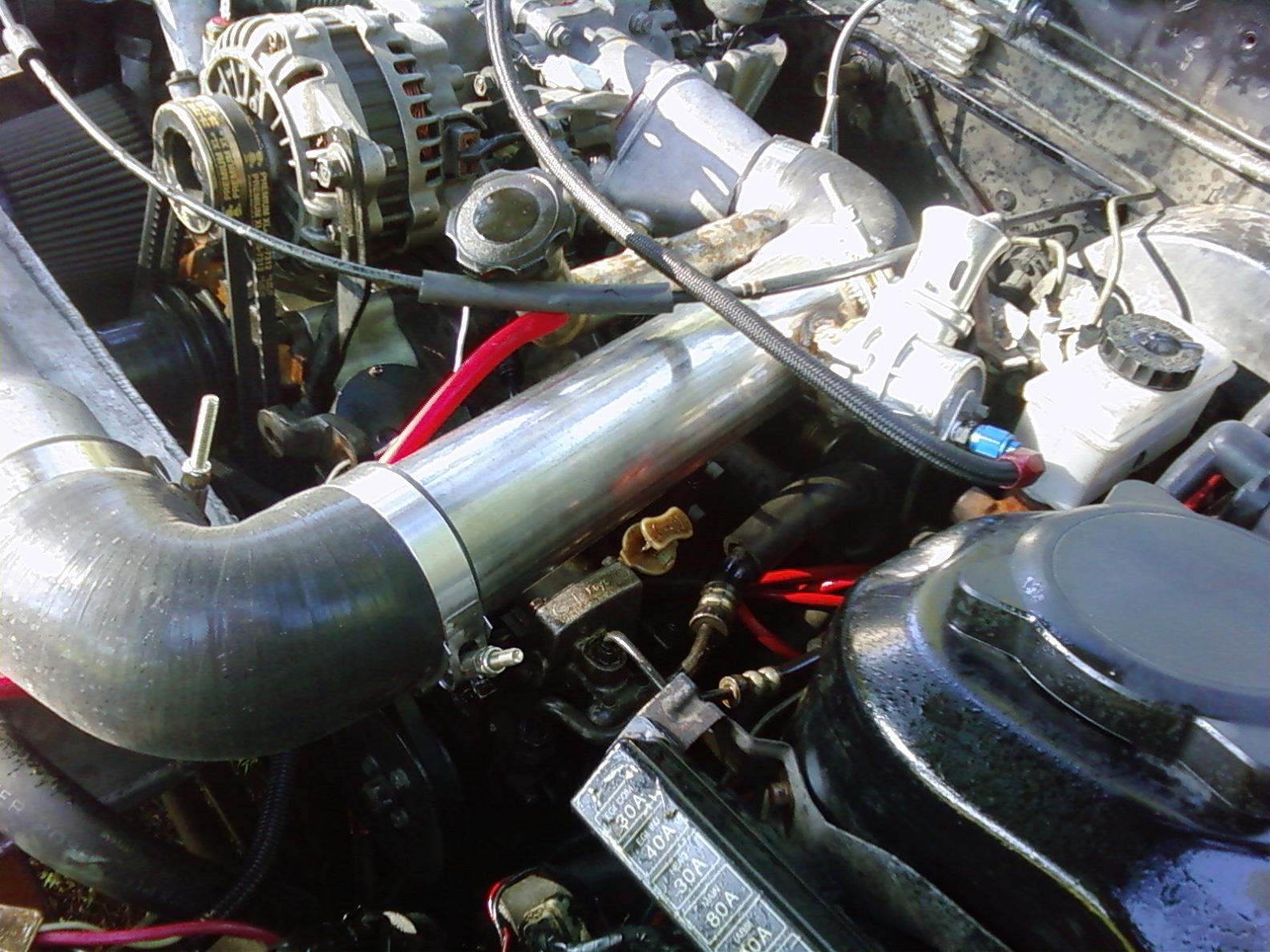

I used a slightly modified 1st gen p/s bracket to mount my pump down low. You will give up A/C this way though. Here's a pic:
So where's the rest of the piping? The missing connection to the throttle body is going to be a big-time bee-ahch. I was going to run my piping the same way, until I realized it would hit the brake booster. True, I was using 3" pipe, but I still think you will need a weird-*** bend in a smaller pipe to terminate that.
I used a slightly modified 1st gen p/s bracket to mount my pump down low. You will give up A/C this way though. Here's a pic:
#5
Well, at the time I took that pic, I was waiting for a silicone reducer. The Greddy elbow is 2.75", and the piping was 2.5". Just fyi, silicone couplers are flexy, so I for that specific bend, I just used a regular old 90' bend and sort of flexed the pipe back towards the black of the engine by. I made the bend a little shorter on both ends, and the straight pipe coming towards that pipe was made a little longer. That way, it clears the brake master cylinder reservoir.
It's just some ebay kit, I think it was cxracing or something like that.
Let me go take a pic really quick.
It's just some ebay kit, I think it was cxracing or something like that.
Let me go take a pic really quick.
#6
Retired Moderator, RIP
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

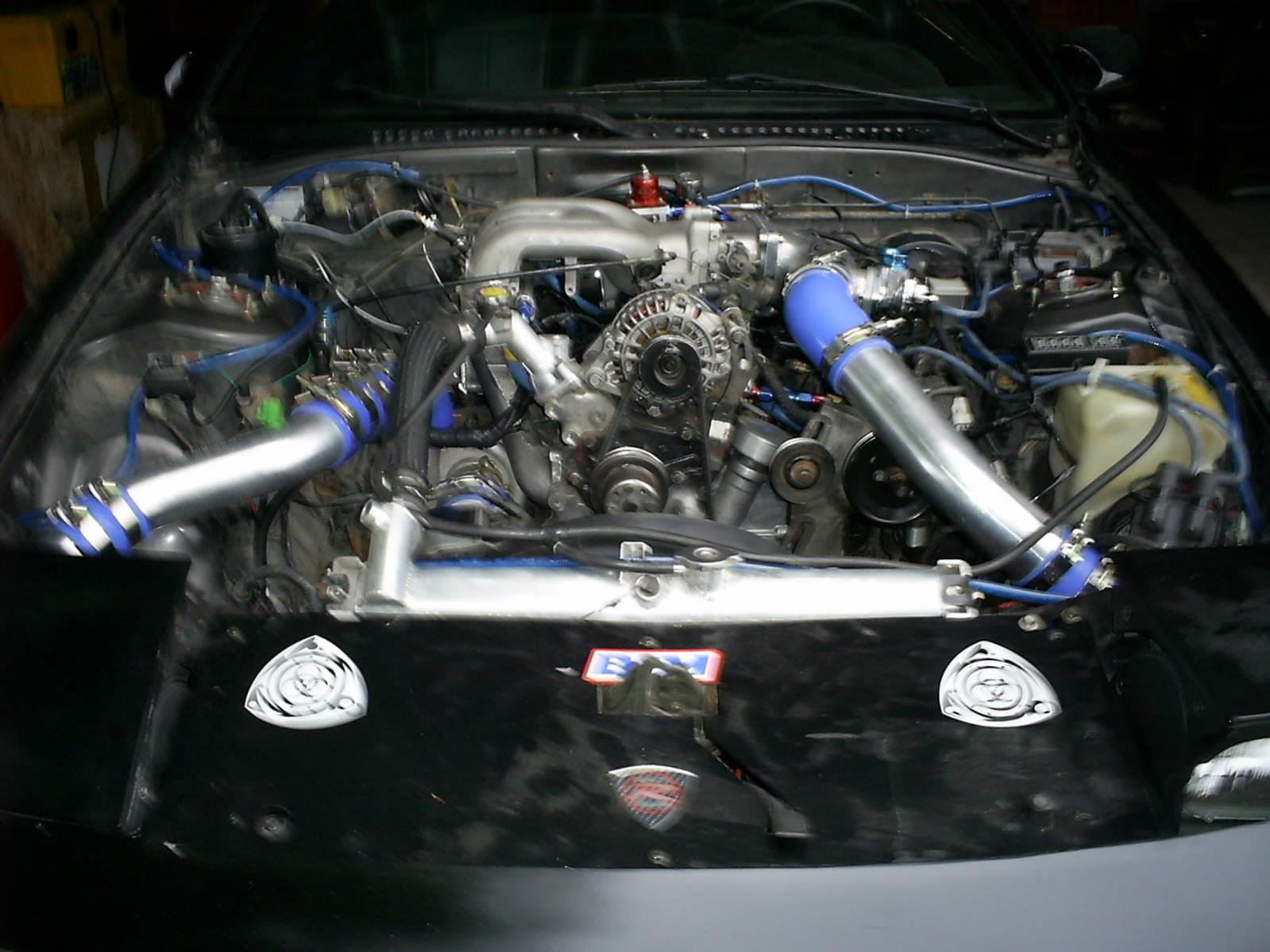

check this out..used to be my avatar...FD upper on an Fc engine.2.75 inch piping.
I Lowered the Power steering by 4 inches,approximately.
I Lowered the Power steering by 4 inches,approximately.
#7
Or you can just relocate your underhood fuse block and move the power steering lines a little, which is a little eaiser than trying to mate an FD UIM on a TII engine...
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/ICpipe2.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/ICpipe1.jpg)
The piping comes really close to the brake master cylinder reservior, and may hit it a little when the engine torques over, but it doesn't harm anything.
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/ICpipe2.jpg)
![](http://i307.photobucket.com/albums/nn311/Terrence-Brunson/Rx-7/ICpipe1.jpg)
The piping comes really close to the brake master cylinder reservior, and may hit it a little when the engine torques over, but it doesn't harm anything.
Trending Topics
#9
Zoroastrian
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Oct 2006
Location: QLD. Australia
Posts: 22
Likes: 0
Received 0 Likes
on
0 Posts
Why don't you guys pull out the oil filler pipe cut it and weld it into a better shape. That way you pipe doesn't have to go around it.
I have cut mine down significantly. They only push into the centre plate. With a rubber hammer and some twisting they pop out.
I have cut mine down significantly. They only push into the centre plate. With a rubber hammer and some twisting they pop out.
