FPR Vacuum line
Ok I'm sure that this has been covered 100 times before, but I tried searching and came up with nothing. I've removed the rats nest on my S4 NA now where do i hook the fpr vacuum hose? Can I just connect it to the DC? Also what are you guys doing with the line running from the charcoal canister?
01-24-11, 02:57 AM
#2
Rotary Freak
Run it to the bottom nipple of the three nipples on the front of the throttle body. I don't know what a dc is.
Or there's a unused nipple just below the secondary fuel rail.

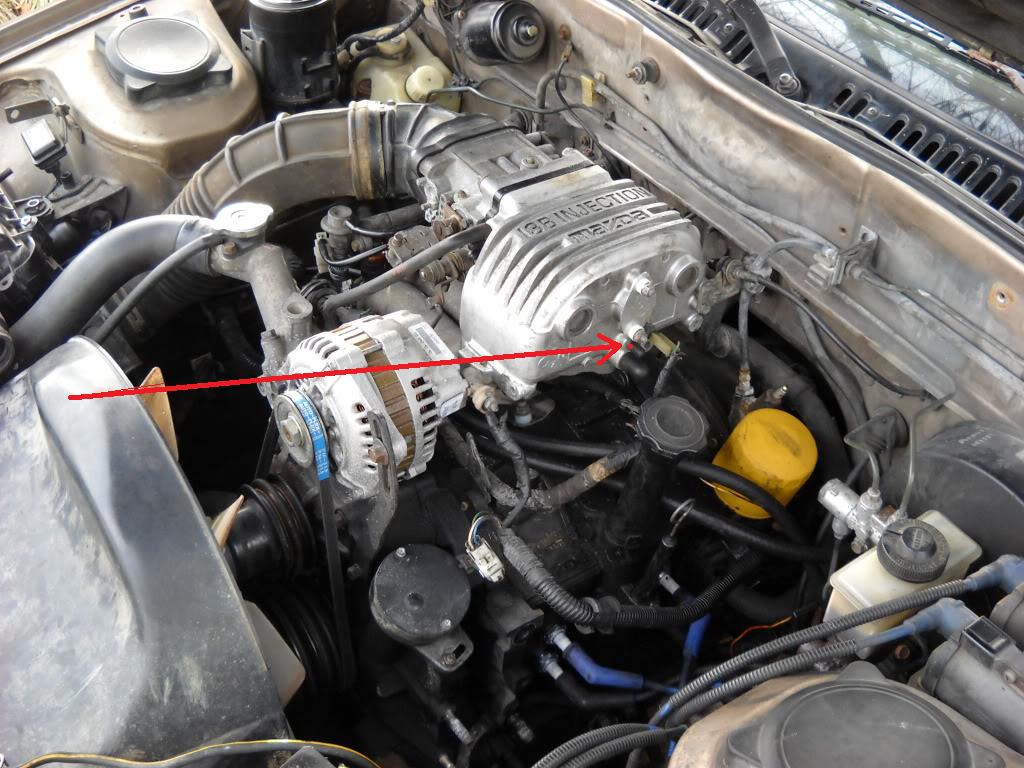

Or the original source of vacuum for the FPR was on the left side of the dynamic chamber. A single nipple there near the air intake sensor. I stole a jpg off this site and pointed a red arrow to the area of the nipple. See jpg attached.
Or there's a unused nipple just below the secondary fuel rail.
Or the original source of vacuum for the FPR was on the left side of the dynamic chamber. A single nipple there near the air intake sensor. I stole a jpg off this site and pointed a red arrow to the area of the nipple. See jpg attached.
