SpAm@FC

iTrader: (4)

hi guys!

I wanna do a selfmade IC setup on my S4 TII...

what core size can i use max. to fit it under my stock s4 bumper?

i've searched but didn't find the infos i need :/

thx guys!

SpAm@FC

iTrader: (4)

ok, so after i do searching again with the right keywords i found many postings with the answer i need loool

pls only verify...

12x24x3 or 12x24x4

i will rund a Turbonetics T60, my goals are 300-350rwhp... should i go 2" piping or 3" piping?
i don't wanna get rid of my power steering pump btw... battery would be relocated

hIGGI

iTrader: (7)

2,5" inch piping will be OK and you could keep PS no problem....

gxl90rx7

iTrader: (1)

thats a big intercooler for 350rwhp.. i like smaller intercoolers for less lag, but thats just my me. Im running a 12x9x3 fmic, planning on no more than 350rwhp. The highest TB intake temps ive seen so far was ~105 F, in the summer on stock turbo. usually its in the 90's F

the other thing is, with a big *** 12x24 intercooler, only half of it will see direct air flow through the bumper, unless you cut your bumper up.

SpAm@FC

iTrader: (4)

thx @ higgi, so 2,5" will be ok
i will send you an e-mail today because i need your throttle body elbow

@fxl90rx7

i will never give my FC away, i'm a student right know and i know that i will build my FC up with a nice SP engine etc. when i work after my school
so, its an investement in the future
i will cut my bumper a lill bit up so that i get as much airflow as possible...

do yout think it will be that much lag that i notify it? thx for your input

grinder

nice thread - makes for good reading

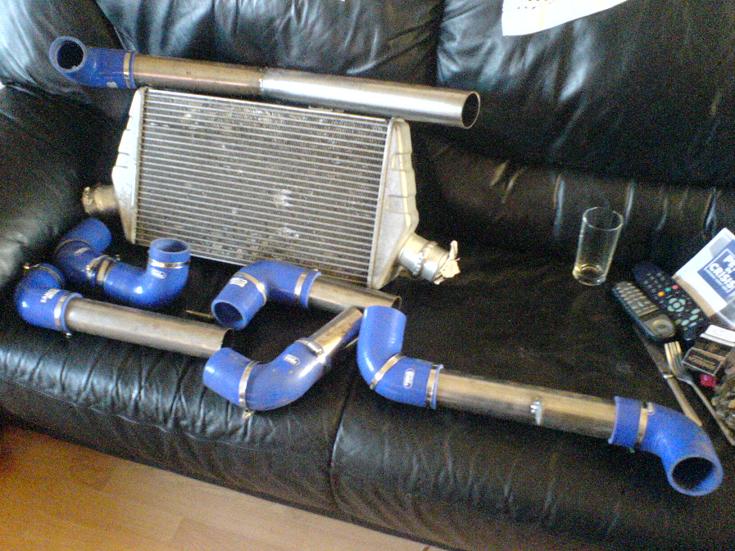

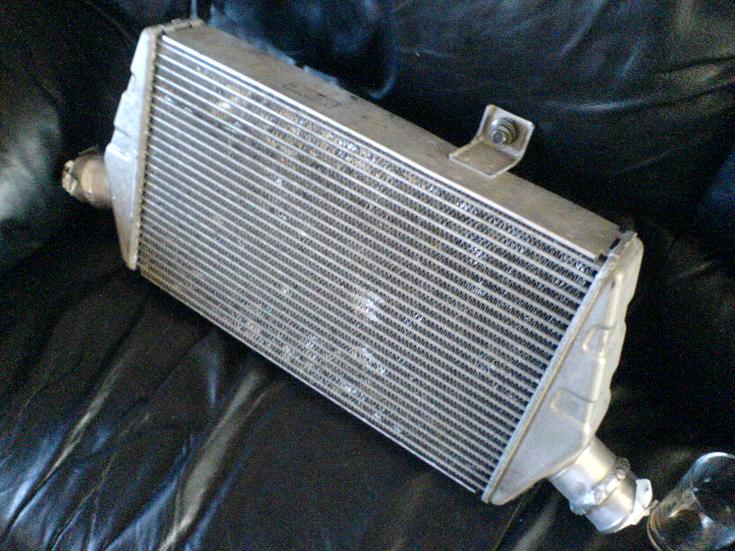

this is what im putting on mine

Evil Aviator

Assuming proper ducting, the inlet should be about 1/4 the area of the intercooler core. The S4 inlet is about 71 sq in, while the S5 inlet is about 87 sq in.

Bad idea.

No

SpAm@FC

iTrader: (4)

why is this a bad idea?

Evil Aviator

Oh boy.

NZ_87_TURBO

FFS. What a helpful reply that was. i was hoping to learn something here

Evil Aviator

Contrary to popular belief, I am not obligated to take time out of my day to answer questions on this forum. I do enjoy discussing technical issues, but there is a point where a minimum level of competence is required. I'm sorry, but explaining why cutting up a bumper is a bad idea drops well below a reasonable level of competence, and I see no reason to further discuss the issue. It should be of no surprise that rudeness will not cajole me into changing this decision. I wish you well on your path of learning, as you seem to have a great need.

dennis blackstone

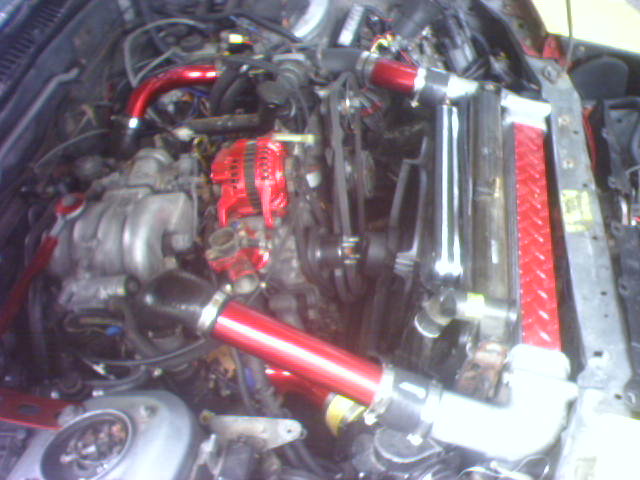

ive tried alot of set ups but this one has been the best i dont have any cooling problems i have the same stock engine in with over 200,000 miles now i have a motor im rebuilding to put in but this was the most simplest and most saticefying i should have blown this motor along time ago but i stay on top of my fuel ,im a wolf 3d standalone fan , its a isuzu npr intercooler it fits perfect ive a lot of my buddys wanting one i just got lucky my buddy works at a junk yard ill find the dimensions for you and pics of my process putting it in i had the pipes bent and powder coated but now im ripping every thing out to paint the car black put a fresh engine in and rebuild the one i pull out ill get you info

SpAm@FC

iTrader: (4)

@Evil Aviator

i really don't see the point why this would be a bad idea?

maybe i will try to explain you the way how i'm thinking... (a little bit hard for me because english is a foreign language for me...)

When i cut the bumper, there would be more direct airflow onto the Intercooler, so more heat from the IC will be transfered from the core to the air flowing trough...
maybe you mean issues with the airflow going trough the FMIC and then trough the water radiator? so that i will "kill" the flow/suck trough the radiator... is this the point?

i'm very intrested why this would be a bad idea... of course i will not cut my bumper when there is no need to cut it... i don't needthe bling* effect, i will paint that thing black for understatement

maybe you can give me a little hint to think that thing over again...

and its no problem if you don't give me the exact answer, i like to get the point by myself... because it has a better learning effect... things you learn with thinking yourself about a problem you will never forget

NZ_87_TURBO

I do have a great need for learning. In fact it is one of my greatest passions in life. I am knowledge junkie. im only 22 and have owned my rx7 ( 1st FC, 1 FB before that ) for just over 1 year. in that time i have blown up and refited an new block and had many trials and tribulations along the way. Now i am in a good space with a well running car and i want to make it better and to do that i need to know stuff.

I will try and find out why this is and if i do post it up for other people who arnt as knowledgeable as yourself.

Sorry for being rude. It wasnt necessissary and i got frustrated as i was looking foward to the answer.

Peace

SpAm@FC

iTrader: (4)

i remember that someone posted a link to a pdf file... it was named something like "all about intercooling"... maybe there is the answer but i dont find the link/thread :/

patman

iTrader: (3)

I think evil assumes that you are cutting the structural bumper, not the airdam. you can cut the airdam up all you want, long as you duct it properly afterwards.

SpAm@FC

iTrader: (4)

thx patman, thats a good point

of course it would be worthless to cut the bumper if i don't duct the airflow as it should

ENZO182007

I believe a good read would be if you look at a book called Street turbocharging by mark warner( werner) i dunno / or maximum boost< classic by corky bell there are some good pages on ducting , physics of air as a fluid, core thickness to realitive cooling capability all kinds of shiz the average Person dosent think about before HACKING up a nice fron end or buying a intercooler that 9" thick

- J.R

gxl90rx7

iTrader: (1)

what an ***. and how long did it take you to type this response?? i dont see why cutting the bumper would be bad for performance either, if you are referring to the bumper support, the greddy kits require you to remove it anyway so that doesnt make sense either

cdaleracer669

iTrader: (1)

i have been having an extremely hard time figuring out what size i want to go with. i have been debating for a month and still dont know...... so if you can decide good job LOL thats one step farther than me.
