flywheel without 6 nuts! (pic included)
#1
I think I'm addicted
Thread Starter
flywheel without 6 nuts! (pic included)
i am taking out my flywheel for changing the pilot bearing.

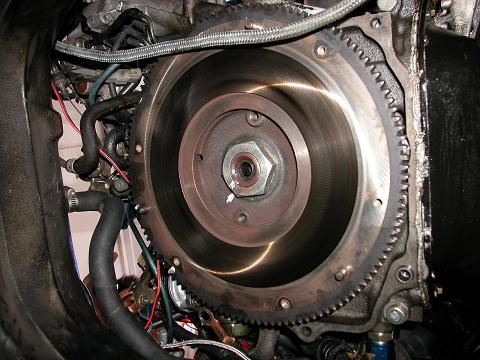

from other people's pictures and FSM, i see that the flywheels have 6 nuts and the BIG center 54mm nut holding the flywheel
but mine only has that big nut... is that normal? or aftermarket?
from other people's pictures and FSM, i see that the flywheels have 6 nuts and the BIG center 54mm nut holding the flywheel
but mine only has that big nut... is that normal? or aftermarket?
#2
from my experiences, the ones with 6 nuts are usually like lighter flywheels or automatic ones. the flywheel on my turbo was exactly like that, and it was a manual tranny.
#3
Green Flameless
iTrader: (2)
Join Date: Feb 2002
Location: North Central PA
Posts: 2,242
Likes: 0
Received 0 Likes
on
0 Posts
I dunno where you got the 6 nuts idea, maybe the (counterweight?) plate for automatics or something.. There's six bolt holes on the flywheel to hold the pressure plate down, but that's it. You have your one big-***'d nut, and 6 bolt holes. Looks normal to me
#4
I think I'm addicted
Thread Starter
i don't see the 6 bolt holes,
i mean not the 6 holes ON the flywheel for the pressure plate, but i see it in other pictures
https://www.rx7club.com/showthread.p...ywheel+removal
the "MY Flywheel BIG pic"
also in the FSM
i mean not the 6 holes ON the flywheel for the pressure plate, but i see it in other pictures
https://www.rx7club.com/showthread.p...ywheel+removal
the "MY Flywheel BIG pic"
also in the FSM
#5
Look ma'! I am spoolin'!
Join Date: Nov 2004
Location: california, San Luis Obispo
Posts: 747
Likes: 0
Received 0 Likes
on
0 Posts
The lightsteel flywheels have 6 holes in the outer-center to bolt the flywheel to the counterweight. The big nut does not touch the flywheel on the lightsteel flywheel, the bignut just holds onto the counterweight.
#6
Super Raterhater
iTrader: (6)
Join Date: Dec 2001
Location: NY, MA, MI, OR, TX, and now LA or AZ!
Posts: 10,629
Likes: 0
Received 2 Likes
on
2 Posts
Correct, and since the counterweight is built in on the 5sp stock flywheels, it's just held in by the massive nut, rather than bolted to the counterweight like lightweight or the automatics.
