Fitting the intercooler in!!??
Ok guys I need some tech advice on this. I have a 24(28 with ends)x12x3 intercooler. Was trying to see how I'm gonna slam that sucker in today while I was removing my rad(in atticipation of the KOYO) So i figured I have the rad out, its on the hoist, lets see what is gonna be involved here. So i pull out the overflow etc, make some room so I can attempt to slide it up into place. So Without some serious hacking, and moving the steel lines, I dont think this thing is gonna fit! I do not want to hack the crap out of my bumper. So who else has installed a intercooler this size in there FC, and how did you go about it? Is it still effective if I lay it down/angled. Or should I sell this one and get one a tad bit smaller( as i have a buyer for my current intercooler already). Let me know your thoughts.
#4
I'm gonna fit a 27x12x3, but the weird thing is that the space between the headlights seems to be a lot closer to 27" on mt TII. The intercooler is like this :
![](http://i23.photobucket.com/albums/b359/NJGreenBudd/au-ic0029-1.jpg)
![](http://i23.photobucket.com/albums/b359/NJGreenBudd/au-ic0029-diag.jpg)
![](http://i23.photobucket.com/albums/b359/NJGreenBudd/FMICmountedfront.jpg)
![](http://i23.photobucket.com/albums/b359/NJGreenBudd/intercoolerfront.jpg)
So the core itself should fit between the rails okay , just the spouts would be below the edges of the metal walls.....kinda. I'm not positive on the final fit but I'll post up when I get it in there...
I hope this core isn't too big for a BNR Stage 1 or 2...what do you guys think?
![](http://i23.photobucket.com/albums/b359/NJGreenBudd/au-ic0029-1.jpg)
![](http://i23.photobucket.com/albums/b359/NJGreenBudd/au-ic0029-diag.jpg)
![](http://i23.photobucket.com/albums/b359/NJGreenBudd/FMICmountedfront.jpg)
![](http://i23.photobucket.com/albums/b359/NJGreenBudd/intercoolerfront.jpg)
So the core itself should fit between the rails okay , just the spouts would be below the edges of the metal walls.....kinda. I'm not positive on the final fit but I'll post up when I get it in there...
I hope this core isn't too big for a BNR Stage 1 or 2...what do you guys think?
#6
Engine, Not Motor
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts
You can modify the end tanks so that the inlet and outlet pipes come out at 90 degree angles to the core, or you can aim them straight up and use 90 degree couplings and send them through the rad support.
Trending Topics
#10
just to mention it, thats not my car in the pics in my post, those are pics of Trav's car, from this thread:
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/succesfull-custom-fmic-setups-pics-price-performance-540748/
.
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/succesfull-custom-fmic-setups-pics-price-performance-540748/
.
#14
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
iTrader: (1)
Join Date: Aug 2005
Location: Canada
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
28.5 x 8.5 x 3.5. No cutting anything, no altering the structure or anything. The piping goes right between the rad and frame. It looks low, but its an optical illusion. It's only 1 inch lower than the Rad itself.
#15
Engine, Not Motor
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts

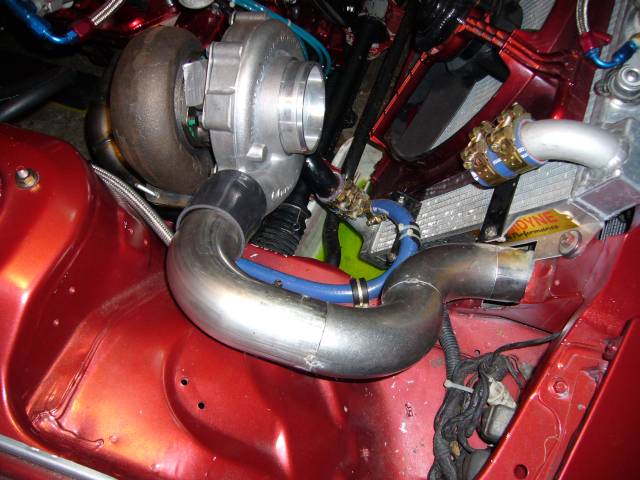

Passenger side:
![](http://www.aaroncake.net/misc/rebuild/448%20-%20Turbo%20Outlet%20Pipe%20Top%20View.jpg)

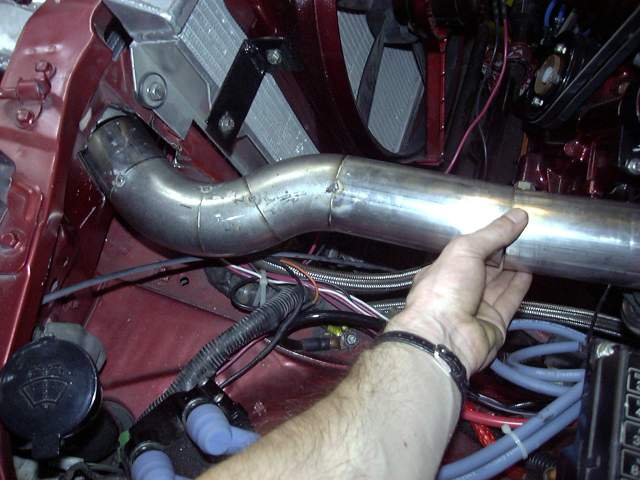

Driver side:
![](http://www.aaroncake.net/misc/rebuild/391%20-%20Tacking%20Drivers%20Side%20Piping%20At%20Front.jpg)
Edit...That intercooler is mounted well behind the bumper. The stock bumper reinforcement is still there, as is the stock undertray.
#17
in between builds
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jul 2006
Location: Kansas
Posts: 337
Likes: 0
Received 0 Likes
on
0 Posts
has that made it hard to get air to the rad? would it be easier to fab up a VMIC or HMIC setup instead?
#18
Engine, Not Motor
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts
I've had no issues with cooling. Water is rock solid between 84 and 90 degrees, oil temp between 180 and 190 (occasionally just over 200 after beating on the car).
