Fd upper intake swap no bolt up to s5 Jdm manifold!
See title, bolts/studs do not line up and therefor do not bolt together

Any wisdom?
gear_grinder is offline
Reply Like
Old 02-08-12, 05:31 PM
  #2
Rotary Freak

iTrader: (2)

JWteknix's Avatar

Join Date: Mar 2006
Location: Wayne NJ
Posts: 2,508
Likes: 0
Received 0 Likes on 0 Posts
its not a direct bolt on
JWteknix is offline
Reply Like
Old 02-08-12, 05:33 PM
  #3
Rotarded

iTrader: (3)

p0tat0s's Avatar

Join Date: Jun 2011
Location: Little Falls, NJ
Posts: 290
Received 7 Likes on 2 Posts
you need an adapter for it http://www.rbautosports.com/index.ph...od&productId=4
found this with a search on here
p0tat0s is offline
Reply Like
Old 02-08-12, 05:53 PM
  #4
FC guy

iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,714
Received 16 Likes on 16 Posts
you dont have to use the adapter, you can port match it, and have to open up a few of the mounting holes
Rob XX 7 is offline
Reply Like
Old 02-08-12, 09:35 PM
  #5
Don't hate my V8

Thread Starter
iTrader: (4)

gear_grinder's Avatar

Join Date: Mar 2006
Location: Cornfield, Indiana
Posts: 1,129
Likes: 0
Received 0 Likes on 0 Posts
That kit looks like it still doesn't change the bolt locations, they look straight through
gear_grinder is offline
Reply Like
Old 02-08-12, 09:53 PM
  #6
whats going on?

iTrader: (1)

SirCygnus's Avatar

Join Date: Mar 2004
Location: atlanta ga
Posts: 4,929
Received 8 Likes on 7 Posts
wrong, the holes need to be modified on the S6 upper intake.
SirCygnus is offline
Reply Like
Old 02-08-12, 10:10 PM
  #7
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
there are six pages on this.
look up: FD Upper On an FC (Misterstyx69)
and Yes,I did it!..(avatar)
misterstyx69 is offline
Reply Like

Trending Topics

Old 02-09-12, 03:20 AM
  #8
Senior Member

iTrader: (3)

no_luck's Avatar

Join Date: Feb 2009
Location: https://t.me/pump_upp
Posts: 441
Likes: 0
Received 0 Likes on 0 Posts
misty is right ..
its been covered alot.. you need to oblong the holes to mount the s6 to s5
you need the adapter.. its easier and reversible

by the way the long bolt is a m8x1.25 tpi 110mm long i think the rest of the bolts are i think 70mm with the same thread pitch and size
no_luck is offline
Reply Like
Old 02-09-12, 05:39 AM
  #9
FC guy

iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,714
Received 16 Likes on 16 Posts
Originally Posted by SirCygnus
wrong, the holes need to be modified on the S6 upper intake.
who is wrong? everyone is saying the holes dont line up
Rob XX 7 is offline
Reply Like
Old 02-09-12, 11:13 AM
  #10
Don't hate my V8

Thread Starter
iTrader: (4)

gear_grinder's Avatar

Join Date: Mar 2006
Location: Cornfield, Indiana
Posts: 1,129
Likes: 0
Received 0 Likes on 0 Posts
maybe the thread should be stickyd so that this doesnt happen again
gear_grinder is offline
Reply Like
Old 02-09-12, 11:18 AM
  #11
Will TIG for 20b

iTrader: (1)

jaggermouth's Avatar

Join Date: Mar 2008
Location: Nanaimo
Posts: 1,422
Likes: 0
Received 3 Likes on 2 Posts
It might be easier to sticky threads where people ARE NOT incapable of searching...
jaggermouth is offline
Reply Like
Old 02-09-12, 11:33 AM
  #12
Banned. I got OWNED!!!
iTrader: (11)

stevensimon's Avatar

Join Date: Aug 2003
Location: salt lake ut
Posts: 3,575
Likes: 0
Received 5 Likes on 5 Posts
will my 10a transmission and driveshaft work in my rx8?
stevensimon is offline
Reply Like
Old 02-09-12, 11:57 AM
  #13
Senior Member

iTrader: (3)

no_luck's Avatar

Join Date: Feb 2009
Location: https://t.me/pump_upp
Posts: 441
Likes: 0
Received 0 Likes on 0 Posts
yea stevensimon just need will power and power tools
no_luck is offline
Reply Like
Old 02-09-12, 12:01 PM
  #14
FC guy

iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,714
Received 16 Likes on 16 Posts
its really not that serious guys, lighten up
Rob XX 7 is offline
Reply Like
Old 03-15-13, 02:21 PM
  #15
Don't hate my V8

Thread Starter
iTrader: (4)

gear_grinder's Avatar

Join Date: Mar 2006
Location: Cornfield, Indiana
Posts: 1,129
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by stevensimon
will my 10a transmission and driveshaft work in my rx8?
mormon
gear_grinder is offline
Reply Like
Old 03-15-13, 03:01 PM
  #16
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
This fits like a GLOVE.(yes,I bought it.I was #2 on the list to get it!) Rising RPM
you can thank me by sending money to:Holycrapthatsfantastic.com
I take 20's and 50's..
misterstyx69 is offline
Reply Like
Old 03-15-13, 03:49 PM
  #17
Rotary Freak

iTrader: (4)

philiptompkins's Avatar

Join Date: Jan 2005
Location: Houston
Posts: 1,523
Likes: 0
Received 0 Likes on 0 Posts
Just curious, are there any benefits to this besides looks?
philiptompkins is offline
Reply Like
Old 03-15-13, 03:56 PM
  #18
FC guy

iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,714
Received 16 Likes on 16 Posts
Originally Posted by philiptompkins
Just curious, are there any benefits to this besides looks?
minimal , but hey every bit counts
Rob XX 7 is offline
Reply Like
Old 03-15-13, 06:20 PM
  #19
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts

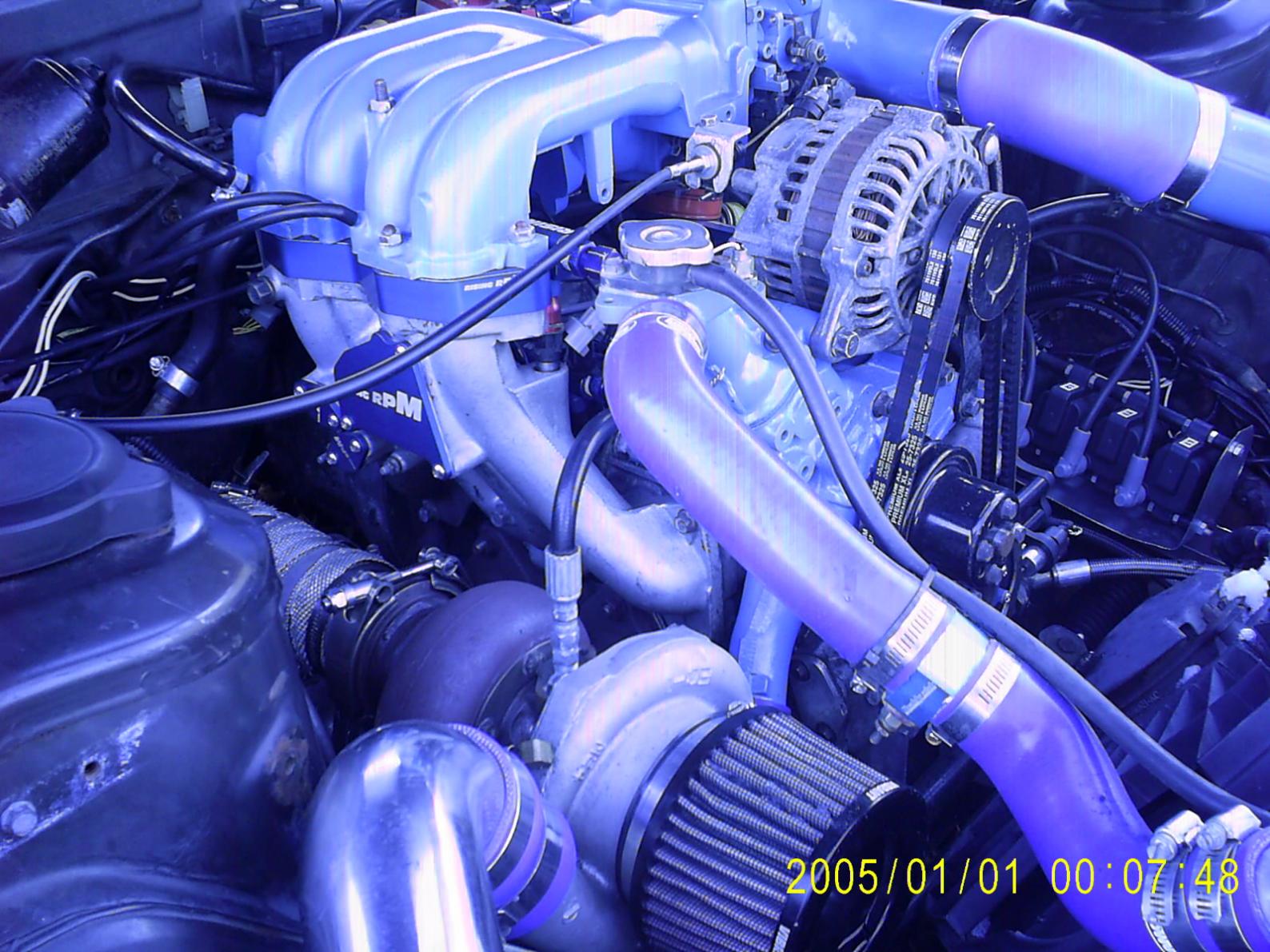

bad pic with a lot of sun,but it shows the setup.
I like the upper Fd setup.
Besides looks?..ya,it got rid of alot of Excess car parts that would have got scrapped..lol!
Attached Thumbnails Fd upper intake swap no bolt up to s5 Jdm manifold!-car-insurance-pics-015.jpg
misterstyx69 is offline
Reply Like
Old 03-16-13, 04:46 PM
  #20
T2 Duo!
iTrader: (6)

tuscanidream's Avatar

Join Date: Oct 2010
Location: RI/CT
Posts: 1,665
Likes: 0
Received 3 Likes on 3 Posts

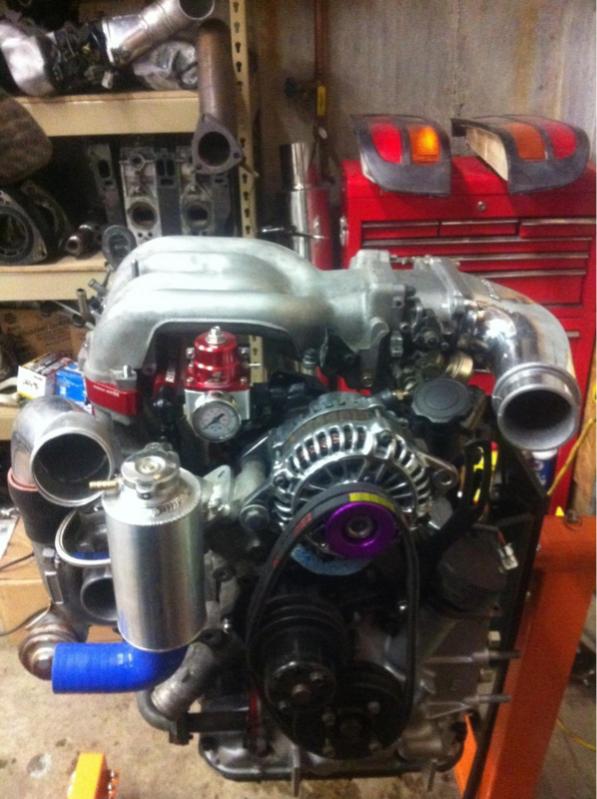

Here's a clearer pic of the rising rpm adapter on my engine. It basically port matches and has bolts with each end offset from each other to match the different bolt hole locations. His products are top notch.
Attached Thumbnails Fd upper intake swap no bolt up to s5 Jdm manifold!-image-1011747953.jpg
Last edited by tuscanidream; 03-16-13 at 04:48 PM.
tuscanidream is offline
Reply Like
Old 03-16-13, 04:48 PM
  #21
Sharp Claws

iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,107
Likes: 0
Received 41 Likes on 40 Posts
wait, an FD upper won't bolt to an FC lower manifold?

something is wrong with your manifolds...
RotaryEvolution is offline
Reply Like
Old 03-16-13, 10:20 PM
  #22
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
Originally Posted by RotaryEvolution
wait, an FD upper won't bolt to an FC lower manifold?

something is wrong with your manifolds...
Since it is ST Patty's day tomorrow..
You get a cardboard box.
Fill it with Lucky Charms(they're magically delicious).
toss Fd upper,Rising RPM adapter and hub-centric oblong bolts,Gaskets,nuts and 2 gallons of milk in the box.
shake and stir,until frothy..
Holy Sheleighleigh...FD upper on an FC..!
Manly!, YES! But I like it too!
with the milk?... go feed your lawn..FEED IT!
..where the Streets have no name....On Sunday,Bloody Sunday...
U2 can do it...
