FC3S 3D Model
#251

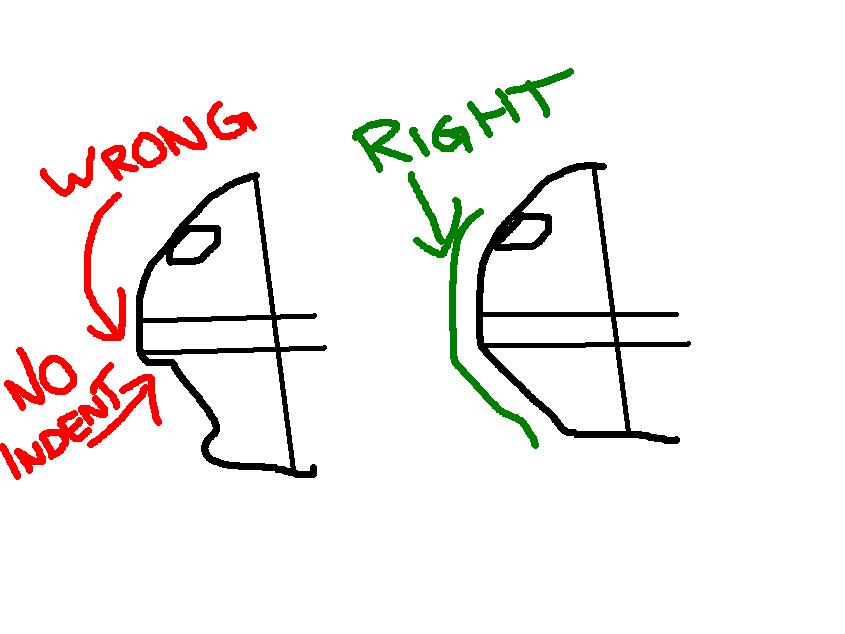

Originally Posted by 1MZFE
I also took some of the front of the car from the sides, because i think yours sticks out too much at the bottom. It still looks good though, so dont change it if you dont want to.
Hope it helps.
#252
Auto Pilot
Join Date: Jun 2006
Location: Tbar, Australia
Posts: 74
Likes: 0
Received 0 Likes
on
0 Posts

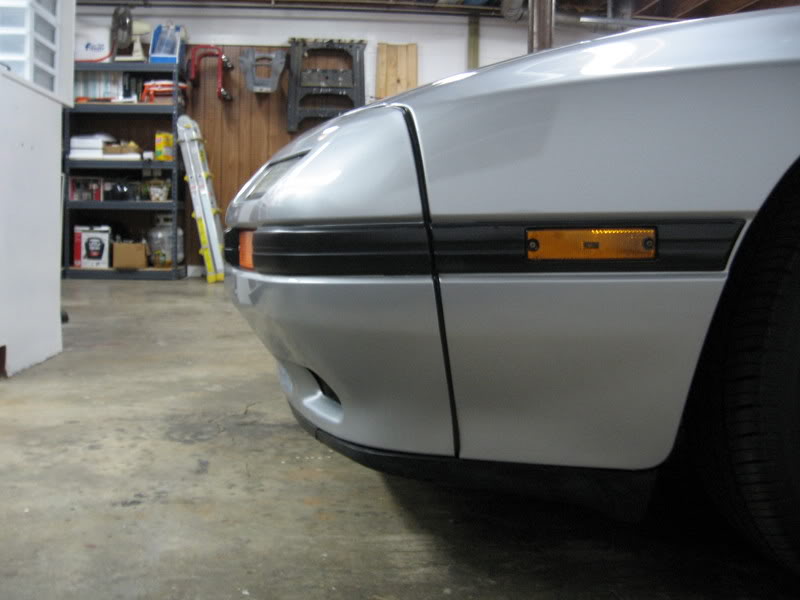

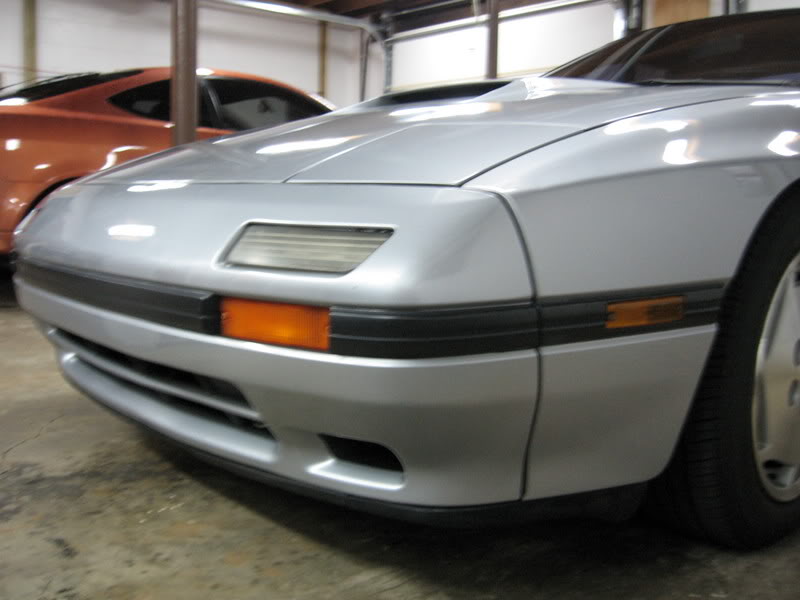

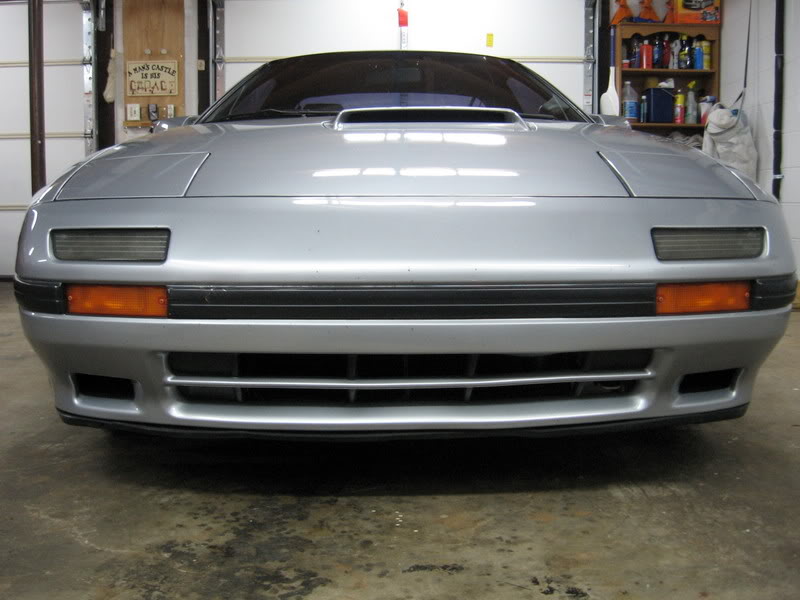

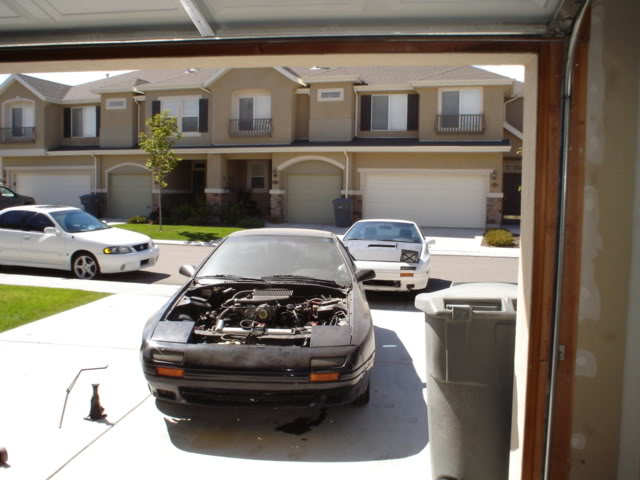

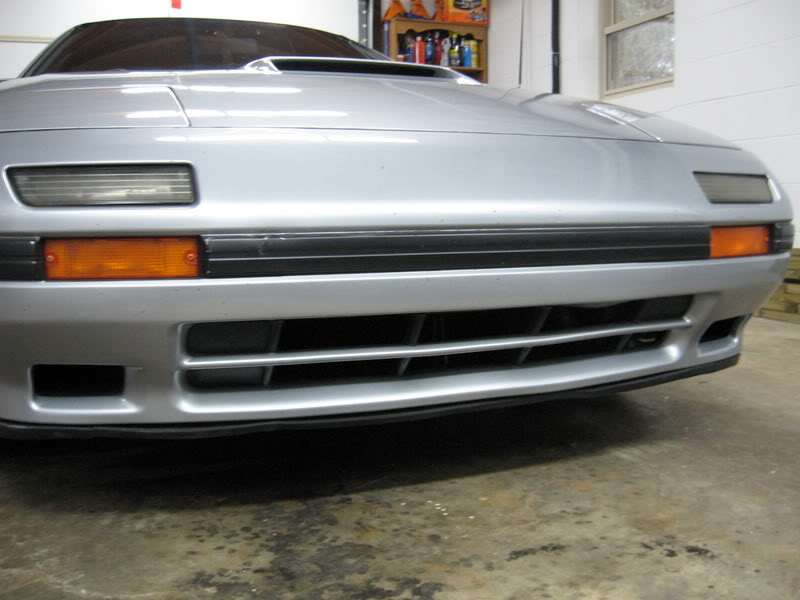

some pics for what I was saying (apologies for large pics) :
Firstly let me apologise because it's FILTHY, anyway...
see the way the light arcs on the rear quarter
and front, plus there is no lip
and finally, the inwards lip near the bottom of the front gaurd
Firstly let me apologise because it's FILTHY, anyway...
see the way the light arcs on the rear quarter
and front, plus there is no lip
and finally, the inwards lip near the bottom of the front gaurd
#255
Senior Member
This is awesome work. More polygons than I am use to,(I currently trying to get jobs in gaming industry, which is a lot of low poly work), but the quality really shows. I am currently a 3d animation major, will be graduating this semester. I am about to start a project of my own, I am going to be modeling the entire engine as accurately as possable. By may I am hoping to have every component of the engine as well as some exploded views and what not. When I am done I might buy your car model to drop my motor in and do some renders ;P. Keep up the good work man.
Dane
Dane
#258
1988 Mazda RX-7 SE
Thread Starter
iTrader: (9)
Join Date: Dec 2006
Location: Beaverton, OR
Posts: 1,307
Likes: 0
Received 0 Likes
on
0 Posts

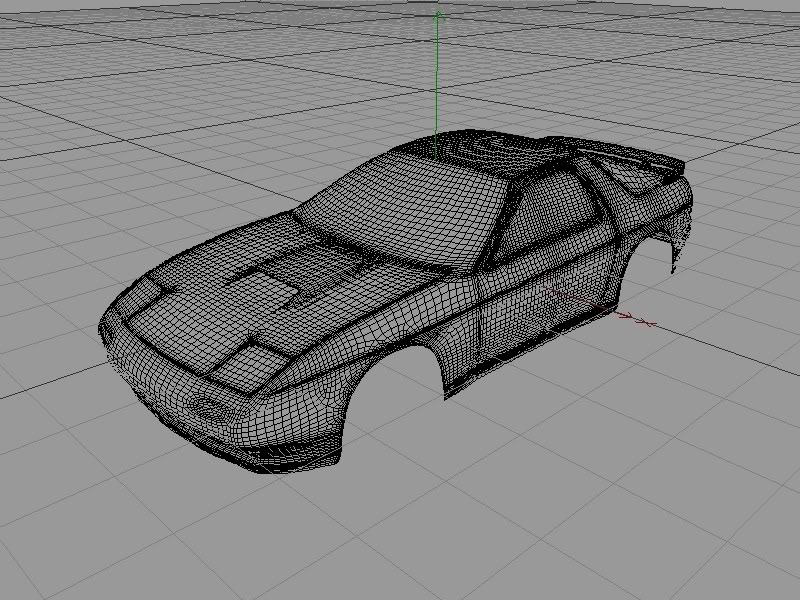

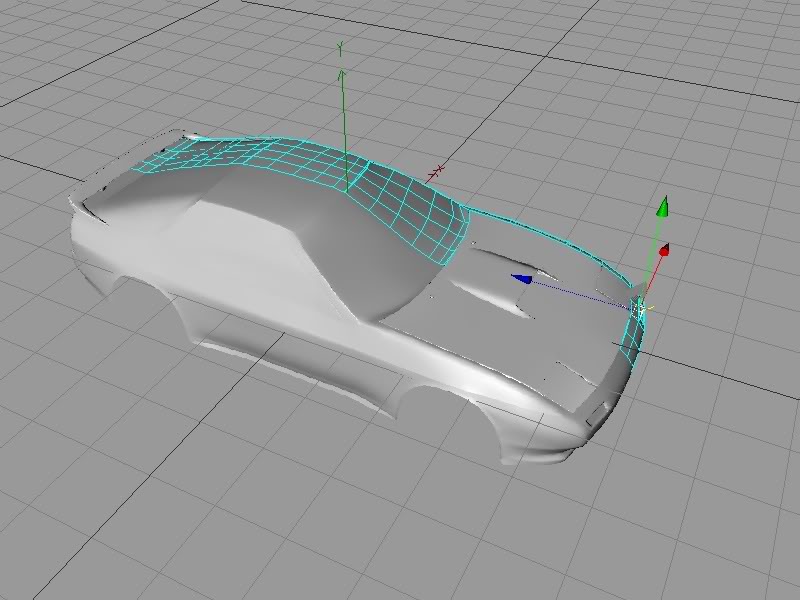

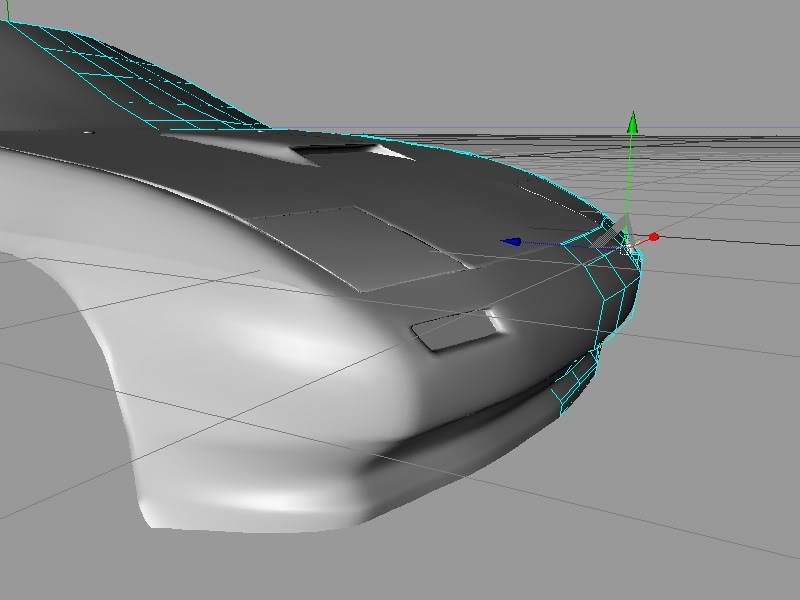

Alright, I think I got another part of the front done, please let me know what you think, I want to know if it's accurate to your knowledge...

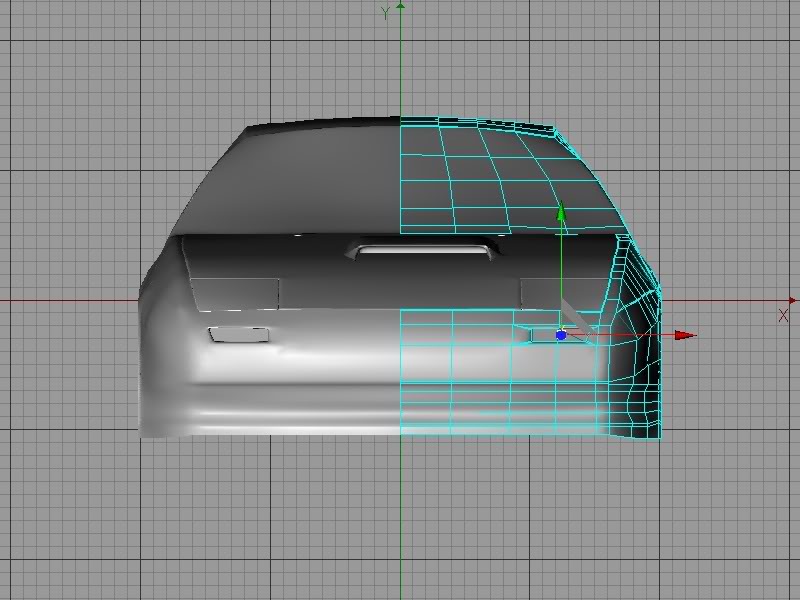

Here are several angles, including a front view.
Here are several angles, including a front view.
#262
IIMMM BBAAACCKKK!!
iTrader: (8)

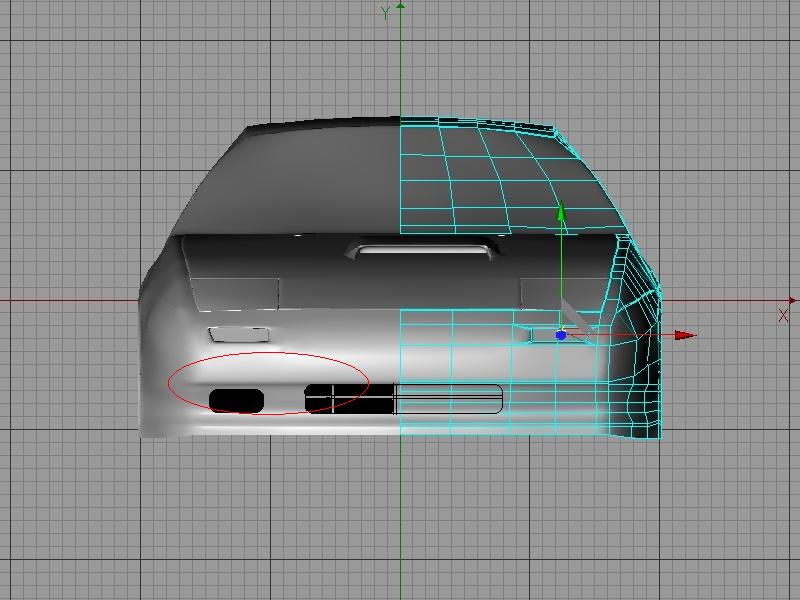

the front fascia is still wrong.... i think i figured out why the blueprint your going off of has that "indent"... since the front fascia is rounded, the center cutout of the lower front bumper will curve as well, so in the drawing, what you see as an indent, is actually the "mouth" of the front bumper curving around the bumper slightly..... its so hard to explain...
#263
1988 Mazda RX-7 SE
Thread Starter
iTrader: (9)
Join Date: Dec 2006
Location: Beaverton, OR
Posts: 1,307
Likes: 0
Received 0 Likes
on
0 Posts
Some major errors have been pointed out to me, and I'm doing this as best as I can...
However I just started a modeling company up...
http://www.strangeobjectstudios.com
And so I'm working on getting my business set up; as well as modeling. So things are going to be a bit slow from now on.
However I just started a modeling company up...
http://www.strangeobjectstudios.com
And so I'm working on getting my business set up; as well as modeling. So things are going to be a bit slow from now on.
#265
1988 Mazda RX-7 SE
Thread Starter
iTrader: (9)
Join Date: Dec 2006
Location: Beaverton, OR
Posts: 1,307
Likes: 0
Received 0 Likes
on
0 Posts
Well...I've been learning a lot about modeling in the past month; and realizing....I wasn't nearly this good when I started the project, but I'ma try to fix all my problems...but here is something that should get you guys excited...

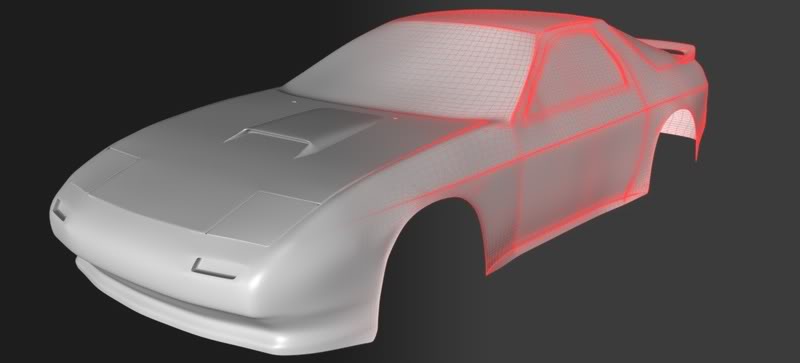

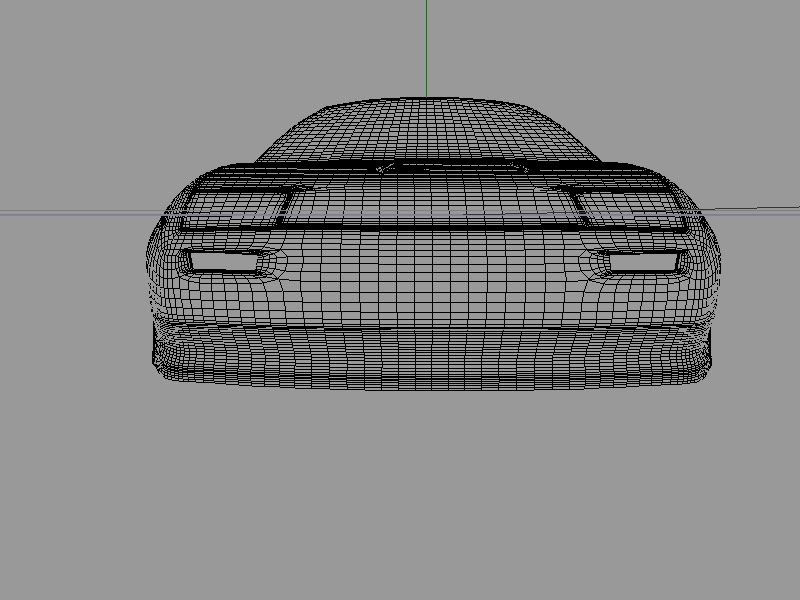

Half render/half wireframe of the car... enjoy.
Half render/half wireframe of the car... enjoy.
#268
I just noticed this thread, very good work
I have an s4 with dull silver paint and access to a good enough digital camera so if you explain to me what you want a picture of for reference I can try to get it for you.
I have an s4 with dull silver paint and access to a good enough digital camera so if you explain to me what you want a picture of for reference I can try to get it for you.
#269
I "lost" my emissions....
one thing on the hood... the scoop is actually an insert into the hood. if you look at the silver turbo on page 17 youll see it, there is a seperaqtiion between the metal and fiberglass
#270
Smoke moar
Originally Posted by ZeroDrift
Looks very good, but seems like the front bumper still needs some attention. Perhaps its the angle, but what Vipers noticed seems to be unchanged on the last render.
s5 > s4
#271
The Firestarter
man..awesome job...looks really good so far..i dunno if i have the courage to spend time on 3d modeling and rendering takes forever when your a newb like me.. ill just stick to my vector art or hand drawn art thank you.
http://ic1.deviantart.com/fs12/i/200...wingsofwar.jpg
http://ic1.deviantart.com/fs12/i/200...wingsofwar.jpg
#275
Rotaries confuse me
iTrader: (7)
Originally Posted by WingsofWar
man..awesome job...looks really good so far..i dunno if i have the courage to spend time on 3d modeling and rendering takes forever when your a newb like me.. ill just stick to my vector art or hand drawn art thank you.
http://ic1.deviantart.com/fs12/i/200...wingsofwar.jpg
http://ic1.deviantart.com/fs12/i/200...wingsofwar.jpg
The FTP's look like crap, sleepy eyes look retarded, and your tires look like ***.
