Just a bit of curiosity. Since I'm not very good at the whole electrical circuits thing
Where is a good place to connect the positive wire from the new electric cooling fan to the engine bay to supply it with power? here is my plan.
Positive wire from cooling fan to + terminal on battery... with a 25A inline fuse between battery and fan. Toggle switch (Illuminated) on dash to turn fan on/off since I don't want to use a relay. Ground wire to chassis.
Does that plan hold water or is there a much better way to do this? Please let me know.
1987 Sport Model N/A Rx7 (white with NO interior
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
Positive wire from cooling fan to + terminal on battery... with a 25A inline fuse between battery and fan. Toggle switch (Illuminated) on dash to turn fan on/off since I don't want to use a relay. Ground wire to chassis.
Does that plan hold water or is there a much better way to do this? Please let me know.
1987 Sport Model N/A Rx7 (white with NO interior
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
#2
http://www.aaroncake.net/rx-7/efaninstall.htm
Here's a wiring diagram I found (it was from someone's fileserver, but I got there from a thread found after searching "efan" and going through a bunch of threads).
Here's a wiring diagram I found (it was from someone's fileserver, but I got there from a thread found after searching "efan" and going through a bunch of threads).
#3
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
here is my plan.
Positive wire from cooling fan to + terminal on battery... with a 25A inline fuse between battery and fan. Toggle switch (Illuminated) on dash to turn fan on/off since I don't want to use a relay. Ground wire to chassis.
Positive wire from cooling fan to + terminal on battery... with a 25A inline fuse between battery and fan. Toggle switch (Illuminated) on dash to turn fan on/off since I don't want to use a relay. Ground wire to chassis.
Don't use a manual switch. One day you will forget it.
If you want to do it properly, get a relay and a thermoswitch and see the diagram posted above or in Aaron's page.

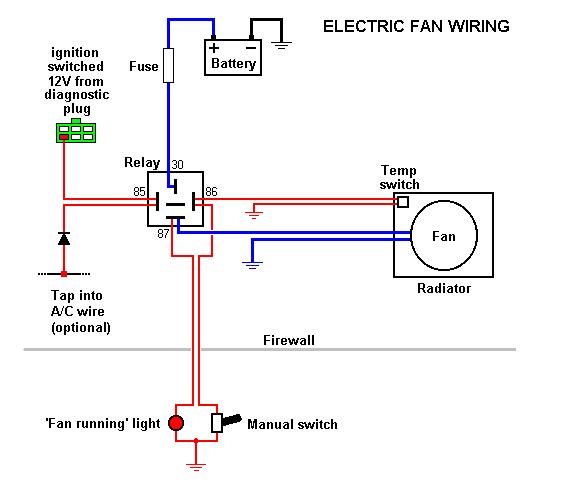

That's my diagram. Ignore the optional A/C wire, it's completely wrong. I don't know what I was thinking...
![dunce](https://www.rx7club.com/images/smilies/dunce.gif)
#4
The optional a/c wire would allow current from the ignition switched output to backfeed into the a/c compressor circuit and would either make the a/c run anytime the switch was on, or would maybe blow a fuse. I know what you were trying to do with that, though, but it requires at least 2 relays to work that way.
#5
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Yeah I know, that's why I deleted that attachment from my list ages ago, so it wouldn't show up in the couple of threads I posted it in. Some people can't search for ****, others are just way too good...
![Stick Out Tongue](https://www.rx7club.com/images/smilies/tongue.gif)
#6
Full Member
Thread Starter
Join Date: May 2007
Location: Dallas
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts
![Exclamation](https://www.rx7club.com/images/icons/icon4.gif)
Haha, I can handle the heat from being smited for having a bad plan! But like I said, since I'm learning I'll just ask all the questions I can and have a fun time learning ![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
Thanks for the diagram. I will do it that way
At least someone saw what I was trying to do with the Switch. But you are right, one day I may forget to turn it off
Thanks again guys!
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
Thanks for the diagram. I will do it that way
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
![Wallbash](https://www.rx7club.com/images/smilies/wallbash.gif)
#7
Full Member
Thread Starter
Join Date: May 2007
Location: Dallas
Posts: 60
Likes: 0
Received 0 Likes
on
0 Posts
![Exclamation](https://www.rx7club.com/images/icons/icon4.gif)
where can i get one of these and what exactly do i need to get... part readily available from a turbo rx7??? or local shop / part house??? where to install it? etc. etc. etc...
Thanks!
Thanks!
Trending Topics
#8
I used one from an 89-91 turbo rx7. It threads into the back of the water pump housing on those models. OTher models would require drilling and tapping to install it, as they do not have the hole/threads for it to go into. They are about $50 from malloy mazda (malloyautomall.com).
There are probably other thermoswitches from various vehicles available as well, which will have different plug shapes and thread size/pitches. They will also have different operating temperatures...the rx7 switch in question turns on at 207 and off at 195. If you could find one with a slightly lower temp range (say 195 and 185?) then it would be a little bit better.
Also some aftermarket fans come with their own temp switch/probe that relies on a radiator probe that goes into the fins, and you can also buy these fan controllers at auto parts stores. I have found these to be inaccurate. One day you set them to come on when you want, and the next day, they come on at a completely different temperature.
There are probably other thermoswitches from various vehicles available as well, which will have different plug shapes and thread size/pitches. They will also have different operating temperatures...the rx7 switch in question turns on at 207 and off at 195. If you could find one with a slightly lower temp range (say 195 and 185?) then it would be a little bit better.
Also some aftermarket fans come with their own temp switch/probe that relies on a radiator probe that goes into the fins, and you can also buy these fan controllers at auto parts stores. I have found these to be inaccurate. One day you set them to come on when you want, and the next day, they come on at a completely different temperature.
#9
Rotary Freak
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Dec 2006
Location: New Hampshire
Posts: 1,791
Likes: 0
Received 0 Likes
on
0 Posts
You can find out how to wire an electric fan here. Also will tell you which wire you can tap into for the ignition control for a relay.
http://howto.globalvicinity.com/gv_w...=148&co=1&vi=1
You will also learn how to install a simple voltage switch that gets wired to the stock water thermo sensor to control the on and off set points plus the variance between the two.
Yup, I have also noticed that, I just set the ON point within the OK temp range, which I have around 190-212. It is never exact.
http://howto.globalvicinity.com/gv_w...=148&co=1&vi=1
You will also learn how to install a simple voltage switch that gets wired to the stock water thermo sensor to control the on and off set points plus the variance between the two.
I have found these to be inaccurate. One day you set them to come on when you want, and the next day, they come on at a completely different temperature.
Last edited by RotaMan99; 08-16-07 at 05:49 PM.
#10
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Also some aftermarket fans come with their own temp switch/probe that relies on a radiator probe that goes into the fins, and you can also buy these fan controllers at auto parts stores. I have found these to be inaccurate. One day you set them to come on when you want, and the next day, they come on at a completely different temperature.
