A/F meter
Hey i have a Wolf A/F1 air fuel meter that i havent figured out how to install yet, can someone help me with this. it came with the car so there were no instructions
10-08-07, 04:40 AM
#2
Senior Member
Join Date: Jan 2003
Location: UK
Posts: 282
Likes: 0
Received 0 Likes
on
0 Posts
if its a narrow band then its quote easy to fit
should be 3-4 wires
1 - earth
2 - power
3 - ecu wire
1 - run this to a earth
2 - run this to a switched live ( so that it only works when the car is running)
3 - i bridges this onto a ECU wire at the ECU

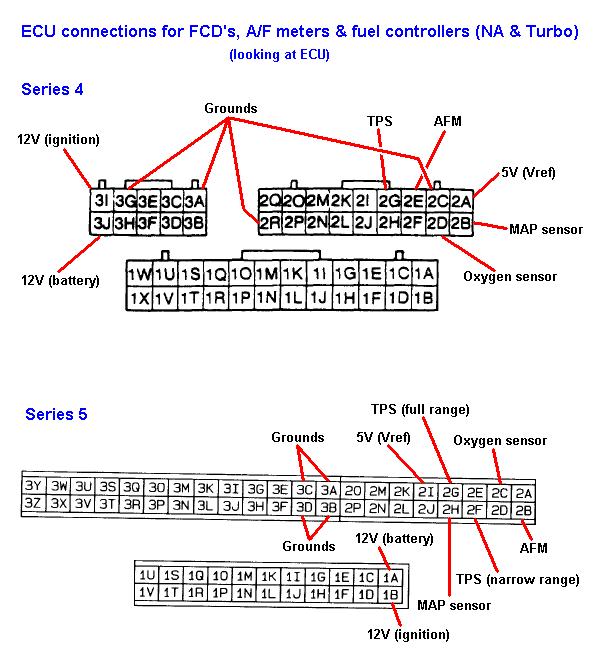

see this piccy :
should be 3-4 wires
1 - earth
2 - power
3 - ecu wire
1 - run this to a earth
2 - run this to a switched live ( so that it only works when the car is running)
3 - i bridges this onto a ECU wire at the ECU
see this piccy :
