Engine Rebuilding Budget
12-16-03, 06:06 PM
#28
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by Mr. Gadget
Dont forget the "mile" of sand paper you used to get those ports looking so sweet.
Dont forget the "mile" of sand paper you used to get those ports looking so sweet.
12-16-03, 07:46 PM
#29
Older than Dirt
Thread Starter
Join Date: May 2003
Location: Parts Unknown
Posts: 1,448
Likes: 0
Received 0 Likes
on
0 Posts

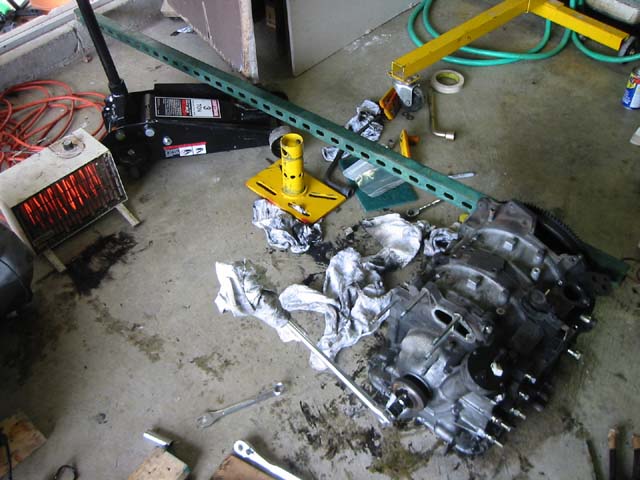

Originally posted by xfeastonarsex
Dude,
Whats holding your pallet racking up???
I didnt even address the bar in my tool list. I found a scrape piece of metal an just made it work.
12-16-03, 07:49 PM
#30
Older than Dirt
Thread Starter
Join Date: May 2003
Location: Parts Unknown
Posts: 1,448
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by 88IntegraLS
Heh, thanks. I actually just used pink dremel grinding stones for the finish smoothing, not with sanding drums. The grit of the pink stones is pretty fine, and they are cheap. I probably spent about $10 on stones not counting the ineffective Tungsten carbide bit I tried.
Heh, thanks. I actually just used pink dremel grinding stones for the finish smoothing, not with sanding drums. The grit of the pink stones is pretty fine, and they are cheap. I probably spent about $10 on stones not counting the ineffective Tungsten carbide bit I tried.
I agree, those 12.00 bits suck. I just came into a air die grinder. Cant wait to let it rip. My dremel is toast.
12-16-03, 08:41 PM
#32
I think it's a great thread to ask my question. I have a s5 TII jspec engine with 90 psi on both rotors. Since the engine is out, I am rebuilding it. I guess there will be a lots of parts that will still be in clearance and size numbers. What are parts that must be change when you open the engine ?
Thanks
Thanks
12-16-03, 10:31 PM
#33
Older than Dirt
Thread Starter
Join Date: May 2003
Location: Parts Unknown
Posts: 1,448
Likes: 0
Received 0 Likes
on
0 Posts
Only the gaskets and O rings have to be replaced, the balance are a function of money ( if in spec). On a tii its best to renew the apex seals. I personally like to replace every spring. While they might be in spec, they are the next weakest component.
12-23-03, 10:21 PM
#35
Nurse I need 1300cc's NOW
for those who have rebuilt rotory's.. i have a question.. if i had one of those videos, and a manual. and i have about a 6-7 months of automotive training. ( so far biggest project was pretty much rebuilding a dodge daytona turbo engine) and i m pretty good at solving automotive problems on v type and inline type engines.. would that merit enough experiance to remove and rebuilt a rotory??,, i have alot of the tools needed to do this by what the previous post state.
also what is the time frame most people experiance in the rebuilding process? with ordering the right seals and what not., any info would be great because this is something im seriously looking into cuz i believe im getting a fc s5 for free it has a small engine problem . and i want to rebuld it to make it last.. so any help will be appreciated .. thanks mark
also what is the time frame most people experiance in the rebuilding process? with ordering the right seals and what not., any info would be great because this is something im seriously looking into cuz i believe im getting a fc s5 for free it has a small engine problem . and i want to rebuld it to make it last.. so any help will be appreciated .. thanks mark
12-23-03, 11:36 PM
#36
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
You could do it. I did my first one with little difficulty and all I rebuilt before it was a Honda B16 (Integra) engine. It took me about a week to disassemble / measure / reassemble everything for the 13B, not counting porting time.
12-23-03, 11:42 PM
#37
Senior Member
Join Date: Apr 2003
Location: -
Posts: 540
Likes: 0
Received 0 Likes
on
0 Posts
I'm finding that most of the time spent in my rebuild is actually cleaning and inspecting the parts, getting it from the engine bay -fully hooked up- to an engine stand, then completely dissasembled took around 6 hours. (I think)
12-24-03, 12:57 PM
#39
Originally posted by Mr. Gadget
Dude,
Whats holding your pallet racking up???
I didnt even address the bar in my tool list. I found a scrape piece of metal an just made it work.
Dude,
Whats holding your pallet racking up???
I didnt even address the bar in my tool list. I found a scrape piece of metal an just made it work.
12-24-03, 01:52 PM
#40
FC Mobsta
Originally posted by 88IntegraLS
You could do it. I did my first one with little difficulty and all I rebuilt before it was a Honda B16 (Integra) engine. It took me about a week to disassemble / measure / reassemble everything for the 13B, not counting porting time.
You could do it. I did my first one with little difficulty and all I rebuilt before it was a Honda B16 (Integra) engine. It took me about a week to disassemble / measure / reassemble everything for the 13B, not counting porting time.
12-24-03, 09:08 PM
#42
Senior Member
Join Date: Dec 2003
Location: just south of charlotte, NC
Posts: 476
Likes: 0
Received 0 Likes
on
0 Posts
Originally posted by 88IntegraLS
It was an older Integra and the engine block had B16 stamped on the dataplate. The bada$$ vtec that the honda kids like is the B18.
It was an older Integra and the engine block had B16 stamped on the dataplate. The bada$$ vtec that the honda kids like is the B18.
01-10-04, 08:11 AM
#44
Older than Dirt
Thread Starter
Join Date: May 2003
Location: Parts Unknown
Posts: 1,448
Likes: 0
Received 0 Likes
on
0 Posts
depends on mechanical apptitude and organization skills. If your a wiz at piston engines, using the rebuilding tape that is being sold, the FSM, Haynes manual and have a good understanding on how to use the measuring devices, i would say it would not take more than 5 hours longer than the everyday rebuilder. I taught my kid how to do one (he did every minute of labor including the front stack and end play measurement. It took about 5 hours longer than I do them in.
01-10-04, 03:55 PM
#46
Older than Dirt
Thread Starter
Join Date: May 2003
Location: Parts Unknown
Posts: 1,448
Likes: 0
Received 0 Likes
on
0 Posts
I took a few minutes to work up what it would cost in parts only to build a new NA 6port as if I was building a crate motor.
Here is the total:
And I am sure I missed a few things.
Here is the total:
And I am sure I missed a few things.
