Engine Rebuild. Porting Tips?
12-26-05, 02:10 PM
#1
Senior Member
Thread Starter
iTrader: (6)
Join Date: Mar 2001
Location: San Jose, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
Engine Rebuild. Porting Tips?
Hey guys,

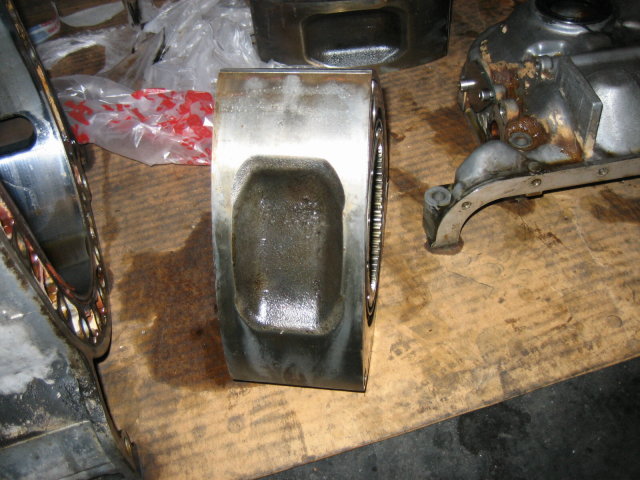

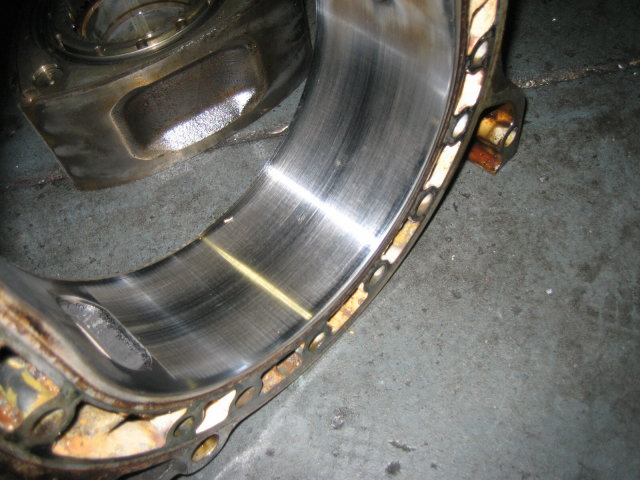

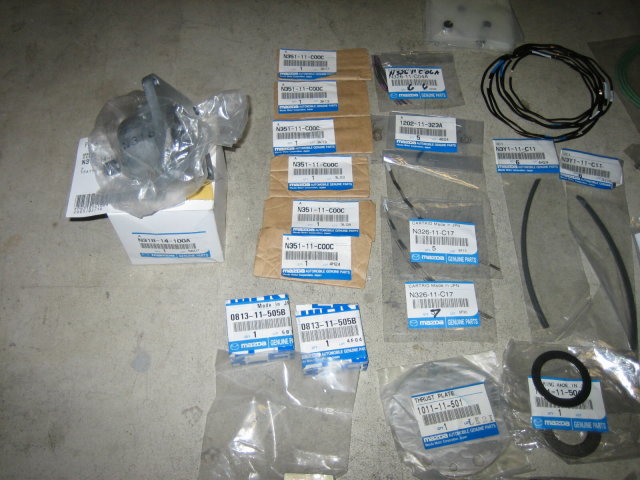

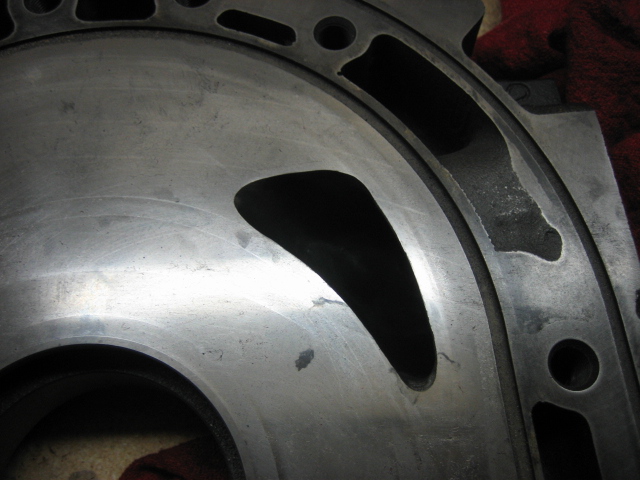

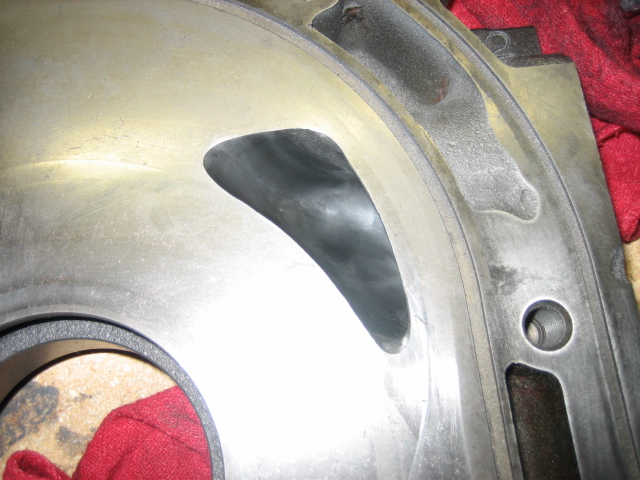

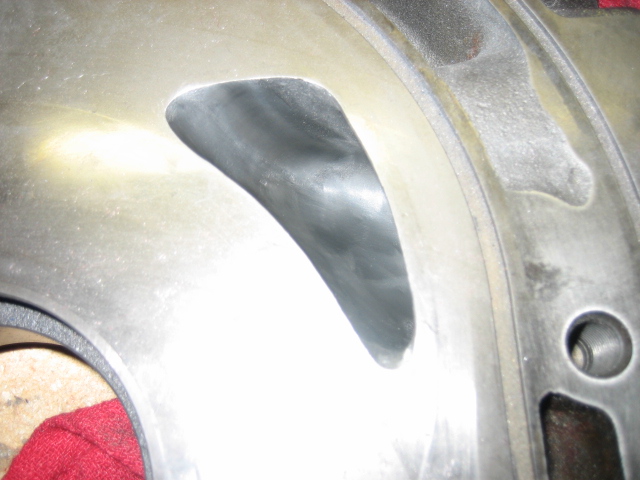

I just started my rebuild for some time now and I've started to port the secondary. I didn't have a tempalate to go by. I basicly went more up and down just a tad. I didn't go side to side. I did not want to mess with the oil seal and side seal support. I went out and bought carbide bits and it seem liked to skip a lot so I used sanding bits and it worked pretty well. It takes a while to take some metal off but it gets there. Let me know what you guys think. This is my first time porting and I consider this a mild street port. I would go up more but I think I'm just pushing my luck.
I was debating if I should send the irons/housings out to get ported. I didn't want to be rebuilding the engine but send my irons/housing to get ported. I rather port it myself even though it might not be as good as others but I feel more acommplashed.
Thanks guys. Any suggestions?
I just started my rebuild for some time now and I've started to port the secondary. I didn't have a tempalate to go by. I basicly went more up and down just a tad. I didn't go side to side. I did not want to mess with the oil seal and side seal support. I went out and bought carbide bits and it seem liked to skip a lot so I used sanding bits and it worked pretty well. It takes a while to take some metal off but it gets there. Let me know what you guys think. This is my first time porting and I consider this a mild street port. I would go up more but I think I'm just pushing my luck.
I was debating if I should send the irons/housings out to get ported. I didn't want to be rebuilding the engine but send my irons/housing to get ported. I rather port it myself even though it might not be as good as others but I feel more acommplashed.
Thanks guys. Any suggestions?
Last edited by GTR; 12-26-05 at 02:16 PM.
Trending Topics
12-26-05, 11:14 PM
#10
Reverse Engineer
Join Date: Jun 2002
Location: Middle of Nowhere, Center of Everywhere
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts

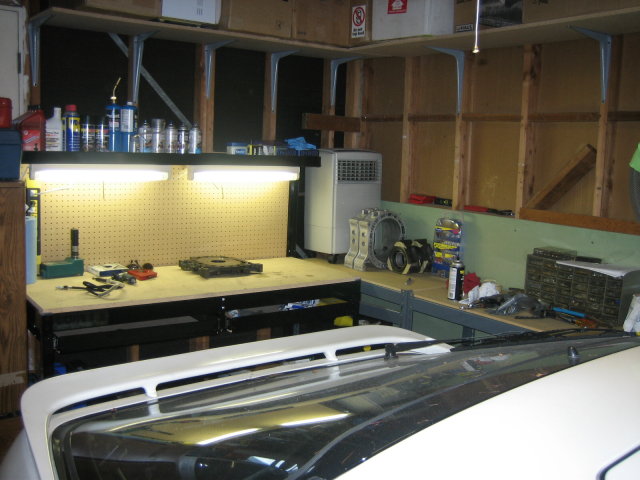

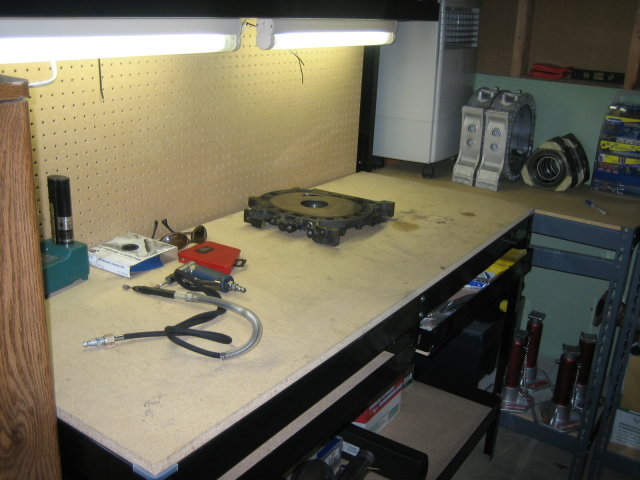

Hey, I like the garage set up with the lights and lots of counter space. Good luck!
Last edited by Aaron Cake; 12-27-05 at 09:50 AM.
12-27-05, 01:54 AM
#11
Senior Member
Thread Starter
iTrader: (6)
Join Date: Mar 2001
Location: San Jose, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by fcfdfan
Hey, I like the garage set up with the lights and lots of counter space. Good luck!

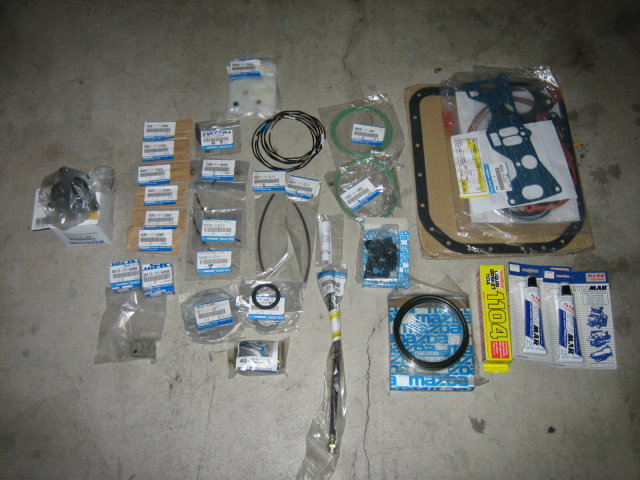

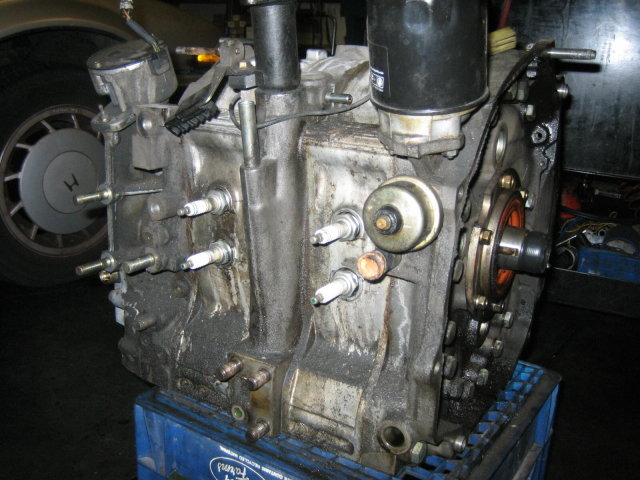

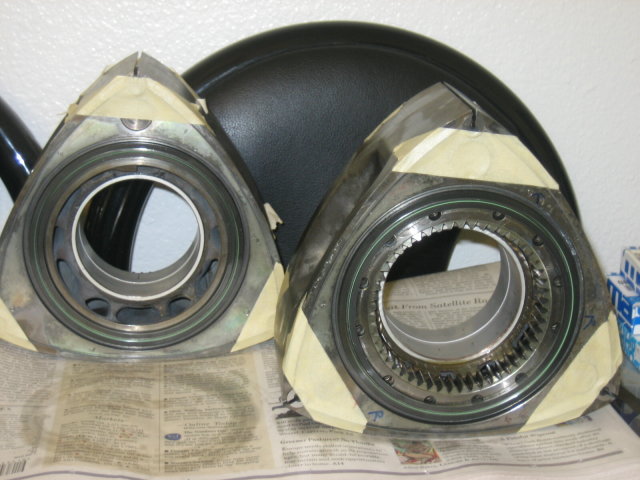

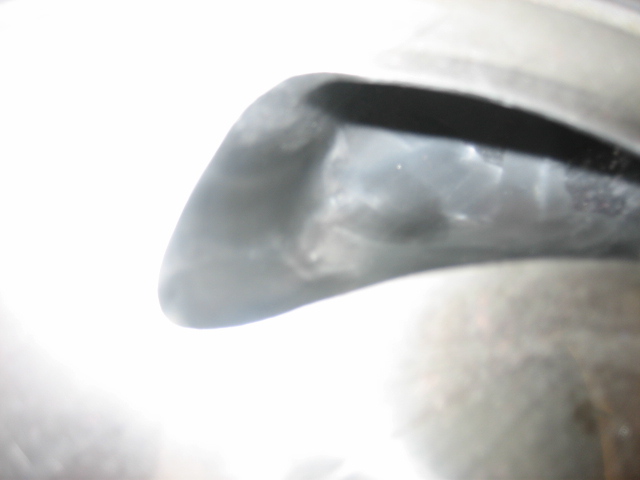

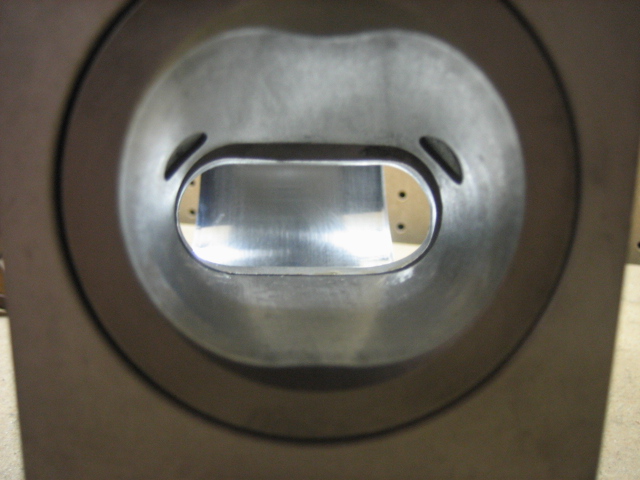

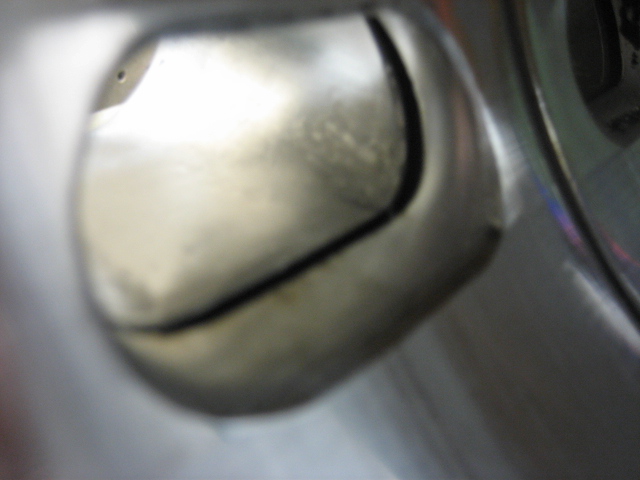

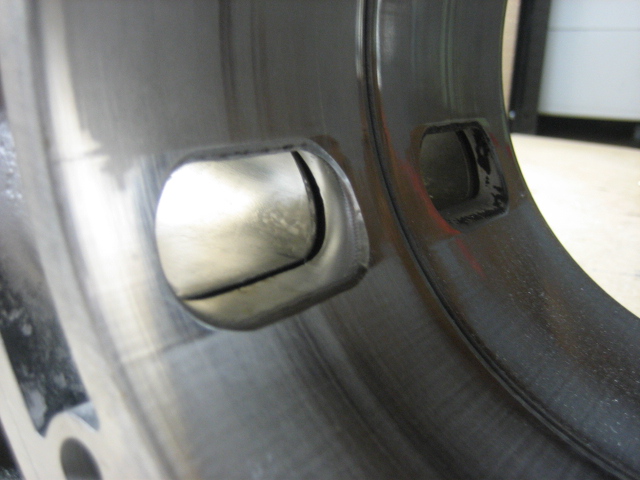

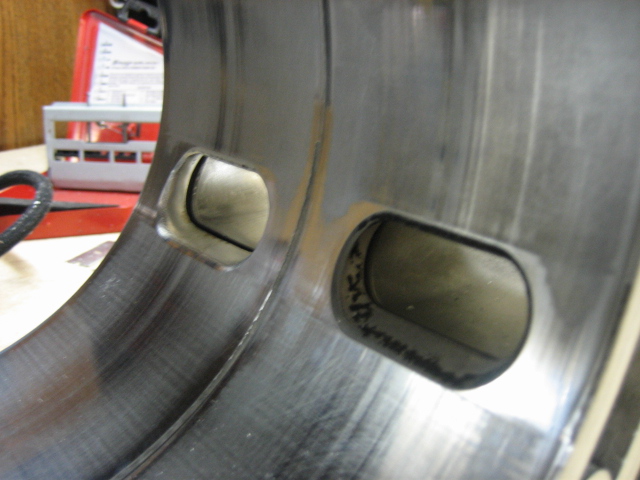

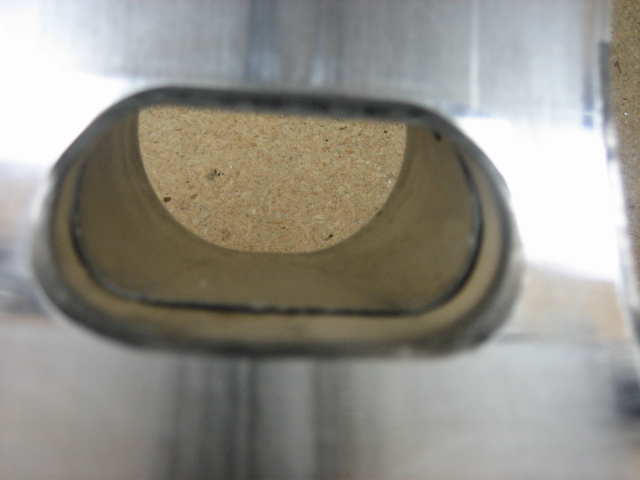

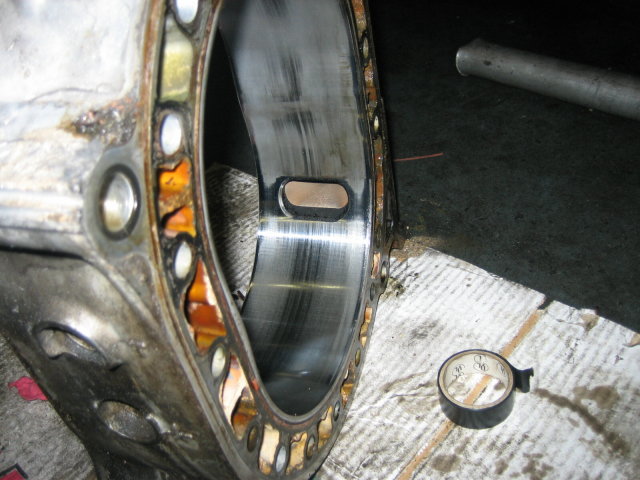

Anyway, I just got done with one of the exhaust ports. Still no template. I went down more. And side to side. I didn't even bother touching the top. I beveled the edges of the port to protect the apex seals.
Well, heres the pics. Like always. Suggestions and Tips are highly WELCOME
12-27-05, 08:30 AM
#13
Seduced by the DARK SIDE
Join Date: Apr 2001
Location: Orange Park FL (near Jax)
Posts: 7,323
Likes: 0
Received 2 Likes
on
2 Posts
Tips:
Make a clear plastic template of your rotor, including the position of the corner & side seals.
Do you layout so that the corner seals & side seal ends don't fall into the port.
Use your finger to feel the inside water jacket wall, so you don't make it too thin.
Angle the closing wall of the port to the side seal, so the seal dosen't bang straight parallel into the port closing wall.
Make a clear plastic template of your rotor, including the position of the corner & side seals.
Do you layout so that the corner seals & side seal ends don't fall into the port.
Use your finger to feel the inside water jacket wall, so you don't make it too thin.
Angle the closing wall of the port to the side seal, so the seal dosen't bang straight parallel into the port closing wall.
12-27-05, 08:42 PM
#14
Senior Member
Thread Starter
iTrader: (6)
Join Date: Mar 2001
Location: San Jose, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by bradenscreed
i wanna know what this looks like compared to the templates....but i like
Originally Posted by SureShot
Tips:
Make a clear plastic template of your rotor, including the position of the corner & side seals.
Do you layout so that the corner seals & side seal ends don't fall into the port.
Use your finger to feel the inside water jacket wall, so you don't make it too thin.
Angle the closing wall of the port to the side seal, so the seal dosen't bang straight parallel into the port closing wall
Make a clear plastic template of your rotor, including the position of the corner & side seals.
Do you layout so that the corner seals & side seal ends don't fall into the port.
Use your finger to feel the inside water jacket wall, so you don't make it too thin.
Angle the closing wall of the port to the side seal, so the seal dosen't bang straight parallel into the port closing wall
12-28-05, 12:46 AM
#15
i'll blow YOUR valve off
Join Date: May 2004
Location: KC MF MO
Posts: 1,064
Likes: 0
Received 0 Likes
on
0 Posts
You can get templaces from Racing Beat.. But I'm with you. I've never used the templates..
And yet again.. kudos on a pimptastic garage.
And yet again.. kudos on a pimptastic garage.
12-28-05, 02:01 AM
#17
Senior Member
Thread Starter
iTrader: (6)
Join Date: Mar 2001
Location: San Jose, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by powrdby13B
You can get templaces from Racing Beat.. But I'm with you. I've never used the templates..
And yet again.. kudos on a pimptastic garage.
And yet again.. kudos on a pimptastic garage.
Originally Posted by Karack
i only use templates for a base line depending on the needs of the customer.
if you have never ported before you could have fooled me, great job so far.
if you have never ported before you could have fooled me, great job so far.
02-09-06, 03:20 AM
#19
Senior Member
Thread Starter
iTrader: (6)
Join Date: Mar 2001
Location: San Jose, CA
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts

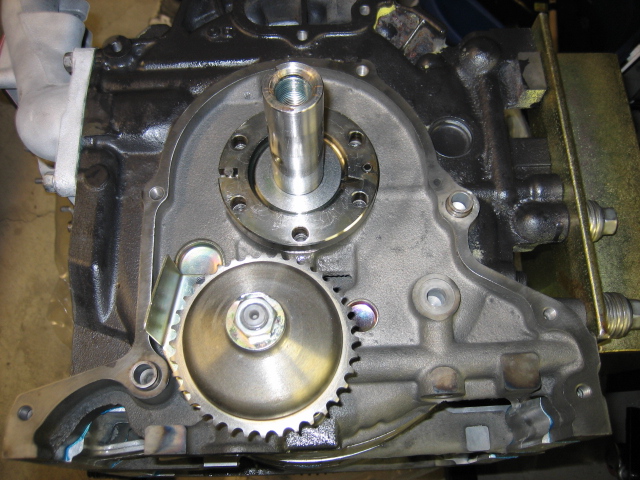

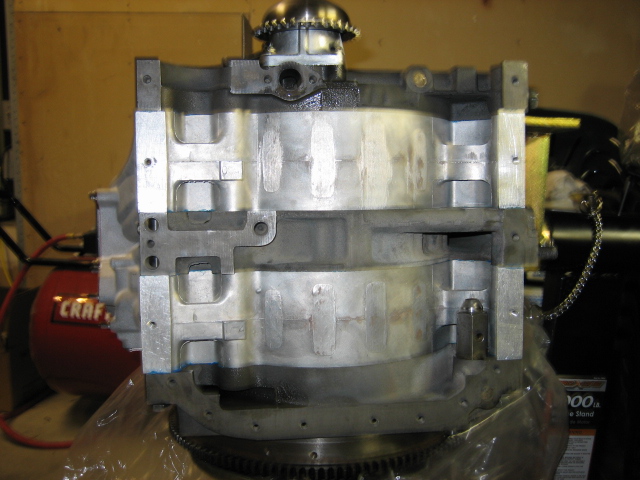

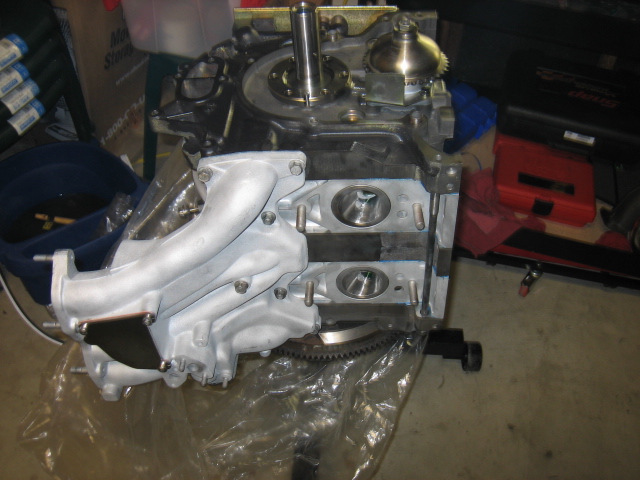

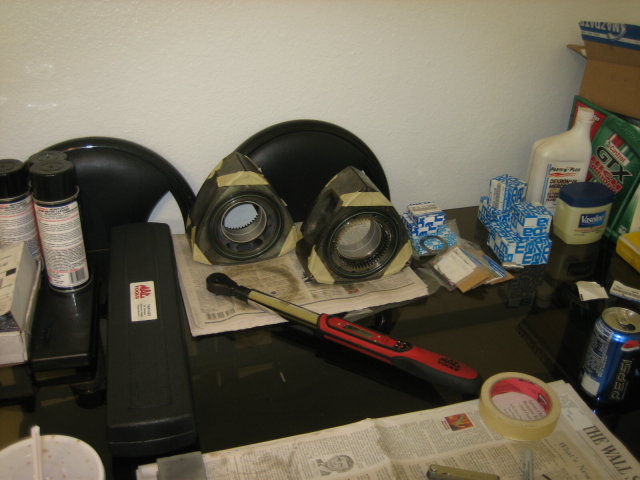

Updated Pics
