Engine in FLAMES!!!!!!!!!
#26
Originally Posted by gingenhagen
The banjo has nothing to do with the hose connection. It just caps off the end so fuel isn't squirting all over your engine.
http://www.rotaryresurrection.com/ro...pulsation.html
http://www.rotaryresurrection.com/ro...pulsation.html
It has everything to do with the connection of the fuel hose. It is just a non-dampening part unlike the PD itself.
#28
I am 2Furious
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 1987RX7guy
It has everything to do with the connection of the fuel hose. It is just a non-dampening part unlike the PD itself.
#29
Originally Posted by Karack
PD strikes again! how could anyone who reads these forums not know about the horror of the PD failures? it should be the first thing any RX7 owner should check...
aparantly they are more concerned with their monzta tackoz! for that 11k rpm action yo lol
Seriously I still vote for a noob education program as part of becomming registered.
#30
Originally Posted by Aaron Cake
Why not just replace the damper with a new one? That way, you maintain the original function, and it will last for another 18+ years.
Some have had negative experience with the banjo bolt "fix".
Some have had negative experience with the banjo bolt "fix".
#33
I live in an igloo
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
The marren if friggen BIG, whether its the T2 or the NA, the primary injector rail is in the same place. I'm sure theres enoughe clearence for it without hitting the actual intake, but what im wondering is if its going to not fit cause the housings will be too close?
I'd email marren and ask them, im sure they've solve a few to seven owners
I'd email marren and ask them, im sure they've solve a few to seven owners
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
#34
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: May 2004
Location: OC
Posts: 1,088
Likes: 0
Received 0 Likes
on
0 Posts
i want pics.
see the aftermath. anytime you get gas smell in the cabin/under the hood, its not good. odds are its causing headaches from the fumes.
see the aftermath. anytime you get gas smell in the cabin/under the hood, its not good. odds are its causing headaches from the fumes.
Last edited by rs_1101; 01-29-05 at 02:07 AM.
#35
I am 2Furious
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts

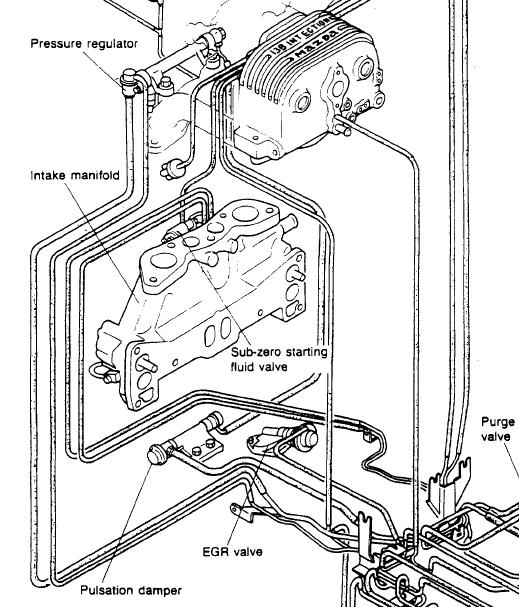

The archive's marren FPD retrofit covers how to do it for the N/A pretty well. Replace the old FPD with a banjo bolt and replace the banjo bolt (on the primary) with a -6AN adapter which will run up to the rear of the secondary fuel line and the marren FPD which is connected with an adapter.

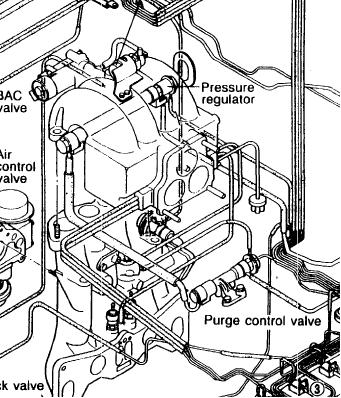

Problem is, the T2's flipped so that the pressure regulator is in the rear, and there's no room to install the marren FPD (which is HUGE!!!) in the front of the secondary fuel line. I should know, I bought me a marren FPD and then had to pay the price of shipping and restocking when I saw it wouldn't work.
Then again, there's probably some way around it like if you swapped the pressure regulator to the front of the secondary fuel line and then ran lines from the front of the primary to the rear of the secondary or some convoluted garbage like that. I'm perfectly happy with my banjo bolt replacement.
Problem is, the T2's flipped so that the pressure regulator is in the rear, and there's no room to install the marren FPD (which is HUGE!!!) in the front of the secondary fuel line. I should know, I bought me a marren FPD and then had to pay the price of shipping and restocking when I saw it wouldn't work.
Then again, there's probably some way around it like if you swapped the pressure regulator to the front of the secondary fuel line and then ran lines from the front of the primary to the rear of the secondary or some convoluted garbage like that. I'm perfectly happy with my banjo bolt replacement.
#36
Engine, Not Motor
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts
Originally Posted by RotaryResurrection
What sort of 'negative experience' aaron?
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
And what's to say that a new PD will last 18 years?
that doesnt make the car go any faster or run any better? And in the meantime you'd still have to worry about it failing.
IMO, mazda should have designed the PD better...there should be a second layer of metal over the screw, brazed on (think about a dime welded on the tip of it, but with a more conical rounded shape to allow the screw to expand outward), so that even if the screw comes out and the diapragm fails, the worst thing that would happen would be that fuel would fill up the little pocket at the end of the PD...but it could never leak.
Unfortunately, a new PD would cost as much as an aftermarket PD from Marren. Might as well buy the Marren PD which would likely last longer since it's made of aluminum.
Also, the fuel rail from the S5 can be used which has an integrated damper. It's much less prone to failure.
#37
Originally Posted by Aaron Cake
Doubt it's a problem for most people, but why not fix the problem properly and keep a necessary component of the fuel system (show me an EFI equipped car without a PD from the factory)? ![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
![Smilie](https://www.rx7club.com/images/smilies/smile.gif)
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
I can see where you could run into problems without it in very high HP situations, but not in a typical RX7, there's just not enough load on the fuel system to make it an issue.
#38
Engine, Not Motor
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts
Originally Posted by digitalsolo
My 1998 Grand Prix GTP doesn't have a PD factory, and the stock fuel system on it has proven good for ~600 HP with larger injectors. ![Wink](https://www.rx7club.com/images/smilies/wink.gif)
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
I just did a quick Google search, and find several references to the PD on the 1996-1998 Grand Prix. Is the GP the semi-returnless system? That appears to be the only GM system without a PD...
#39
Originally Posted by Aaron Cake
Without going too much OT, that's the first one I've heard of. Are you sure? That's the 3800 engine, isn't it? My mom's Olds had the same engine with the PD located on the rear fuel rail...
I just did a quick Google search, and find several references to the PD on the 1996-1998 Grand Prix. Is the GP the semi-returnless system? That appears to be the only GM system without a PD...
I just did a quick Google search, and find several references to the PD on the 1996-1998 Grand Prix. Is the GP the semi-returnless system? That appears to be the only GM system without a PD...
![Big Grin](https://www.rx7club.com/images/smilies/biggrin.gif)
