electrical issue
well.. i used to daily drive the car.. but then i got into a little fender bender and left the car on my driveway for a few wks. then the battery died, so i had to start the motor by jumping it everytime. (i run the motor at least once a wk)
now that i'm starting to drive the car again, i realized that my old battery is dead and i can't even slow charge it. as a result, i brought a new battery yesterday. i woke up this morning, and the battery died. something is draining the battery. any suggestions?
now that i'm starting to drive the car again, i realized that my old battery is dead and i can't even slow charge it. as a result, i brought a new battery yesterday. i woke up this morning, and the battery died. something is draining the battery. any suggestions?
#2
Automatic = Power drain
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Nov 2006
Location: Pennsylvania
Posts: 399
Likes: 0
Received 0 Likes
on
0 Posts
Until you figure it out, remove the negative cable each night and then stick it on before work (slow, but faster than jumping.) Do the same after arriving at work and reconnect to go home.
This weekend, get a cheap multimeter that can measure current. Park the car and take off the negative battery cable. Place the black lead of the multimeter on the negative terminal and the red lead on the cable and see what the current draw is. (You will need to configure the meter to measure current.)

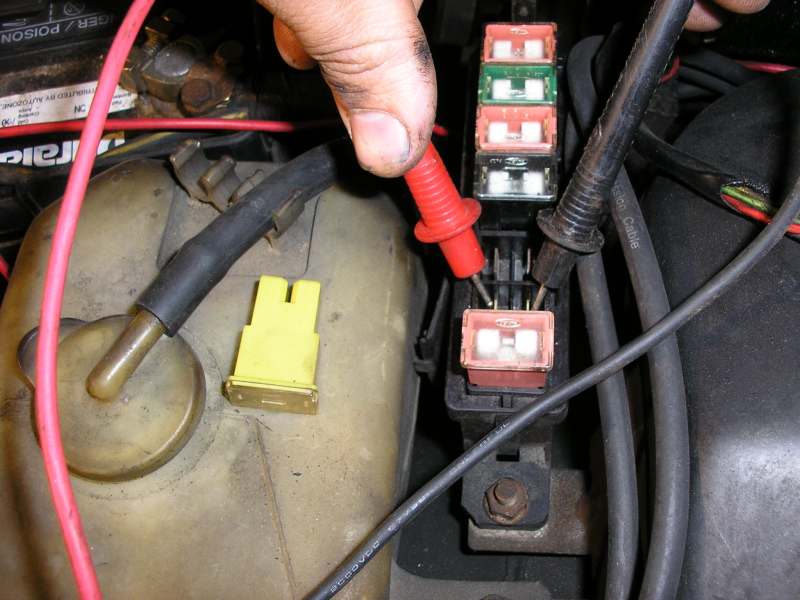

If you have current draw over .2 A, which I believe that you do, you will need to pull each fuse in the fuse panel under the hood. Remove each fuse and press one multimeter lead to one metal tab and the other lead to the other metal tab. Do this for each fuse in the box. If the BTN fuse is drawing significant (>0.2 Amps) current, you will have to go into the cab and check each fuse in the box by the foot rest. When you find that special fuse, it will at least indicate the problematic circuit (maybe you can disable it if it is unnecessary.)
See attached pictures.
I hope this helps you a little
This weekend, get a cheap multimeter that can measure current. Park the car and take off the negative battery cable. Place the black lead of the multimeter on the negative terminal and the red lead on the cable and see what the current draw is. (You will need to configure the meter to measure current.)
If you have current draw over .2 A, which I believe that you do, you will need to pull each fuse in the fuse panel under the hood. Remove each fuse and press one multimeter lead to one metal tab and the other lead to the other metal tab. Do this for each fuse in the box. If the BTN fuse is drawing significant (>0.2 Amps) current, you will have to go into the cab and check each fuse in the box by the foot rest. When you find that special fuse, it will at least indicate the problematic circuit (maybe you can disable it if it is unnecessary.)
See attached pictures.
I hope this helps you a little
#3
Former Moderator. RIP Icemark.
probably a stuck or bad headlight motor. If they don't move all the way to the open or all the way to the closed position, the motor stays hot... draining the battery
#4
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
iTrader: (1)
Join Date: Apr 2007
Location: East Bay
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
I ended replacin the whole headlight assembly (I was going to anyway.)
#5
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Thread Starter
Join Date: Apr 2007
Location: NY
Posts: 67
Likes: 0
Received 0 Likes
on
0 Posts
now that u mentioned the headlight motor.. i think we're onto something.. lol..
the "fender bender" caused my headlight to be stuck *one up one down*.. lemme see wat's up wit that.. thanx.. imma check first thing in the morning..
the "fender bender" caused my headlight to be stuck *one up one down*.. lemme see wat's up wit that.. thanx.. imma check first thing in the morning..
