ECU wiring harness, where does this go (by the ecu) with pics

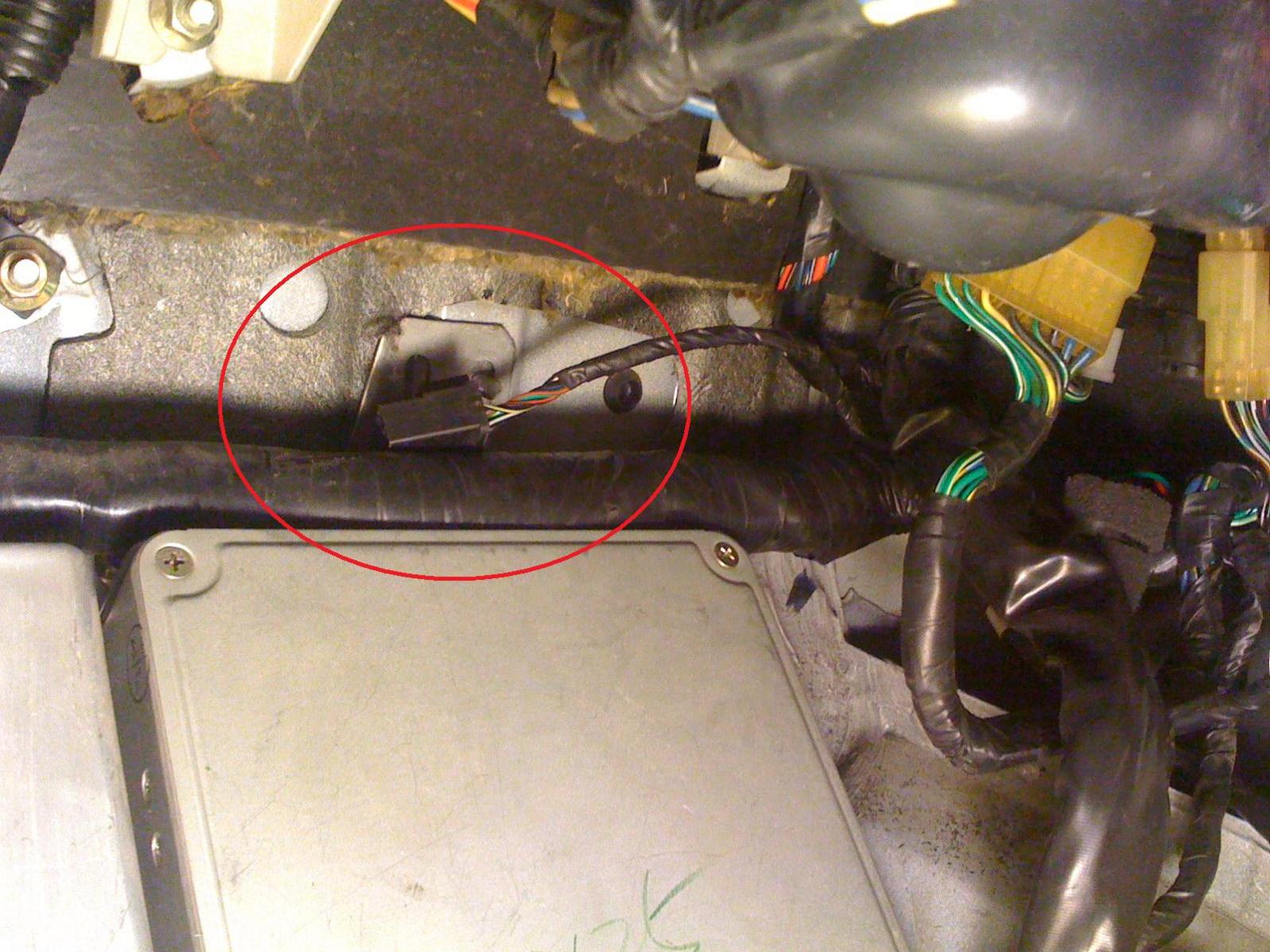

I just finished my s4-s5 swap, but my cluster and HAVC wouldnt work... I cant find the connector that connects to this plug under the dash, i suspect thats the problem

see pic\

thanks in advance

Attached Thumbnails

ECU wiring harness, where does this go (by the ecu) with pics-img_0337%5B1%5D.jpg

Reply Like

09-06-09, 08:20 PM

Team_Mclaren

Junior Member

Thread Starter

Join Date: Sep 2005

Location: Calgary

Posts: 30

Likes: 0

Received 0 Likes on 0 Posts

anyone? please

Reply Like

09-06-09, 09:10 PM

87 t-66

not a drifter

iTrader: (133)

Join Date: Jun 2004

Location: Columbus, Ohio

Posts: 9,337

Likes: 1

Received 5 Likes on 5 Posts

are you using the same series wiring for everything? if you aren't, its going to be a huge mess.

Reply Like

09-06-09, 09:28 PM

Team_Mclaren

Junior Member

Thread Starter

Join Date: Sep 2005

Location: Calgary

Posts: 30

Likes: 0

Received 0 Likes on 0 Posts

I used the original S4 wiring, its all S4. The only thing that is S5 is the short block.

Reply Like

09-06-09, 10:46 PM

calpatriot

Senior Member

Join Date: Aug 2009

Location: Los Angeles

Posts: 479

Likes: 0

Received 0 Likes on 0 Posts

That connector looks almost like it might be the one that plugs into the back of the blower motor. Is is a 2 conductor? Is there anything connected to the two conductor plug on the side of the blower motor facing the firewall?

If that is it, it would explain why the HVAC does not work. It is wired such that if the blower motor is not operating, the AC will not come on.
