Ecu pin gurus needed.

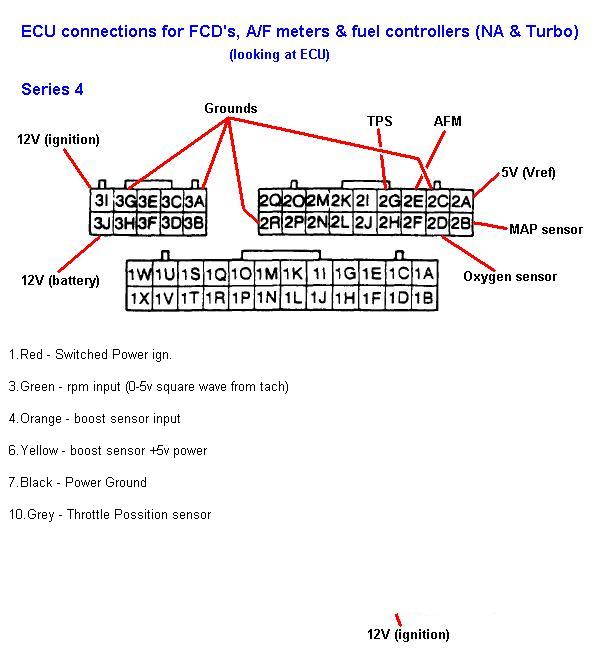

Hey can anyone tell me where the numbered objects are located on the ecu? THanks here is the pic.

I'm guessing 1 is 3I and 10 is 2G amd I know where the ground is.

Attached Thumbnails

Last edited by hondahater; 02-26-05 at 01:56 PM.

Reply Like

02-26-05, 02:45 PM

hondahater

spending too much money..

Thread Starter

iTrader: (2)

Join Date: Dec 2002

Location: louisiana

Posts: 10,117

Likes: 0

Received 1 Like on 1 Post

anyone?

ok got them all but the boost sensor stuff. Is the boost sensor location 2b and the 5v power to it 2a?

Last edited by hondahater; 02-26-05 at 03:02 PM.

Reply Like

02-26-05, 04:46 PM

NZConvertible

I'm a boost creep...

Join Date: Jan 2002

Location: Auckland, New Zealand

Posts: 15,608

Likes: 0

Received 8 Likes on 8 Posts

Quote:

Originally Posted by hondahater

Is the boost sensor location 2b and the 5v power to it 2a?

That's what it says...

Reply Like

02-26-05, 07:11 PM

hondahater

spending too much money..

Thread Starter

iTrader: (2)

Join Date: Dec 2002

Location: louisiana

Posts: 10,117

Likes: 0

Received 1 Like on 1 Post

thanks man, I went ahead and wired that way earlier so I'm glad that was correct. I just never heard of the boost sensor being called the map sensor but they both monitor pressure so I guess it makes sence.
