dual alt pulley not needed with efan?
#1
dual alt pulley not needed with efan?
Originally Posted by NZConvertible
n stock form there are two belts turning the water pump pulley; one also turns the alternator and one also turns the air pump. If you remove the air pump you loose one of the belts. If you're using the stock clutch fan, you need two belts on the water pump pulley or it'll slip when the clutch engages and at high rpm. A dual-belt alternator pulley allows you to contunue using two belts on the water pump pulley. As a bonus if one belt breaks you still have one working, so you don't end up stranded.
There are no disadvantages.
There are no disadvantages.

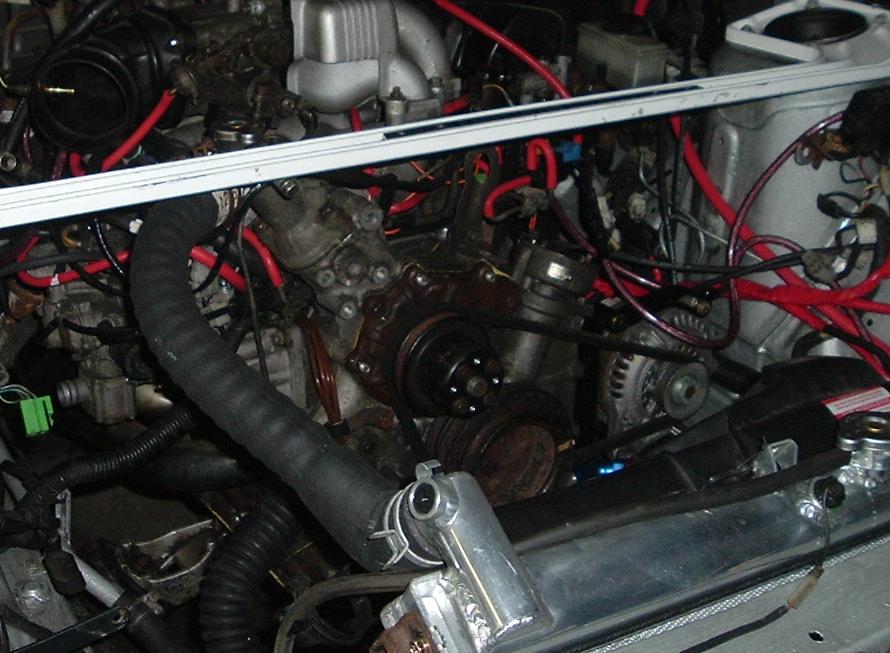

here is the lastest pic of my setup
#5
Originally Posted by NZ_87_TURBO
what you really need to do is sell your NA and get a friken turbo!!!
So people think it's worth it to have the dual alt belt?
I should have made a poll -_-
#7
What I was thinking of doing was running my airpump directly into my split air pipe(just to get my sticker). And then remove it so I don't destroy my cat and and I can just change belts over.
So what do people think is the best dual alt pulleys out there, Post links if possible.
So what do people think is the best dual alt pulleys out there, Post links if possible.
Trending Topics
#8
Lives on the Forum
The reason why people use the dual belt alt pulley is because the water pump will not have much belt on it when the air pump is removed. Normally there'd only be about 20 degrees of contact between the belt and the pulley. If people had actually looked at the pic they'd have seen that the alternator was relocated to the drivers side where the AC and PS usually go. In this case there's plenty of belt to pulley contact on the water pump, it's more like 100 degrees, way more than double.
!!!!A dual alt pulley isn't needed in your case!!!!
The answer to any question isn't just "Sell it and get a turbo" so stop posting that **** everywhere!
!!!!A dual alt pulley isn't needed in your case!!!!
The answer to any question isn't just "Sell it and get a turbo" so stop posting that **** everywhere!
#9
Originally Posted by Black91n/a
The reason why people use the dual belt alt pulley is because the water pump will not have much belt on it when the air pump is removed. Normally there'd only be about 20 degrees of contact between the belt and the pulley. If people had actually looked at the pic they'd have seen that the alternator was relocated to the drivers side where the AC and PS usually go. In this case there's plenty of belt to pulley contact on the water pump, it's more like 100 degrees, way more than double.
!!!!A dual alt pulley isn't needed in your case!!!!
The answer to any question isn't just "Sell it and get a turbo" so stop posting that **** everywhere!
!!!!A dual alt pulley isn't needed in your case!!!!
The answer to any question isn't just "Sell it and get a turbo" so stop posting that **** everywhere!
thx for the information black91 na
#10
Sharp Claws
iTrader: (30)
definitely a good idea but getting matched length belts is going to be a pita and also has to do with the machining of the pulley since most are machined poorly even matched belts do not always fit right.
you can also run a small loop belt around the main pulley to the water pump, kind of difficult to install and remove but is an alternative to a dual alt. pulley.
i still run the single belt with an e-fan and no accessories and don't have any belt slipping issues and i run approx 330RWHP at the drag strip so it can be done but safer is a good idea.
you can also run a small loop belt around the main pulley to the water pump, kind of difficult to install and remove but is an alternative to a dual alt. pulley.
i still run the single belt with an e-fan and no accessories and don't have any belt slipping issues and i run approx 330RWHP at the drag strip so it can be done but safer is a good idea.
