Drivers Side Front lights
None of my drivers side front lights are working, the headlight and parking light.
the bulbs in there are brand new, well all my front bulbs are new.
anyone have any ideas? is it ground wires that arent connected or something?
well anyone that can help, thanks.
the bulbs in there are brand new, well all my front bulbs are new.
anyone have any ideas? is it ground wires that arent connected or something?
well anyone that can help, thanks.
04-28-09, 05:40 AM
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts

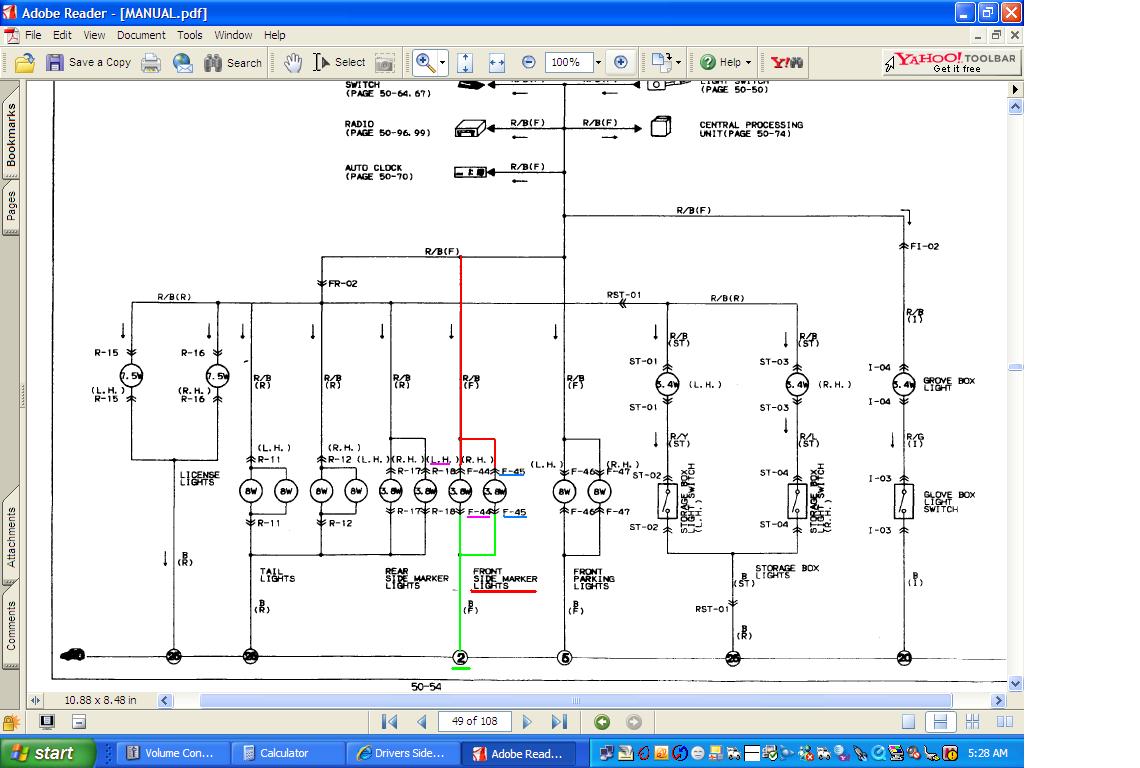

Front right and left side markers both get fed from the same source.
Both have their ground at the same ground point #2.
The only way to find out is to pull the connector (F-44) off the light assy and see if it has batt voltage on the Red/Black wire and if it has a gnd on the Black wire.
I think you MIGHT have to remove the battery to access that plug. It's down there somewhere. Might be pulled apart.
Problem can't be fixed from here.
Both have their ground at the same ground point #2.
The only way to find out is to pull the connector (F-44) off the light assy and see if it has batt voltage on the Red/Black wire and if it has a gnd on the Black wire.
I think you MIGHT have to remove the battery to access that plug. It's down there somewhere. Might be pulled apart.
Problem can't be fixed from here.
