Anyone know the location of the Dimmer relay. Just pick one up from the dealer, now I have to figure out which one it is.



Left side of the gauge surround. Bottom hole.



thanx do I need to take the headlight/turn signal switch apart or should the relay just be hanging in that area?

BTW I thought the relay was with the ones in front of the car in the engine bay!!



Oops. I read that as dimmer "switch". Sorry, I don't know about the relay.



Front of the radiator with the other relays. I THINK it's the most inboard relay. No time to go look at the FREE, ONLINE, FSM, BODY ELECTRICAL SECTION.

P.S. I bet the switch is the bad actor.



Icemark seem to think its the relay, hes says the dimmer switch rarely go bad.



The 87fsm shows it to be the most inboard relay in front of the radiator area.



thanx yall for all the info, thanx also to misterstyx69 for the PM. I will post this for others with this problem, didnt think anyone else had a simular problem.

https://www.rx7club.com/3rd-generation-specific-1993-2002-16/where-headlight-relay-500478/

MAYBE THIS SHOULD BE PUT IN THE STICKY, THIS MIGHT BECAME A PROBLEM FOR OTHERS AS THE YEARS PASS.

chris

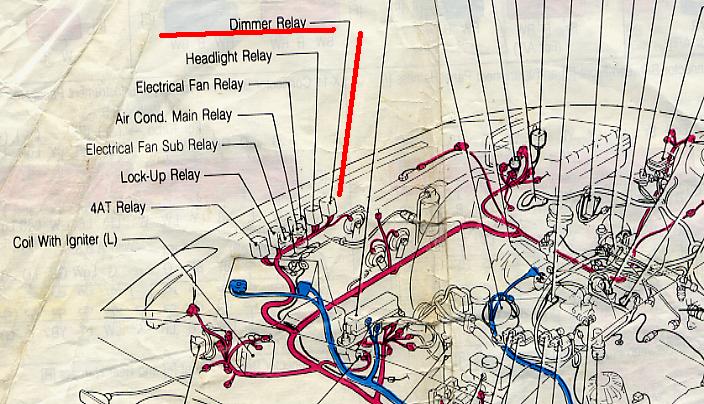

I kinda like this: https://www.rx7club.com/forum/attach...chmentid=90298

And this: https://www.rx7club.com/forum/showth...mmer+relay+jpg which also shows the circuit.



Nice Hailers thanx for the pic, just what I was looking for

chris



Welp for an update on this problem it ended up being the headlight relay, its now fix and my highbeams work fine now!!!
