denso injectors?
12-07-10, 09:07 PM
#1
Senior Member
Thread Starter
iTrader: (2)
Join Date: Dec 2008
Location: lynnwood, WA
Posts: 387
Likes: 0
Received 0 Likes
on
0 Posts
denso injectors?
a little confused how many o rings should there be per fuel injector. i bought two seperate pair, one pair came with only 2 o rings (so they can seat in the fuel rail) and the other came with 4 2 the same as the other injectors and it came with two larger green o rings and im not sure where they go..? or if the green o rings are just for a different setup..any help appreciated
12-07-10, 09:54 PM
#3
Are you talking about o-rings or rubber grommets? You should have o-rings at the very top, and then upper and lower grommets. Check here at the bottom: http://www.mazdatrix.com/c-6.htm.
12-08-10, 08:23 PM
#7
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,986
Received 2,688 Likes
on
1,903 Posts
Trending Topics
12-09-10, 11:19 AM
#12

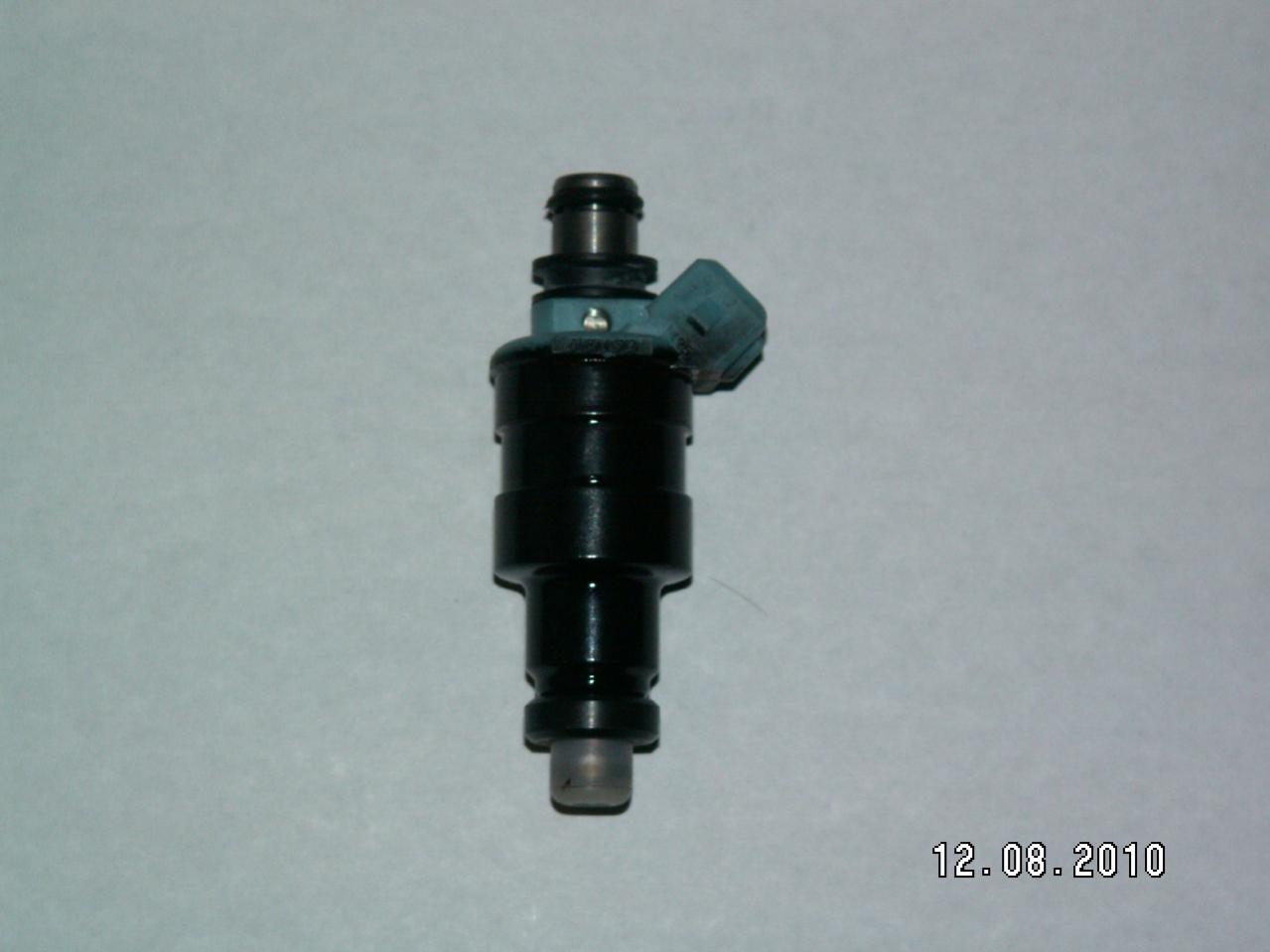

yea the picture posted is correct..
The grommet on the bottom is referred to as a Denso Donut.
The only O-ring is the one at the top, and if it came with bigger ones they are for a 14mm rail..
Standard is 2mmx8mm (11mm rails) and bigger is a 2-203 (14mm rails)
The grommet on the bottom is referred to as a Denso Donut.
The only O-ring is the one at the top, and if it came with bigger ones they are for a 14mm rail..
Standard is 2mmx8mm (11mm rails) and bigger is a 2-203 (14mm rails)
Last edited by FullFunctionEng; 12-09-10 at 11:23 AM.
12-09-10, 12:52 PM
#13
Senior Member
Thread Starter
iTrader: (2)
Join Date: Dec 2008
Location: lynnwood, WA
Posts: 387
Likes: 0
Received 0 Likes
on
0 Posts
read again i didnt say 2/4 per injector in my post, i clearly said one pair of injectors came with two o rings, and the second pair came with 4 o rings...
