Connectors
A member read my rebuild thread...

https://www.rx7club.com/2nd-generation-specific-1986-1992-17/garage-layout-666029/

... and asked if I had pictures of the wiring connectors. Here are some. If I have mislabled any or if you have better pics please feel free to add/comment.

These PICS are from my 88 Vert.
Last edited by BLKTOPTRVL; 09-13-07 at 02:10 PM.
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 01:59 PM
  #2
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts
O2 Sensor
Connector
Attached Thumbnails Connectors-02-sensor.jpg
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:00 PM
  #3
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts

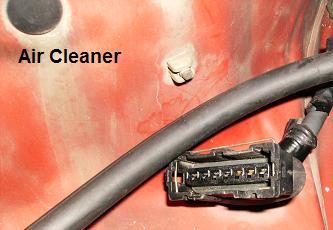

Air Cleaner
Air cleaner
Attached Thumbnails Connectors-air-cleaner.jpg   Connectors-air-cleaner2.jpg
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:01 PM
  #4
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts
Air Control Valve
Acv
Attached Thumbnails Connectors-air-control-valve.jpg
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:02 PM
  #5
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts

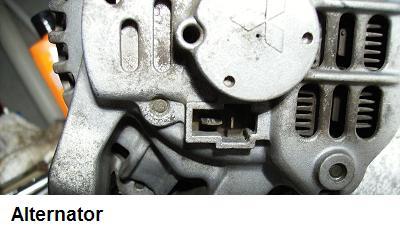

Alternator
Alt
Attached Thumbnails Connectors-alternator.jpg   Connectors-alternator2.jpg
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:04 PM
  #6
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts

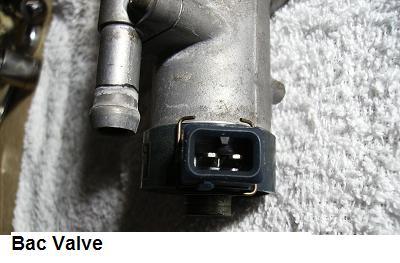

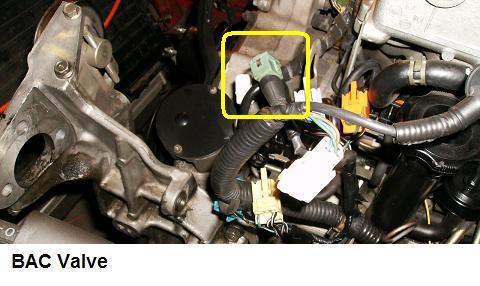

Bac
Bac
Attached Thumbnails Connectors-bac-valve-1.jpg   Connectors-bac-valve-2.jpg   Connectors-bac-valve-3.jpg   Connectors-bac-valve-4.jpg
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:06 PM
  #7
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts

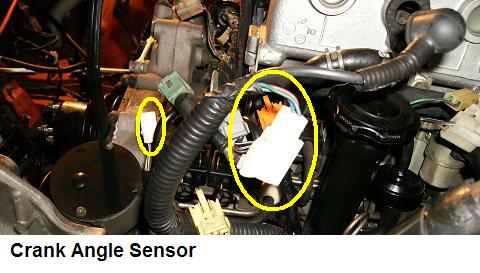

Crank Angle Sensor
Cas
Attached Thumbnails Connectors-crank-angle-sensor.jpg   Connectors-crank-angle-sensor2.jpg
BLKTOPTRVL is offline
Reply Like

Trending Topics

Old 09-13-07, 02:07 PM
  #8
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts
Dynamic Chamber
Dc
Attached Thumbnails Connectors-dynamic-chamber.jpg
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:08 PM
  #9
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts

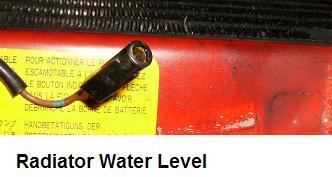

Radiator Water Level
Rwl
Attached Thumbnails Connectors-radiator-water-level-sensor.jpg
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:09 PM
  #10
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts

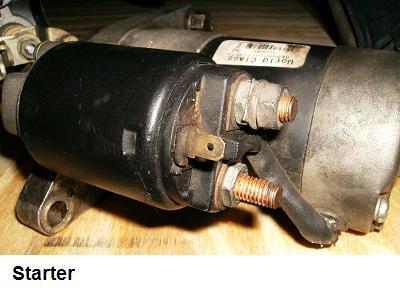

Starter
Starter
Attached Thumbnails Connectors-starter.jpg   Connectors-starter2.jpg
BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:11 PM
  #11
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts

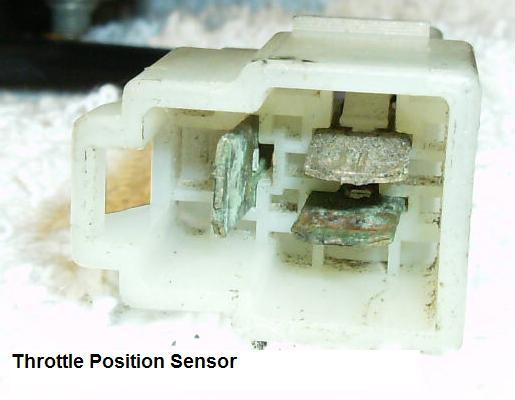

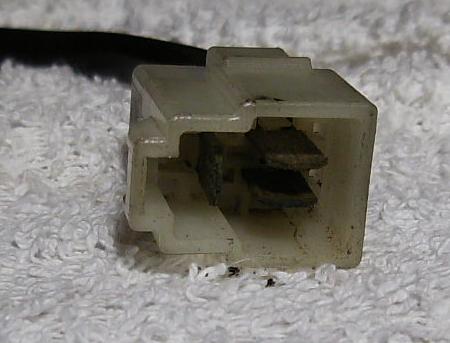

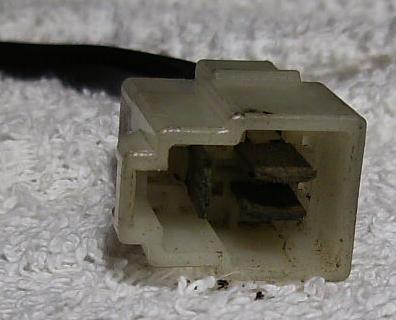

Throttle Position Sensor
Tps
Attached Thumbnails Connectors-throttle-position-sensor.jpg   Connectors-throttle-position-sensor-2.jpg   Connectors-throttle-position-sensor-3.jpg   Connectors-throttle-position-sensor-4.jpg   Connectors-throttle-position-sensor-5.jpg

BLKTOPTRVL is offline
Reply Like
Old 09-13-07, 02:12 PM
  #12
Rotary Freak

Thread Starter

BLKTOPTRVL's Avatar

Join Date: Jul 2001
Location: South Carolina
Posts: 1,817
Received 15 Likes on 6 Posts

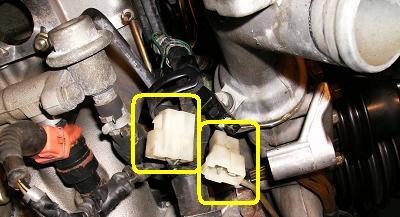

Unknown Mated Set
?
Attached Thumbnails Connectors-unknwn-mated-set.jpg
BLKTOPTRVL is offline
Reply Like
