Compression tests ont the way it should have been done...
#1
Weight Watcher
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: Aug 2007
Location: France
Posts: 183
Likes: 0
Received 0 Likes
on
0 Posts
Compression tests ont the way it should have been done...
Hi fellows,
I had the opportunity today to use a genuine Mazda's compression tester.
Bad news beside the fact my 13BT runs like clockwork and never refused to start or idle smooth!
We did it right... until I've checked the FSM and found I forgot the WOT position and the CAS unplugged.
So as the results are bad I wanna know if the WOT may have given better results. I hope so as the chamber may have picked up less air than with WOT condition.
Also is the cranking speed of my 13BT is 250RPM? The used compression tester is with a paper roll, not digital like on FSM with RPM.
Was cranking as usual... but wich speed... and that mays change a lot the results aslo.
At least we also found that the Cosmo's FSM (yes a real one but that's normal to set up a ... ) so with this FSM they give a chart having no like with the paper. I think that sadly the paper is the truth....
Will show pics tomorrow.
Thanks!
Matthieu
I had the opportunity today to use a genuine Mazda's compression tester.
Bad news beside the fact my 13BT runs like clockwork and never refused to start or idle smooth!
We did it right... until I've checked the FSM and found I forgot the WOT position and the CAS unplugged.
So as the results are bad I wanna know if the WOT may have given better results. I hope so as the chamber may have picked up less air than with WOT condition.
Also is the cranking speed of my 13BT is 250RPM? The used compression tester is with a paper roll, not digital like on FSM with RPM.
Was cranking as usual... but wich speed... and that mays change a lot the results aslo.
At least we also found that the Cosmo's FSM (yes a real one but that's normal to set up a ... ) so with this FSM they give a chart having no like with the paper. I think that sadly the paper is the truth....
Will show pics tomorrow.
Thanks!
Matthieu
#3
Weight Watcher
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Join Date: Aug 2007
Location: France
Posts: 183
Likes: 0
Received 0 Likes
on
0 Posts
Is there any rules about notWOT/WOT results? Anyone did both and can tell how much more it was?
Maybe that is the Cosmo Sport's FSM difference, I don't remeber they said you have to WOT but they scale up my result from 6 to "between 7 and 8"!
And I have no chance to redo it :'(
Maybe that is the Cosmo Sport's FSM difference, I don't remeber they said you have to WOT but they scale up my result from 6 to "between 7 and 8"!
And I have no chance to redo it :'(
#5
Hi fellows,
I had the opportunity today to use a genuine Mazda's compression tester.
Bad news beside the fact my 13BT runs like clockwork and never refused to start or idle smooth!
We did it right... until I've checked the FSM and found I forgot the WOT position and the CAS unplugged.
So as the results are bad I wanna know if the WOT may have given better results. I hope so as the chamber may have picked up less air than with WOT condition.
Also is the cranking speed of my 13BT is 250RPM? The used compression tester is with a paper roll, not digital like on FSM with RPM.
Was cranking as usual... but wich speed... and that mays change a lot the results aslo.
At least we also found that the Cosmo's FSM (yes a real one but that's normal to set up a ... ) so with this FSM they give a chart having no like with the paper. I think that sadly the paper is the truth....
Will show pics tomorrow.
Thanks!
Matthieu
I had the opportunity today to use a genuine Mazda's compression tester.
Bad news beside the fact my 13BT runs like clockwork and never refused to start or idle smooth!
We did it right... until I've checked the FSM and found I forgot the WOT position and the CAS unplugged.
So as the results are bad I wanna know if the WOT may have given better results. I hope so as the chamber may have picked up less air than with WOT condition.
Also is the cranking speed of my 13BT is 250RPM? The used compression tester is with a paper roll, not digital like on FSM with RPM.
Was cranking as usual... but wich speed... and that mays change a lot the results aslo.
At least we also found that the Cosmo's FSM (yes a real one but that's normal to set up a ... ) so with this FSM they give a chart having no like with the paper. I think that sadly the paper is the truth....
Will show pics tomorrow.
Thanks!
Matthieu
As far as engine cranking speed during the test goes, it too can make a difference in the readings. I have no experience with the tester you mention, but I would expect that it would record the engine cranking speed during the test or at least allow for calculation of the speed using the data displayed on the chart. If there are time tics at the pulses, you can calculate the engine speed using a simple ratio calculation. In other words, so many eccentric shaft revolutions per so many seconds converted to so many revolutions per minute using a ratio computation. [Remember, each pulse equates to one eccentric shaft revolution. That is, one complete rotor revolution=3 eccentric shaft revolutions.]
Depending on several factors like battery/starter condition, number of spark plugs removed for the test, etc., engine cranking speed can vary considerably. In order to compare the recorded data with the Mazda specification, the numbers need to be "normalized" to 250 rpm. And then we have the effect of altitude/elevation on the recorded data, which I won't get into here except to say that if the test was conducted at altitudes significantly greater than sea level, the data needs to be adjusted accordingly. The Mazda workshop manual has graphs that can be used for normalizing the recorded data.

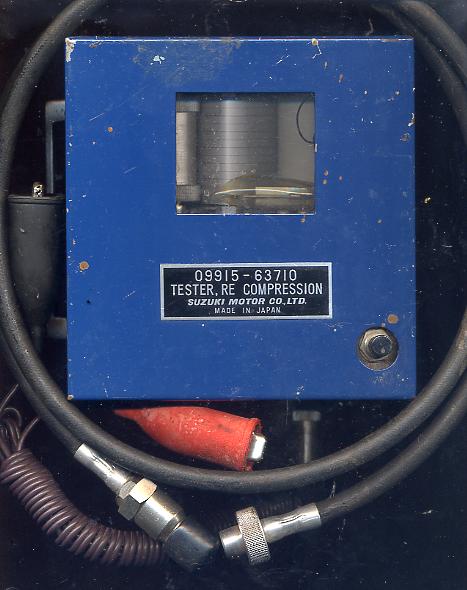

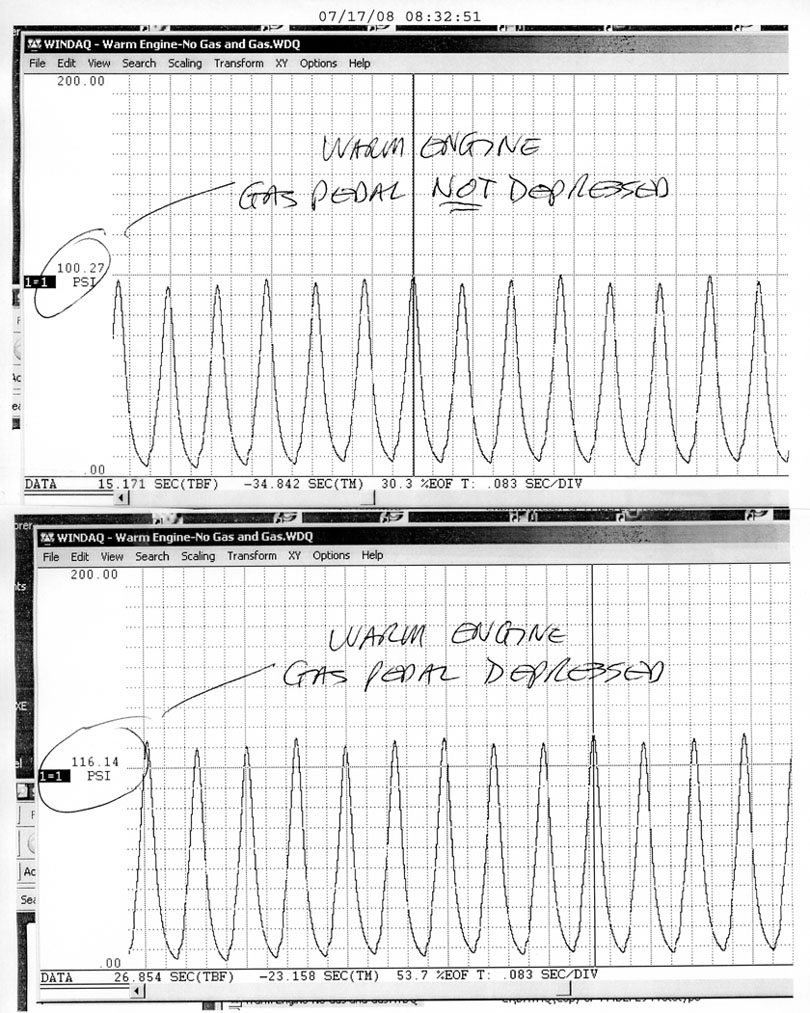

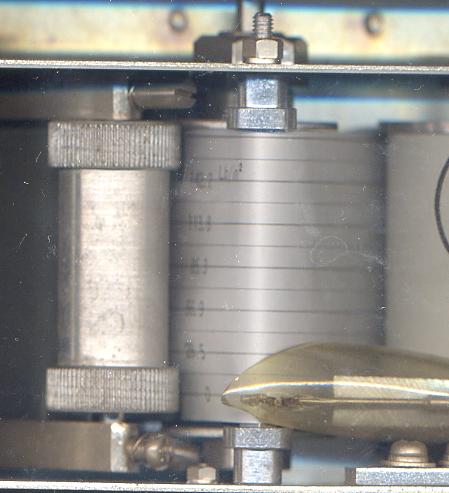

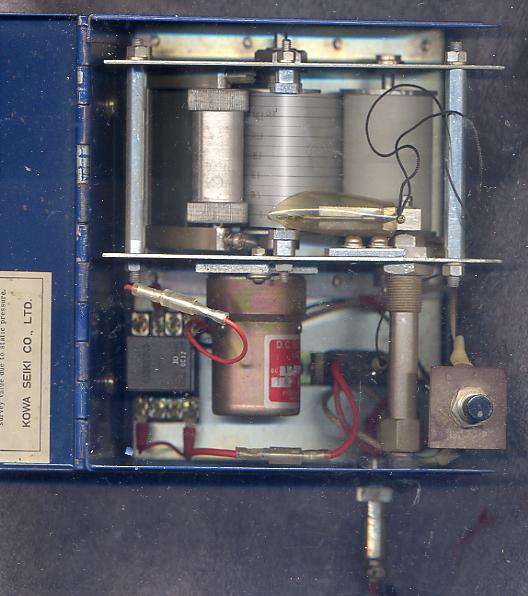

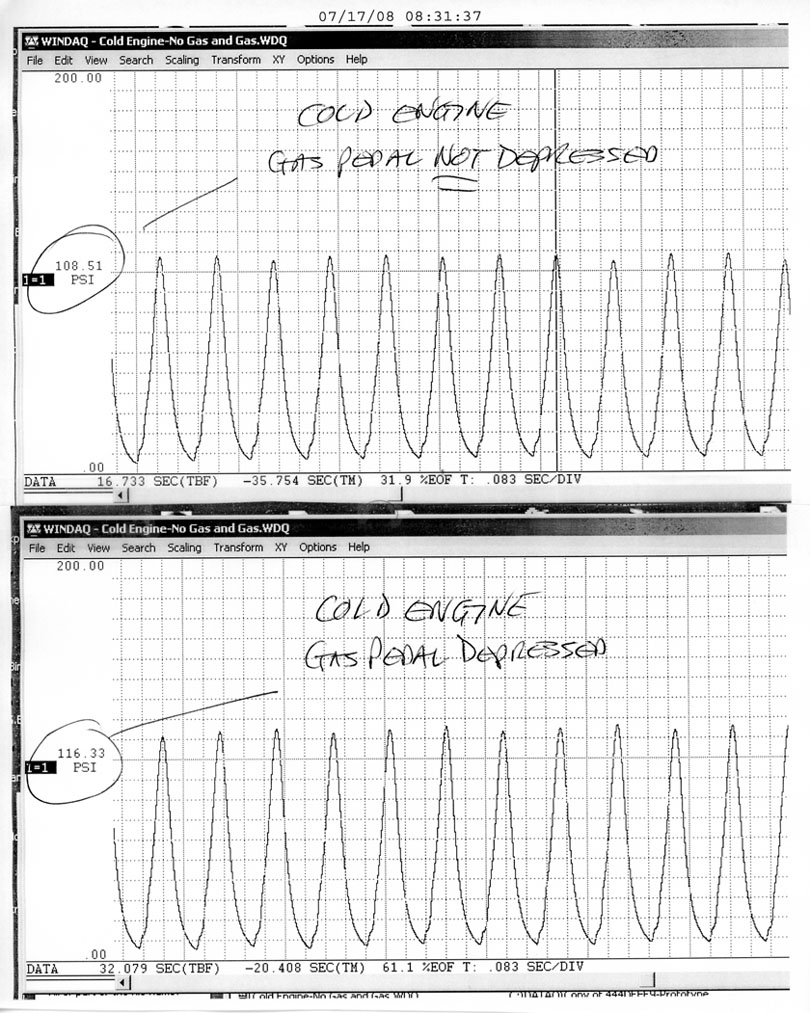

EDIT: Here's the data from the tests I conducted. Same engine, same rotor, same tester, same day. Bottom line, as you can see, the difference between gas pedal depressed or not, can be as much as 16% if testing a warm engine or about half that when testing a cold engine. It's interesting to note that the engine temperature does not make a significant difference in the readings as long as the gas pedal is depressed during the test. Specifically, the peak numbers in both the cold and warm tests with the gas pedal depressed were around 116 PSI. BTW, these are recorded numbers that have not been normalized by engine cranking speed or altitude conditions during the test.
Last edited by Go48; 07-17-08 at 07:52 AM.
