Cold Air Box vs. CAI

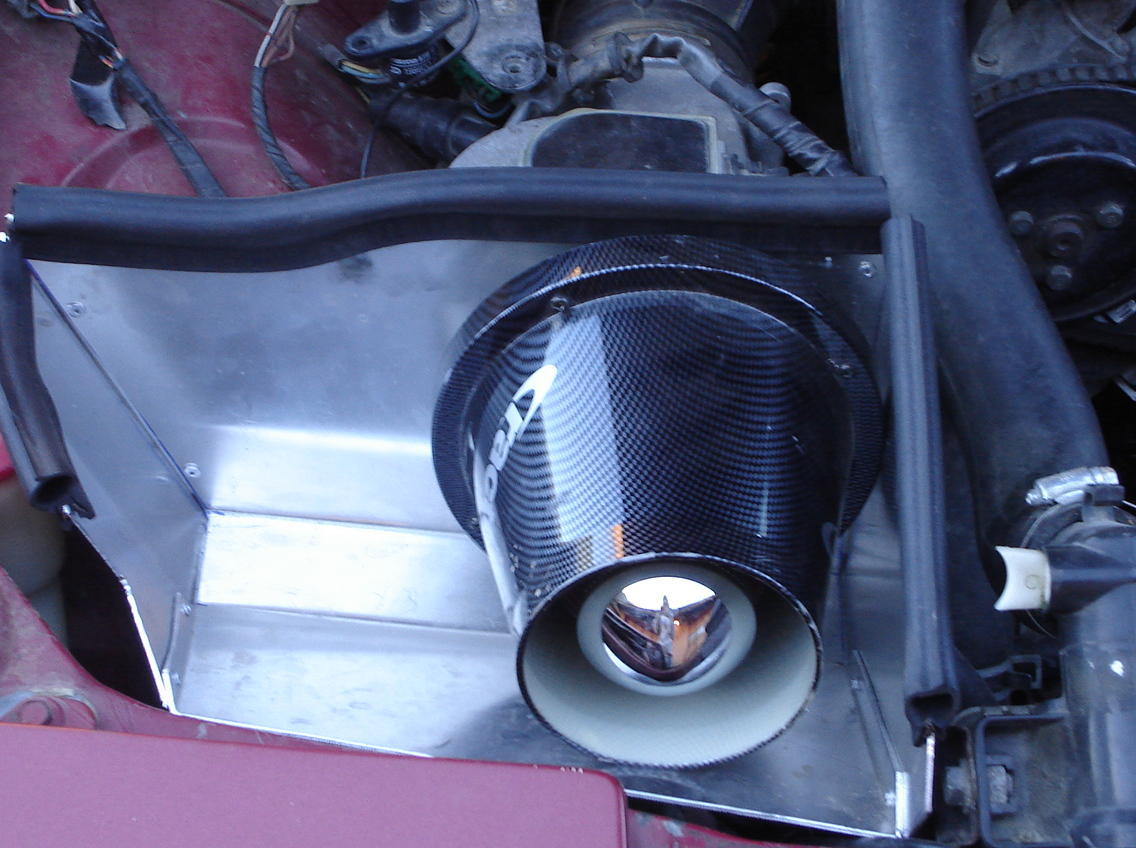

I am considering taking this Cold Air Box and switching over to a CAI. I like the looks of the Cold Air Box, but I am sure the performance differance would be better with a CAI. Which do I go with? Here is my current setup: Any thoughts will be appreciated!
Thanks!
Thanks!
#2
Dancing w/ teh devil...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2004
Location: Oklahoma
Posts: 793
Likes: 0
Received 0 Likes
on
0 Posts
This has been discussed ard argued a million and a half times.
If you do a little searching you will find the thread I'm sure.
I would get a real filter too. I'm pretty sure those filters don't work too well.
If you do a little searching you will find the thread I'm sure.
I would get a real filter too. I'm pretty sure those filters don't work too well.
#4
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by Devon_RX-7
I am considering taking this Cold Air Box and switching over to a CAI.
What's in that photo is not a cold air intake or a cold air box. Not only is there nothing feeding outside air to it, it has huge gaps all around it and will not prevent hot engine bay air entering the filter.
#5
A fully piped fresh(cold) air intake is the best solution. Why the hell do you need a box when to make it have fresh air you still need a further duct to the outside anyhow? Make the filter be outside the engine bay from the begining, btw get that nasty ricer filter out of there. Pick up a K&N or Apex'i filter.
#6
I am 2Furious
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
since the stock air box is separate from the engine bay heat and is piped to take in outside air, is it then better than anything short of a filter sitting outside of the engine bay?
#7
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by 1987RX7guy
Why the hell do you need a box when to make it have fresh air you still need a further duct to the outside anyhow?
Originally Posted by gingenhagen
since the stock air box is separate from the engine bay heat and is piped to take in outside air, is it then better than anything short of a filter sitting outside of the engine bay?
Trending Topics
#8
I am 2Furious
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by NZConvertible
Because it's nice to be able to inspect and clean the filter without having to remove a wheel...
Given how restrictive it is, no. And it is affected by engine bay heat.
Given how restrictive it is, no. And it is affected by engine bay heat.
#9
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Nov 2004
Location: Morgan Hill, California
Posts: 130
Likes: 0
Received 0 Likes
on
0 Posts
the fact that it has more bends (most of the time) than a cold air setup and some of the plastic has ribs which disturb the air flow into the engine. Even if the piping isn't restrictive you gain horsepower by sticking a good cone filter with good piping instead of the stock setup so obviously there is some sort of problem with the stock system..
#10
Dancing w/ teh devil...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2004
Location: Oklahoma
Posts: 793
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by gingenhagen
What exactly is it that makes it so restrictive?
![rolleyes](https://www.rx7club.com/images/smilies/rolleyes.gif)
#11
I am 2Furious
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RSVampire
the fact that it has more bends (most of the time) than a cold air setup and some of the plastic has ribs which disturb the air flow into the engine. Even if the piping isn't restrictive you gain horsepower by sticking a good cone filter with good piping instead of the stock setup so obviously there is some sort of problem with the stock system..
#12
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by gingenhagen
So you're saying most of the restriction lies in the TID then?
So then replacing the stock air box with a cold air box or cold air intake has a very minimal effect?
#13
I have that cold air box. It actually does seal with the hood when it's closed and I think it does insulate your filter from engine bay heat at least some. I'm not sure how much power I got from it but it's better than nothing. It's essentially a less ghetto version of the FC3S write up : http://www.fc3s.org/how_tos/engine/cold_air_box.html
#16
i am legendary
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Mine goes through next to where the washer fluid bottle is (still plenty of room for bottle too), and I can take the filter off of my car without jacking it up or removing a wheel. This is also with a farily lowered car. It's all about placement.
#17
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by arghx
I have that cold air box. It actually does seal with the hood when it's closed...
Originally Posted by 1987RX7guy
Who said anything about a ghetto fenderwell CAI?
Originally Posted by dDuB
Mine goes through next to where the washer fluid bottle is (still plenty of room for bottle too), and I can take the filter off of my car without jacking it up or removing a wheel. This is also with a farily lowered car. It's all about placement.
![Wink](https://www.rx7club.com/images/smilies/wink.gif)
#18
i am legendary
![](https://www.rx7club.com/images/misc/05_year_icon.png)
I do not have the washer fluid bottle anymore, but I did at one point. Removed it a while ago, you can see the stock hole for it in two of the pics below, though.
![](http://home.comcast.net/~rx7projects/cai/cai1.jpg)
![](http://home.comcast.net/~rx7projects/cai/cai2.jpg)
![](http://home.comcast.net/~rx7projects/cai/cai1.jpg)
![](http://home.comcast.net/~rx7projects/cai/cai2.jpg)
![](http://home.comcast.net/~rx7projects/cai/cai3.jpg)
#19
i am legendary
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Oh and the jacking up thing. I've worked on it, and in fact put that filter on and took it off a bunch of times when I was building the new piping for my setup, all with the car sitting on the ground. I was just laying on my back and could easily reach up there with my ratchet and deep socket 8mm to undo the clamp. No problem at all.
In fact, when I was putting the filter on and needed force pushing the pipe/filter together, all I had to do was kneel on the ground with one arm in the engine bay holding the pipe, and one arm reaching from underneath holding the filter. I really didn't have any trouble doing this.
In fact, when I was putting the filter on and needed force pushing the pipe/filter together, all I had to do was kneel on the ground with one arm in the engine bay holding the pipe, and one arm reaching from underneath holding the filter. I really didn't have any trouble doing this.
#20
Junior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Oct 2005
Location: New Zealand
Posts: 32
Likes: 0
Received 0 Likes
on
0 Posts
to me the best setup is a completley sealed cold air box with sealed ducting from the front bumper. think how much presure is on the front of the car at 100kmh that nice cold air actully gets fored into the engine to sum extent
#21
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by dDuB
I do not have the washer fluid bottle anymore, but I did at one point. Removed it a while ago, you can see the stock hole for it in two of the pics below, though.
Oh and the jacking up thing. I've worked on it, and in fact put that filter on and took it off a bunch of times when I was building the new piping for my setup, all with the car sitting on the ground. I was just laying on my back and could easily reach up there with my ratchet and deep socket 8mm to undo the clamp. No problem at all.
#22
Cold Air Box & Cold Air Intake are essentially the same thing. What we see alot of here, is people building Heat Shields and calling them Cold Air Boxes or Intakes. From my experience, I've learned a couple things that I'd like to share.
All things being equal, air ALWAYS takes the past of least resistance. Because of this, you neet to either have a large duct in the airflow, or the filter directly in the moving air. It is for this reason that ducting air into a box via the stock snorkle doesn't work at all - period. It is nearly impossible to PUSH any air up through that system. The reason it was placed there by mazda was to SUCK air in from the engine. Unless your box is air-tight, don't expect to get any air in from that method.
I've always been a bit confused as to why people put the filters out in the open, so I tried it. While they get a shitload of air, they also get FILTHY quickly. Many people get all bent out of shape about and cry about the possibility of hydrolock while driving through puddles, but that really isn't going to happen. The main disadvantage is that when it rains, the element gets wet and becomes way less efficient - thus negating any benefits of having cold air in the first place. If you clean the filter often, and it doesn't rain much where you are - then using this system is fine.
My solution was to weld up an aluminum box that seals to the hood and ducks in air from the front bumper via a 3" PVC pipe. From what I could tell, anything smaller wouldn't give me enough air. This system has worked flawlessly for me. It shields the hot air and brings in a lot of cold air and I can clean and inspect the filter easily. The only drawback was that I had to relocate the washer bottle (to the same place on the drivers side). There is no way I could fit a tube (much less a filter) in that area with the washer bottle.
Here's mine:
https://www.rx7club.com/showthread.p...0&page=1&pp=15
Go to PAGE 5. It has the writeup and pictures there.
All things being equal, air ALWAYS takes the past of least resistance. Because of this, you neet to either have a large duct in the airflow, or the filter directly in the moving air. It is for this reason that ducting air into a box via the stock snorkle doesn't work at all - period. It is nearly impossible to PUSH any air up through that system. The reason it was placed there by mazda was to SUCK air in from the engine. Unless your box is air-tight, don't expect to get any air in from that method.
I've always been a bit confused as to why people put the filters out in the open, so I tried it. While they get a shitload of air, they also get FILTHY quickly. Many people get all bent out of shape about and cry about the possibility of hydrolock while driving through puddles, but that really isn't going to happen. The main disadvantage is that when it rains, the element gets wet and becomes way less efficient - thus negating any benefits of having cold air in the first place. If you clean the filter often, and it doesn't rain much where you are - then using this system is fine.
My solution was to weld up an aluminum box that seals to the hood and ducks in air from the front bumper via a 3" PVC pipe. From what I could tell, anything smaller wouldn't give me enough air. This system has worked flawlessly for me. It shields the hot air and brings in a lot of cold air and I can clean and inspect the filter easily. The only drawback was that I had to relocate the washer bottle (to the same place on the drivers side). There is no way I could fit a tube (much less a filter) in that area with the washer bottle.
Here's mine:
https://www.rx7club.com/showthread.p...0&page=1&pp=15
Go to PAGE 5. It has the writeup and pictures there.
#23
i am legendary
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Originally Posted by NZConvertible
You had the filter and the washer bottle in there? That's a pretty small pod filter I guess. Mine wouldn't fit there.
So don't you have any of the plastic that's supposed to be under there? It looks like you've cut away part of the inner wheel arch liner. I'd be worried about all the crap thrown up by the wheel, particularly in the wet.
So don't you have any of the plastic that's supposed to be under there? It looks like you've cut away part of the inner wheel arch liner. I'd be worried about all the crap thrown up by the wheel, particularly in the wet.
Yah I worried about that too at first, but after living in the NW (read lots of rain) and driving it through last winter, everything under there actually stayed relatively clean. I was surprised it didn't get dirtier, even the filter was fine and just needed to be cleaned once after winter.
#24
Lives on the Forum
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Actually having a sealed box isn't necessary. If you have enough airflow then the cold air will always be spilling out around the edges, preventing the hot engine bay air from entering. Also, you want to be sure that the filter can get lots of air no matter if you have the headlight up or down (assuming you have a headlight duct).
Also, sucking water up into the engine is a possibility. Road and Track did it to their long term Mini, and $10,000 later it was working again. And they aren't some car hating, negligent people either.
Also, sucking water up into the engine is a possibility. Road and Track did it to their long term Mini, and $10,000 later it was working again. And they aren't some car hating, negligent people either.
#25
Originally Posted by Black91n/a
Actually having a sealed box isn't necessary. If you have enough airflow then the cold air will always be spilling out around the edges, preventing the hot engine bay air from entering. Also, you want to be sure that the filter can get lots of air no matter if you have the headlight up or down (assuming you have a headlight duct).
Originally Posted by Black91n/a
Also, sucking water up into the engine is a possibility. Road and Track did it to their long term Mini, and $10,000 later it was working again. And they aren't some car hating, negligent people either.
