Turbo or NA and S4 or S5?
On the 13B-rew the circuit controlling the fuel pump resister also affects a vacuum solenoid inline with the FPR, that would cut vacuum to the FPR if there was a malfunction in the system. Since at idle there is lots of vacuum pulling the fuel system pressure down this causes the fuel pressure to go up (not allot) but if you where to directly connect the FPR vacuum nozzle too the manifold so that this solenoid doesn't come into play this wouldn't happen.
I have never looked that deep into the stock NA fuel system but I suspect that this may be whats happening.
Next AFR's should not be the basis for this test, it should be fuel pressure.
On the 13B-rew the circuit controlling the fuel pump resister also affects a vacuum solenoid inline with the FPR, that would cut vacuum to the FPR if there was a malfunction in the system. Since at idle there is lots of vacuum pulling the fuel system pressure down this causes the fuel pressure to go up (not allot) but if you where to directly connect the FPR vacuum nozzle too the manifold so that this solenoid doesn't come into play this wouldn't happen.
I have never looked that deep into the stock NA fuel system but I suspect that this may be whats happening.
Next AFR's should not be the basis for this test, it should be fuel pressure.
EDIT: But then again, why repeat my last mistake? The FPR has a vacuum on its diaphram and opens a passage of a given size. Unless the vacuum is changed, the opening won't change. So, if you speed the pump up by removing the green/red wire, the pump outputs more pressure, but the opening in the FPR does not change size. Pressure rises in the fuel rail due to that. How much? Not all that much, but it has to rise. No way around that.
Last edited by HAILERS; 01-02-08 at 09:18 PM.
#27
registered user
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
EDIT: But then again, why repeat my last mistake? The FPR has a vacuum on its diaphram and opens a passage of a given size. Unless the vacuum is changed, the opening won't change. So, if you speed the pump up by removing the green/red wire, the pump outputs more pressure, but the opening in the FPR does not change size. Pressure rises in the fuel rail due to that. How much? Not all that much, but it has to rise. No way around that.
#28
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
And finally, a fuel pressure regulator in some form is on every single Gas fuel injected vehicle ever made, and most carbed vehicles with a fuel pump.
A fuel pump resister is not on most fuel injected vehicles.
You are failing to understand what an FPR does.
If pressure and consequently flow increase with greater upstream pressure as in from a larger pump, then this is most likely a result of the FPR not keeping up with the pump, this does not change the basic nature of the part or how it works, it ca only bypass so much fuel.

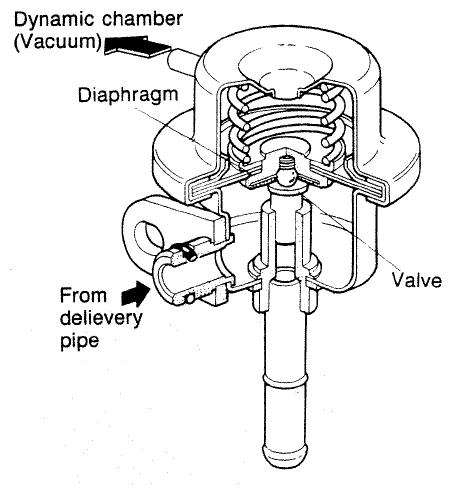

Attached is a cutaway pic of the FPR from the Mazda FC Training manual. You can see that the only way the diaphragm can move is if the manifold pressure on one side changes or if the fuel pressure on the other side changes. If fuel rail pressure increases, the diaphragm will deflect, the valve will open more and more fuel will be bypassed BUT, the fuel pressure in the rail must increase for that to happen. In other words this very simple device cannot maintain a fixed pressure. Referring to the pic, can you explain how it could?
You claim keeping fixed fuel line pressure is the FPR's primary purpose, with injector pressure differential being a secondary role. Here are few links I found quickly about FPR's. They all mention maintaining the injector pressure differential but not one mention anything about a constant pressure anywhere else in the fuel system.
http://www.240sx.org/faq/articles/fu...gulator_wo.htm
http://www.mirafiori.com/~thad/fi/fpress.html
http://www.xspeed.com.au/tech_features.php?tech_id=24
http://www.autoshop101.com/forms/h22.pdf
The last one is interesting because it also describes the same 2-speed fuel pump system in Toyotas.
#29
registered user
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
Attached is a cutaway pic of the FPR from the Mazda FC Training manual. You can see that the only way the diaphragm can move is if the manifold pressure on one side changes or if the fuel pressure on the other side changes.
"If fuel rail pressure increases, the diaphragm will deflect, the valve will open more and more fuel will be bypassed BUT, the fuel pressure in the rail must increase for that to happen."
In other words this very simple device cannot maintain a fixed pressure. Referring to the pic, can you explain how it could?
"If fuel rail pressure increases, the diaphragm will deflect, the valve will open more and more fuel will be bypassed BUT, the fuel pressure in the rail must increase for that to happen."
In other words this very simple device cannot maintain a fixed pressure. Referring to the pic, can you explain how it could?
"If fuel rail pressure increases, the diaphragm will deflect, the valve will open more and more fuel will be bypassed BUT, the fuel pressure in the rail must increase for that to happen."
pressure increases, fuel is bypassed relieving that pressure, or rather keeping the pressure constant to a point, even if the pressure drifts some based on the input pressure its not going to be much.
Your contracting your original statement...
In any case this is so far off the original topic, as to be pointless in continuing.
Last edited by slo; 01-02-08 at 10:24 PM.
#30
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
This is the bit you're not getting. If the extra pressure was completely "relived", the valve would move back down and the pressure would increase again. The only way for the valve to move up and stay up is if the rail pressure also increases and stays up.
...or rather keeping the pressure constant to a point, even if the pressure drifts some based on the input pressure its not going to be much.
#31
registered user
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
Don't you remember:
Quote:
these points are so clearly opposite,
So which one is it?
You are completely contradiction yourself....
This is a pointless discussion and far beyond the original thread.
Originally Posted by slo View Post
pressure increases, fuel is bypassed relieving that pressure...
This is the bit you're not getting. If the extra pressure was completely "relived", the valve would move back down and the pressure would increase again. The only way for the valve to move up and stay up is if the rail pressure also increases and stays up.
pressure increases, fuel is bypassed relieving that pressure...
This is the bit you're not getting. If the extra pressure was completely "relived", the valve would move back down and the pressure would increase again. The only way for the valve to move up and stay up is if the rail pressure also increases and stays up.
#32
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Now you say that the pressure isn't constant but that there is some increasing drift, which I can infact agree with, and which I would call fuel pressure and volume overcoming the FPR.
![rolleyes](https://www.rx7club.com/images/smilies/rolleyes.gif)
And no the extra pressure is relieved but the diaphragm finds a point at which spring pressure (and vacuum) is balanced with rail pressure.
