chambered mufflers on a rotary?
#1
Dark Side
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
chambered mufflers on a rotary?
Ok, I was thinking about how chambered mufflers would sound on an rx7, like Flowmasters, Edelbrock SDT, etc. I was thinking they might resonate to much I don't know, what due you guys think?
thanks
thanks
#4
I used a flowmaster on my IT racecar back in the early '90's, I think it sounded better than most cars. I'll be using one on my new car as well. I don't know if the "40" series fom flowmaster would make a street car quiet enough. And I know there is no f-glass in the 40 series, I don't know about the other quieter ones.
#6
Keep Your Stinky Pistons
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Nov 2005
Location: Vancouver, Canada
Posts: 437
Likes: 0
Received 0 Likes
on
0 Posts
they sound throaty, but no where near what a V8 sounds like... i say if ur gunna do it stick with a 40 or 50 series... actually i had a buddy with a NA 89 S5.... and he ran a 80 series and it sounded really nice... but i dont know how loud u wanna go or nething...
#7
Flowmaster 40 was good, but LOUD. It was hard to put around town with it, real deep town at idle and opened up strong when you get on it. I'm looking at Magnaflow instead, I suggest the same. They use SS and some other matting in the chamber area. Look carefully though, as some of them are straight-throuh design as well.
Trending Topics
#8
Its hard to describe the sound, I think it sounds like the old GTU cars from the '80's but to some here, they might not have been born yet to hear those cars on the highbanks of Daytona. Less like a chainsaw or dirtbike, more like a chainsaw with a vance & hines pipe off of a big crotch rocket. Does that give you any idea?
#10
Rotary Freak
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Do not use a chambered muffler. They flow like crap, imo sound like crap, are not as durable as steel-packed mufflers and cost almost as much. Get a straight throw muffler, and if you want to make the exhaust quieter, either add another muffler or use an offset inlet or outlet to reduce noise further. Magnaflows sound great on rotary powered cars, and there are a few Dynomax mufflers that are acceptable. Those two are quality budget choices, but if you've got the green, Borla XR-1s are one of the more desireable mufflers available.
#11
Dark Side
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
I thought about magnaflows, but I thought they had glass packing in them(which blow out over time). And I was also thinking Borla XR-1s, but I thought that it would be a little over kill for a non-turbo. I don't know.
#12
When I get the car going I'll be trying a few different mufflers for sound level and power. We have to be under 103db racing so that is not a street issue(way to loud for the street). As for flow, I use a magnehelic to see how much, if any, backpressure is created by any muffler. The best flow I've found is a muffler that I made and that we are using on one of the racecars, its a straight through, perferated pipe with lava rock. Just a cheap(about $40) version of the mazdacomp stainless one. It's just not quiet enough racing,106db, so we are adding a small borla ahead of it under the seat area. It shows almost no backpressure, maybe 1-2" of water on the guage. The worst one I've tested so far is a spintech, it buried the 15" guage at about 5500rpm. It was quiet though, about 93db.
I'll see about making some sound clips.
I'll see about making some sound clips.
Last edited by jgrewe; 04-16-06 at 10:03 PM.
#13
Rotary Freak
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Originally Posted by 90FC
I thought about magnaflows, but I thought they had glass packing in them(which blow out over time). And I was also thinking Borla XR-1s, but I thought that it would be a little over kill for a non-turbo. I don't know.
#14
Dark Side
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
Originally Posted by snub disphenoid
Magnaflows are stainless steel packed mufflers. They'll last long and make a deep sound. Are you going to be making just a catback? If so you'd probably be fine with just one magnaflow 6" muffler on both sides.
![Frown](https://www.rx7club.com/images/smilies/frown.gif)
So to anser your question, I will be redoing the entire exhaust.
![Wallbash](https://www.rx7club.com/images/smilies/wallbash.gif)
#15
Flow through a muffler is all relative. Just because a chambered muffler may or may not flow better than another type of muffler does not necessarily mean that it doesn't flow the requirements of the engine. Most people forget that and only think of max flow potential. The engine can only flow so much air. After you have a muffler than can meet these requirements, anything additional isn't helping you.
There is no packing inside a Flowmaster at all. They only use a chambered design. Each series has a different type of chamber design and a different number of baffles. Flowmaster does not recommend their own mufflers to be used on rotary engines. The resonances of a rotary exhaust can weaken the welds that hold the baffle plates in and they can break apart. It's not saying that it necessarily will but it can.
The flowmasters I heard on rotaries were pretty loud. I personally didn't care for them.
There is no packing inside a Flowmaster at all. They only use a chambered design. Each series has a different type of chamber design and a different number of baffles. Flowmaster does not recommend their own mufflers to be used on rotary engines. The resonances of a rotary exhaust can weaken the welds that hold the baffle plates in and they can break apart. It's not saying that it necessarily will but it can.
The flowmasters I heard on rotaries were pretty loud. I personally didn't care for them.
#16
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Feb 2006
Location: North Carolina
Posts: 126
Likes: 0
Received 0 Likes
on
0 Posts
I was debating doing something like a traditional V8 style exh. on my 7.
Dual chambered magnaflow or dynomax mufflers with straight pipes exiting right at the bumper (barely seen) with no cat. wasnt sure on sound. Im ready to be almost stock/quiet but with great rumble and sound when in high rpms... not sure what I should redo to achieve that.
Dual chambered magnaflow or dynomax mufflers with straight pipes exiting right at the bumper (barely seen) with no cat. wasnt sure on sound. Im ready to be almost stock/quiet but with great rumble and sound when in high rpms... not sure what I should redo to achieve that.
#18
Eats, Sleeps, Dreams Rotary
![](https://www.rx7club.com/images/misc/15_year_icon.png)
I've got Magnaflows and I agree it's definately a nice deep sound... not ricer-loud, but you certainly know it's running (missing the pre cat though, and have what I think is a high-flow main cat).
#19
I had dual 2.5" magnaflow can's on my old t2. Very deep at idle and just right under full throttle. I really like them. I'm scared of this new full 3" corksport for my new T2 looks LOUD. I would really like to hear the 40 series on a rotary though.
#20
I'm a boost creep...
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by rotarygod
Flow through a muffler is all relative. Just because a chambered muffler may or may not flow better than another type of muffler does not necessarily mean that it doesn't flow the requirements of the engine. Most people forget that and only think of max flow potential.
#22
do not use a chambered muffler on a rotary. Only use a astraiht through SS. I have owned both a Borla XR-1 0val and a SS magnaflow. Both these will work to change the sound of you rotary. I also recommend you use one of these mufflers inplace of your cats.

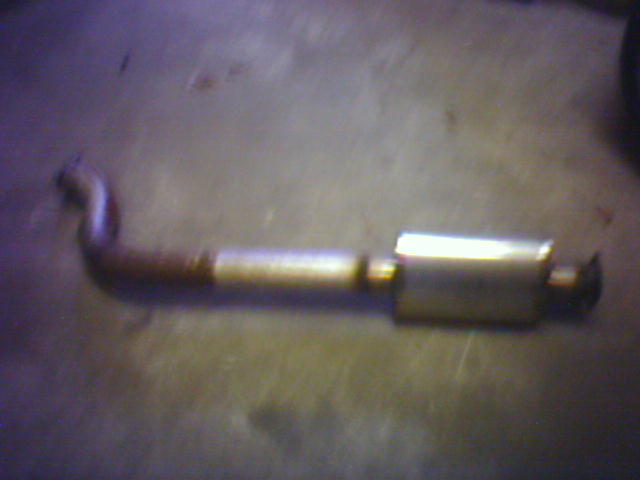

Use my picture below to show you were a midpipe/exhaust should be placed.
Also you need to make sure that your exhaust system is not touching the underbody of the car anywhere. If it is you need to make adjustments to the hangars. When the exhaust hits the body of the car it turns the end pipe into a microphone for vibration and its 20x louder than it normally would be.
Thats why you have 2 different 2nd gen owners with the same exhaust setup and one of them is twice as loud as the other and they cannot figure out why. Well now you know.
Use my picture below to show you were a midpipe/exhaust should be placed.
Also you need to make sure that your exhaust system is not touching the underbody of the car anywhere. If it is you need to make adjustments to the hangars. When the exhaust hits the body of the car it turns the end pipe into a microphone for vibration and its 20x louder than it normally would be.
Thats why you have 2 different 2nd gen owners with the same exhaust setup and one of them is twice as loud as the other and they cannot figure out why. Well now you know.
