CEL diagnostic question
#76
Moderator
iTrader: (3)
Joined: Mar 2001
Posts: 31,168
Likes: 2,812
From: https://www2.mazda.com/en/100th/
Hooked up the wideband, and even at 0% fuel added at 800rpms on SAFC, the car was reading 12.1 AFR. After pulling 20% fuel at 800rpms, i was able to get the engine to 13.4 AFR at idle, and the engine revved very freely, to be honest, I was really surprised. Throughout the rpm-band at 0% fuel added on the low-throttle setting I was seeing 12.1-12.5 AFR's and was able to pull 10% fuel throughout the band and maintain low 13 afr's.
if you don't mind a couple of misfires, you can go leaner, and if you have a freer flowing exhaust you can go leaner still.
if its lean the idle will get "weak" or it'll randomly stall.
I tried both adding up to 20% fuel and subtracting up to 20% fuel to try and start it...It would kick a couple times like it wanted to, but the engine would not start. I also tried holding the throttle wide open while starting in case it was flooded, and tried rolling it over with the fuel pump turned off.. It would not start until I pulled the connector to the MAF.
#77
Wow. Pics worth 1000 words here. Basically appears that your AFM is worn out with a dead spot when closed. Sending PM.
While the coolant temp sensor is the main determinant of crank fueling, I don't think the AFM is totally ignored by the ECU. See diagnostic tables within Section F2 of the FSM for evidence of this.
While the coolant temp sensor is the main determinant of crank fueling, I don't think the AFM is totally ignored by the ECU. See diagnostic tables within Section F2 of the FSM for evidence of this.
#79
Thread Starter
Senior Member
iTrader: (7)
Joined: Jan 2008
Posts: 440
Likes: 1
From: Clarksville, TN
stock idle AFR should be about 12-12.5 with no airpump. its a little stupidly complex, but with the restrictive stock exhaust, there is a lot of exhaust gasses that stay in the chambers, which means Mazda needs a rich mixture to not have the engine misfire, as misfire = high emissions.
if you don't mind a couple of misfires, you can go leaner, and if you have a freer flowing exhaust you can go leaner still.
if its lean the idle will get "weak" or it'll randomly stall.
if you don't mind a couple of misfires, you can go leaner, and if you have a freer flowing exhaust you can go leaner still.
if its lean the idle will get "weak" or it'll randomly stall.
If i pulled up to 35% fuel on the low throttle setting at 800rpms using SAFC the idle would get weak, but when the engine randomly stalled yesterday, I was actually holding the throttle around 3000-3500 rpms and watching the wideband and the revs just dropped and the engine stalled. Then it would not start again until I pulled the MAF connector.
We have some rain rolling through right now, but if I get a chance to check the temp sensor today, I will do that and report back with the information for peace of mind.

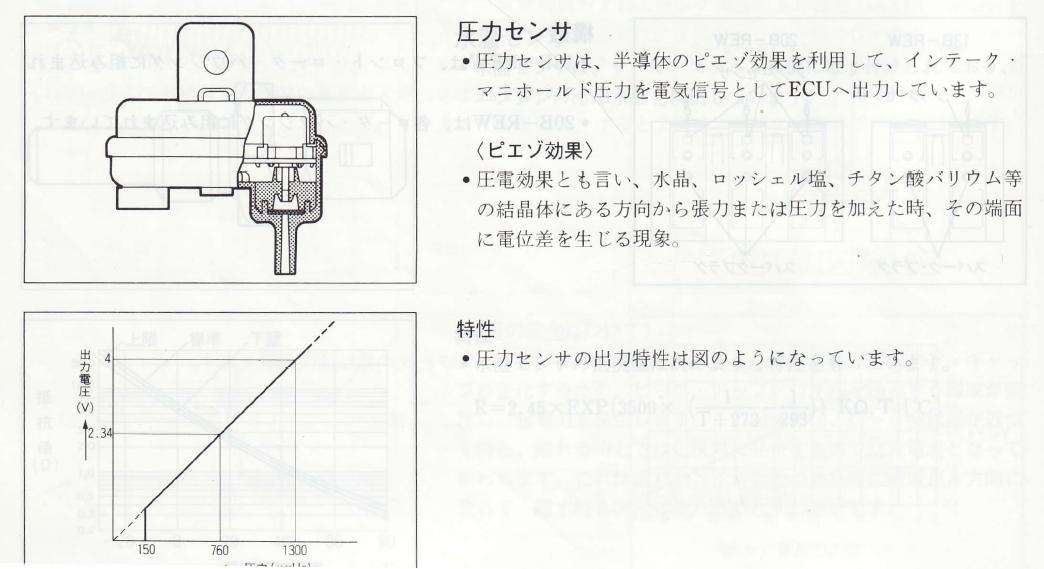

Thanks for the graph too, more information on parts being used on my car never hurts.
#80
Thread Starter
Senior Member
iTrader: (7)
Joined: Jan 2008
Posts: 440
Likes: 1
From: Clarksville, TN
Got an N370 MAF from another member on the boards this week. Hooked it up and the car started right up, idled fine and drove perfectly. The wideband is going back on this weekend to retune for the stock injectors.
Thanks to everyone for the help, having some others to bounce ideas off of most definitely kept me on the right track. Much rotary love.
I'm probably going to try and find another NF01 AFM for later down the road, when I do go standalone and hopefully get a better understand of its differences in resolution from that of a N370 AFM.
Thanks again everyone
Thanks to everyone for the help, having some others to bounce ideas off of most definitely kept me on the right track. Much rotary love.
I'm probably going to try and find another NF01 AFM for later down the road, when I do go standalone and hopefully get a better understand of its differences in resolution from that of a N370 AFM.
Thanks again everyone
#81
Moderator
iTrader: (3)
Joined: Mar 2001
Posts: 31,168
Likes: 2,812
From: https://www2.mazda.com/en/100th/
Got an N370 MAF from another member on the boards this week. Hooked it up and the car started right up, idled fine and drove perfectly. The wideband is going back on this weekend to retune for the stock injectors.
Thanks to everyone for the help, having some others to bounce ideas off of most definitely kept me on the right track. Much rotary love.
I'm probably going to try and find another NF01 AFM for later down the road, when I do go standalone and hopefully get a better understand of its differences in resolution from that of a N370 AFM.
Thanks again everyone
Thanks to everyone for the help, having some others to bounce ideas off of most definitely kept me on the right track. Much rotary love.
I'm probably going to try and find another NF01 AFM for later down the road, when I do go standalone and hopefully get a better understand of its differences in resolution from that of a N370 AFM.
Thanks again everyone
#82
Terrific news Ian! I'm happy you solved your problem.
Forget about another AFM, it's archaic technology. All modern ECU's use 'speed/density' to determine fuel demand and ignition timing. That means no AFM, they rely solely on the pressure and temperature sensors for thermodynamic inputs to calculate airflow.
Forget about another AFM, it's archaic technology. All modern ECU's use 'speed/density' to determine fuel demand and ignition timing. That means no AFM, they rely solely on the pressure and temperature sensors for thermodynamic inputs to calculate airflow.
#83
Thread Starter
Senior Member
iTrader: (7)
Joined: Jan 2008
Posts: 440
Likes: 1
From: Clarksville, TN
J9, that was my thoughts, but I know I'd have to use a different EMS to support larger injectors. SAFC advances timing too much if I have to decrease the fuel maps to get the proper AFR's. I'd still appreciate the information if you would be kind enough to PM those pages to me.
Monty, I think you're right. Standalone is something I most definitely need to look into, it would make future tuning a lot easier. In the nearer future, preventative mods are going to take place. Starting with an aftermarket FPR and s4 secondary rail to support the fpr.
Monty, I think you're right. Standalone is something I most definitely need to look into, it would make future tuning a lot easier. In the nearer future, preventative mods are going to take place. Starting with an aftermarket FPR and s4 secondary rail to support the fpr.
