carbon fiber center consold
12-02-08 | 04:05 PM
#1
Thread Starter
Senior Member
iTrader: (1)
Joined: Apr 2005
Posts: 334
Likes: 2
From: south orange county
carbon fiber center consold
well i got on for my b day and was wondering if any of you have any good advice on how to mount it to the center consold. the site said that it uses the stock screw locations? any ideas?
thanks vince
thanks vince
12-02-08 | 04:14 PM
#2
might want to list the brand..instructions/manual it came with? it should replace the exsisting surround meaning take the old one out and new one in..pull off the shifter surround/pull out ash tray/ remove 2 screws/ pull out the grills very gently/undo cig lighter wire on the back/ and work slowly..install opposite
12-02-08 | 04:55 PM
#3
Thread Starter
Senior Member
iTrader: (1)
Joined: Apr 2005
Posts: 334
Likes: 2
From: south orange county
it is an aerowerks. no instruction. dont have a factory center consold in the car. i was just wondering if anyone has installed the center consold that is the radio and a/c delete. where did they drill the holes for the screws to mount it or use 2 sided tape?
thanks vince
thanks vince
Last edited by petree_777; 12-02-08 at 04:56 PM. Reason: spelling
12-02-08 | 05:02 PM
#4
well rested,buffet o food
Joined: Dec 2006
Posts: 1,605
Likes: 1
From: NY
That consolE seems pretty badass. Do you have a link to the site for the cf consolE. Unfortunately, this consolE will probably need carefully measured holes drilled in it for mounting. Post pictures if you dont have a link for the consolE.
john ny
john ny
12-02-08 | 05:28 PM
#7
nice. i'd really like to get one. i put my center console part back on today and it just sucks. i wrapped it in electrical tape.
in a way it looks nice. but in its own "special" way.
the cf console would look so much better though. speakin of which. i did some searching of my own and saw a bunch of CF center console threads for fc. are there any other alternatives?
or the the CF the only solution other then making my own? im not very good at fabricating anything right now.
in a way it looks nice. but in its own "special" way.
the cf console would look so much better though. speakin of which. i did some searching of my own and saw a bunch of CF center console threads for fc. are there any other alternatives?
or the the CF the only solution other then making my own? im not very good at fabricating anything right now.
Trending Topics
12-02-08 | 05:41 PM
#8
"mounts with screws on original location"
They lie.
At least on the S5 (and I'm assuming the S4) the top mounting screws are at the top of the slot for the air vents and this item does NOT have the vent gap hence no screws. And the bottom is attached with screws under the ash tray which again this piece does not appear to have an ash tray slot (it could be hidden in the shadows of the badly taken photo) hence no way to attach the screws.
Time to get creative!
They lie.
At least on the S5 (and I'm assuming the S4) the top mounting screws are at the top of the slot for the air vents and this item does NOT have the vent gap hence no screws. And the bottom is attached with screws under the ash tray which again this piece does not appear to have an ash tray slot (it could be hidden in the shadows of the badly taken photo) hence no way to attach the screws.
Time to get creative!
12-02-08 | 07:23 PM
#9
4th string e-armchair QB
iTrader: (11)
Joined: May 2005
Posts: 2,745
Likes: 0
From: North Bay, Ontario
Yep, no screws/clips on them. Options would be 2-sided tape, and lots of it, or epoxy some tabs on it to keep it in, it's going to take some serious custom fab work. BUST OUT THE TIG!
12-02-08 | 10:12 PM
#13
Hookt UP
Joined: Feb 2008
Posts: 227
Likes: 5
From: Sacramento
this should give everyone a lil help with the DIY projects..
Im working on a fd mock up..
I'll start my thread within the next day or two
http://forums.nasioc.com/forums/show...1639969:score:
Im working on a fd mock up..
I'll start my thread within the next day or two
http://forums.nasioc.com/forums/show...1639969:score:
12-03-08 | 08:30 PM
#14
Like this one?

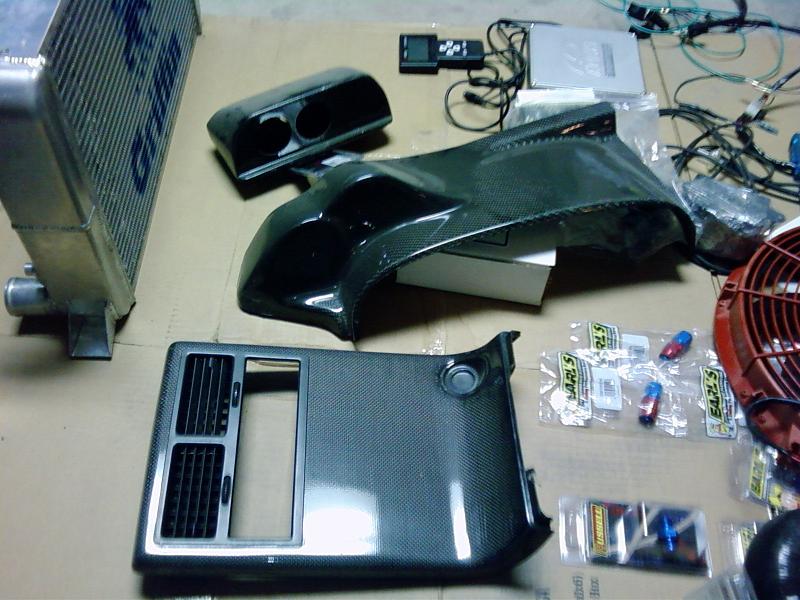

This is my SMP carbon fiber radio surround that I put stock vents on. The bottom is held down by two posts on the shifter surround that go through holes (like stock if I remember correctly) At the top, I originally tried two sided tape to secure it. It had funny gaps and looked like ***. I then used a bead of caulk across the top that just curved slightly down around the corners while the bottom was not yet pressed down by the shifter trim. After waiting a day to make sure it was dry, I pressed on the shifter surround and the radio surround snugged up to the dash nicely with no gaps. It was still holding strong over a year later when I cut it out of that car.
This is my SMP carbon fiber radio surround that I put stock vents on. The bottom is held down by two posts on the shifter surround that go through holes (like stock if I remember correctly) At the top, I originally tried two sided tape to secure it. It had funny gaps and looked like ***. I then used a bead of caulk across the top that just curved slightly down around the corners while the bottom was not yet pressed down by the shifter trim. After waiting a day to make sure it was dry, I pressed on the shifter surround and the radio surround snugged up to the dash nicely with no gaps. It was still holding strong over a year later when I cut it out of that car.
