shadoe

Will brake calibers from a 4 lug set-up bolt on to a a 5 lug?

Edit: The caliper is from an 88 gtu and we wanna put it on an 89 gxl

The Shaolin

iTrader: (5)

Uhm....I doubt it.

Black91n/a

Maybe the calipers will work, but you'll need different brackets for the calipers to move them out farther, at least for the fronts. They're probably the same calipers that are used on the S5 base models (5 lug, single piston calipers), but that may not be the case. If you're using 5 lug solid rear rotors IIRC they're the same size as the 4 lugs, so you should be fine there. The rear calipers will not work with the vented rears though, you need a thicker caliper.

JSmith0101

iTrader: (6)

Those are both 5 lug cars.

totallimmortal

all 5 lug fcs have the same 4 piston front calipers (great brakes) with vented rotors front and rear. 4 lug fc's have crappy single piston front calipers and smaller diameter rotors i belive, also the rears are not vented. like wotnartd said tho both cars you mentioned, gtu and gxl were 5 lug cars so if they are those cars the caliper will work. But if you need a new caliper they are like 70 bucks brands new with pads and will be much more reliable than a junker caliper. older calipers, especially ones that have been sitting a while wil fail much sooner that a new unit. Brakes are very important don't skimp here

wiL87

that's a negative. my 91 5 lug s5 had single piston brakes up front and solid rear rotors.

mazda13B88

Will 4 Piston Brake Calipers Fit On 4 Lug Front Brake Rotors? Has Anyone Done This?

SouthSideSlider

better question can you use 4 pots on the rear. imagine 4 pots all the way around.

Black91n/a

No and no.

The 4 lug rotors are smaller, so much of the pad will be hanging off in space if you put 4 pot calipers on a 4 lug car.

In the rear you'll loose the parking brake and you'll certainly run into bias issues.

Black Knight RX7 FC3S

iTrader: (7)

an 88 gtu is 5 lug.
The only 4 lug from the S4 is the Se model I think.

All S5 came with 5 lug (I've never seen a 4 lug version if there is one)
The caliper seems the same if its a single piston. Im seeing the same product number from various stores.

If you want the 4 piston caliper to a single caliper car, youll need the entire hub assembly.

Aaron Cake

iTrader: (1)

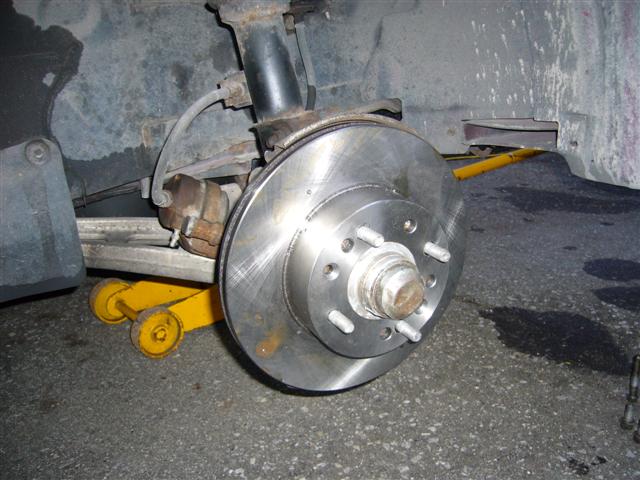

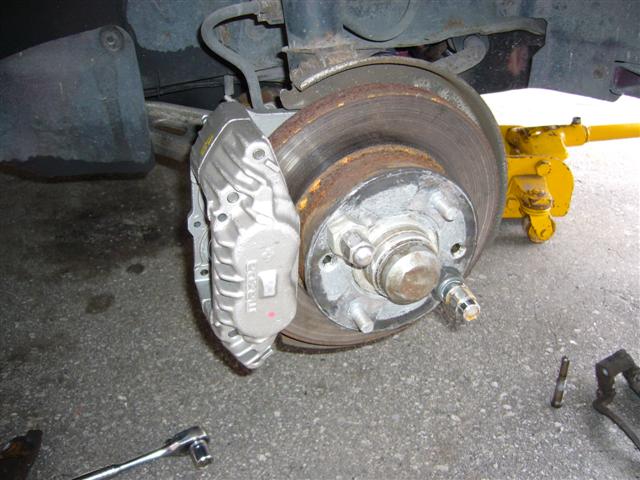

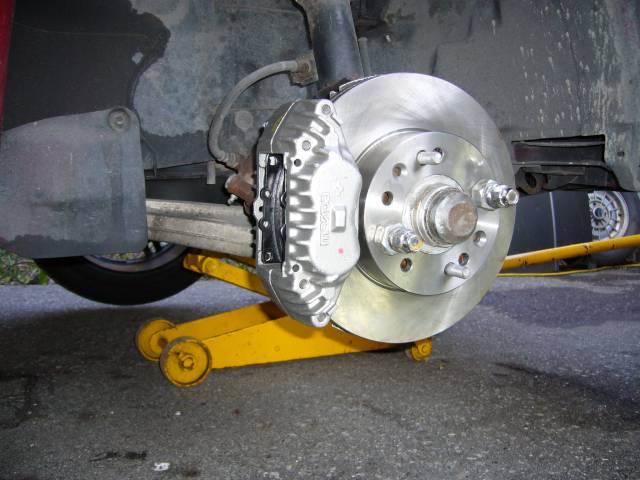

Yes, but it requires some work:

mazda13B88

did u drill some extra holes for the 4 lug studs

Aaron Cake

iTrader: (1)

Count the number of holes on that rotor. In short, yes. I used one stock hole and then drilled 3 more.

mazda13B88

i know theres 5 holes showing with nothing in them!!!!looks good though thanks for showing me that.

ramello

iTrader: (1)

Actually there are 6 holes showing if you look but 2 are for the lil screw that helps secure the rotor to the hub...the screw that i hate cuz it always gets stuck on me and i end up stripping

but none the less good innovative idea!

totallimmortal

Really can anyone confirm this? I thought only four lug cars got the single piston brakes.

Wh1t3 C0m3t

thats what i did when putting q45 brakes on my s13

Black91n/a

Yes, the base S5's got single piston calipers and solid rear rotors, they are 5 lugs still though. My car was like this untill I swapped in the better brakes.
