Battery Terminal Question (starter/bellhousing)
Hey so I have the positive and negative. I was just wondering the
negative wire goes from the battery to a chasis ground to the bellhousing?
positive wire goes from the battery to the fuse box to the starter long bolt?
i am put in my motor and i forgot to take pictures
negative wire goes from the battery to a chasis ground to the bellhousing?
positive wire goes from the battery to the fuse box to the starter long bolt?
i am put in my motor and i forgot to take pictures
08-20-09, 08:47 AM
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts

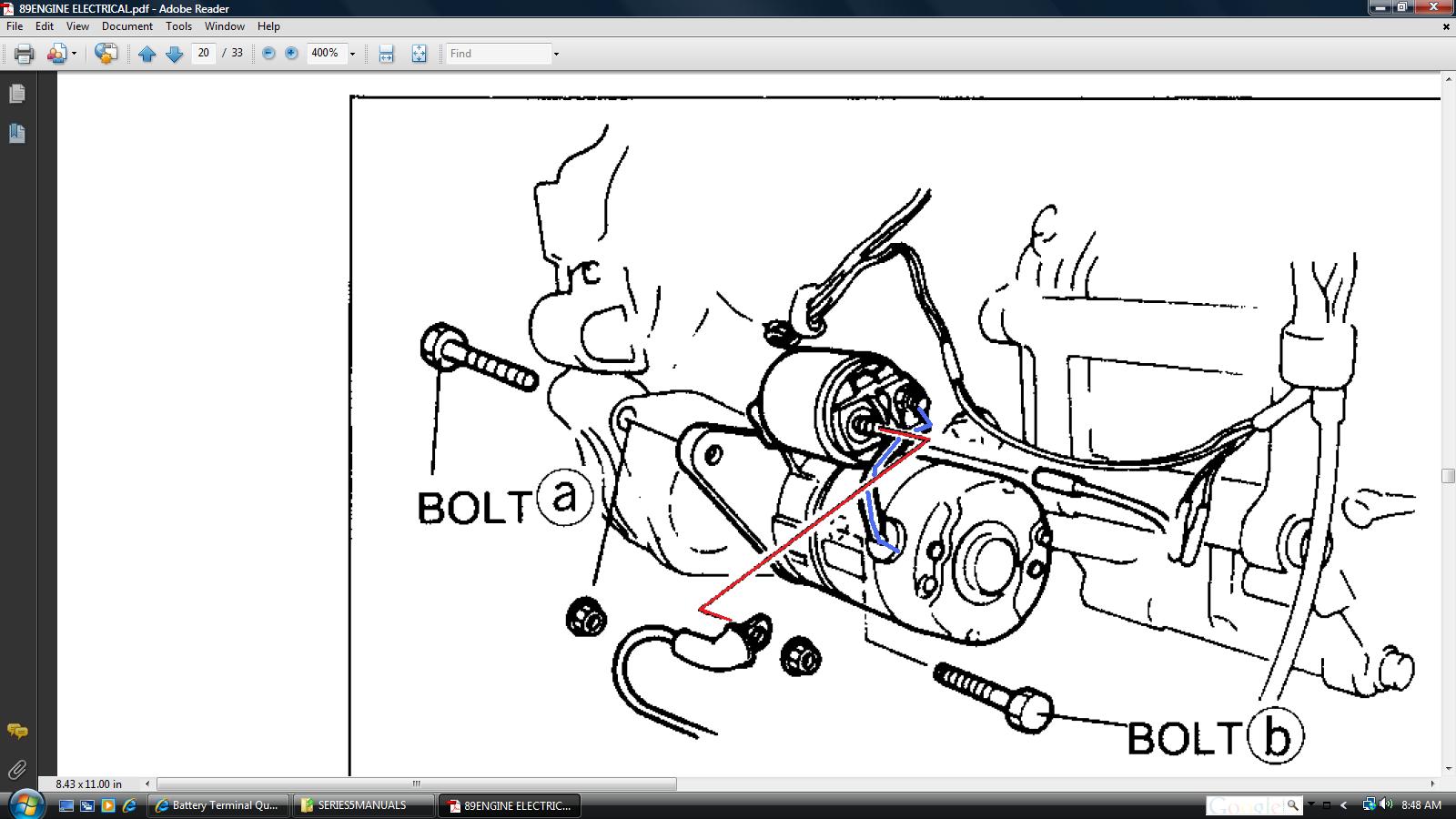

How 'bout this: there are two large terminals on the solenoid. ONE terminal has a wire/cable on it , and that cable/wire goes into the body of the starter itself (colored BLUE in the jpg attached).
So you connect the cable from the batt positive post to the OTHER large terminal.
The attached jpg is out of the ENGINE ELECTRICAL part of the free online FSM.
So you connect the cable from the batt positive post to the OTHER large terminal.
The attached jpg is out of the ENGINE ELECTRICAL part of the free online FSM.
08-20-09, 02:18 PM
#6
bone stock
Thread Starter
iTrader: (8)
Join Date: Apr 2007
Location: SOCAL
Posts: 734
Likes: 0
Received 0 Likes
on
0 Posts
Dang thanks a lot a lot a lot a lot dude. I was hoping to find something like this when I did my search. I will be saving this picture for the future JUST INCASE!
