Auto to Manual brackets...
hi,
well its going to be pretty soon that were going to swap my 1991 from an auto to a manual transmission. i have SEARCHED and read thru but i was wondering with what is the best way to go about the brackets. should we just hack some off another RX from a junk yard and weld them to mine? anyone have any info on this would be helpful. thanks.
-allen
well its going to be pretty soon that were going to swap my 1991 from an auto to a manual transmission. i have SEARCHED and read thru but i was wondering with what is the best way to go about the brackets. should we just hack some off another RX from a junk yard and weld them to mine? anyone have any info on this would be helpful. thanks.
-allen
#3
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: May 2005
Location: bartlett IL
Posts: 919
Likes: 0
Received 0 Likes
on
0 Posts
the very best way is to buy from NAPA (I am not a fan of napa however...) a spot weld driller and simply drill out the spot welds on your brackets and the brackets from the donor car. You will then weld the brackets from the donor car to your car and you may want to fill the holes that you left behind from removing the spot welds on the auto brackets. to do this you will need to lift the carpeting up (may require help) to keep it from burning the carpet.
You will need to mach up the trans with the crossmember on it to get an accurate placement of the "new" brackets.
If you try to fab up adapter brackets you may get a vibration (I did).
You will need to mach up the trans with the crossmember on it to get an accurate placement of the "new" brackets.
If you try to fab up adapter brackets you may get a vibration (I did).
#4
Visual Kei
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Thread Starter
iTrader: (16)
Join Date: Nov 2005
Location: Mtns of NC/SC
Posts: 2,480
Likes: 0
Received 0 Likes
on
0 Posts
so could i just buy a drill bit. im thinking of just making the drive to RX7world, place down the highway, to get them to weld on the brackets for me then my friends and i can do the swap our selves.
#5
Junior Member
![](https://www.rx7club.com/images/misc/15_year_icon.png)
Join Date: Jul 2002
Location: Lugoff, SC
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts

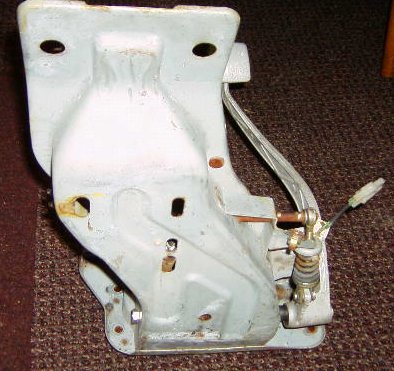

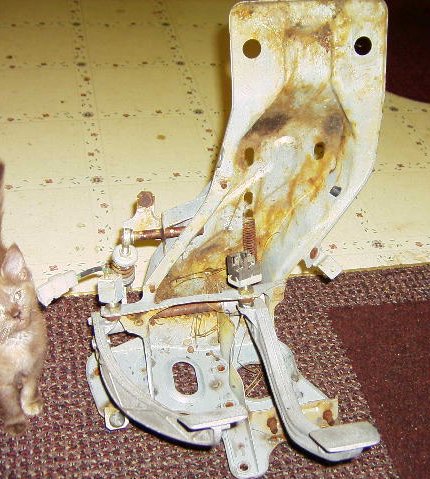

If you are refering to the pedal assembly it just bolts in, on the 87 automatic i had Mazda just blocked off the viod where the clutch master cylander was with a plate and two bolts. I parted that one out and never swaped it over but keped the pedal assembly out of it. Here are pictures of the manual setup that was going in to it
#7
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: May 2005
Location: bartlett IL
Posts: 919
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by tworotor1985
If you are refering to the pedal assembly it just bolts in, on the 87 automatic i had Mazda just blocked off the viod where the clutch master cylander was with a plate and two bolts. I parted that one out and never swaped it over but keped the pedal assembly out of it. Here are pictures of the manual setup that was going in to it
Again I advise against adapter brackets. you could get a drill bit but that would leave rather large holes in the floor of your car. the spot weld driller leaves 1/8" holes and costs like $25 here is a link.
http://www.napaautoparts.com/MasterP...ot+Weld+Cutter
you could have any welding shop weld them in just bolt everything up and have it towed in to a shop.
