anyone got a pic of a FC fuel sender assembly?
03-27-12, 10:40 PM
#1
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
anyone got a pic of a FC fuel sender assembly?
I had a mishap and blew a gas line.So I had to drop the rear end and replace all my lines.I was amazed it just broke.(yep.25 years will do that!)
So in my frustration I never marked lines.
I need a pic of the sender so I can see which nipple is OUT and which is Return.
THANKS GENTLEMEN!
So in my frustration I never marked lines.
I need a pic of the sender so I can see which nipple is OUT and which is Return.
THANKS GENTLEMEN!
03-28-12, 12:45 PM
#3
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts

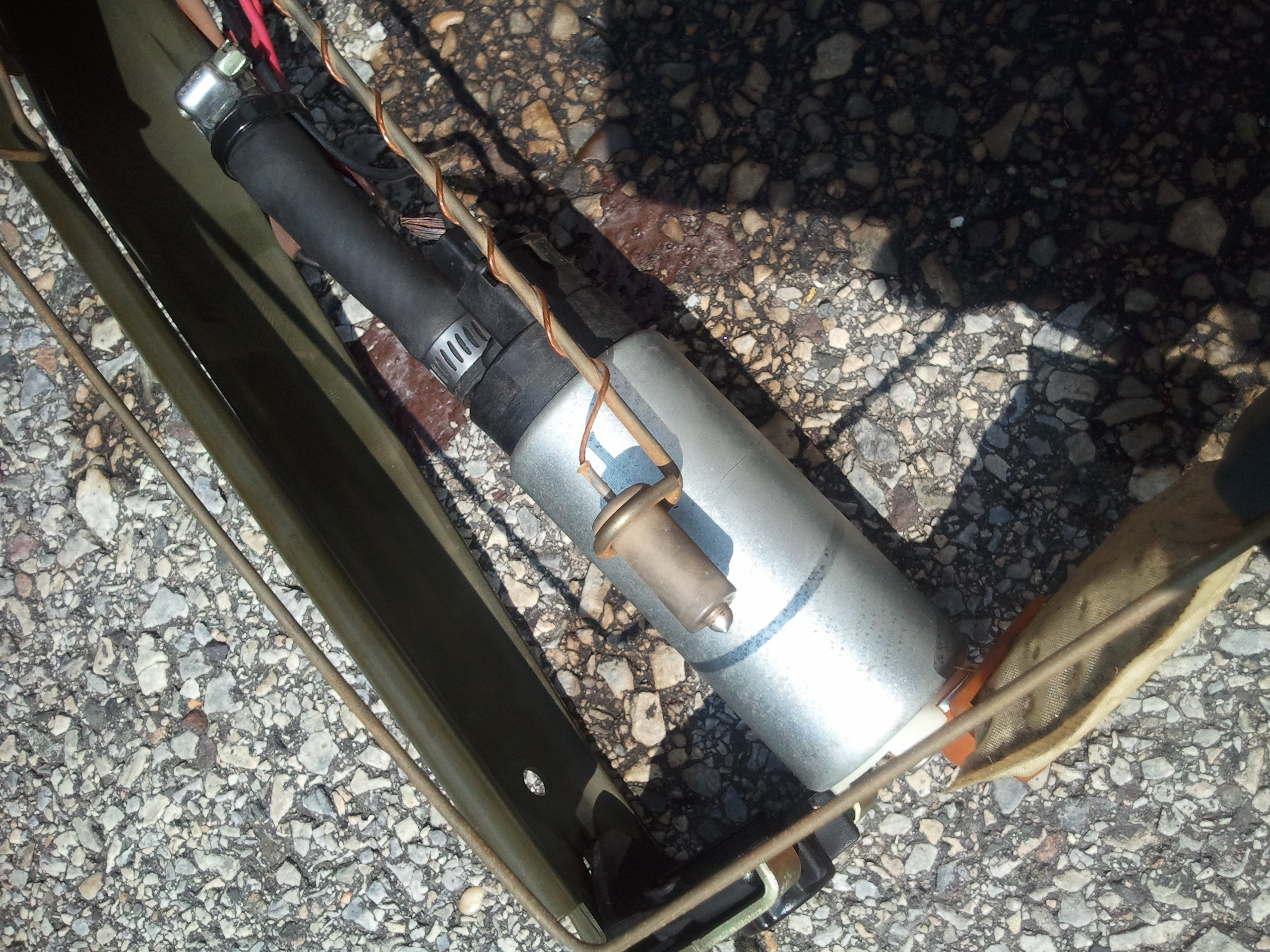

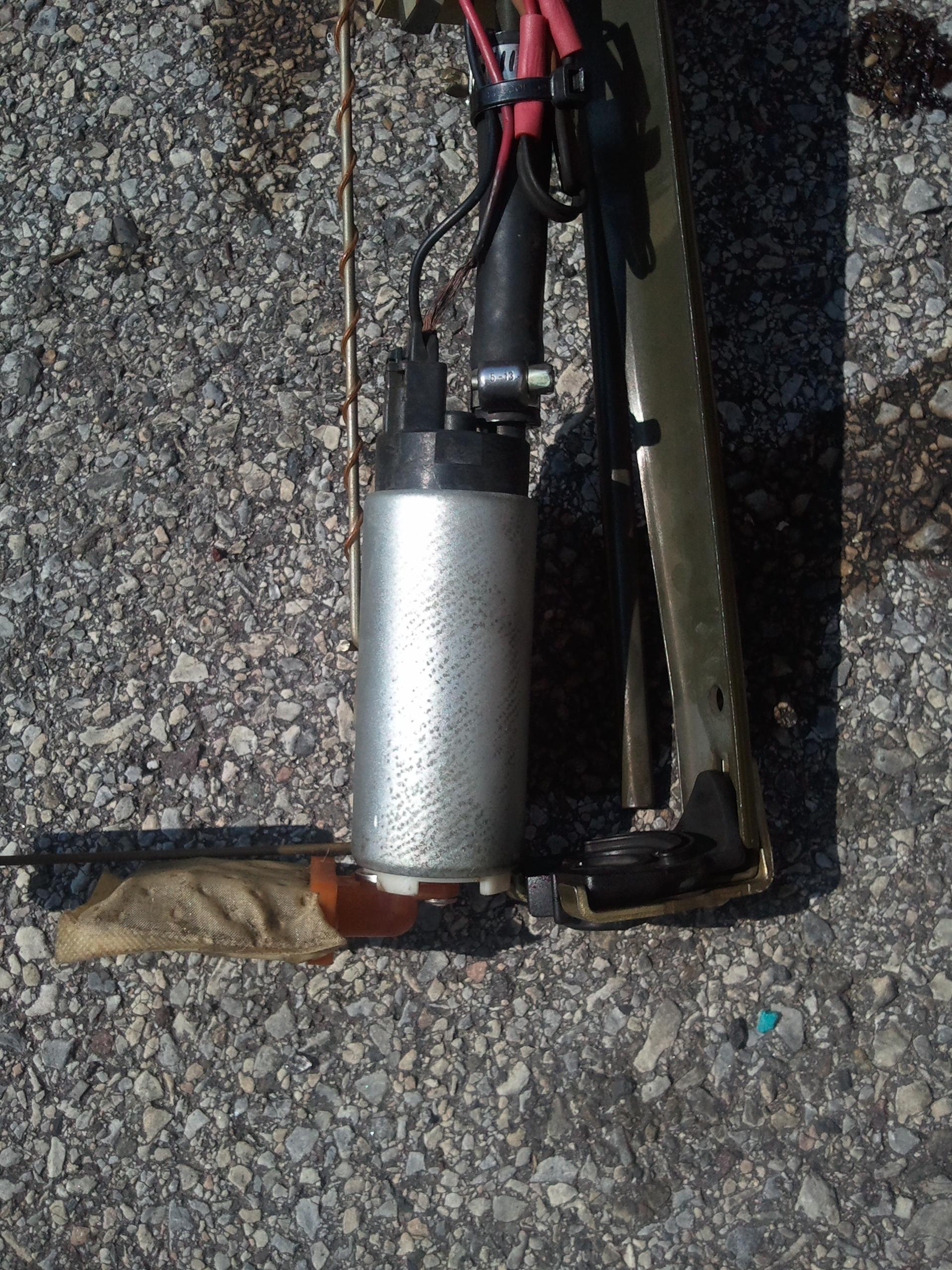

can't tell which is which on that pic Knight,
Thanks anyways though.I appreciate it.
...
Cliff notes: which Nipple is for Pump and which is for return?
Thanks anyways though.I appreciate it.
...
Cliff notes: which Nipple is for Pump and which is for return?
03-28-12, 02:51 PM
#5
Retired Moderator, RIP
Thread Starter
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
I had to Manhandle stuff in my shed!!!..FLING,Crash!!!...mumble!
I found an extra sender.
....
The Nipple Closest to the Black Button Wire connectors on the TOP of the sender is Pump OUT.
the other is obviously Return!.
happy camper now!
I found an extra sender.
....
The Nipple Closest to the Black Button Wire connectors on the TOP of the sender is Pump OUT.
the other is obviously Return!.
happy camper now!
