Air Intake Box
I,m looking for a Good air intake system for a 87 s4 t2, does anyone out there have any ideas, I've seen a few but I dont know who makes the best system and where you can get them .
12-22-09, 03:31 PM
#2
Banned. I got OWNED!!!
iTrader: (7)
Join Date: Dec 2008
Location: Oregon
Posts: 1,326
Likes: 0
Received 0 Likes
on
0 Posts
Are you talking about the turbo inlet duct? theres 2 things you can do 1 just find a 45* 3" bend and some couplings and make your own. You will need to plumb in the spot for the vacuum line and a big spot for the stock bov if you keep it. or you can buy an aluminum replica of the original from corksport. I just did the 45* bend being it cost about 20 bucks in all, but you will need a dremel or somthing to do the holes.
12-22-09, 04:14 PM
#4
Full Member
Thread Starter
Join Date: May 2008
Location: Shingle Springs,California
Posts: 157
Likes: 0
Received 0 Likes
on
0 Posts
Im not talking about the ducting, what i'm after is the Box it self, I've seen some aluminum boxes that are trick, and fit with front mounted intercoole piping, I have the corksport meatl inlet duct and I like it but what I want is the box that the air filter fits in .
12-22-09, 07:54 PM
#8
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 9 Likes
on
9 Posts
I went with the Mariah set up
Pictures

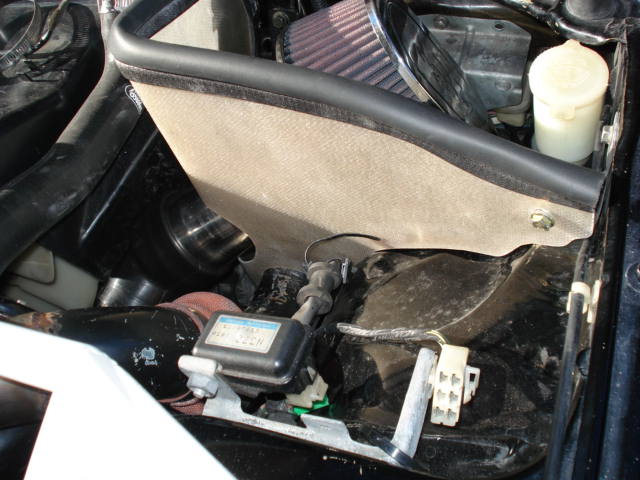

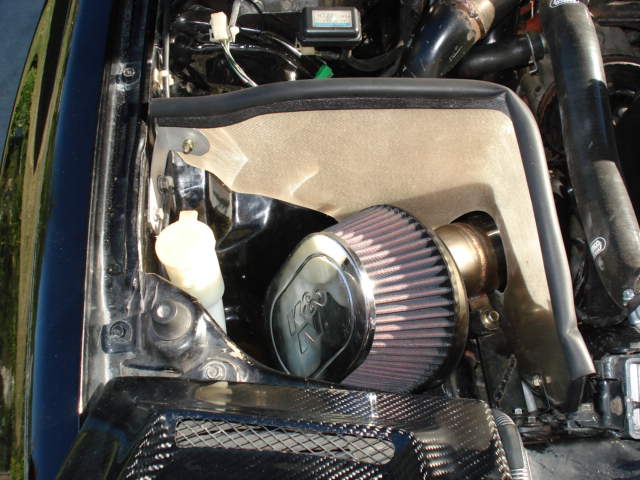

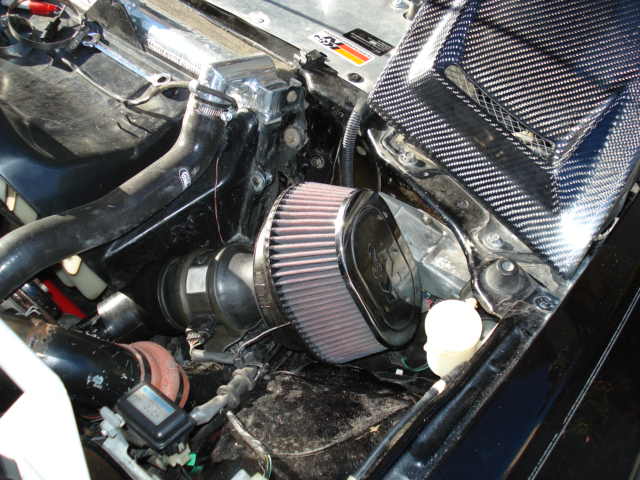

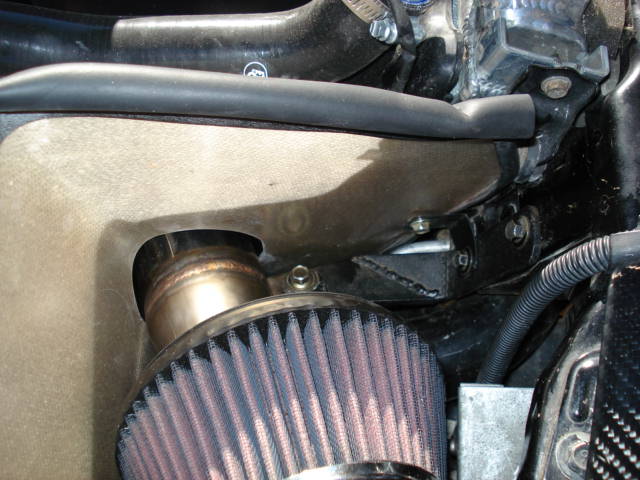

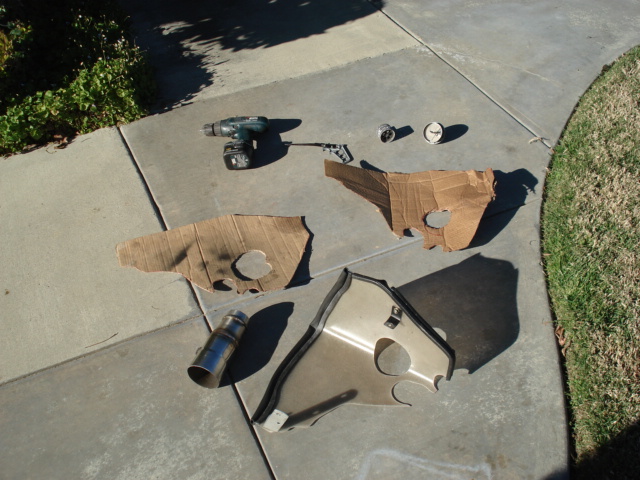

I came into the "box" from a different angle than most as I have custom piping from the Turbo. The box has markings for where to cut the hole in a standard install. Regardless, as pictured in the first photo, I recommend you do a test run cut on cardboard to confirm correct hole placement before you actually cut the Mariah piece.
I used the CARB approved K&N intake filter.
I came into the "box" from a different angle than most as I have custom piping from the Turbo. The box has markings for where to cut the hole in a standard install. Regardless, as pictured in the first photo, I recommend you do a test run cut on cardboard to confirm correct hole placement before you actually cut the Mariah piece.
I used the CARB approved K&N intake filter.
12-23-09, 12:12 AM
#10
Pictures
I came into the "box" from a different angle than most as I have custom piping from the Turbo. The box has markings for where to cut the hole in a standard install. Regardless, as pictured in the first photo, I recommend you do a test run cut on cardboard to confirm correct hole placement before you actually cut the Mariah piece.
I used the CARB approved K&N intake filter.
I came into the "box" from a different angle than most as I have custom piping from the Turbo. The box has markings for where to cut the hole in a standard install. Regardless, as pictured in the first photo, I recommend you do a test run cut on cardboard to confirm correct hole placement before you actually cut the Mariah piece.
I used the CARB approved K&N intake filter.
I just like the idea of it being a nice solid piece that isolates the air intake. I always wanted to buy it when I was still rotary powered.
