AFM question?!?!?!?
11-02-06, 08:02 AM
#26
The Cause of Death
Originally Posted by My5ABaby
When will people learn that you can find what you need to know (percent of the time):
93% FSM
97% Searching
34% Outside Pages (Aaroncake, Rotaryressurection, etc.)
49% Haynes Manual
Yes, that's over 100%. Yes, I meant to do that.
93% FSM
97% Searching
34% Outside Pages (Aaroncake, Rotaryressurection, etc.)
49% Haynes Manual
Yes, that's over 100%. Yes, I meant to do that.
Not everyone knows everything about cars, which is why they ask. Although I do agree with you to an extent...
11-02-06, 08:14 AM
#27
Originally Posted by spot_skater
Don't fret, breh. Sometimes people get confused with what's in the FSM, and would rather have things in terms they understand a little better, or explained by someone they know is knowledgeable on the subject.
11-02-06, 08:19 AM
#28
The Cause of Death
And to the original poster. At one point I was having problems with my idle on my 7, and did these tests to the AFM I sent you. It checked out at the time. Hopefully nothing has changed since.
11-02-06, 08:21 AM
#29
Originally Posted by My5ABaby
Hence the 97% searching.
if you are trying to opt your post its not working bro...go to the lounge with that ****
11-02-06, 08:26 AM
#30
Senior Member
Thread Starter
Join Date: Nov 2005
Location: Austin,TX
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
Well checked out the resistance on both afm, and they seem to be around the same numbers. I guess I will try unflooding the car next. Man this really sucks!!!!
11-02-06, 08:32 AM
#32
good luck bro ...just keep on try thats the nature of our cars ...in time you will see a lot of ******** on the forum that dont know **** and go by "he said they said" just to get post up
anyways the best bet is to buy a used one here and just junk the old...good luck and keep em rotating
alex
anyways the best bet is to buy a used one here and just junk the old...good luck and keep em rotating
alex
11-02-06, 08:38 AM
#34
The Cause of Death
Originally Posted by El Nene 7
good luck bro ...just keep on try thats the nature of our cars ...in time you will see a lot of ******** on the forum that dont know **** and go by "he said they said" just to get post up
anyways the best bet is to buy a used one here and just junk the old...good luck and keep em rotating
alex
anyways the best bet is to buy a used one here and just junk the old...good luck and keep em rotating
alex
11-02-06, 10:29 AM
#35
Senior Member
Thread Starter
Join Date: Nov 2005
Location: Austin,TX
Posts: 268
Likes: 0
Received 0 Likes
on
0 Posts
O.k so I checked the fuel pump to see if it made the "whirring" sound by bridging the terminals of the check connector with a jumper wire. And the whirring sound continued for a long time, meaning that the system is not pressurizing enoungh. So the next step would be checking the fuel pressure. But i found it a strange that when i took off the fuel feed hose there was no fuel what so ever..................
11-02-06, 12:01 PM
#38
The Cause of Death
Originally Posted by Fc3s_d1jp
When the car is cranking shouldnt there be fuel flowing threw the fuel feed hose?
11-02-06, 03:44 PM
#41
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
Pull the fuel line off the fuel filter. The aft line of the fuel filter. See if fuel drains out. It should for a few moments.
Put a hose on that line and the other end in a bucket. Jumper the fuel pump check connector and turn the key ON. See if fuel flows or not. Fuel flows? Then change the fuel filter, refit the lines to the filter and then remove the feed line from the filter at the engine. Jumper the fuel check connector and turn the key to ON for maybe two seconds. Fuel should flow.
Just FYI. In the past I've depressurized the fuel lines and then turned the pump on. The fuel rail gets fully pressurized in less than three-four seconds. No sense running the pump longer than that.
Also, it could be the fuel strainer on the END of the FUEL PUMP is clogged or VARNISHED over. Check it out.
Put a hose on that line and the other end in a bucket. Jumper the fuel pump check connector and turn the key ON. See if fuel flows or not. Fuel flows? Then change the fuel filter, refit the lines to the filter and then remove the feed line from the filter at the engine. Jumper the fuel check connector and turn the key to ON for maybe two seconds. Fuel should flow.
Just FYI. In the past I've depressurized the fuel lines and then turned the pump on. The fuel rail gets fully pressurized in less than three-four seconds. No sense running the pump longer than that.
Also, it could be the fuel strainer on the END of the FUEL PUMP is clogged or VARNISHED over. Check it out.
11-02-06, 04:39 PM
#43
Originally Posted by El Nene 7
every single post you have done in the last 20 mins has been nothing but jokes and ******* ignorant remarks....
I guess you missed my post in this thread where I responded to his question about how to test the AFM. Far more useful than anything you've "contributed" thus far in the thread.
Originally Posted by El Nene 7
no one cares what the hell you think if you are gonna bash them....
You mean kinda like what you're doing to me now? Interesting...
Originally Posted by El Nene 7
if you are trying to opt your post its not working bro...go to the lounge with that ****
Anyways, think what you will. I've helped a lot of people. God forbid I make a random post (albeit true...) once in a while.
Now... to help some more.
Originally Posted by Fc3s_d1jp
Should the car start if the AFM is disconnected?
Go to advanced search, type in Hailers for the user, and "Start Fuel Map" under the terms.
11-02-06, 05:47 PM
#44
Dude......
iTrader: (1)
Join Date: Aug 2006
Location: Manitoba
Posts: 444
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Fc3s_d1jp
Ya i can get fuel flow, but only when I jumper fuel check connector. My problem is when the key is on "ON" position the fuel pump doesn't turn on.
11-02-06, 06:19 PM
#45
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 22 Likes
on
20 Posts
Like the man said above, the pump will NOT run with the key to ON.
The jumper must be installed in the fuel pump check connector and the key to ON.
Or the key HELD to START.
OR the key to ON and the engine running.
The engine will start without the afm connected, but only briefly, IF fuel is available in the rails.

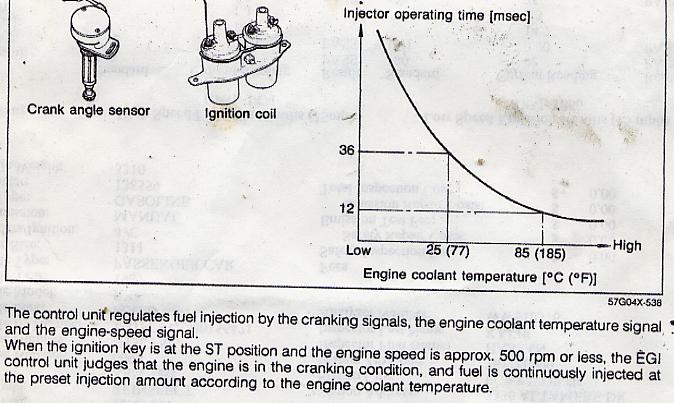

See the following jpg, it might be of interest. I'm not saying it will fix your problem, but it's sometning you should be aware of: https://www.rx7club.com/forum/attach...hmentid=150448
Frankly, I don't see where MYBABY wrote anything wrong and he isn't the type to pump up thread counts.
It seemed earlier on that you had caught on to the fact that with the key to ON, that the pump would not work. Guess I was wrong about that.
I'd still try the things I mentioned in my last post above this one. It can't hurt.
DON'T EVER BE A PARTS SWAPPER. Cost too much.
The jumper must be installed in the fuel pump check connector and the key to ON.
Or the key HELD to START.
OR the key to ON and the engine running.
The engine will start without the afm connected, but only briefly, IF fuel is available in the rails.
See the following jpg, it might be of interest. I'm not saying it will fix your problem, but it's sometning you should be aware of: https://www.rx7club.com/forum/attach...hmentid=150448
Frankly, I don't see where MYBABY wrote anything wrong and he isn't the type to pump up thread counts.
It seemed earlier on that you had caught on to the fact that with the key to ON, that the pump would not work. Guess I was wrong about that.
I'd still try the things I mentioned in my last post above this one. It can't hurt.
DON'T EVER BE A PARTS SWAPPER. Cost too much.
