2 questions... who has removed this rats nest? and...
#1
777** The Anti-rice
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Sep 2002
Location: Seattle, WA
Posts: 2,100
Likes: 0
Received 0 Likes
on
0 Posts
2 questions... who has removed this rats nest? and...

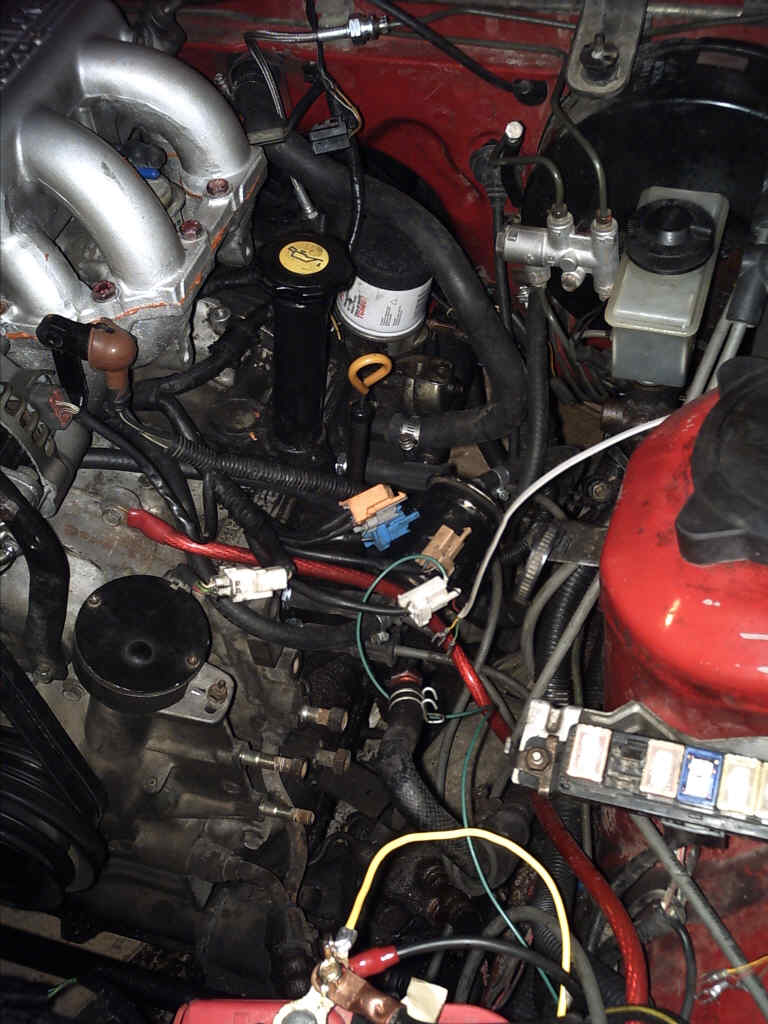

First question, who has removed this rats nest and all the metal hoses and what not involved in it:
![](http://webpages.charter.net/vtecpreludez/ratsnestremoval.jpg)

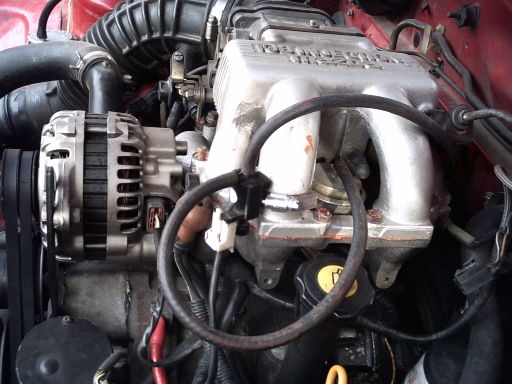

Second question; would i be able to use these lines (that used to go to my TB) as feed and return lines for my turbo? This may sound really stupid but, which way is the coolant flowing in the hose? And is there a diagram that shows on the turbo which is the coolant feed, and which is the return? I cant find any usefull diagram s4 FSM on the turbo (im using an s4 turbo/manifold)
![](http://webpages.charter.net/vtecpreludez/ratsnestremoval.jpg)
Second question; would i be able to use these lines (that used to go to my TB) as feed and return lines for my turbo? This may sound really stupid but, which way is the coolant flowing in the hose? And is there a diagram that shows on the turbo which is the coolant feed, and which is the return? I cant find any usefull diagram s4 FSM on the turbo (im using an s4 turbo/manifold)
![](http://webpages.charter.net/vtecpreludez/feedreturn.jpg)
#2
1991 Frankin7 ***RIP***
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2003
Location: Abbotsford, British Columbia, Canada
Posts: 900
Likes: 0
Received 0 Likes
on
0 Posts
typically your feed and return lines for your turbo flow oil to cool it.there are water cooled turbo's which i guess you're trying to do but as far as i know the stock S4 and S5 turbo's are oil cooled so you'll want to try to find somewhere to fab oil feel and return lines.
#4
Full Member
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Apr 2002
Location: Fayetteville, NC
Posts: 131
Likes: 0
Received 0 Likes
on
0 Posts
Look for Aaron Cake on the forum, he has already done the turbo conversion and has a great writeup on his site... I believe there is a link in the FAQ at the top of this forum, read it and you will find most of your questions answered there!
Good Luck!
Good Luck!
#6
Like Ghandi with a gun
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Sup bud. I did the vac rack removal last winter... Its pretty straight forward. Buy about 5 feet of vac line, and about 6-8 feet of fuel line. And expect to get raped paying for "fuel injection" fuel hose. Project84 swears buy it, but its like $8/foot.
Last edited by Kenteth; 07-25-04 at 11:19 PM.
Trending Topics
#8
Like Ghandi with a gun
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Impreza2RX7
You can buy Stainless Braided line for that price..
though i've been using standard fuel line, and haven't had any problems. Its like $1.30/foot
#9
Need an E6x
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Aug 2001
Location: Phoenix, AZ
Posts: 842
Likes: 0
Received 0 Likes
on
0 Posts
So what is the benefit of removing the rats nest that once was on the side of that engine? and how would it be beneficial--aside from making less clutter?
thanx,
Matt
thanx,
Matt
#10
Like Ghandi with a gun
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
um... it makes less clutter...
thats about it.
You wouldn't understand that unless you spend alot of time in your engine bay. Once you start to though, you'll begin to understand the complete nuisance that presents itself in the form of that fickung vac rack
EDIT: plus dezerte is going out on a limb to make a pretty custom system here (6-always open port turbo.) All that emissions stuff is pretty much a joke at this point of modification...
thats about it.
You wouldn't understand that unless you spend alot of time in your engine bay. Once you start to though, you'll begin to understand the complete nuisance that presents itself in the form of that fickung vac rack
EDIT: plus dezerte is going out on a limb to make a pretty custom system here (6-always open port turbo.) All that emissions stuff is pretty much a joke at this point of modification...
Last edited by Kenteth; 07-26-04 at 01:56 AM.
#11
Need an E6x
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Aug 2001
Location: Phoenix, AZ
Posts: 842
Likes: 0
Received 0 Likes
on
0 Posts
ok, lol well i am selling all of my cool possessions to buy a rebuild kit because i'm poor and yeah it was a bitch to work around for a while so i understand, where is the writeup?
#12
Like Ghandi with a gun
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
theres a writeup in the archive, its pretty straight forward though. The only dificult part is keeping mind to what needs to stay. (Fuel lines, fuel injector bleeds, fuel regulator switch, VDI, ect)
EDIT: and dezerte, you need a double alt pulley pronto
EDIT: and dezerte, you need a double alt pulley pronto
#13
Rotary Enthusiast
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Jun 2003
Location: Millville, NJ
Posts: 1,424
Likes: 0
Received 0 Likes
on
0 Posts
Yeah, removing the rats nest, AC/PS/ACV, Twin Scroll, OMP, EGR, BAC, charcoal canistor, going to an electric fan, cruise control, and everything else I removed made my engine compartment look pretty uncluttered..
#14
Need an E6x
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Join Date: Aug 2001
Location: Phoenix, AZ
Posts: 842
Likes: 0
Received 0 Likes
on
0 Posts
haha Complexicated. that's some funny ****.
pretty close to educimacated.
any idea how long it takes to get the conversion done worktime wise if you know what your'e doing?
thanx.
pretty close to educimacated.
any idea how long it takes to get the conversion done worktime wise if you know what your'e doing?
thanx.
#15
Like Ghandi with a gun
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Mar 2003
Location: Rapid City, SD
Posts: 4,584
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by marlaman
haha Complexicated. that's some funny ****.
pretty close to educimacated.
any idea how long it takes to get the conversion done worktime wise if you know what your'e doing?
thanx.
pretty close to educimacated.
any idea how long it takes to get the conversion done worktime wise if you know what your'e doing?
thanx.
anyhow, what coversion, the 6port turbo, or the rats nest swap?
Rats nest will take about an hour or two depending on how competent you are.
#16
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2003
Location: Fort Worth, TX
Posts: 414
Likes: 0
Received 0 Likes
on
0 Posts
DEZERTE
Use the same fuel line from the "rats nest". I separated the fuel lines from the "rats nest"
http://img78.photobucket.com/albums/...r/P6240010.jpg
Then I attached the fuel lines portion back
http://img78.photobucket.com/albums/.../Fuel_line.jpg
At "Auto Zone", I bought a pack of "block off nipples" and used those to block off the left over nipples.
Use the same fuel line from the "rats nest". I separated the fuel lines from the "rats nest"
http://img78.photobucket.com/albums/...r/P6240010.jpg
Then I attached the fuel lines portion back
http://img78.photobucket.com/albums/.../Fuel_line.jpg
At "Auto Zone", I bought a pack of "block off nipples" and used those to block off the left over nipples.
#17
777** The Anti-rice
![](https://www.rx7club.com/images/misc/10_year_icon.png)
Thread Starter
Join Date: Sep 2002
Location: Seattle, WA
Posts: 2,100
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by stacher
DEZERTE
Use the same fuel line from the "rats nest". I separated the fuel lines from the "rats nest"
http://img78.photobucket.com/albums/...r/P6240010.jpg
Then I attached the fuel lines portion back
http://img78.photobucket.com/albums/.../Fuel_line.jpg
At "Auto Zone", I bought a pack of "block off nipples" and used those to block off the left over nipples.
Use the same fuel line from the "rats nest". I separated the fuel lines from the "rats nest"
http://img78.photobucket.com/albums/...r/P6240010.jpg
Then I attached the fuel lines portion back
http://img78.photobucket.com/albums/.../Fuel_line.jpg
At "Auto Zone", I bought a pack of "block off nipples" and used those to block off the left over nipples.
Btw I seen a lot of your post, and it seems like you know youre stuff. Did you come from another board?
#18
Senior Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
Join Date: Sep 2003
Location: Fort Worth, TX
Posts: 414
Likes: 0
Received 0 Likes
on
0 Posts
DEZERTE
No, but I post in the other 4 Rx-7 board. However, I finished doing a similar project to yours so I know what you are going throu. That is probably why I always tend to answer your threads.
No, but I post in the other 4 Rx-7 board. However, I finished doing a similar project to yours so I know what you are going throu. That is probably why I always tend to answer your threads.
#20
Engine, Not Motor
![](https://www.rx7club.com/images/misc/15_year_icon.png)
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 110 Likes
on
93 Posts
Originally Posted by Ryu
typically your feed and return lines for your turbo flow oil to cool it.there are water cooled turbo's which i guess you're trying to do but as far as i know the stock S4 and S5 turbo's are oil cooled so you'll want to try to find somewhere to fab oil feel and return lines.
