It's been more than sufficient so far up to 13psi, with this turbo and injectors I plan to max out around 16-17psi. The biggest advantages are the ability to run higher than 10psi compared to the TMIC when heatsoak would be a problem, no more lag than the TMIC and it works with the FD UIM + compression tube. I think the gains are from a combination of better flowing manifolds, higher boost, lower AIT's. This is using the new hood and modified under tray too. Only thing I might due in the future, besides bigger turbo and injectors, is add some water or alcohol injection.
I can't find my old data logs with the TMIC at 10psi for comparison though. I am trying to locate them or find someone else with TMIC and BNR Stg 1 for similar values.
#2061
Full Member
![](https://www.rx7club.com/images/misc/05_year_icon.png)
#2067
Thanks for the compliments.
The ITB's are not 100% installed. I had some hang ups with the Adaptronics ECU. Needless to say, the 3rd ECU got the car started finally. As of now, I am in the process of installing the ITB's. New England winters suck and often times when it is freezing outside, I find something else to do than work in the garage. In addtion, I don't put either of the Miata's on the road when they are covered in salt, however this warm front that we have coming in this weekend and the fact that the salt seems to have subsided from lack of snow means that I might actually start tuning it (if I can finish the ITB install this weekend)
![Name: Picture046-1.jpg
Views: 181
Size: 83.7 KB](https://www.rx7club.com/attachments/2nd-generation-non-technical-pictures-198/707290d1501884704-post-some-pics-your-fc-d-pics-your-car-go-thread-picture046-1.jpg)

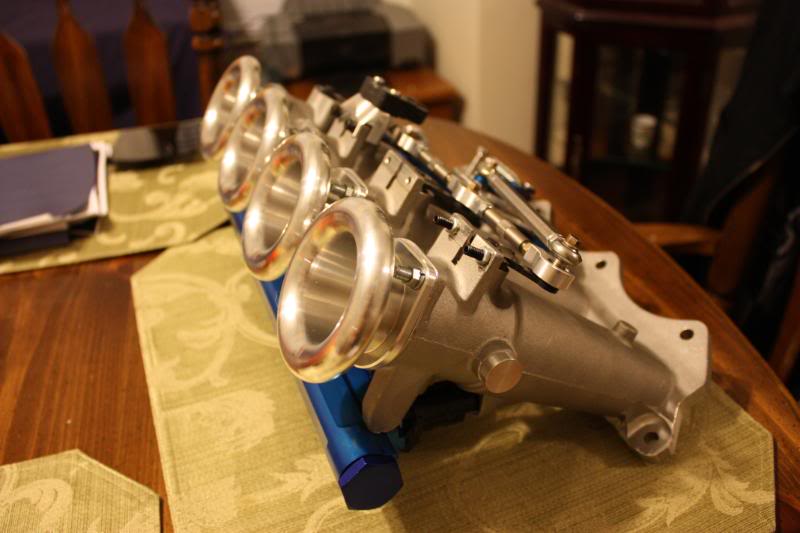

The manifold is a TWM unit.
![Name: Picture043-1.jpg
Views: 152
Size: 56.1 KB](https://www.rx7club.com/attachments/2nd-generation-non-technical-pictures-198/707291d1501884704-post-some-pics-your-fc-d-pics-your-car-go-thread-picture043-1.jpg)

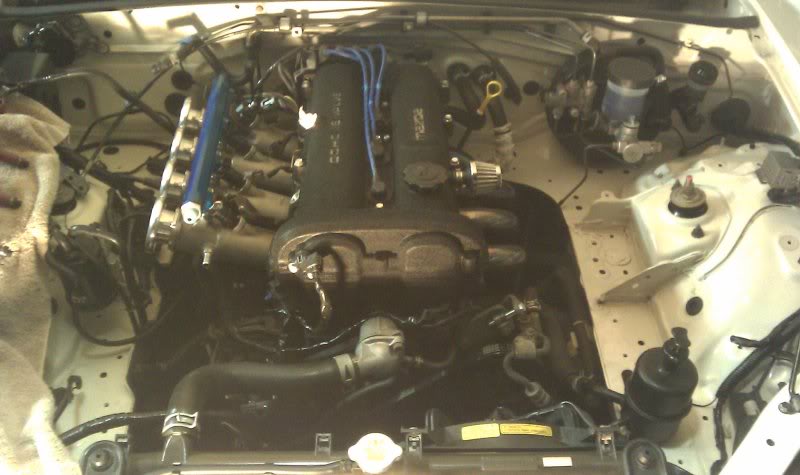

As the car currently sits.
![Name: IMAG0009.jpg
Views: 149
Size: 53.5 KB](https://www.rx7club.com/attachments/2nd-generation-non-technical-pictures-198/707292d1501884704-post-some-pics-your-fc-d-pics-your-car-go-thread-imag0009.jpg)
![Name: 061809177.jpg
Views: 157
Size: 27.0 KB](https://www.rx7club.com/attachments/2nd-generation-non-technical-pictures-198/707293d1501884704-post-some-pics-your-fc-d-pics-your-car-go-thread-061809177.jpg)
![Name: Picture055.jpg
Views: 131
Size: 155.6 KB](https://www.rx7club.com/attachments/2nd-generation-non-technical-pictures-198/707294d1501884704-post-some-pics-your-fc-d-pics-your-car-go-thread-picture055.jpg)

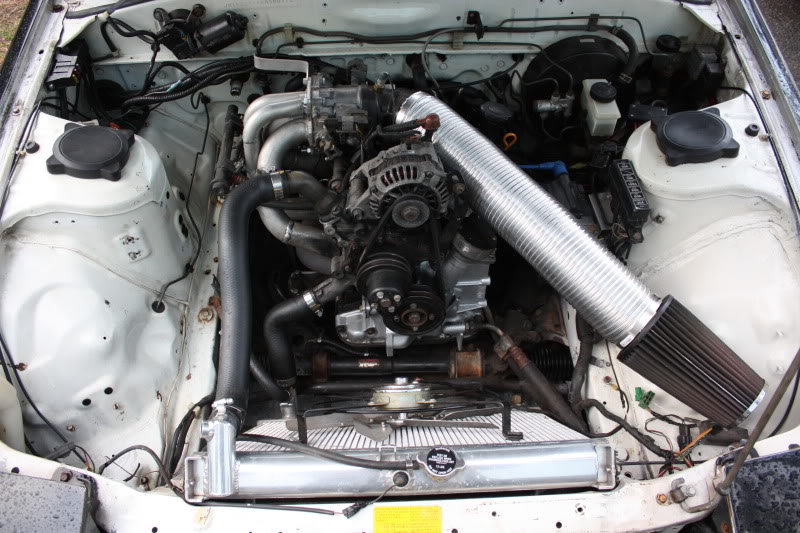

I don't have any vids of the FC. It's somewhat quiet with the RB duals until you are WOT and above 6k rpm.
