GeenIdee

Hey guys,

To start off, i own a '91, european S5 rx7 and the front combination lamps we've got on our fc's are not the prettiest.

So i am thinking about something custom if i can pull this off, but then i need other front lights but i am not sure if it is the us style front lights that i am searching for.


So my question is, can somebody post detailed pictures of S5 front combination lights?

With detailed i mean pictures of the back of the unit, connector, inside the unit etc.


I would appreciate it a lot if some one can come up with some good pictures for me!


For people that wonder, how the heck do those european style lights look, see pictures below!

fc3c69

iTrader: (49)

USDM S5 front turn signals. Is this what you are looking for?

GeenIdee

you, are, awesome.

If you could help me with only one picture of the reflector behind the glass, then you are my hero i got everything i needed to know!

The connector is the same so on that part is should be plug and play

fc3c69

iTrader: (49)

Sorry, these are the only pictures I have for these lights.

rx7inLt

Cant you just break away the orange glass? That works on my S4 euro turn signals.

2slow4stock

iTrader: (18)

Ill try to get some photos. I have his turn signals. but looks like you can use the usdm turn covers on yours, if the Orange is stained on.

GeenIdee

Its not in the orange glass, thats no problem at all. Even better, i did cut that away this morning (see pics below).

But what u can see in the pictures above, is that the european version has 2 compartments. A reflector for the turn signal and a seperated compartment for the normal light (how do u guys call them?).

And what i want, is that the whole thing lights up, and that the whole thing blinks when i put on the turn signal.

So i have 3 options:

-usdm light with an orange bulb, but then the turn signal is orange aswell as the normal light
-usdm light with a white bulb, same as above but then white turn signal
-or trying to make something custom so i have an orange turn signal and white for the normal light.


Here is the pic of what i done today, already made it better then it was. Havent seen it in the dark yet.

2slow4stock

iTrader: (18)

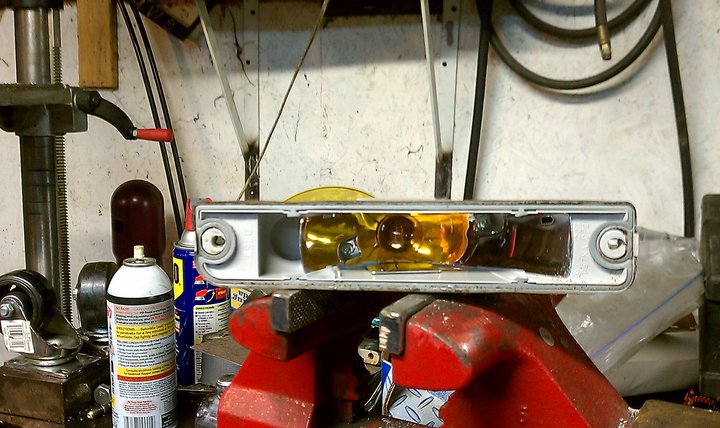

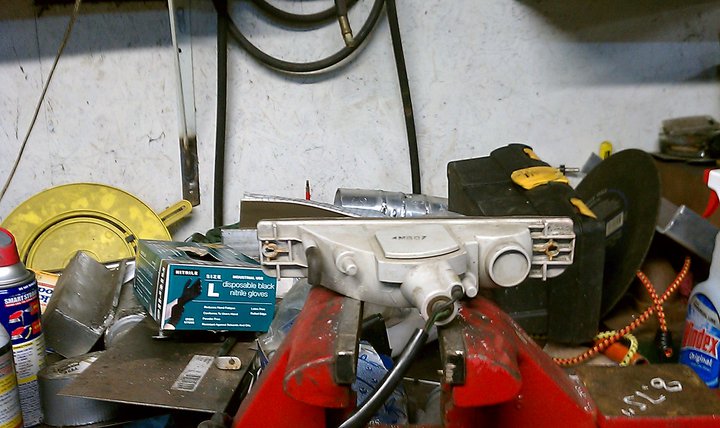

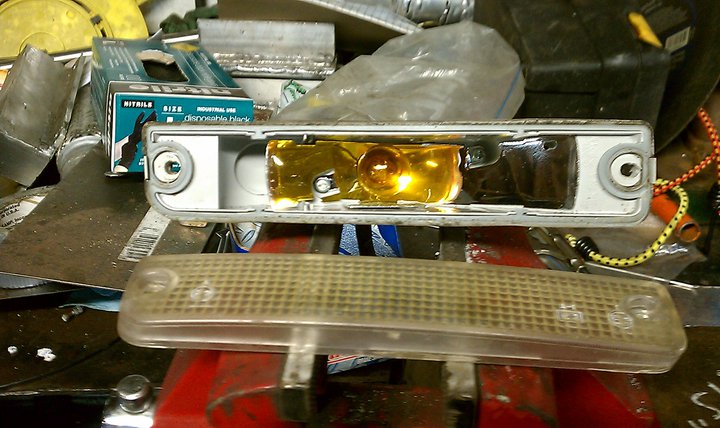

Here are the pictures!

GeenIdee

Thats what is was looking for, thanks!

But it does look like a challenge to get what i want lol.

I'll go try find a set of these.

2slow4stock

iTrader: (18)

They almost look identical besides the extra light. It's only orange because of the bulb.

GeenIdee

yea the unit is the same, mine has an extra hole in it and a different reflector
