Turbo Size Specific
#1
Full Member
Thread Starter
Join Date: May 2005
Location: New York
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Turbo Size Specific
Hello members, I'm about to purchase a 20B Motor and start the conversion process. Currently i have a Turbonetics T62-1 Turbo i would like to know if i may use this turbo on the 20B Single Turbo Conversion or would it be to small. Also i'm planning on doing either a streetport of bridgeport on the motor. So this will change the size of turbo that is needed. I do know that a lot 20B's are using T88 and such sized turbos. I'm farly new to posting so please be gental Well gang peace out.
Oscar
Oscar
#4
Rotor Head Extreme
iTrader: (8)
We need to know your hp goals. FIY Just because a lot of people run a t88 doesn't mean it's a good average choice for your application. Personally I'm going to run a turbo just large enough to reach my hp goals but at the same time small enough to give me the response I want in the low end. Lag sucks! I'll take a nice broad power band over peak power any day of the week.
Last edited by t-von; 07-10-05 at 05:01 AM.
#6
You won't need a bp 20b to spin up a greddy t88. Thats what I have on my 20b fc and there isn't such a thing as lag. I still have stock ports and the driveability is great however it does drink alot of gas.
-Destin
-Destin
#7
Senior Member
iTrader: (4)
Originally Posted by Oscar8404
Hello members, I'm about to purchase a 20B Motor and start the conversion process. Currently i have a Turbonetics T62-1 Turbo i would like to know if i may use this turbo on the 20B Single Turbo Conversion or would it be to small. Also i'm planning on doing either a streetport of bridgeport on the motor. So this will change the size of turbo that is needed. I do know that a lot 20B's are using T88 and such sized turbos. I'm farly new to posting so please be gental Well gang peace out.
Oscar
Oscar
With this turbo it's not possible for me to make more then 5 Lbs. in first and second speed.
Trending Topics
#8
BOOSTED Vert
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by teachermechanic
I have 62-1 with .70 and 1.15 A/R on my 20B (R.B. street port secondary only).
With this turbo it's not possible for me to make more then 5 Lbs. in first and second speed.
With this turbo it's not possible for me to make more then 5 Lbs. in first and second speed.
lol then obviously there is something wrong, either with your turbo or manifold design. I make about 8 psi in first and full boost as soon as I hit second.. 2 rotor, stock ports..On a full size t70
#10
BOOSTED Vert
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by sillbeer
His turbo is to small. Thats whats wrong. His motor flows to much air for that turbine.
-Destin
-Destin
#12
Full Member
Thread Starter
Join Date: May 2005
Location: New York
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Sorry for Lateness
Sorry for answering late just started school again. Where can i find the A/R i don't have the box iy came in. And i was always referred to the T62-1 no other info. When i bought it i was told the turbo is good for 750Hp. I'm not the much of a technical guy i usualy pay people to think for me in that aspect. My HP goals is over 600 but run low boost of about 400 or so and 600-750 on high boost. I will post pics or any other info you guys might need to help out. Thanks
Oscar
I found this hopefully it will help.
Oscar
I found this hopefully it will help.
Last edited by Oscar8404; 07-11-05 at 08:27 AM.
#13
BOOSTED Vert
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Oscar8404
Sorry for answering late just started school again. Where can i find the A/R i don't have the box iy came in. And i was always referred to the T62-1 no other info. When i bought it i was told the turbo is good for 750Hp. I'm not the much of a technical guy i usualy pay people to think for me in that aspect. My HP goals is over 600 but run low boost of about 400 or so and 600-750 on high boost. I will post pics or any other info you guys might need to help out. Thanks
Oscar
I found this hopefully it will help.
Oscar
I found this hopefully it will help.
#14
BOOSTED Vert
Join Date: Sep 2002
Location: Miami
Posts: 2,307
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by sillbeer
He didn't post his compressor map or give any other specs on it.
-Destin
-Destin
#15
Senior Member
iTrader: (4)
Originally Posted by MARTIN
lol then obviously there is something wrong, either with your turbo or manifold design. I make about 8 psi in first and full boost as soon as I hit second.. 2 rotor, stock ports..On a full size t70
Or i check for put 1.00 A/R.
Anyway at 5Lbs. it same power with my 2 rotor at 12Lbs.
#20
Full Member
Thread Starter
Join Date: May 2005
Location: New York
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Well Guys
Well thank for all the info guys. But i belive that i get more of you guys trying to say to get a bigger Turbo. I do like turbonetics turbo's. But i would realy like to now any one with a street port or bridge port on a 20B. I mite have to due a poll to to LET THE PEOPLE DESIDE WHAT SIZE I SHOULD GO. Basically what would you like to have or what would you like me to get for my setup. Plus it would be in a FD so space is an issue when you go big. Well thanks for all and hope to here more info.
Oscar
Oscar
#22
Full Member
Thread Starter
Join Date: May 2005
Location: New York
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Cool
ReZ311 thanks for the info i spoke with my engine builder and he highly encouraged me to do a Large Street Port. So that's what i'm going for. And for the sequential turbo's i pretty much want to build it to it's fullist and not have to worry about upgrading later. Plus to be honest i did not like to seq turbo's one turbo is good for me.
#23

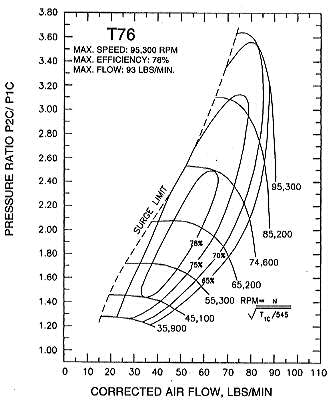

If you want to build this to it's fullest potential check out auto-illusions thread. He's building a 1000rwhp bridgeport 20b fd. Nothing on it seems to be left out. Is that what your looking for? I seriously doubt it'll be much fun to drive on a regular basis. With some more tuning i'll easily be over 600rwhp with a greddy t88. With a small streetport and a t76 you'll see over 700rwhp with ease.
-Destin
-Destin
#24
Rebreaking things
Join Date: Jun 2001
Location: 1 foot in Boston 1 in NJ
Posts: 2,586
Likes: 0
Received 0 Likes
on
0 Posts

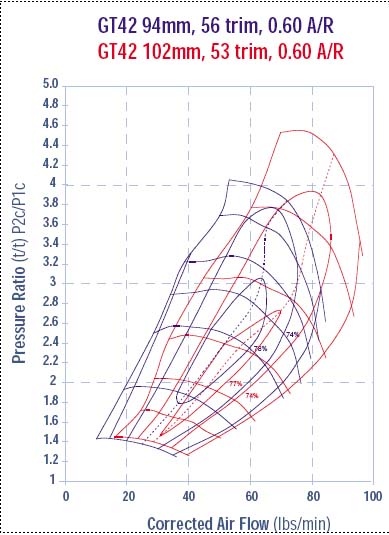

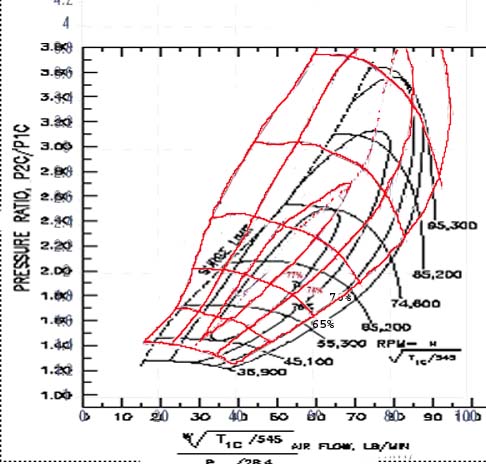

A T76 and GT42R (large) are about the same size. I believe both will be good for 600+ at around 15psi. 700 sounds like a stretch -depending on what psi 'with ease' equates to
