Rx3SP 20B HP Project street car
#1
Rotary Enthusiast
Thread Starter
Rx3SP 20B HP Project street car
Rene built 20B project street car.

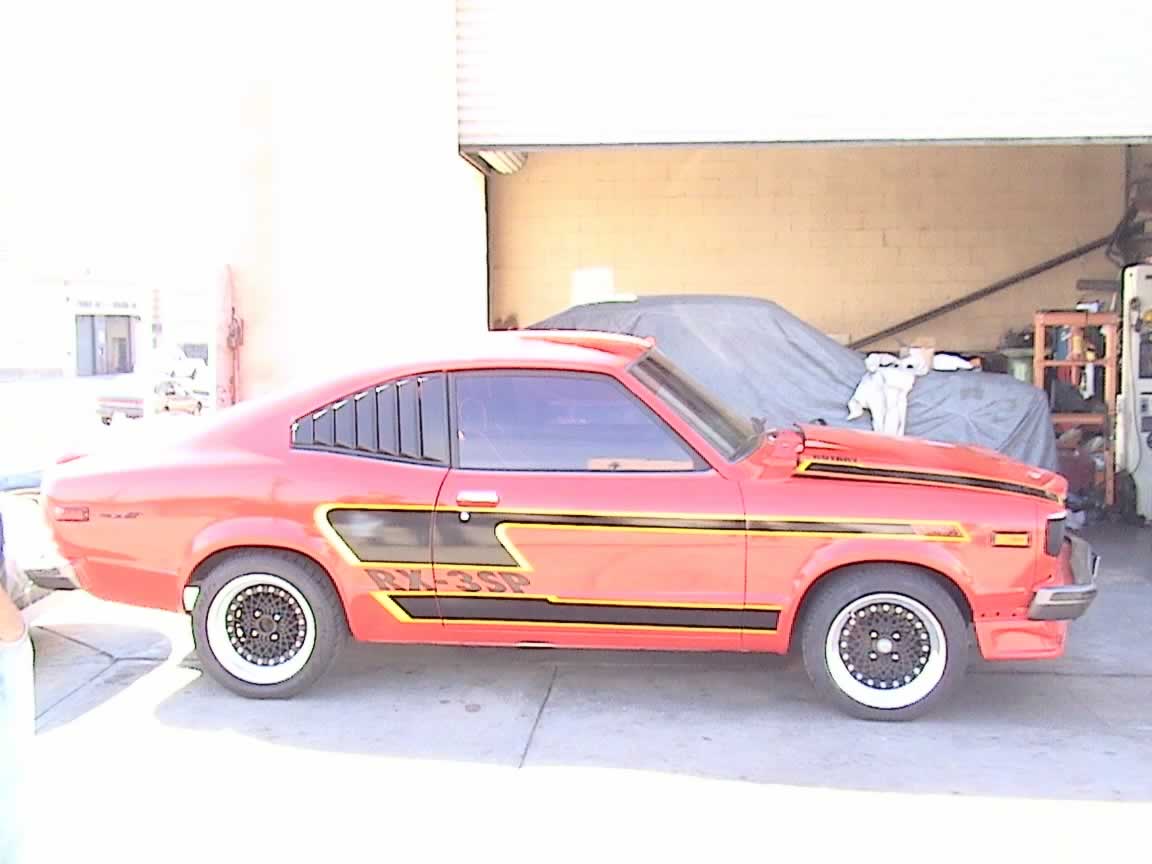

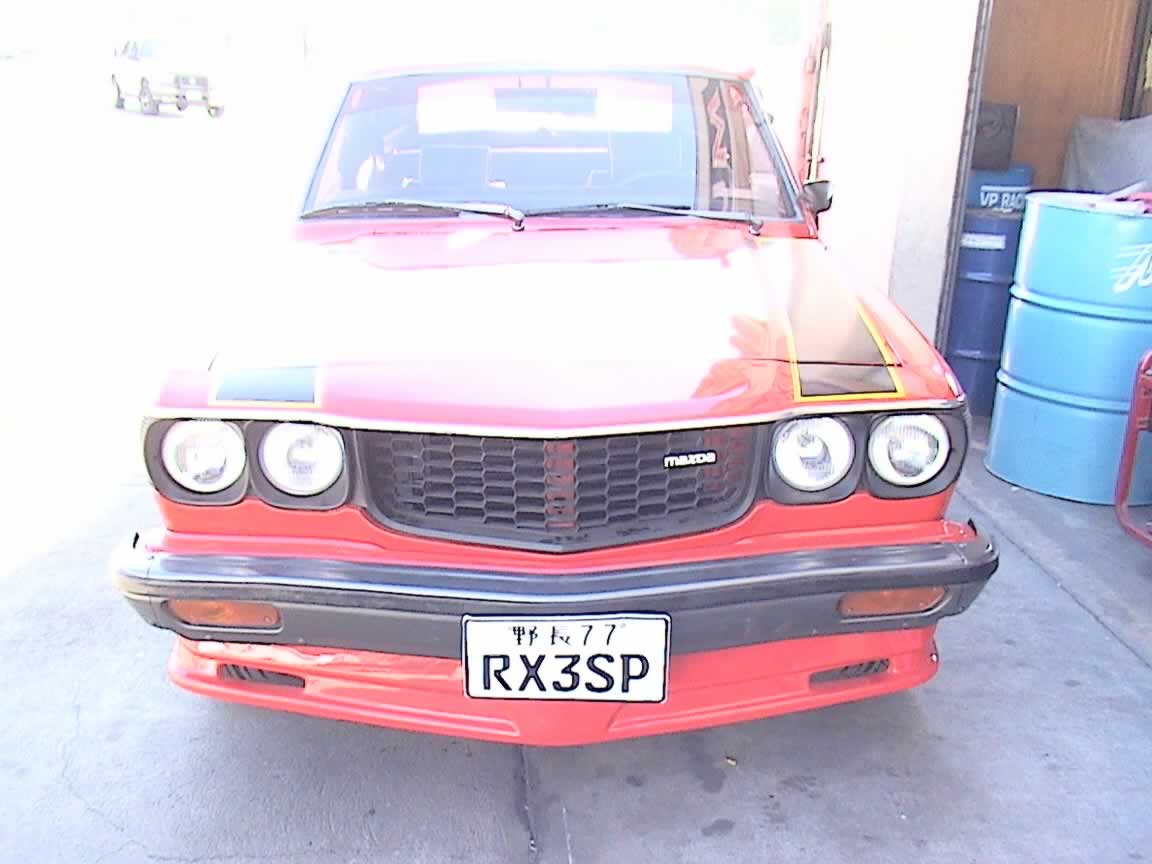

This is the story of a Rx3SP transformed to a 20B monster street car.

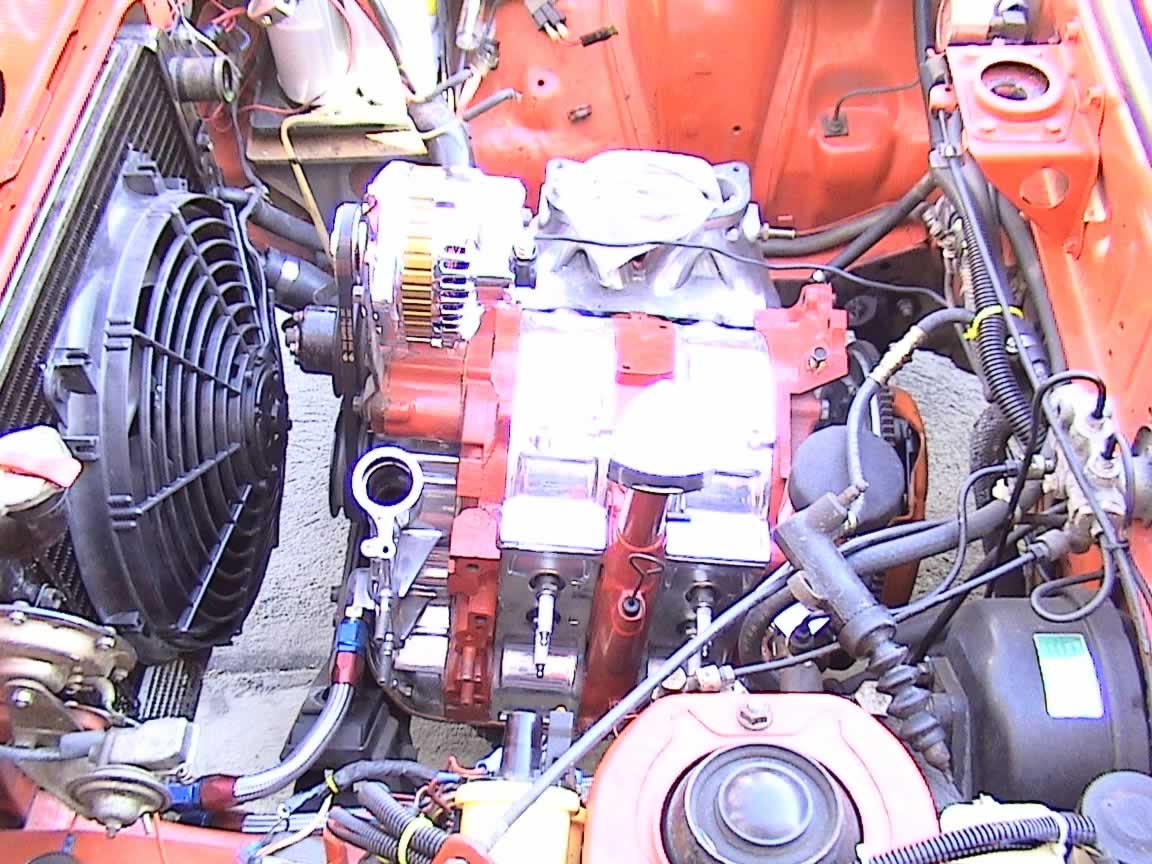

This project was started late december to be transplanted from a 13B
to 20B,not only a 20B but a really radical high powered (almost full race)setup for the
street.This project was suppose to stay secret but pictures got out and the demand
was given to see more of this project.I have no choice but to show and tell from
now on.Here hare some pictures of the first stages of the project.There will be more
pictures as the Rx3SP gets closer to the finishing stages.As of this moment the Rx3
project is 75% finish.To top this off this is about the 3rd week from the start of the
project and it is about 75% done.My goal is to finish before the end of this month,
that is starting it and tuning the 20B.
This has been my job as a fabricator for the last 10years,i started working on my cars
and learned from it and now it has been a job applying all i know from racing experience to the costumers.Let me know what you people think, hope i get some good feedback.
This is the story of a Rx3SP transformed to a 20B monster street car.
This project was started late december to be transplanted from a 13B
to 20B,not only a 20B but a really radical high powered (almost full race)setup for the
street.This project was suppose to stay secret but pictures got out and the demand
was given to see more of this project.I have no choice but to show and tell from
now on.Here hare some pictures of the first stages of the project.There will be more
pictures as the Rx3SP gets closer to the finishing stages.As of this moment the Rx3
project is 75% finish.To top this off this is about the 3rd week from the start of the
project and it is about 75% done.My goal is to finish before the end of this month,
that is starting it and tuning the 20B.
This has been my job as a fabricator for the last 10years,i started working on my cars
and learned from it and now it has been a job applying all i know from racing experience to the costumers.Let me know what you people think, hope i get some good feedback.
Last edited by 61620B; 01-19-07 at 10:13 PM.
#3
Rotary Enthusiast
Thread Starter
Rx3 project

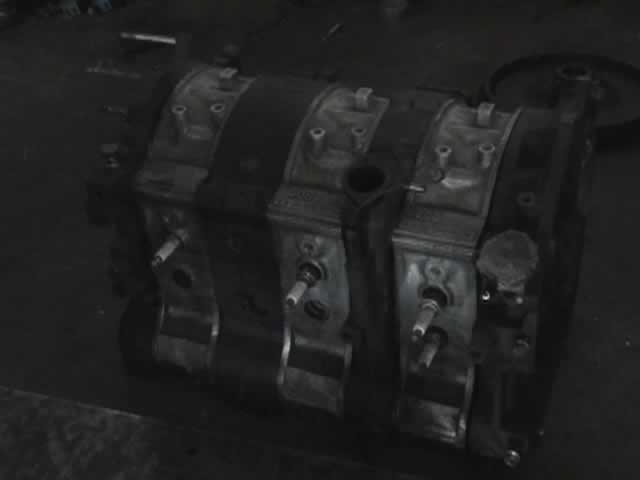

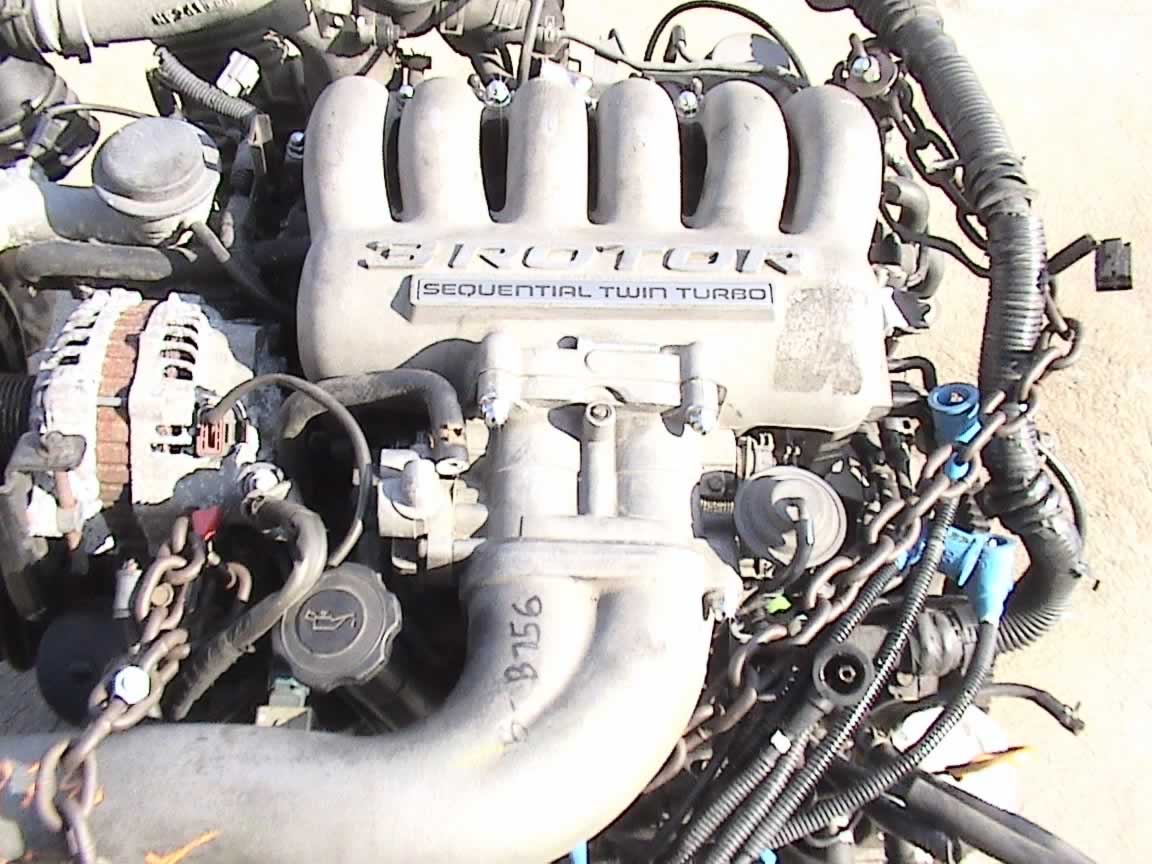

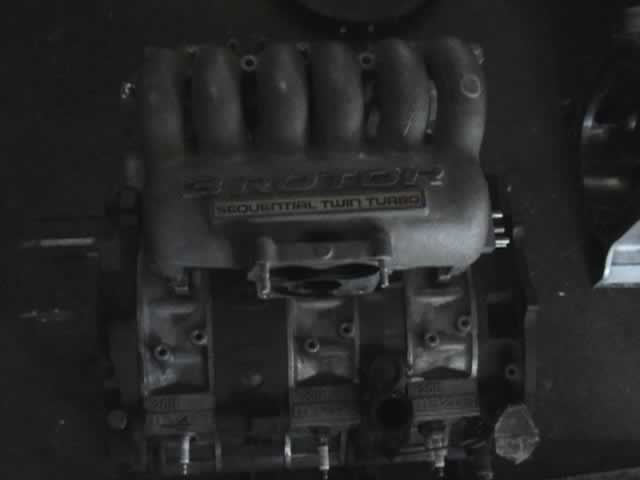

Here is the 20B engine bone stock when i got it,first picture
Here the engine stripped to the bone,2nd picture.
Here is the engine being before polishing and cleaning.
Here the engine stripped to the bone,2nd picture.
Here is the engine being before polishing and cleaning.
#4
Rotary Enthusiast
Thread Starter
Rx3 project
Here are other picture of the engine put together (monster street port) and Pinned using the stud kit for the 20B.It took about a week to do the engine alone.1st picture

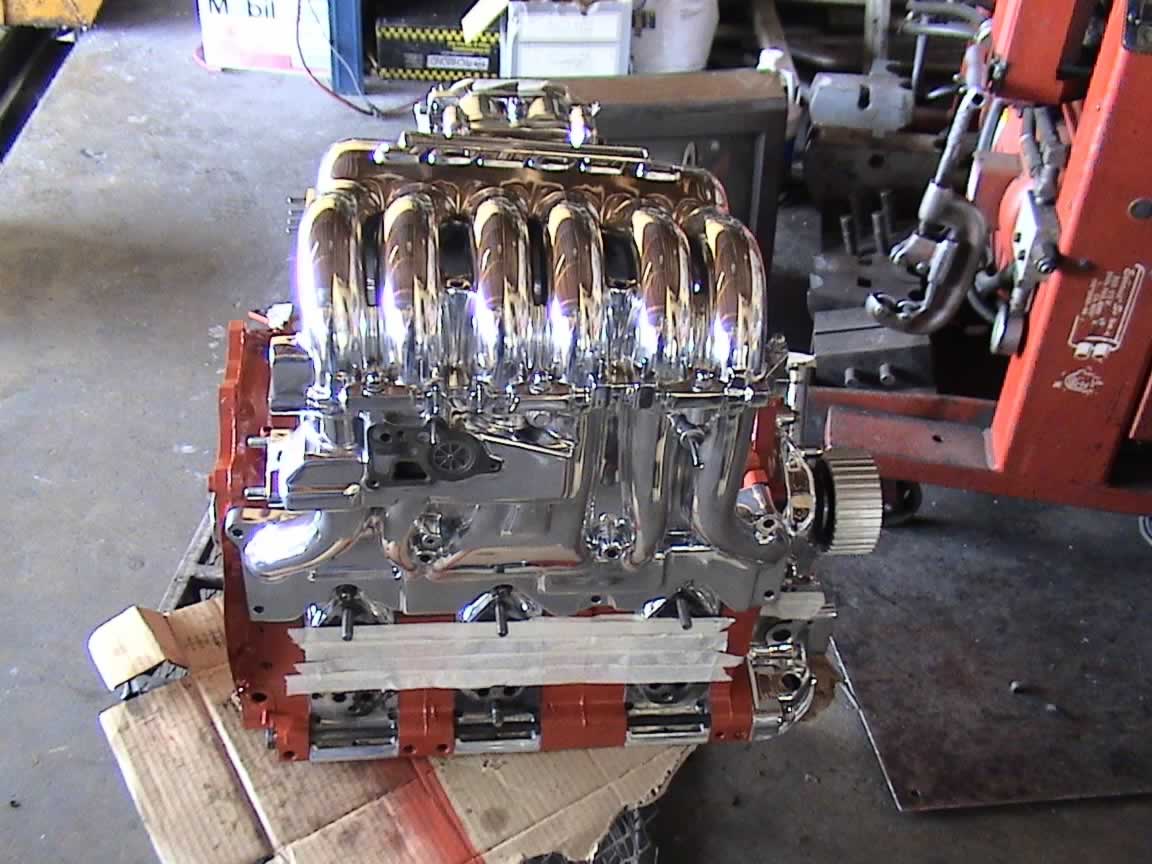

Here is the engine with the polish intake manifold (really good polisher guy)top and bottom polish.2nd picture
Here is the engine from another shot of all the intake part being put together.3rd picture.
Here is the engine with the polish intake manifold (really good polisher guy)top and bottom polish.2nd picture
Here is the engine from another shot of all the intake part being put together.3rd picture.
#5
Rotary Enthusiast
Thread Starter
Rx3 project

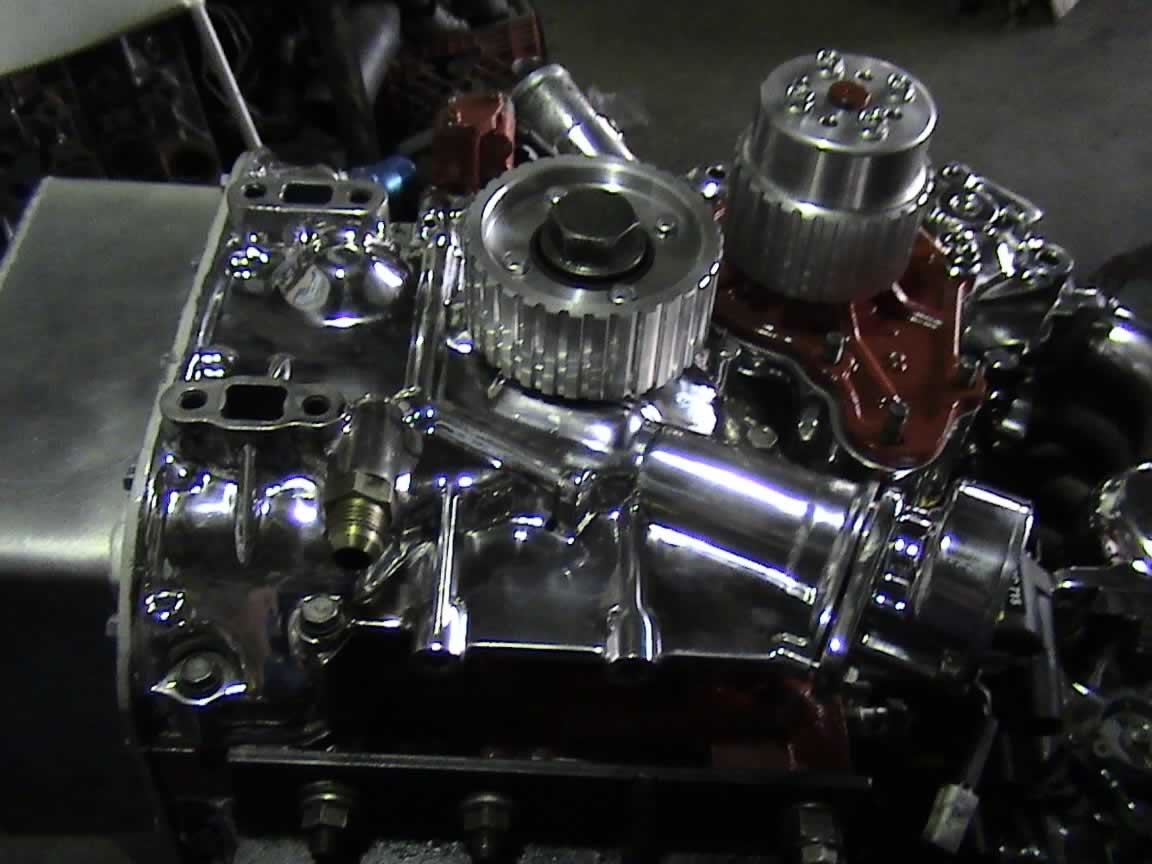

Here is the engine with the front cover and pulleys.1st picture

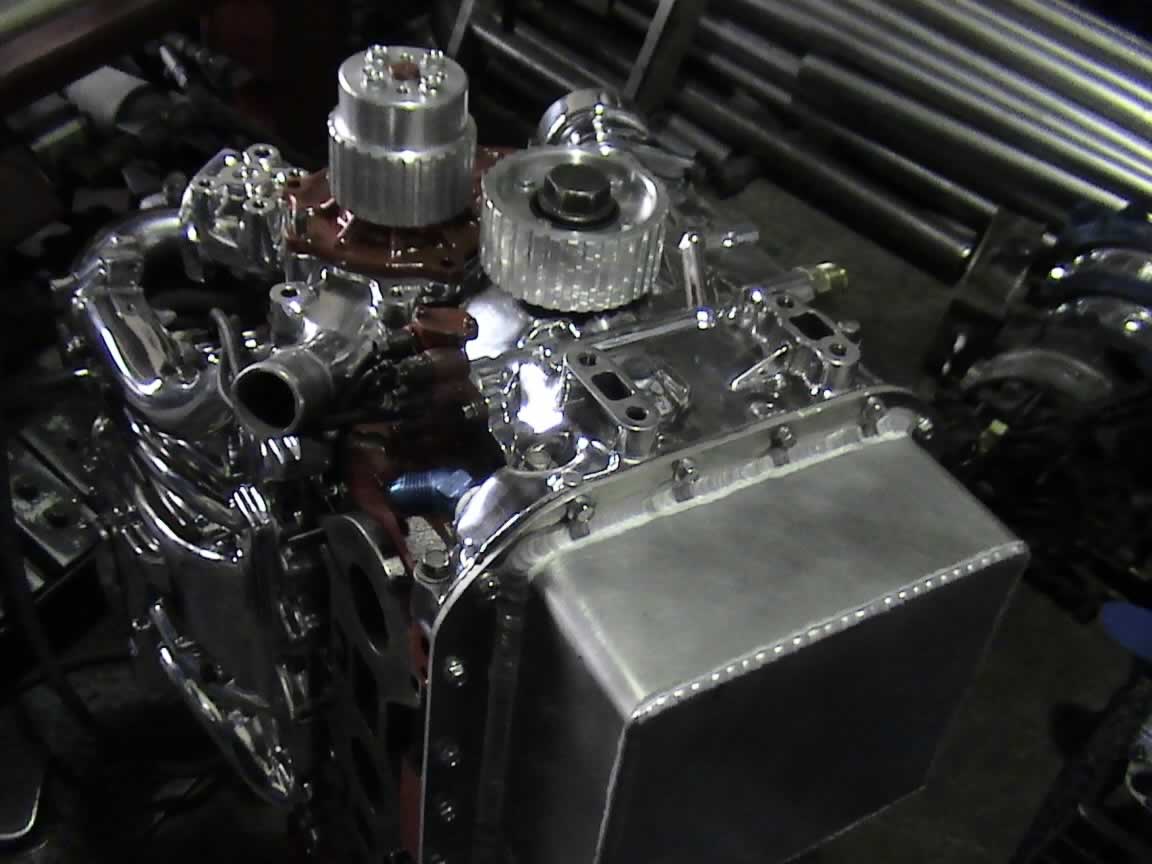

Here is the engine with the custom pan made by me(Rene Jr). 2nd picture

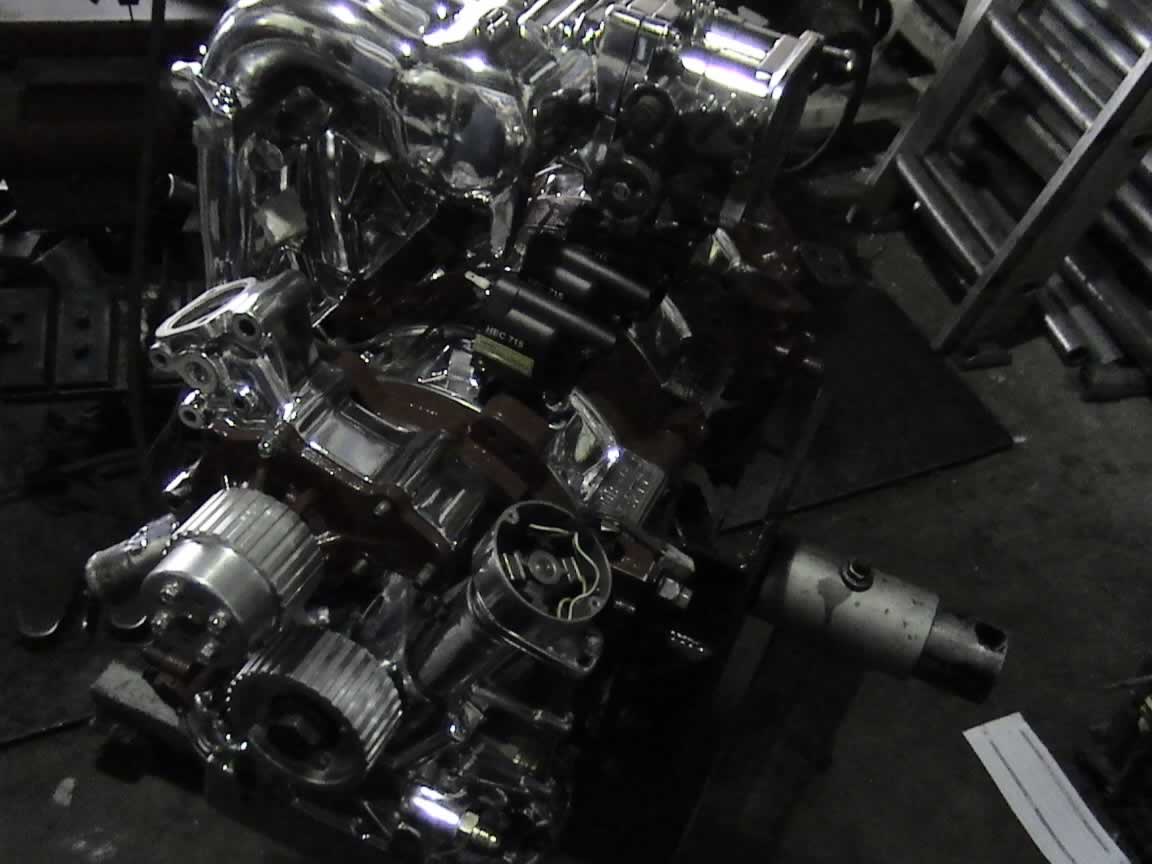

Here is the engine with the 2nd gen dizzy and coils on stand. 3rd picture
Here is the engine with the custom pan made by me(Rene Jr). 2nd picture
Here is the engine with the 2nd gen dizzy and coils on stand. 3rd picture
#6
registered user
iTrader: (1)
Join Date: Jan 2006
Location: San Diego
Posts: 2,469
Likes: 0
Received 0 Likes
on
0 Posts
Looks like oversised studs?
Just curios, why not all of them?
What do the internals consist of? I'd like to know all of the pertinent details?
very nice work, I hope you have a good roll cage in that thing.
Just curios, why not all of them?
What do the internals consist of? I'd like to know all of the pertinent details?
very nice work, I hope you have a good roll cage in that thing.
#7
Rotary Enthusiast
Thread Starter
Rx3 project

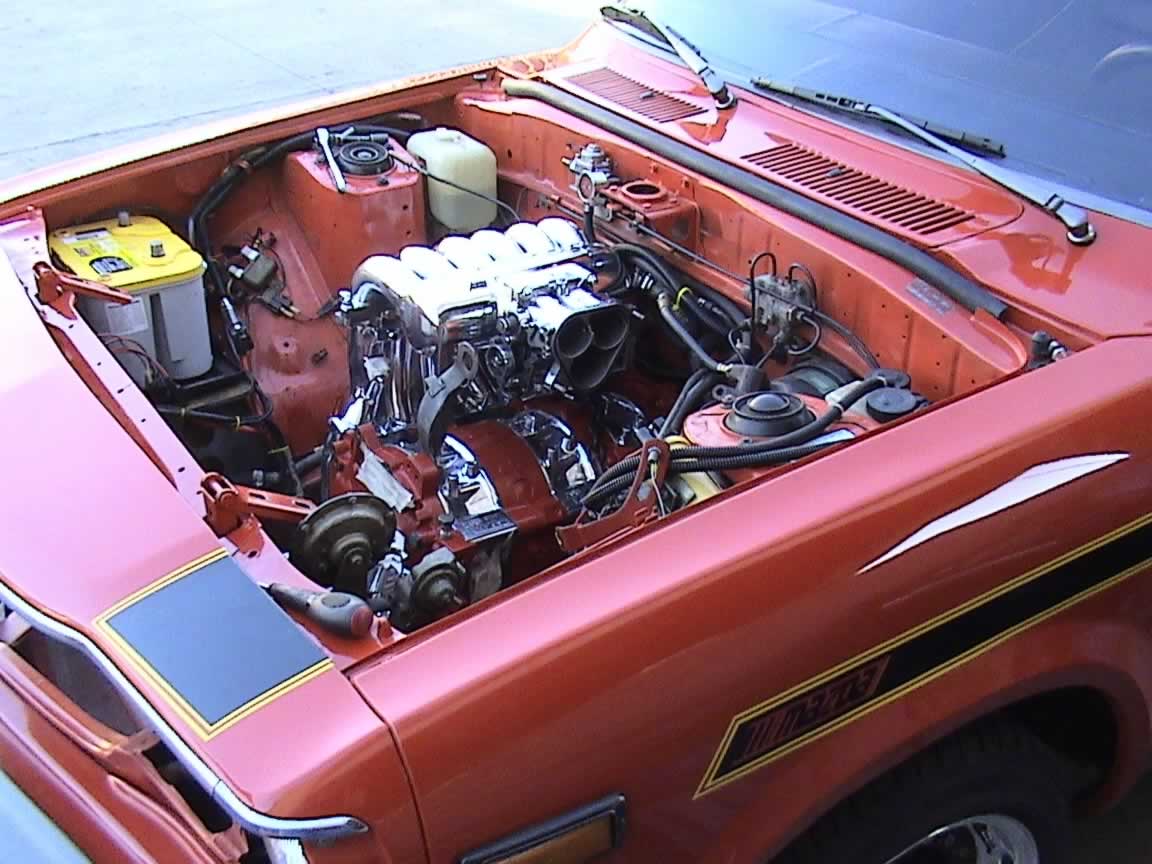

Here is the 20B engine on the Rx3 for the first time. 1st picture
Here is a side view picture of the 20B engine. 2nd picture

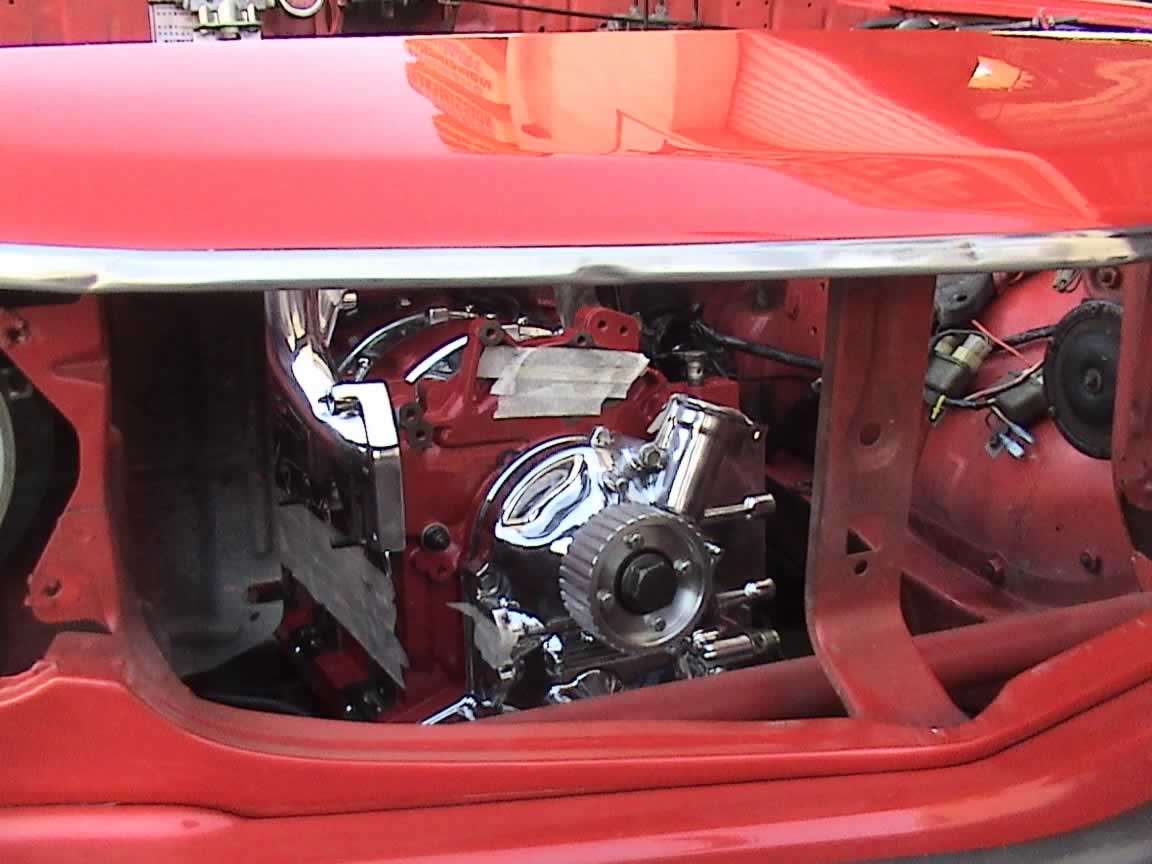

Here is a front view of the 20B engine showing the pulleys. 3rd picture
Here is a side view picture of the 20B engine. 2nd picture
Here is a front view of the 20B engine showing the pulleys. 3rd picture
Trending Topics
#8
Rotary Enthusiast
Thread Starter
The engine is a B series block, big street port, modified oiling,stock 20B engine
rotors with 2mm ianetti seals.
Microtech LT12 series with individual coils system.All bosh injectors all around.
custom fuel rails primary and secondary.

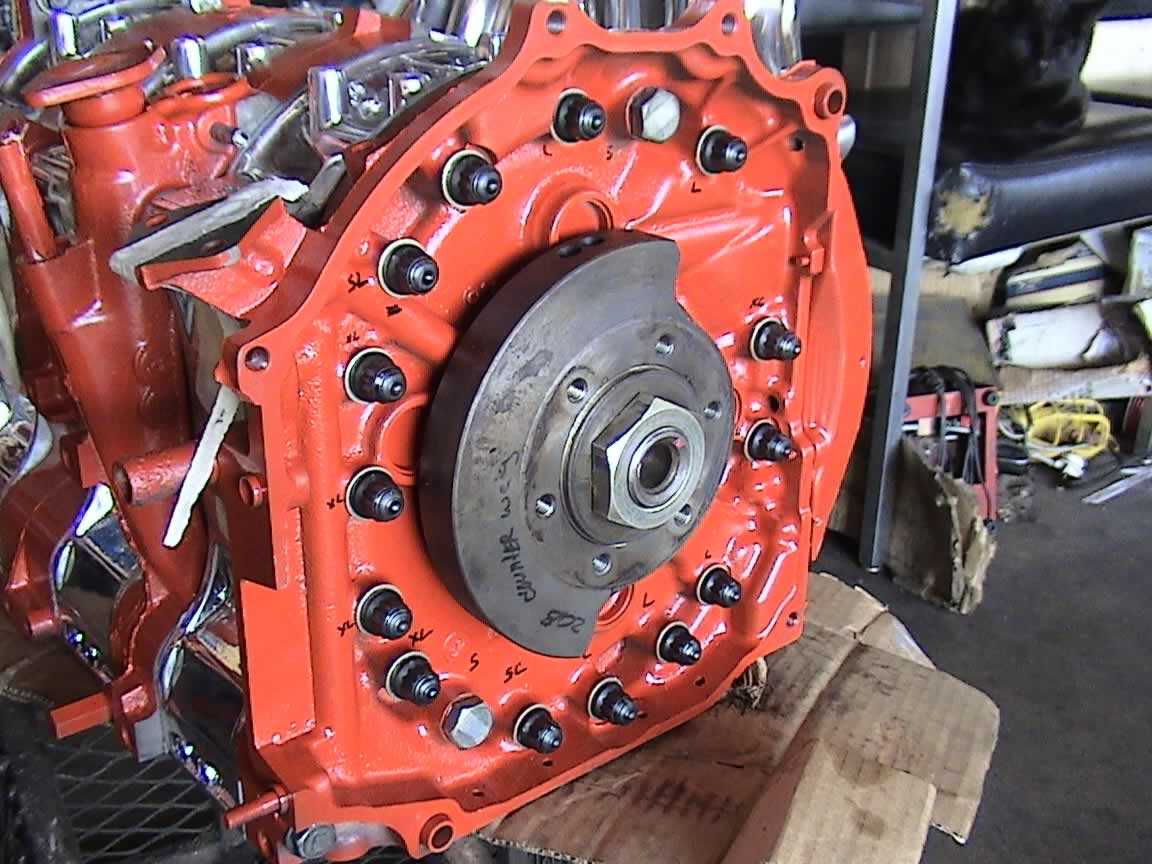

The 2 stock bolts where left there because they are really big in diameter stock,
and the stock thread vs the oversize thread are really close in diameter so i took
the chance of not cross threading the 20B iron,they are two different threads.
rotors with 2mm ianetti seals.
Microtech LT12 series with individual coils system.All bosh injectors all around.
custom fuel rails primary and secondary.
The 2 stock bolts where left there because they are really big in diameter stock,
and the stock thread vs the oversize thread are really close in diameter so i took
the chance of not cross threading the 20B iron,they are two different threads.
Last edited by 61620B; 01-19-07 at 11:35 PM.
#15
Rotary Enthusiast
Thread Starter
Rx3 project
Yes it is a Guru stud kit,But it takes alot of machine work to make them fit.
On the 20B there are about 5 extra long bolts that go through the entire
engine.You have the replace the stock short bolts.
On the 20B there are about 5 extra long bolts that go through the entire
engine.You have the replace the stock short bolts.
#16
Rotary Enthusiast
Thread Starter
Rx3 project
Here are some more pictures of last saturdays work.

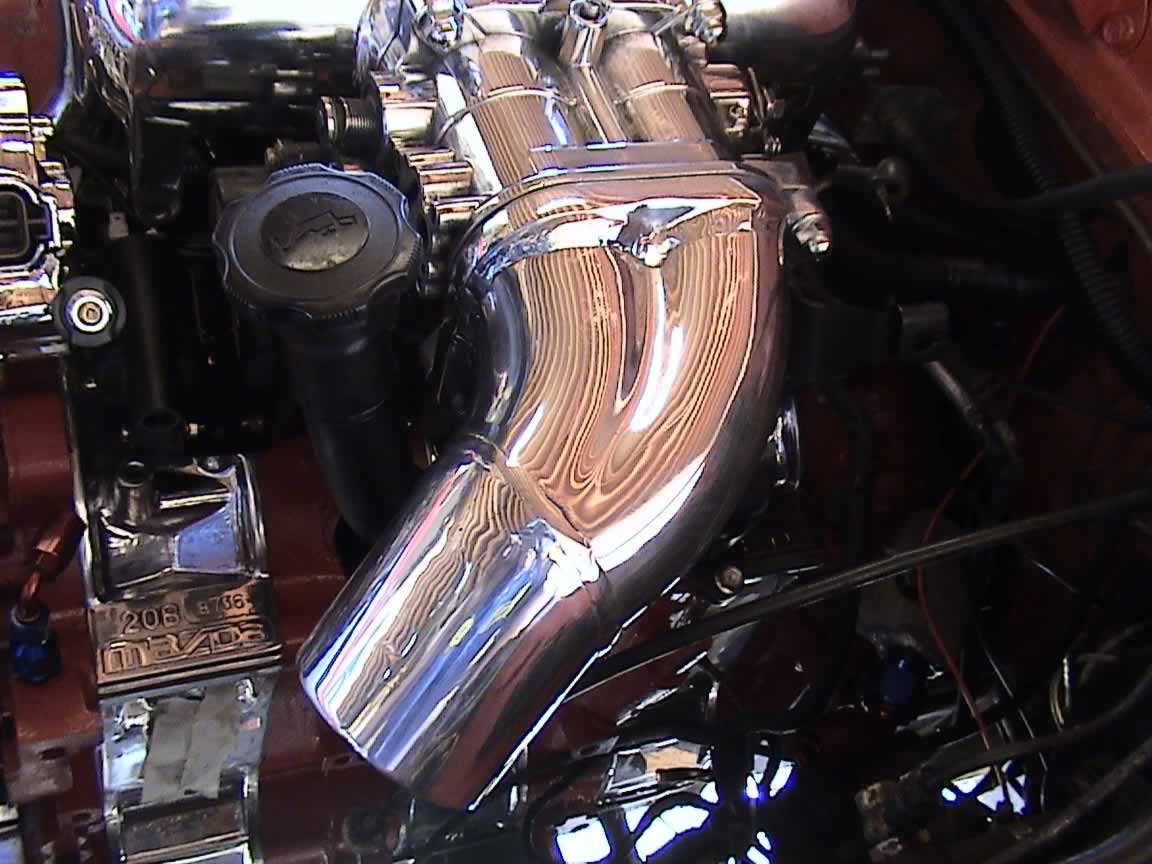

On this picture you can see the custom made intake elbow i reconfigure from the stock piece.1st pic

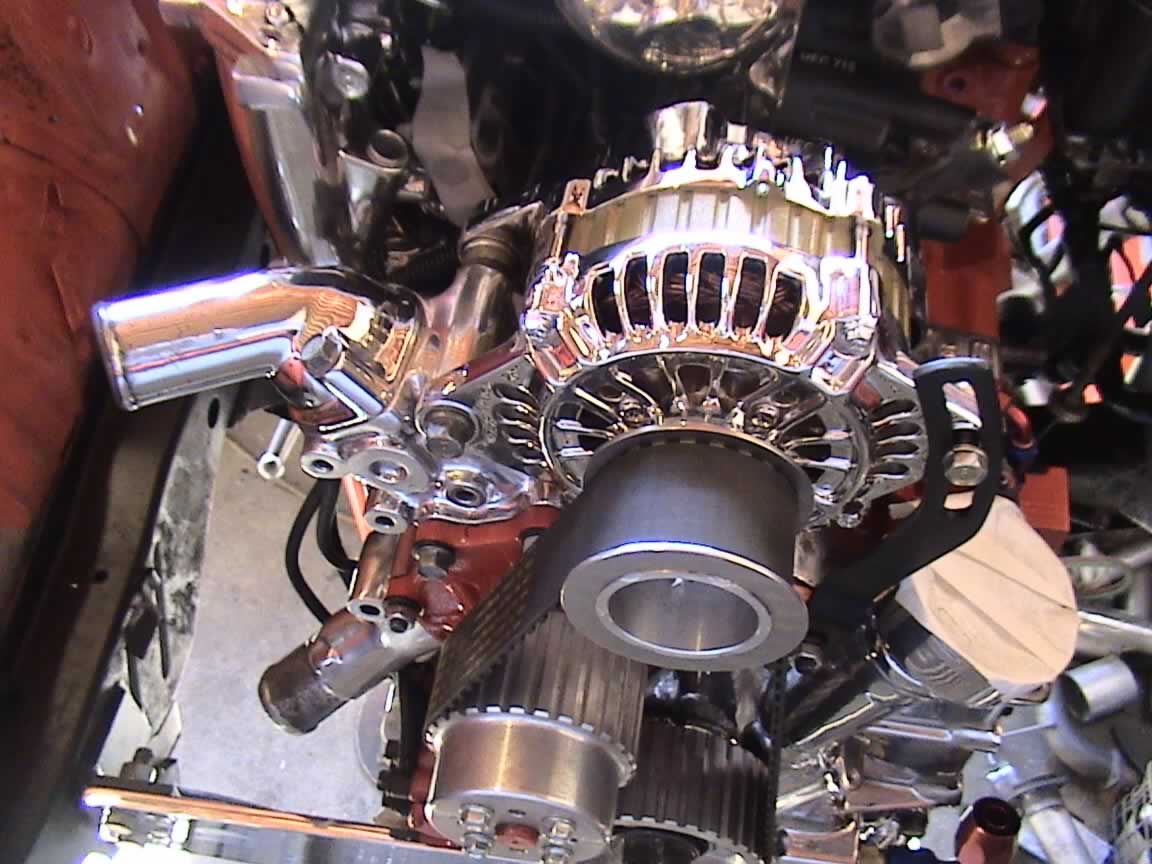

This one you can see the Gilmer drive pulleys and the super polish alternators.2nd pic

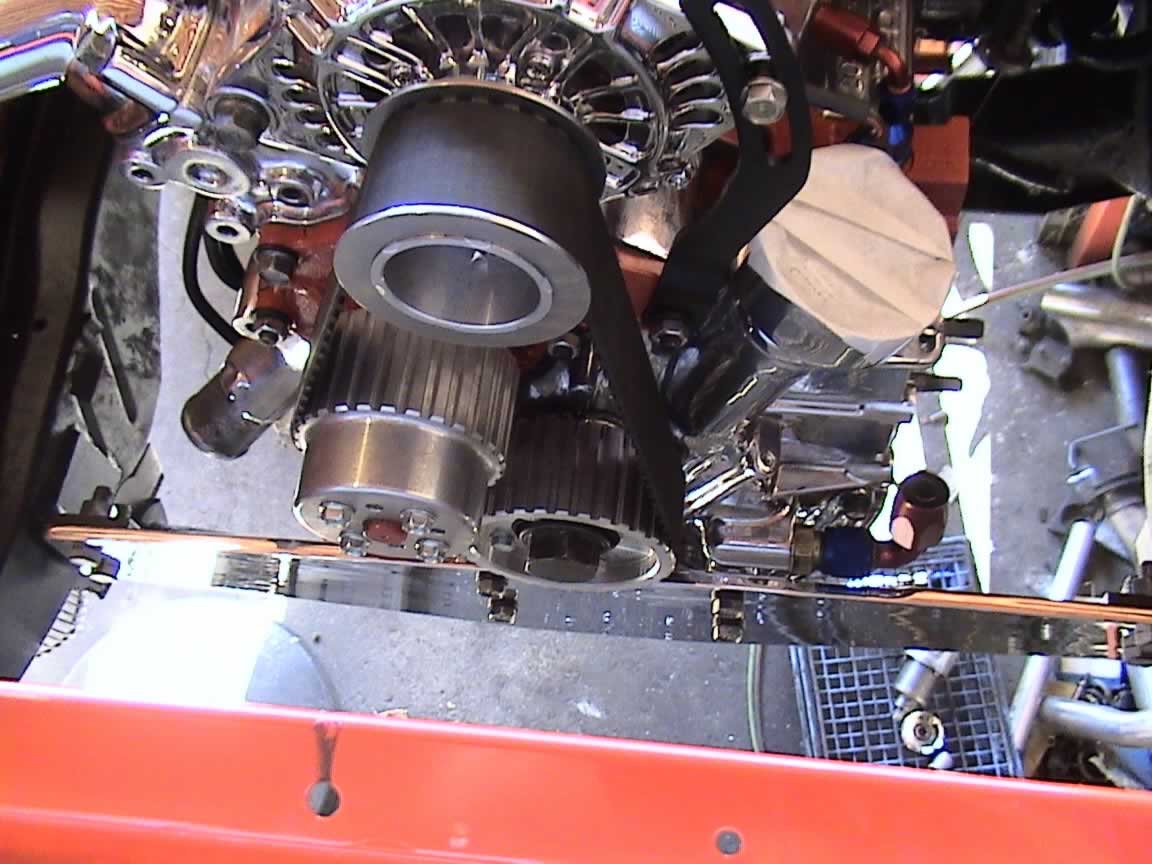

This one is a picture of the front custom made motor mount that i hand fabricated from aluminum,this part is all hand polish (not chrome dipped).3rd pic

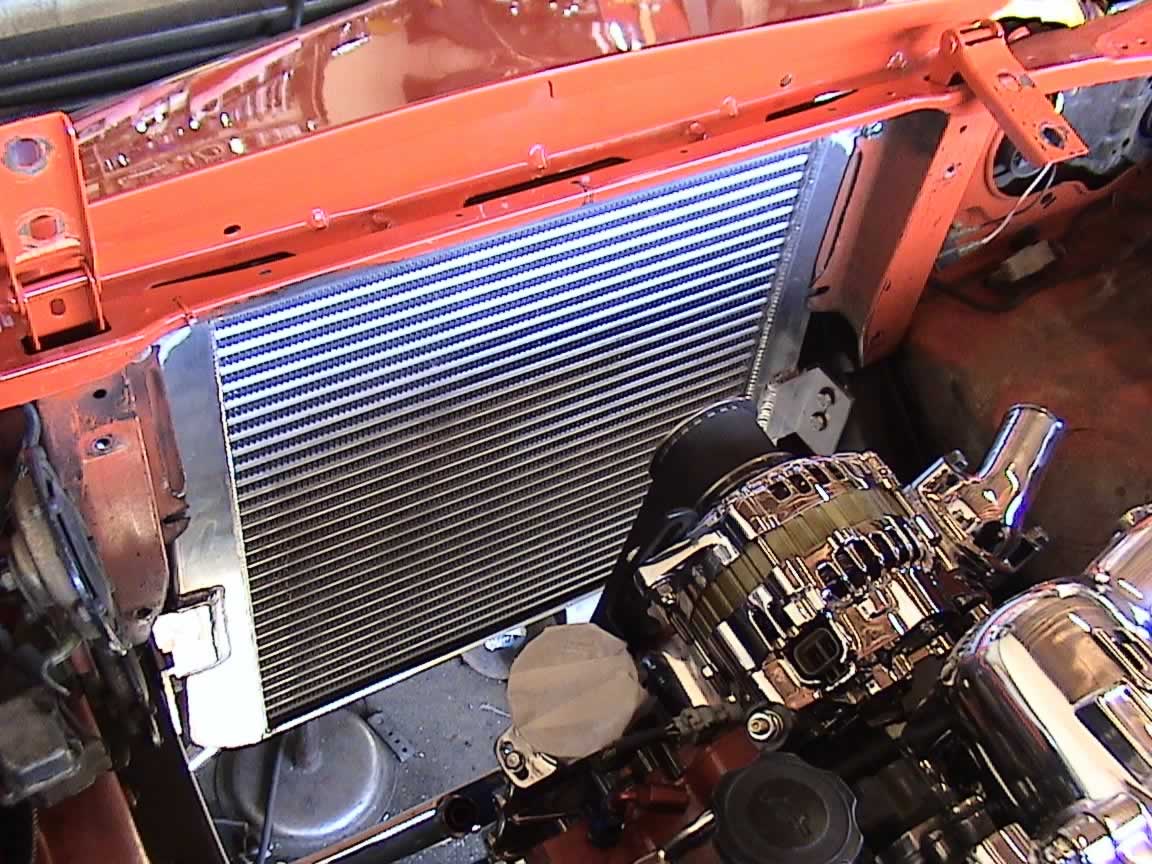

Here is a picture of the big frontmount intercooler,3" in and outlets,all bolted down
and snug in that front portion of the nose. 4th pic

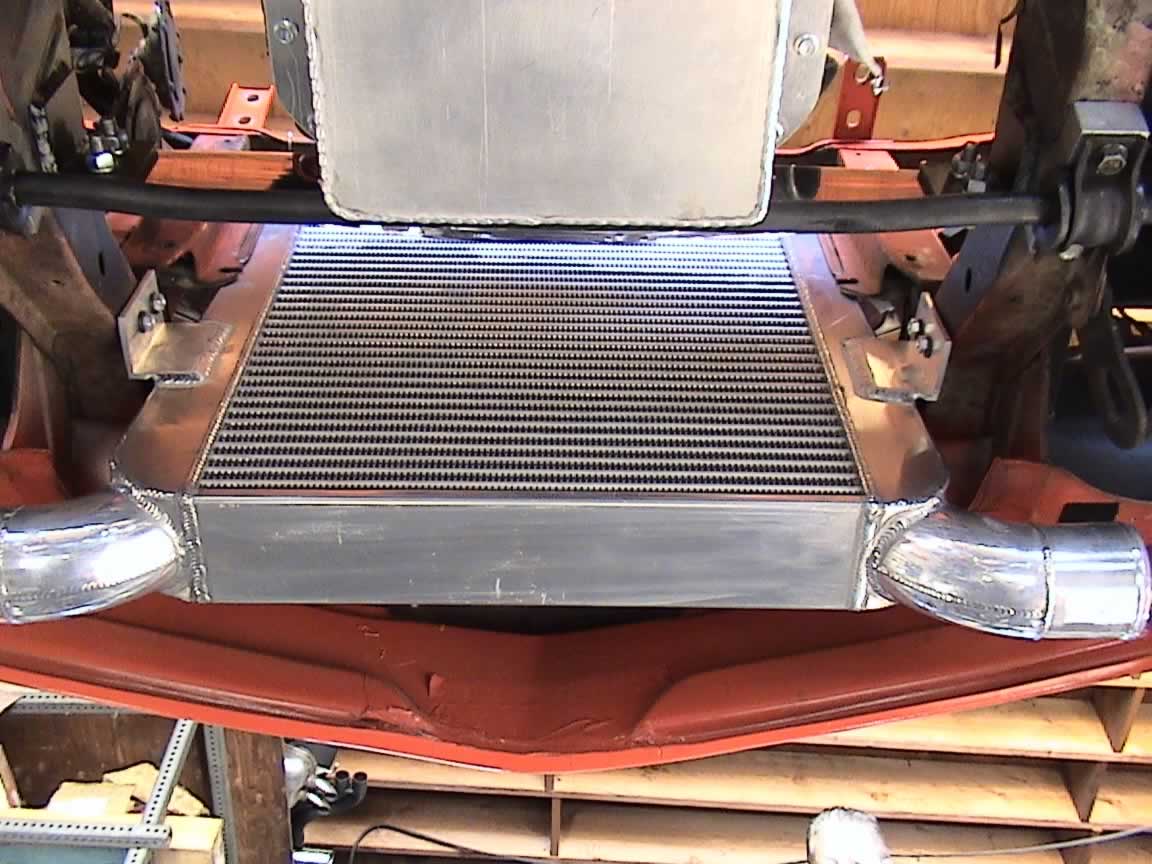

This is a closeup of the huge custom front mount from the bottom of the Rx3. 5th pic
On this picture you can see the custom made intake elbow i reconfigure from the stock piece.1st pic
This one you can see the Gilmer drive pulleys and the super polish alternators.2nd pic
This one is a picture of the front custom made motor mount that i hand fabricated from aluminum,this part is all hand polish (not chrome dipped).3rd pic
Here is a picture of the big frontmount intercooler,3" in and outlets,all bolted down
and snug in that front portion of the nose. 4th pic
This is a closeup of the huge custom front mount from the bottom of the Rx3. 5th pic
#19
Rotary Enthusiast
Thread Starter
Rx3 project
Yes i am using the stock air temp i left it on the bottom of the elbow so you can't
see it with all the bling.
There is a shop here local that does all the polishing for me,He polishes like a
a mirror,even on the cracks.
see it with all the bling.
There is a shop here local that does all the polishing for me,He polishes like a
a mirror,even on the cracks.
#20
rebreaking things
Join Date: Apr 2006
Location: Manhattan
Posts: 866
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by 61620B
Yes i am using the stock air temp i left it on the bottom of the elbow so you can't
see it with all the bling.
There is a shop here local that does all the polishing for me,He polishes like a
a mirror,even on the cracks.
see it with all the bling.
There is a shop here local that does all the polishing for me,He polishes like a
a mirror,even on the cracks.
#22
Rotary Enthusiast
Thread Starter
Rx3 project
We plan to use a ford 9" rear end with big disc brake setup.
The microtech system uses the stock mazda sensor to read the
air/water temp.The air temp sensor has a little wire with a resistor.
The microtech system uses the stock mazda sensor to read the
air/water temp.The air temp sensor has a little wire with a resistor.
#23
Rotary Enthusiast
Thread Starter
Rx3 project
Here is an update the Rx3 is 95% finish,just some wiring and that is it!!!
Hope to start up tomorrow,Sat 27.
This project is a new personal record for me, a complete swap with all custom
made parts in just under 4 weeks.
It took me 2 months to complete my 20B on my car when i started from nothing.
Hope to start up tomorrow,Sat 27.
This project is a new personal record for me, a complete swap with all custom
made parts in just under 4 weeks.
It took me 2 months to complete my 20B on my car when i started from nothing.
#24
Eats, Sleeps, Dreams Rotary
iTrader: (1)
Originally Posted by 61620B
Here is an update the Rx3 is 95% finish,just some wiring and that is it!!!
Hope to start up tomorrow,Sat 27.
This project is a new personal record for me, a complete swap with all custom
made parts in just under 4 weeks.
It took me 2 months to complete my 20B on my car when i started from nothing.
Hope to start up tomorrow,Sat 27.
This project is a new personal record for me, a complete swap with all custom
made parts in just under 4 weeks.
It took me 2 months to complete my 20B on my car when i started from nothing.
